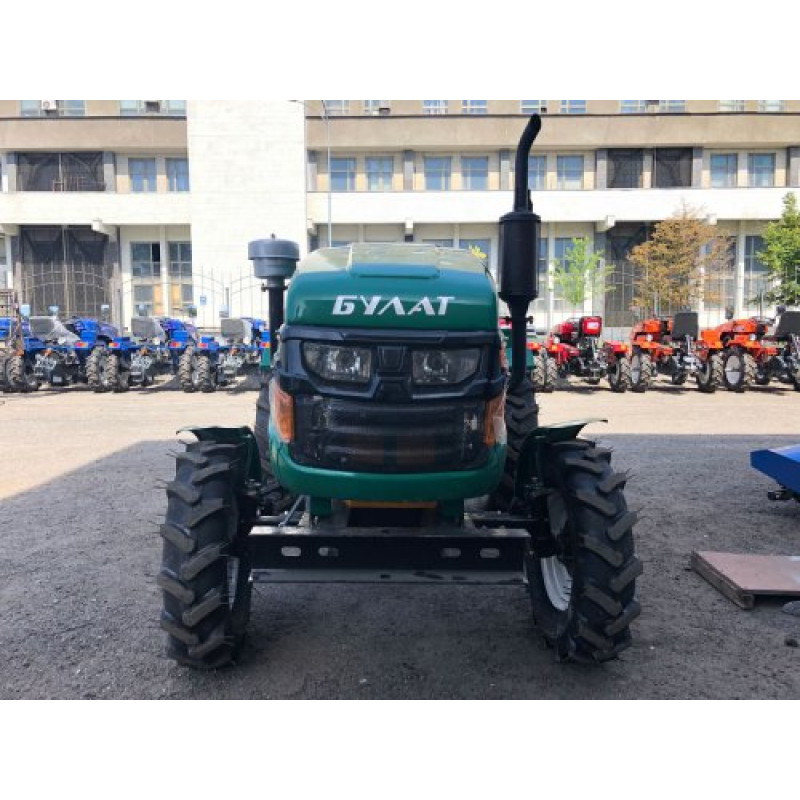

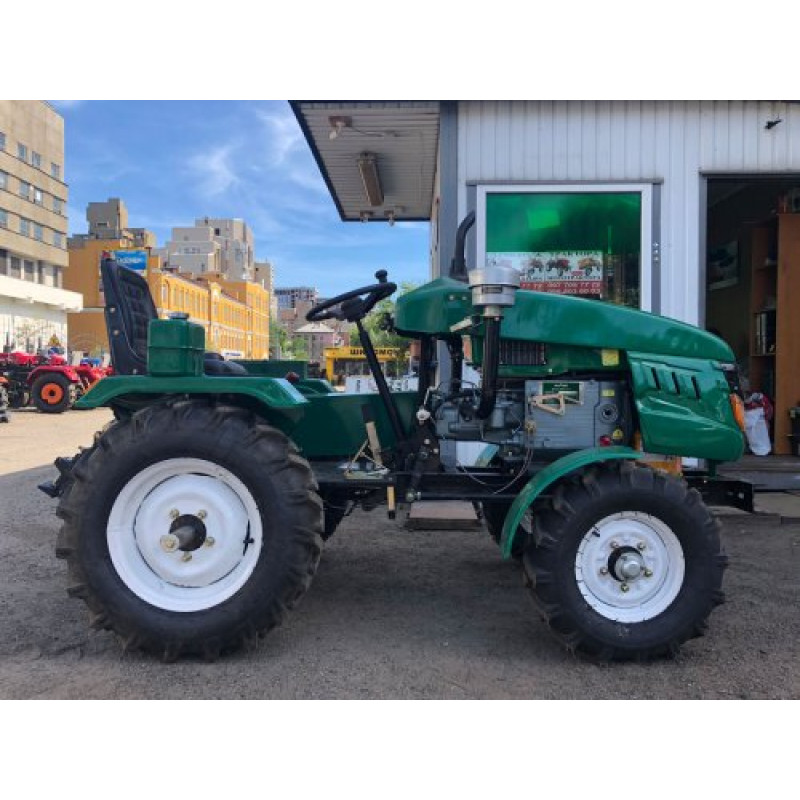

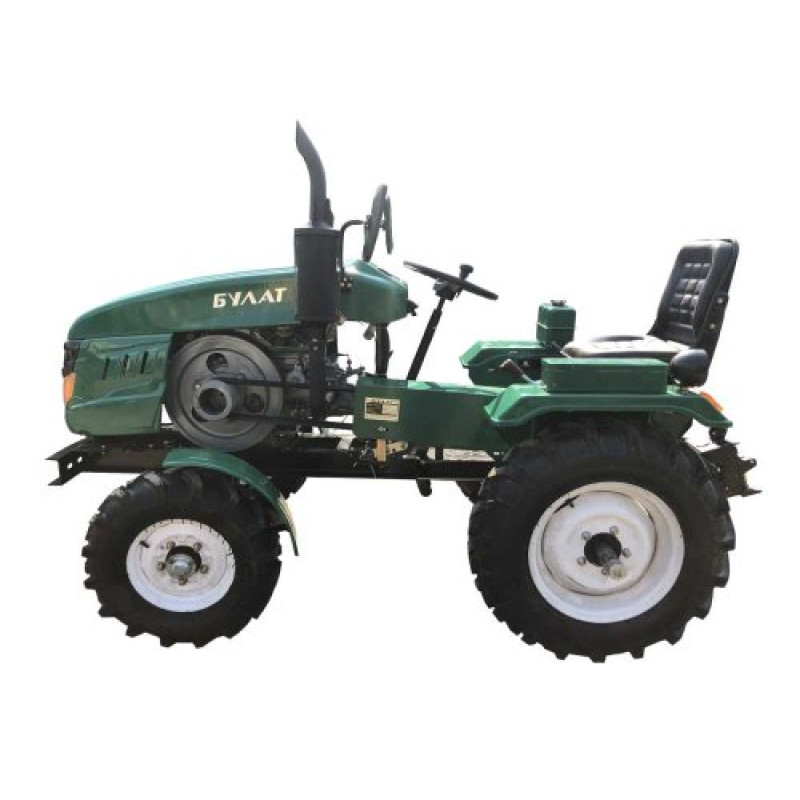

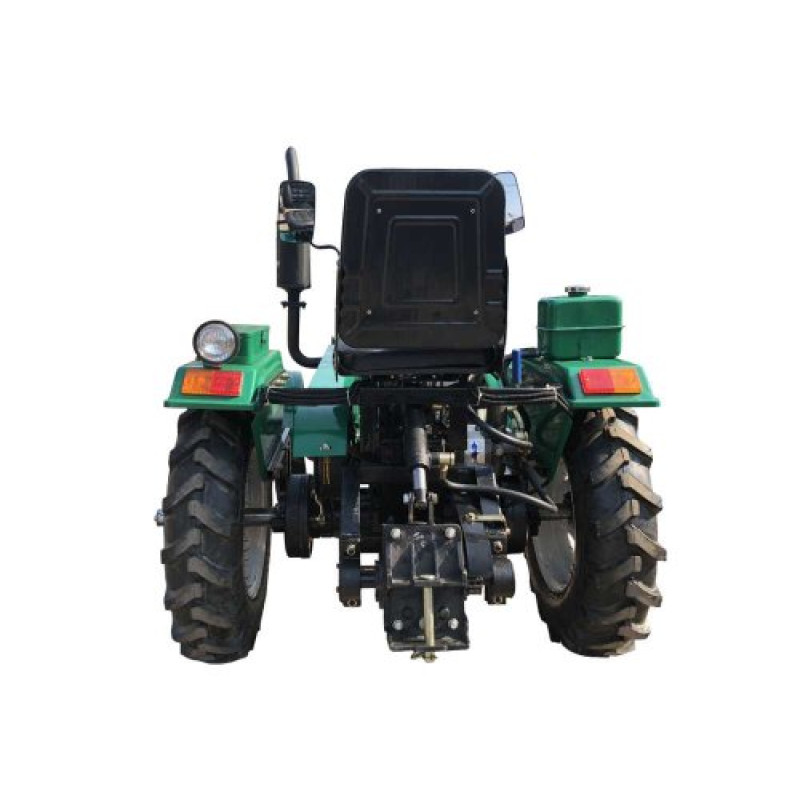

Bulat T-22 Mototractor — a Mobile Universal Unit for Homestead and Farm Work
The Bulat T-22 mototractor from the manufacturer Bulat is a reliable and productive machine designed for use in garden and park areas, farms, and the private sector. The model combines compact dimensions with high traction and an affordable price; purchase options with credit and delivery throughout Ukraine are available. The Bulat T-22 is suitable for those looking for efficient special equipment for tillage, transportation, and working with attachments.
Why Choose Bulat T-22
Compared to the T-15 model, this modification features structural and operational improvements that enhance its service life and ease of use. The main advantages of the model are:
- 1. Stated engine power of 22 hp, which is significantly higher than typical analogs with 12–15 hp; the technical specifications for the ZS1115-T engine indicate a maximum power of 20 hp (14.71 kW) and a nominal power of 18.1 hp (13.31 kW).
- 2. Guaranteed service life of 4000 engine hours; in practice, inter-service intervals can be even longer.
- 3. Ability to forcibly lock the drive axle to improve cross-country capability in difficult conditions.
- 4. Planetary differential reduces the turning radius and minimizes premature tire wear.
- 5. Hydraulic system with two main distributors and four operating modes, including a floating position, which expands the possibilities for attachments.

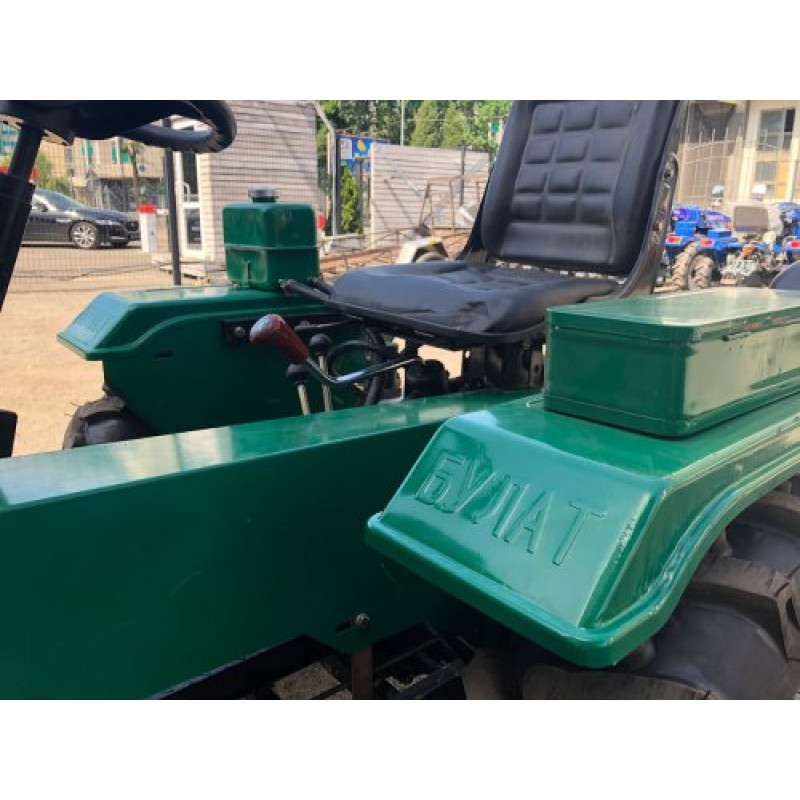

- 6. Adjustable seat ensures comfortable seating for operators of various builds.
Owner reviews confirm the wide compatibility of the Bulat T-22 with attachments from various manufacturers, making it versatile in use.
Product type information: Tractors > Mototractors.
Key technical specifications and configuration:
Country of origin: | China |
Country of assembly: | Ukraine |
Overall dimensions, mm: | 2500/1300/1300 |
Ground clearance, cm: | 30 |
Structural weight, without attachments, kg: | 680 |

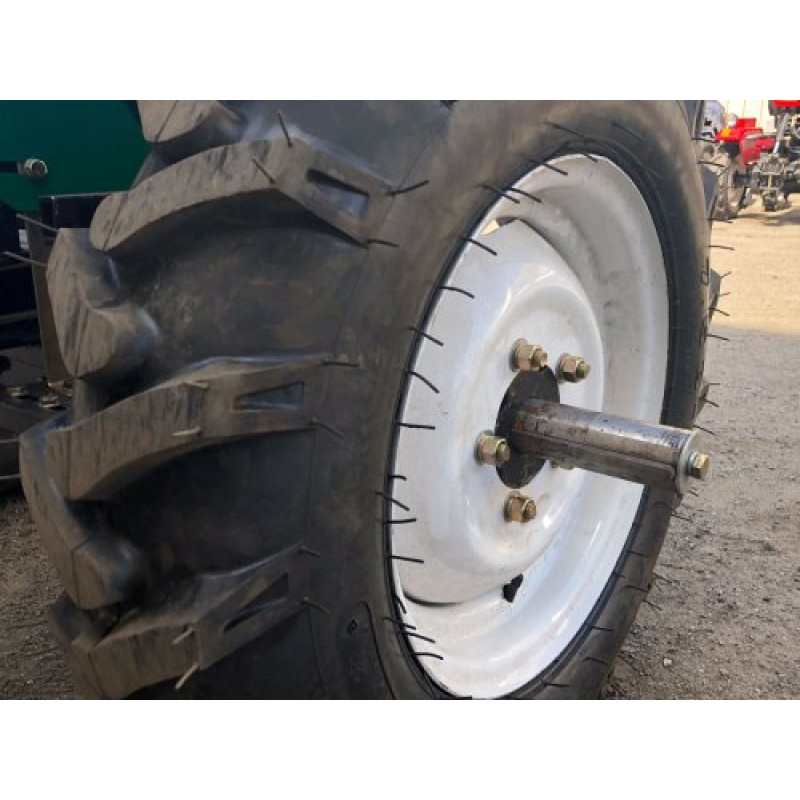

Rear wheel size: | 7.50 ’’ - 16 ’ |
Front wheel size: | 6.00’’ - 12’ |
Track width, mm: | 1050 - 1400 |
PTO type: | Belt + gear |

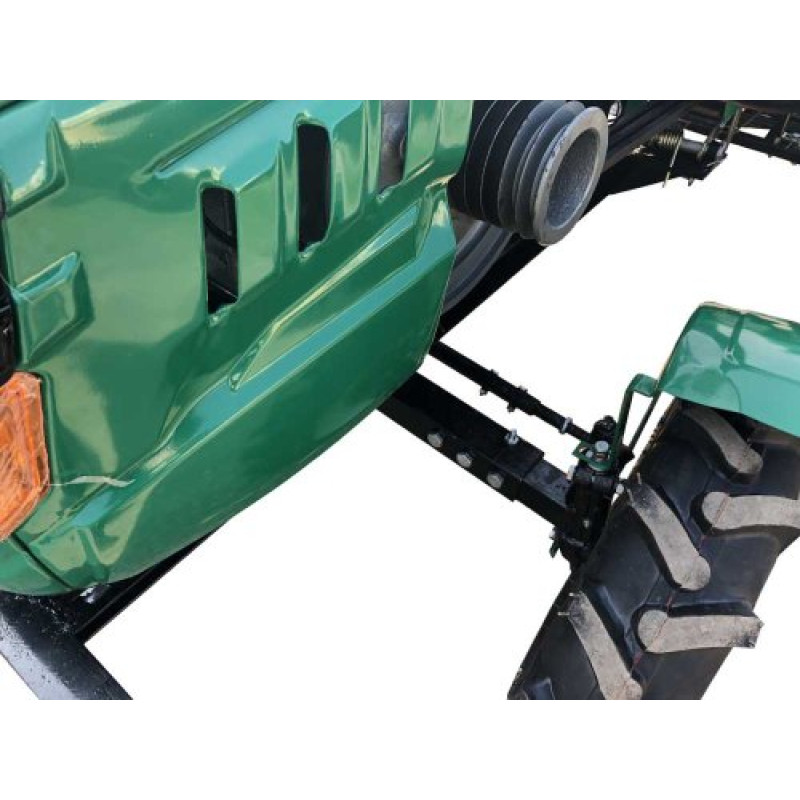

Engine drive: | Pair of B3250 V-belts |
Wheel formula: | 4 x 2 |
Gearbox type: | Mechanical with planetary differential |

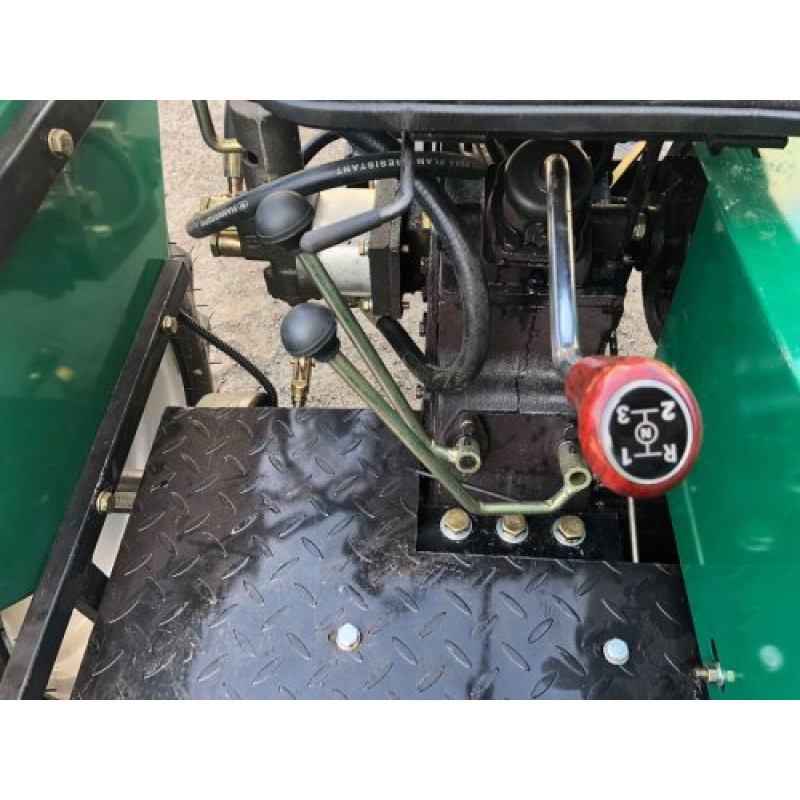

Number of gears: | (3 forward + 1 reverse) x 2 |
Brake system type: | Double-sided dry-type brake (drum mechanical) |
Clutch type: | Single-disc, dry type, with constant engagement, friction type |
Differential lock: | Forced differential lock |
Hydraulic distributor type: | Distributor with floating position |
Lighting system: | Two headlights, high/low beam, turn signals, marker lights |
Audible signal: | Horn |
Dashboard gauges: | Voltmeter | coolant temperature gauge | oil pressure gauge | engine hour meter |
Number of hydraulic outlets: | - |
Power steering (GUR): | No |
Minimum turning radius, cm: | 200 |

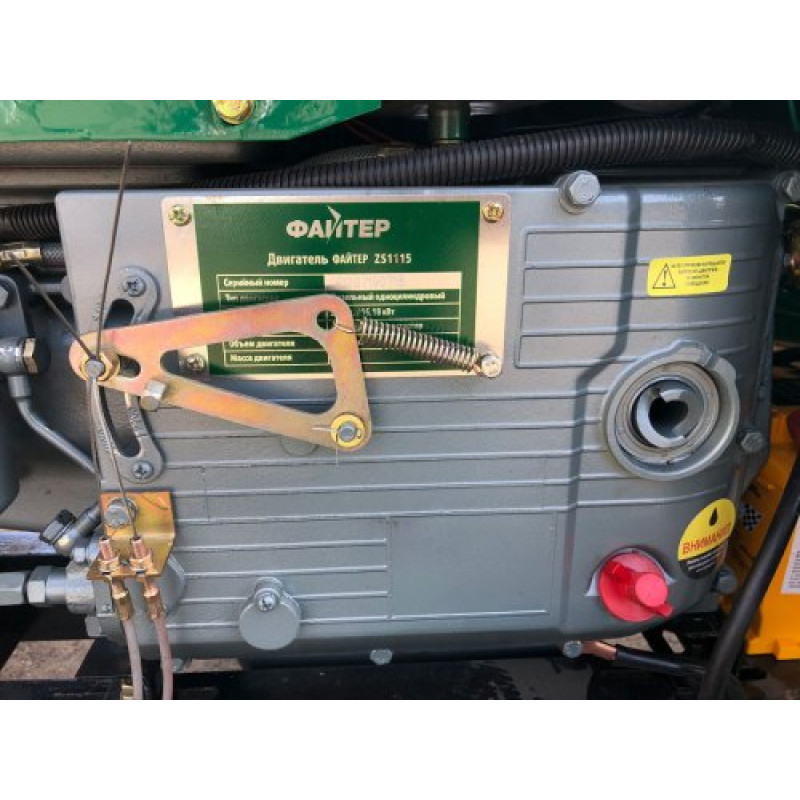

ZS1115-T DIESEL ENGINE | |
Engine type: | Horizontal diesel four-stroke engine |
Maximum power, hp: | 20 hp / 14.71 kW |
Engine displacement, cu. cm: | 1 115 |
Revolutions, rpm: | 2000 - 2200 |
Number of cylinders: | 1 |
Piston stroke, mm: | 115 |
Cylinder diameter, mm: | 115 |
Cooling system: | Water cooling |
Engine lubrication: | Gear pump with splash lubrication system |
Engine start: | Manual starter (Z-handle) + electric starter |
PTO shaft type: | Pulley on flywheel |
Engine weight, kg: | 197 |
Overall dimensions (engine), mm: | 910 * 760 * 440 |
Fuel tank volume, L: | 9 |
Nominal power, hp: | 18.1 hp / 13.31 kW |
Bulat -120 Rotary Tiller | |
Tillage width, cm: | 140 |
Required PTO for drive: | PTO - gear |
Required power of traction unit, hp: | 18 |
The Bulat T-22 will meet the needs of farms looking for a powerful, versatile, and maintainable unit. It combines a reliable chassis design, a ZS1115-T diesel engine, a mechanical gearbox with a planetary differential, and a modern hydraulic system with floating modes. A full set of instruments on the control panel and high-quality optics ensure convenient and safe operation.
