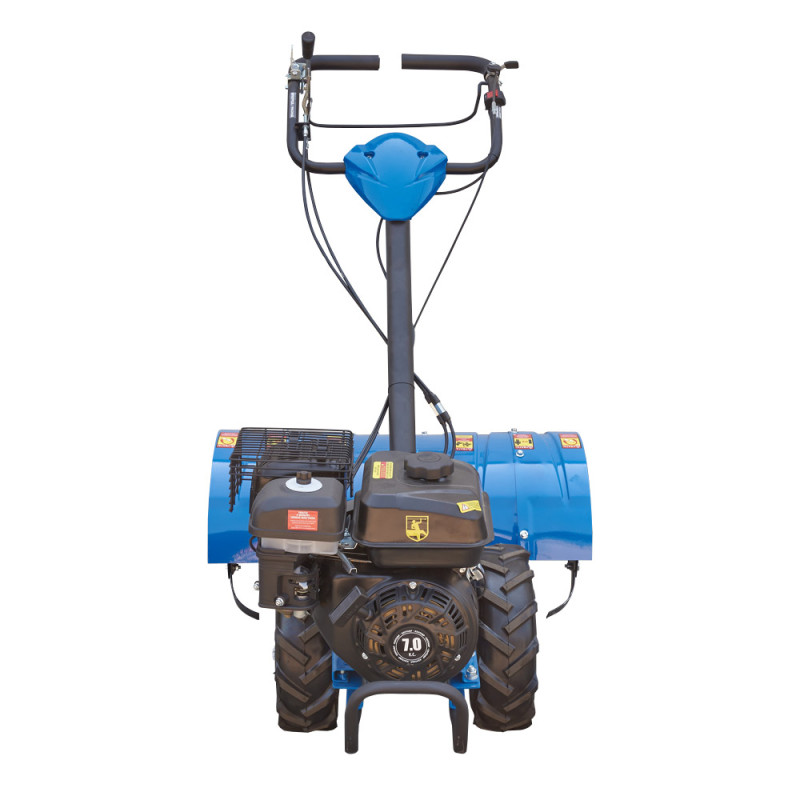

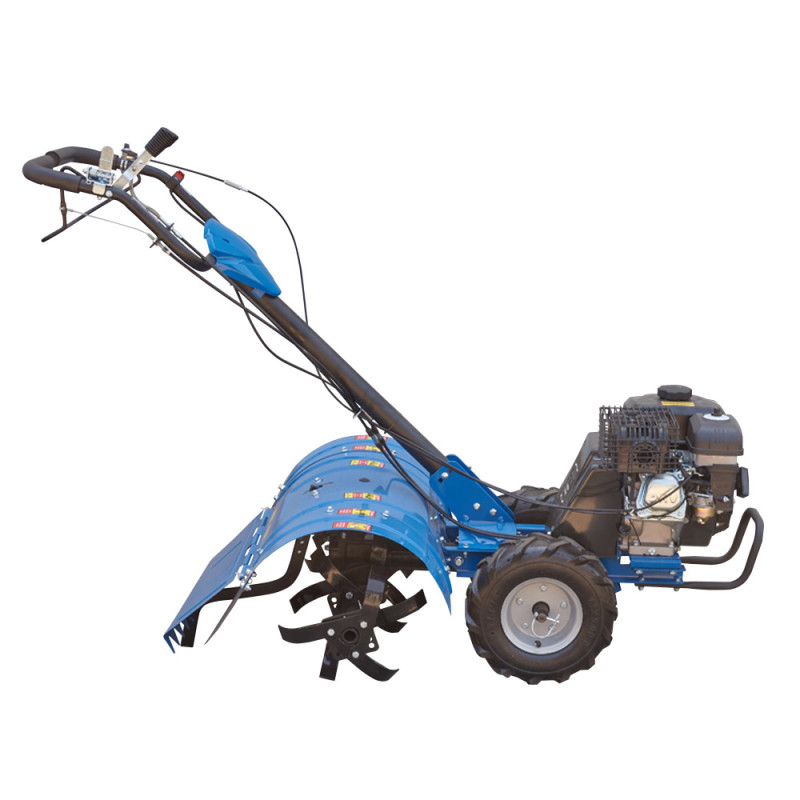

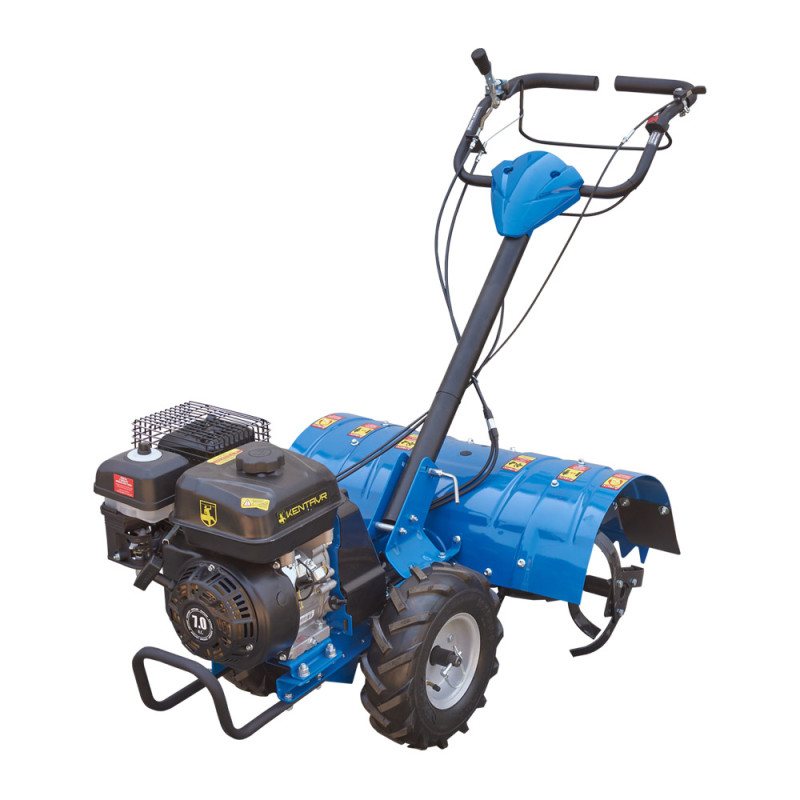

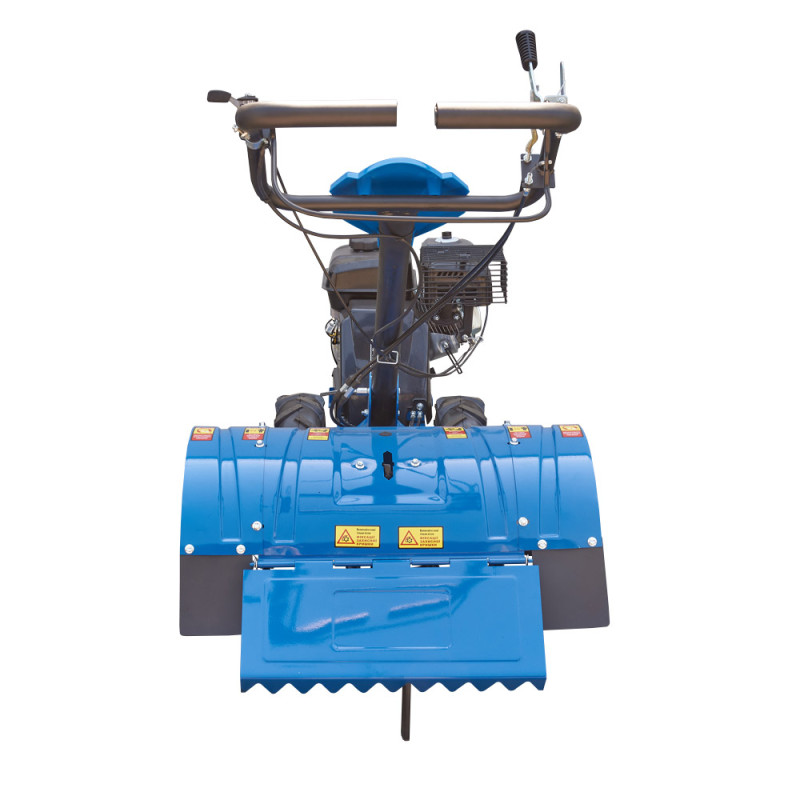

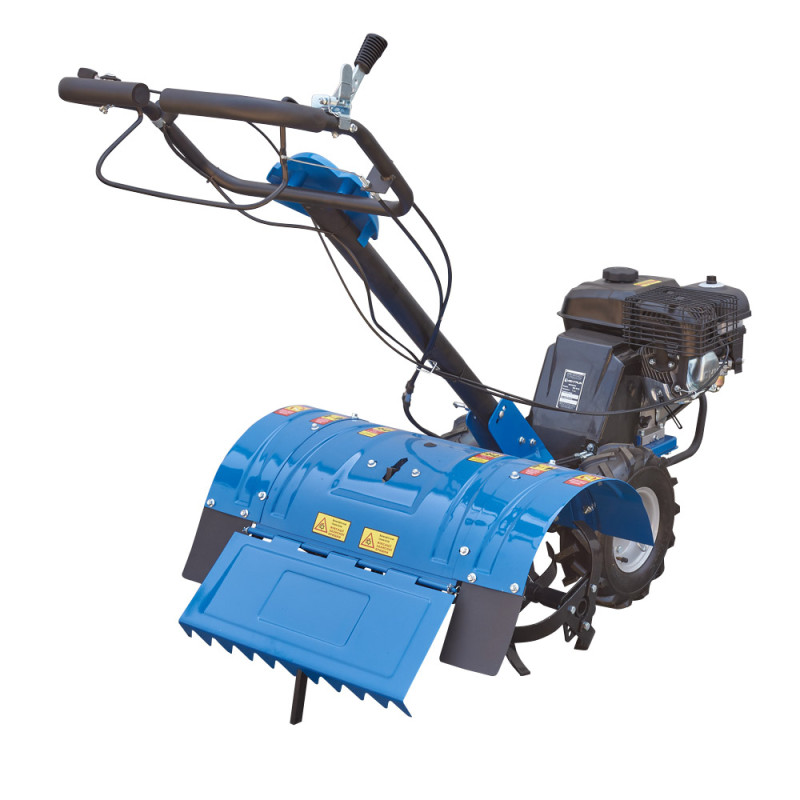

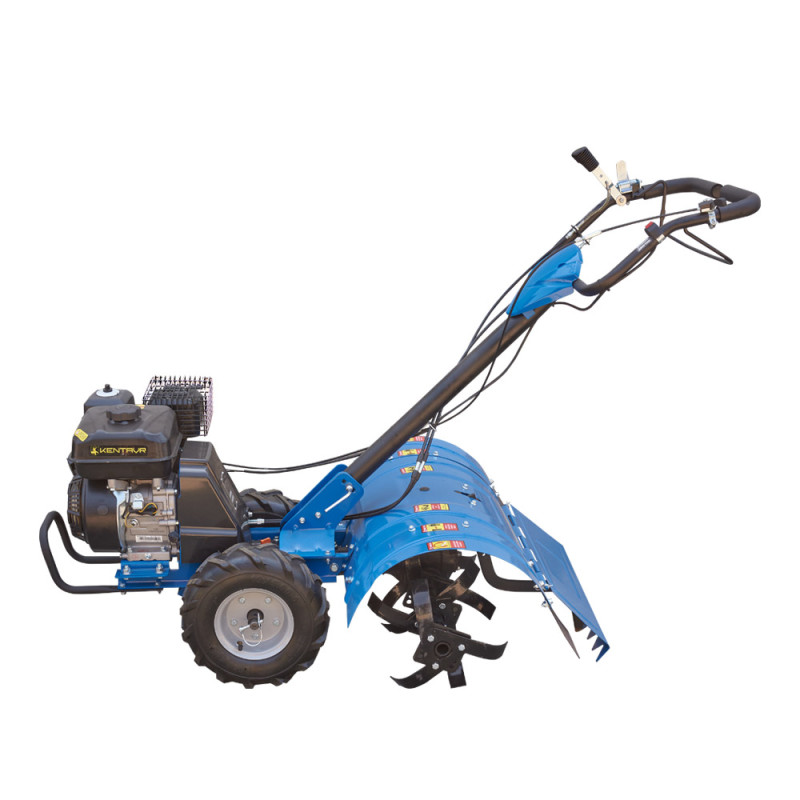

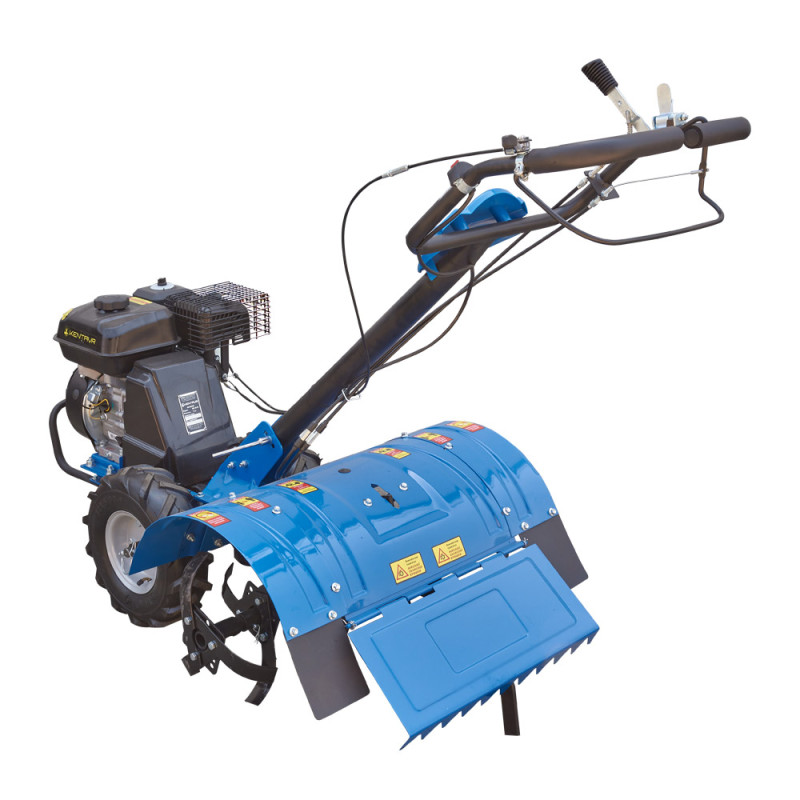

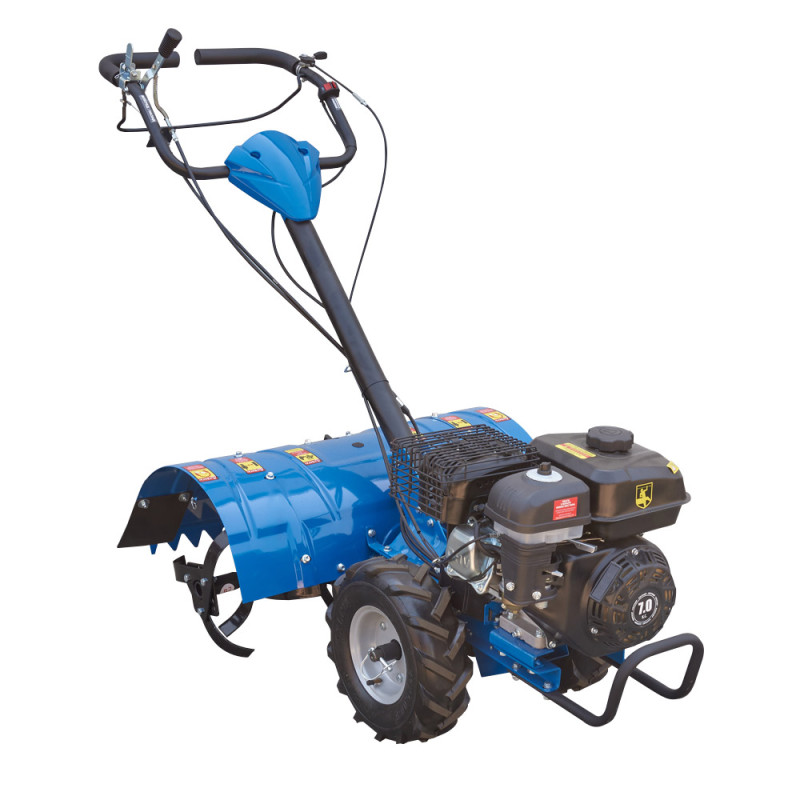

Description of the Kentavr MB 40-1C walk-behind tractor

MB40-1C walk-behind tractor: a versatile assistant. The MB40-1C walk-behind tractor rightfully holds one of the top positions in the popularity rating of this equipment. It perfectly handles soil cultivation on small and medium-sized plots with various soil types. However, the MB40-1C can also tackle a larger area – it will just take a little more time.

The MB40-1C excellently cultivates soil in places where it is difficult or impossible for a tractor to enter. Specifically – between vineyards, under bushes, in garden beds, flower beds, greenhouses, hothouses, etc.

Working with the MB40-1C is easy. The main advantage of this walk-behind tractor is significantly less strain on the operator's hands compared to other medium-power models. A person without good physical training can work with it easily and comfortably.

The reduction in strain is due to a layout characteristic of much more powerful professional machines, namely – the rotary tiller is positioned at the rear and driven by a separate gearbox. In turn, the forward or backward movement of the entire unit is achieved by the drive wheels with a chevron "herringbone" tread.

This design of the walk-behind tractor offers many advantages, making work with it incomparably easier, more convenient, and more efficient.

MB40-1C power. The gasoline engine power is 7 hp. This is entirely sufficient for cultivating most soil types, with the exception of rocky ones.

Even if plant residues or weeds are present in the soil, they are easily ground by the high-speed rotary tiller.

The main thing is to clean the tiller blades in time. For convenient cleaning of the tiller, the rear part of the protective fender is made hinged.

Compatibility with attachments. Another significant advantage of the MB-40-1C walk-behind tractor over conventional cultivators is the ability to work with other attachments. By removing the rotary tiller, you can (via a special adapter hitch) install a hiller, plow, or flat cutter.

By the way, if the soil is loose, you can install metal lugs instead of pneumatic wheels for better traction.

Thus, by choosing the MB-40-1C walk-behind tractor, you get a reliable and versatile assistant for any farm.

Features of the Kentavr MB 40-1C model:

• High quality loosening is ensured by the high rotation speed of the rotary tiller – 250 rpm. This is almost twice as much as models with a tiller instead of wheels, with a relatively slow (about 2 km/h) movement of the walk-behind tractor across the cultivated area on the drive wheels. Thus, the soil can be loosened to the full depth of the tiller's reach in one pass.
• Unique design. Each half of the rotary tiller consists of separate sections-rotors. They can be easily and quickly removed or reinstalled to adjust the cultivation width. And to prevent protruding parts of the protective fender from damaging plants, the fender itself is also made detachable.
• Exceptional stability. During operation, the entire weight of the walk-behind tractor is optimally distributed between the drive wheels and the tiller. At the same time, the unit's center of gravity is very low. This makes the walk-behind tractor extremely stable – the operator does not need to exert as much effort to maintain the unit's balance as when cultivating with conventional walk-behind tractors.
• Easy handling. The drive wheels relieve the operator of the need to manually push or pull the walk-behind tractor across the field. Engaging forward or reverse gear is very simple – by pressing the desired lever on the handlebar.
• Maneuverability. The walk-behind tractor can be turned and rotated almost in place, as the track of the drive wheels is much narrower than the tiller's working width, and they do not create significant resistance during turns.
• Support on the drive wheels significantly reduces handlebar vibration from the tiller's rotation and impact dynamic load from the tiller blades hitting stones or hard soil fragments.
• Ergonomics. The forward and reverse levers, manual throttle lever, and engine kill switch are conveniently located on the handlebar. The handlebar, by the way, is not only height-adjustable but can also be quickly folded. This is convenient for transport in a car or for storage.
