Product Code: FA108-128099-108
In Stock
25 622 грн.
Buy this product in 1 click:
Main specifications
Air Filter: With remote air intake on the handlebar
Battery type, capacity A∙h: -
Clutch type: Normally open multi-disc in oil bath
Coolant type: -
Cooling system capacity, L: -
All specifications
We will deliver this product:
Payment
Description

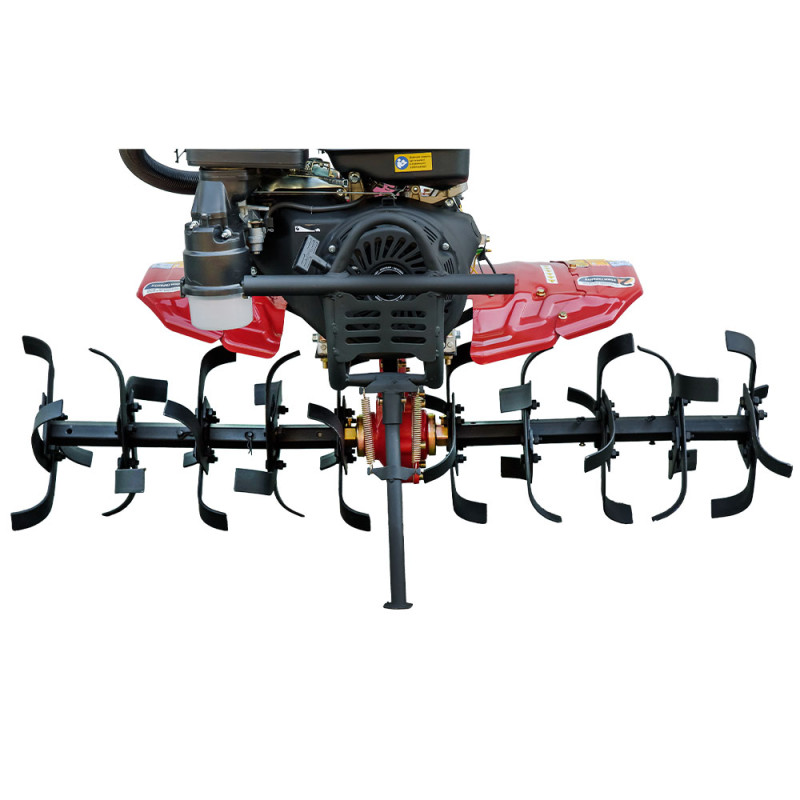

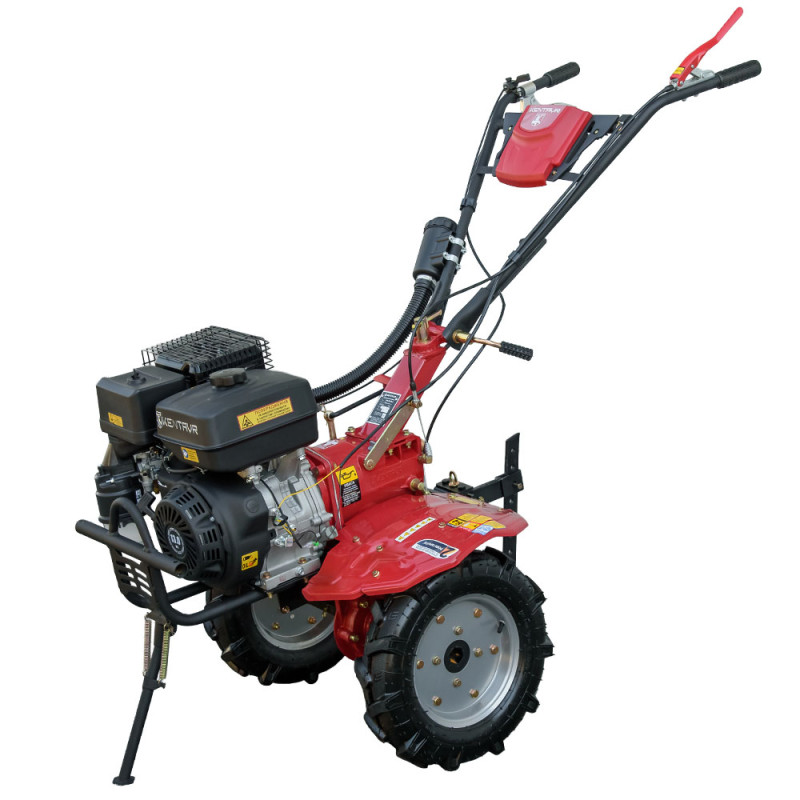

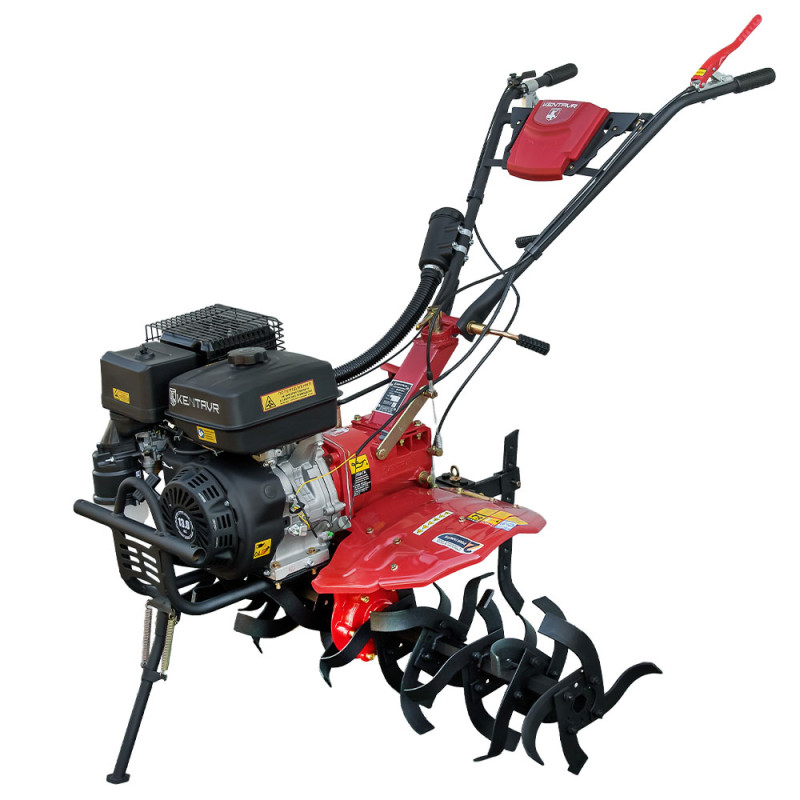

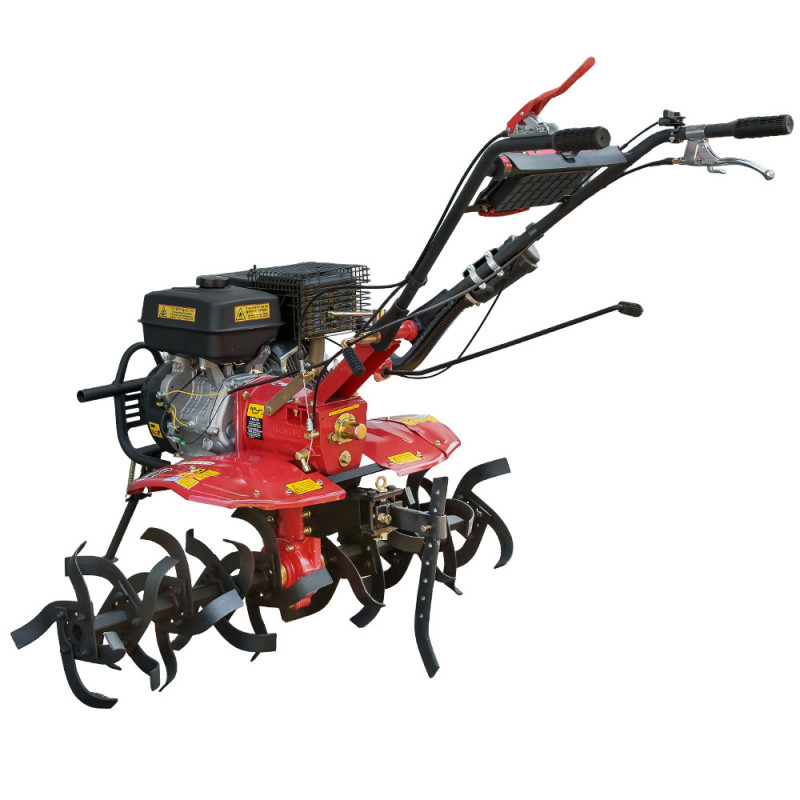

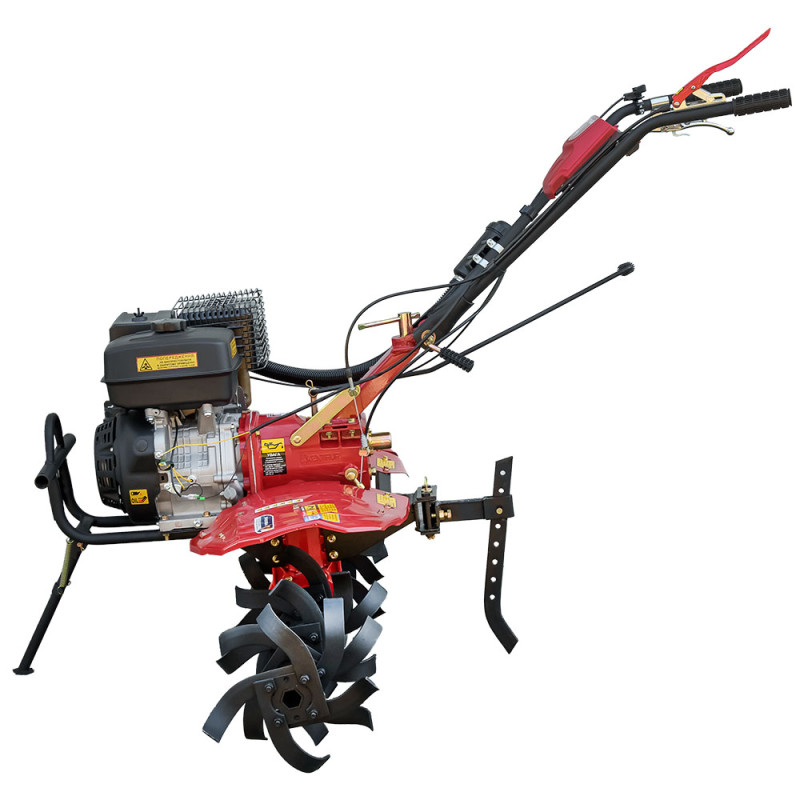

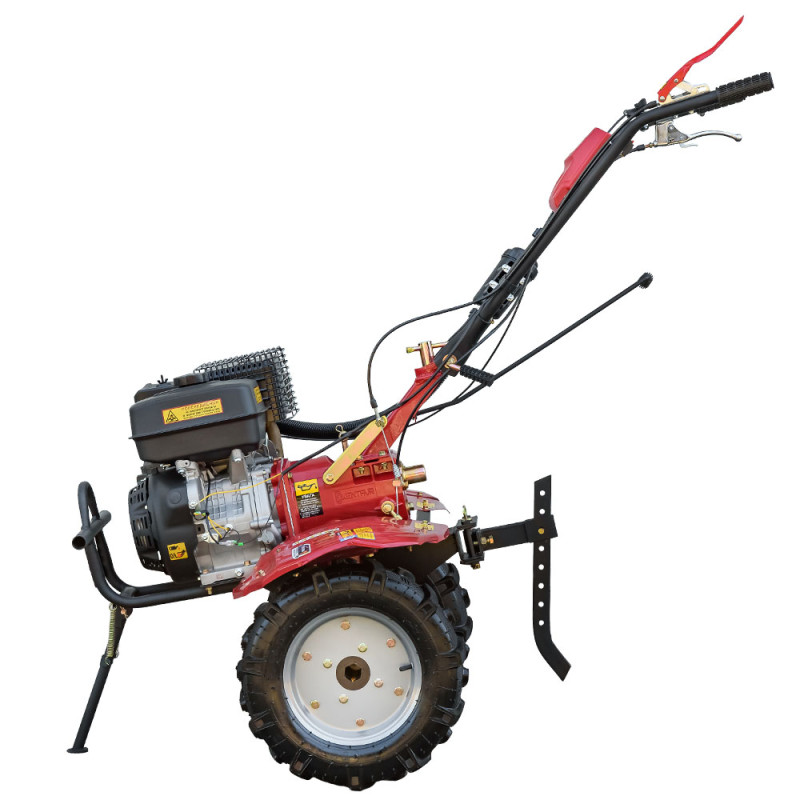

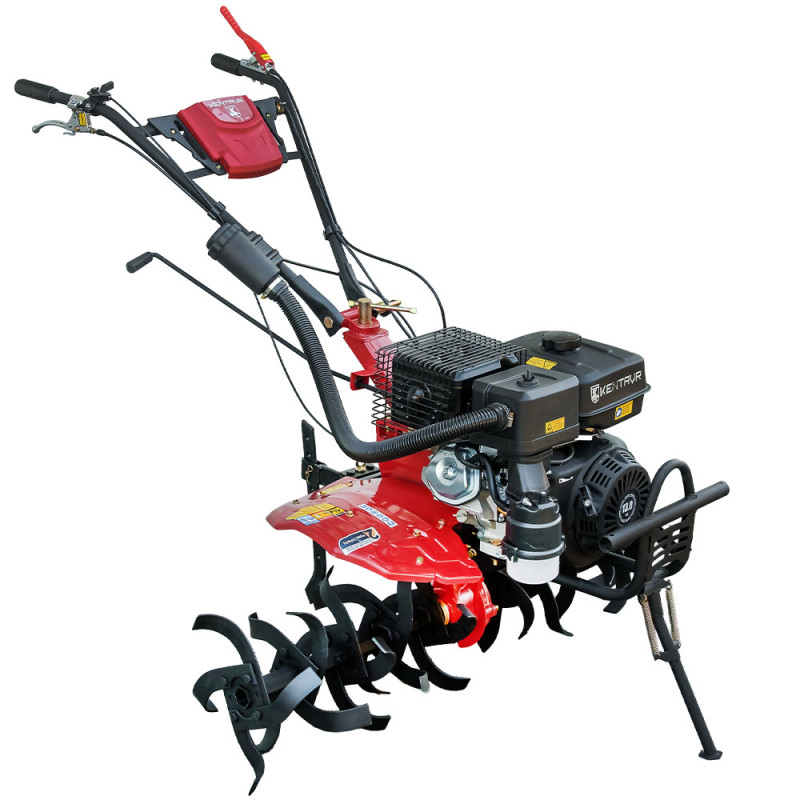

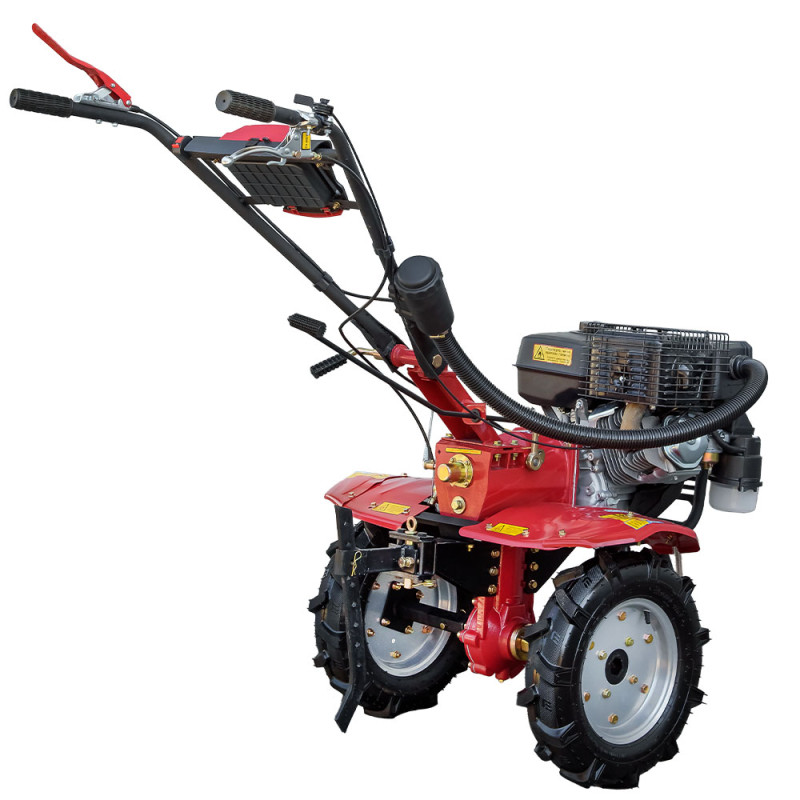

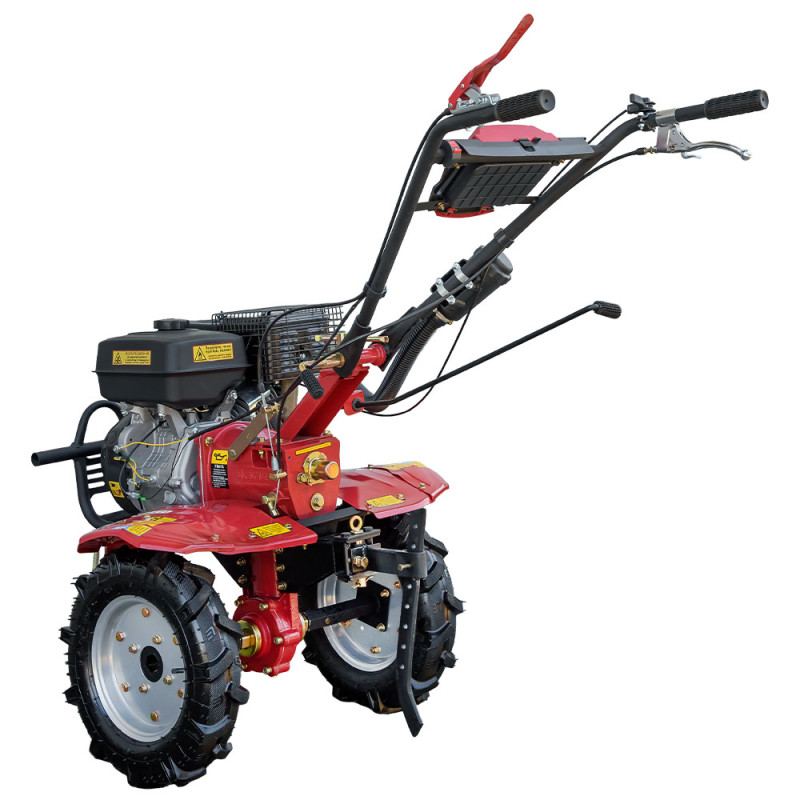

Description of Kentavr MB2013B power tiller (4.00-10 wheels)

The MB 2013B is structurally identical to the MB 2070B power tiller but is equipped with a significantly more powerful 13 hp engine. As a result, the working width of the rotary tiller has increased to 1400 mm, and its productivity during cultivation and other soil-tilling operations is noticeably higher. The powerful engine and 4.00-10 pneumatic transport wheels allow the power tiller to be used effectively not only for soil cultivation but also as a transport vehicle for carrying loads on a special trailer. If necessary, 5.00-12 wheels can be purchased and installed additionally.

The MB 2013B is structurally identical to the base model but has a significantly more powerful 13 hp engine. As a result, the working width of the rotary tiller has increased to 1400 mm, meaning productivity during cultivation and other soil-tilling operations is noticeably higher. In addition, the powerful engine and 10-inch pneumatic transport wheels allow the MB 2013B to be used as a transport vehicle for carrying loads on a special trailer. Moreover, 5.00-12 wheels can be purchased and installed additionally.

Specifications
Air Filter With remote air intake on the handlebar
Battery type, capacity A∙h -
Clutch type Normally open multi-disc in oil bath
Coolant type -
Cooling system capacity, L -
Cultivation depth, mm Up to 200
Cutter Drive Straight with bevel gear
Drive Belt Type -
Electrical Equipment -
Engine Cooling System Air cooling
Engine crankcase oil type TM "DTZ" TURBO SYNT 10W-40 API CF-4/SG
Engine crankcase volume, L 1,2
Engine displacement, cm³ 389
Engine model 188F
Engine power, hp 13.0
Engine Start System Hand starter
Equipped weight, on wheels/on cutters, kg 101 / 113
Fuel tank capacity, L 6.0
Fuel type Gasoline
Gearbox type Gear
Hitch type Motor-block type
How to Engage Reverse Gear Handlebar grip
Measuring Devices -
Nominal fuel consumption, g/kW∙h 366
Nominal rotary tiller speed, rpm 93; 130 / 68
Nominal RPM 3000
Nominal wheeled speed forward/backward, km/h 8.3; 11.6 / 6.1
Number of Gears 2/1
Number of tiller sections, pcs 10=(3+1+1)x2
Oil Level Sensor Is
Other Equipment -
Overall dimensions assembled (LxWxH), mm 1820x650x1180 / 1820x1400x1180
Power Take-Off (PTO) Shaft Rear longitudinal for keyway Ø18, L=24
Rotor diameter of soil tiller, mm 360
Size/quantity/type of tiller blades 6 MM × 235 MM / 40 pcs.
Spare Parts In the box
Steering wheel type and adjuster Quick adjustment for elevation and windage
Stream for connecting active attachments -
Tiller mounting method Instead of Transport Wheels
Tiller working width, mm 880, 1140, 1400
Transmission drive type Direct Hexagonal
Transmission oil capacity, L 2.6
Transmission sump oil type TM "DTZ" TAD-17 and API GL-46
Transport Wheels 4.00-10
Wheel track, mm 600
