Product Code: FA101-140673-101
28 122 грн.
Buy this product in 1 click:
Main specifications
Air Filter: Multi-stage filter with transparent cyclone
Battery: type, capacity, Ah:
Clutch type: Normally open multi-disc in oil bath
Coolant type:
Cooling system capacity, L:
All specifications
We will deliver this product:
Payment
Description

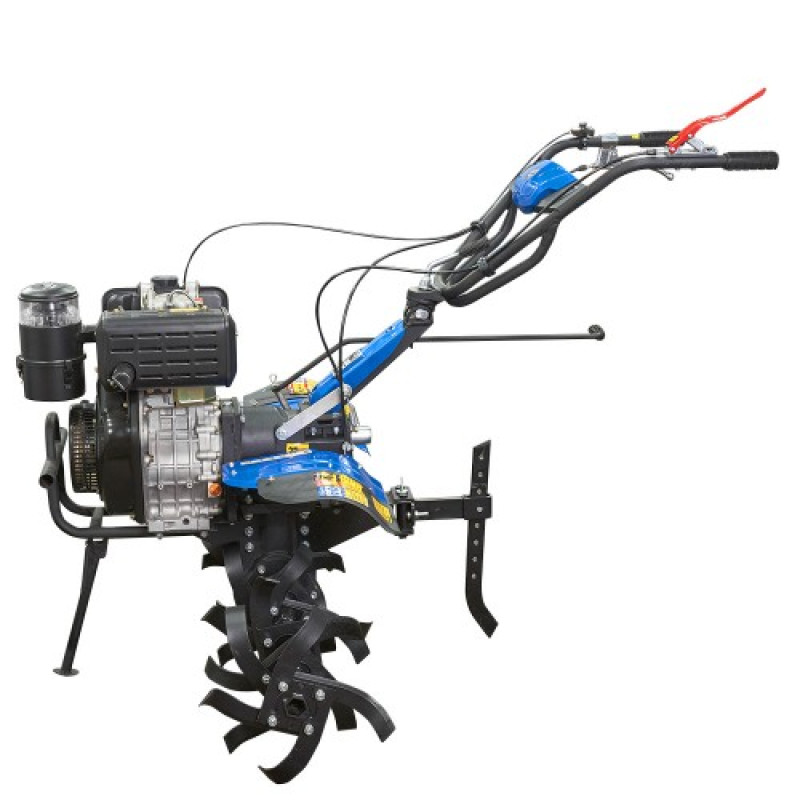

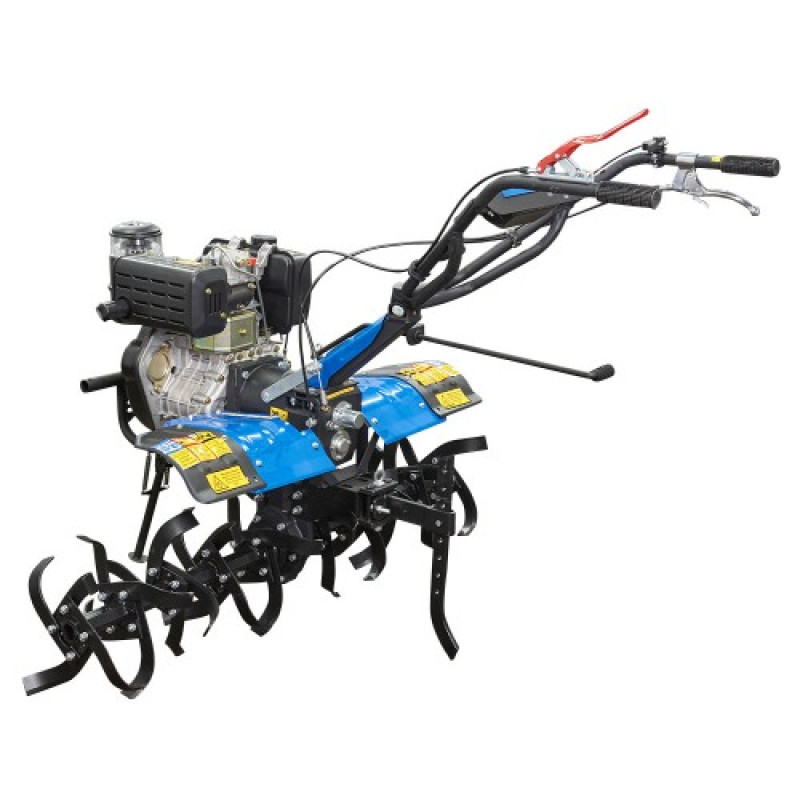

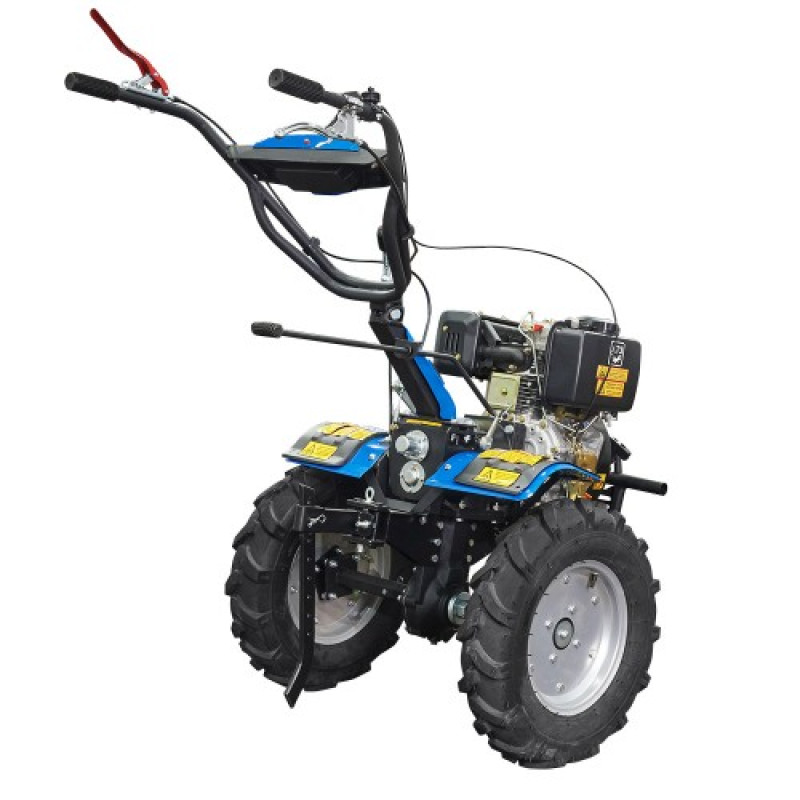

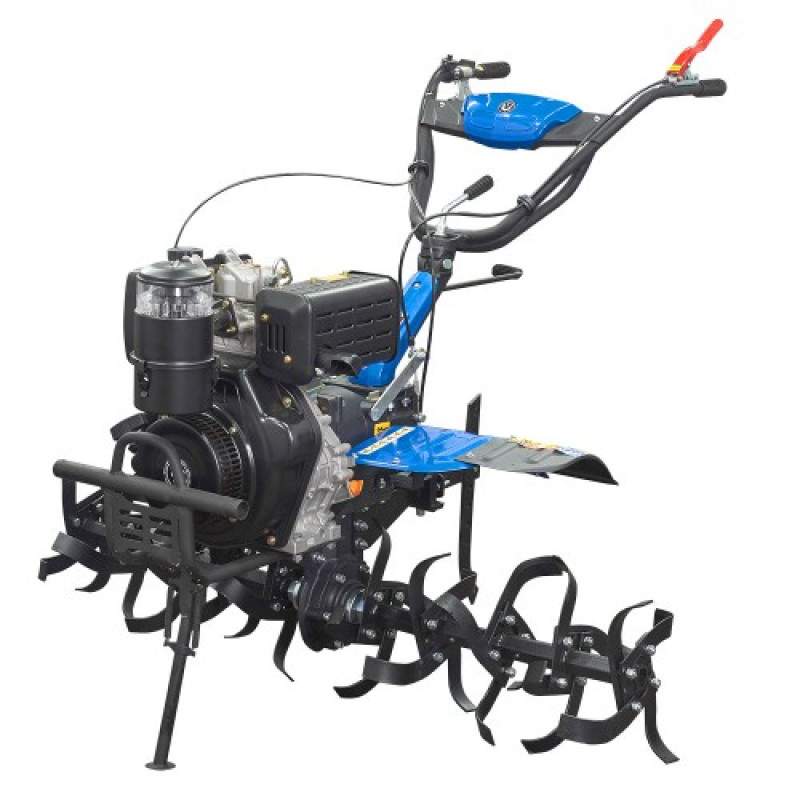

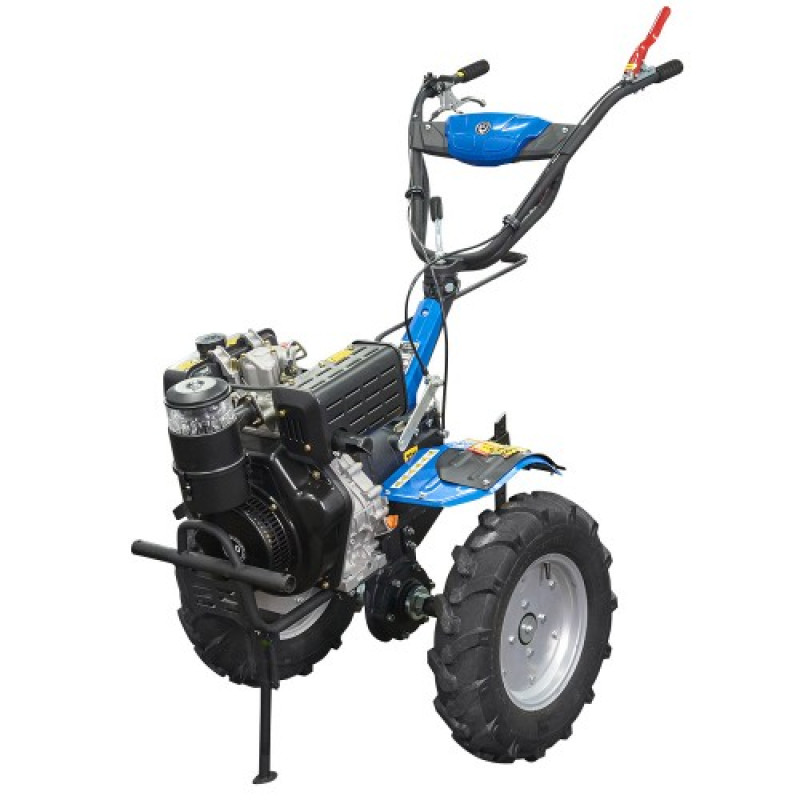

The DTZ 512DN walk-behind tractor is the most powerful among the DTZ diesel models. This walk-behind tractor is equipped with a reliable 12 hp engine; otherwise, the design of this model is similar to the DTZ 510DN. The increased engine power allowed equipping the walk-behind tractor with a wider rotary tiller with a maximum working width of 1400 mm. This is the largest tiller width among DTZ walk-behind tractors.

The pneumatic transport wheels are also large: 5.00-12 "herringbone" pattern. Therefore, this walk-behind tractor is suitable not only for use in private households but also for professional use in vegetable gardens, orchards, and greenhouse complexes, as well as a vehicle for transporting goods on a special trailer.


All DTZ walk-behind tractors come with a 2-year warranty.

Specifications
Air Filter Multi-stage filter with transparent cyclone
Battery: type, capacity, Ah
Clutch type Normally open multi-disc in oil bath
Coolant type
Cooling system capacity, L
Cultivation depth, mm Up to 200
Cutter Drive Straight with bevel gear
Electrical Equipment
Engine Cooling System Air Cooling
Engine crankcase oil type TM "DTZ" TURBO SYNT 10W-40 API CF-4/SG
Engine crankcase volume, L 1.3
Engine displacement, cm³ 438
Engine model 188FA
Engine power, hp 12.0
Engine Start System Hand Starter
Equipped weight on wheels/on cutters, kg 131 / 134
Fuel tank capacity, L 4.0
Fuel type Diesel
Gearbox type Geared
Hitch type Tiller-type
How to Engage Reverse Gear Handlebar Grips
Measuring Devices
Nominal fuel consumption, g/kW∙h 366
Nominal rotary tiller speed, rpm 40; 95; 130
Nominal RPM 3000
Nominal wheeled speed forward/backward, km/h 4.2; 10.5; 14.5 / 3.6
Number of forward/reverse gears 3 / 1
Number of tiller sections, pcs. 10=(3+1+1)×2
Oil Level Sensor
Other Equipment
Overall dimensions assembled (L×W×H) on wheels/with cutters, mm 1780x670x910 / 1780x1400x805
Power Take-Off (PTO) Shaft Rear longitudinal, for keyway Ø18, L=24
Rotor diameter of soil tiller, mm 360
Spare Parts In the box
Steering wheel adjustment type Quick height and direction adjustment
Stream for connecting active attachments
Tiller blade size / quantity / type 5.5 mm × 235 mm / 40 pcs.
Tiller Mounting Method Instead of Transport Wheels
Tiller working width, mm 880, 1140, 1400
Transmission case oil type TM "DTZ" TAD-17i API GL
Transmission drive type Direct gear-driven
Transmission oil capacity, L 3.0
Transport Wheels 5.00-12 with freewheel unlockers
Type of Drive Belts
Wheel track, mm 750
