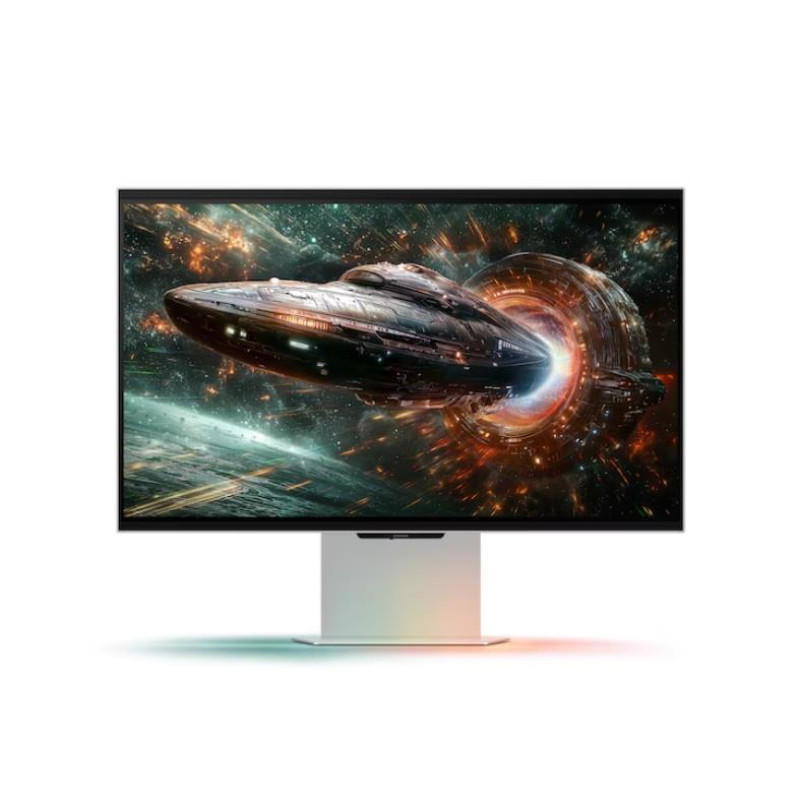

Monitor Samsung 27" Odyssey 3D G90XF HDMI, DP, USB, MM, IPS, 3840x2160, 165Hz, 1ms

Technical Specifications

Collapse

Overview

• Aspect Ratio

  16:9

• Brightness (Typical)

  350 cd/?

• Contrast Ratio Static

  1000:1

• Resolution

  4K (3,840 x 2,160)

• Response Time (ms)

  1ms (GTG)

• Viewing Angle

  178?/178?

• Refresh Rate

  Max 165Hz

Display

• Screen Size (Class)

  27

• Screen Type

  Flat

• Active Display Area (HxV) (mm)

  596.736 x 335.664 mm

• Aspect Ratio

  16:9

• Panel Type

  IPS

• Brightness (Typical)

  350 cd/?

• Brightness (Min)

  280 cd/?

• Contrast Ratio Static

  1000:1

• HDR (High Dynamic Range)

  HDR10

• HDR10+

  HDR10+ Gaming

• Resolution

  4K (3,840 x 2,160)

• Response Time (ms)

  1ms (GTG)

• Viewing Angle

  178?/178?

• Color Support

  Max 1B

• sRGB Color Space

  99% (CIE1931)

• Refresh Rate

  Max 165Hz

General Features

• Energy Saving Solution

  Yes

• Eye Saver Mode

  Yes

• Flicker Free

  Yes

• Picture-in-Picture Mode

  Yes

• File Size

  Yes

• Windows Certification

  Windows11

• FreeSync

  FreeSync Premium

• G-Sync

  G-Sync Compatible

• Off Timer Plus

  Yes

• Black Equalizer

  Yes

• Virtual AIM Point

  Yes

• Auto Source Switch

  Auto Source Switch+

• Ultrawide Game View

  Yes

Smart Service

• Smart Type

  No

Interface

• Display Port

  1 EA

• Display Port Version

  1.4

• HDCP Version (DP)

  2.2

• HDMI Port

  2 EA

• HDMI Version

  2.1

• HDCP Version (HDMI)

  2.2

• Headphones

  No

• USB Hub

  2 EA

• USB Hub Version

  3.1 Gen1

• USB-C

  No

• USB-B Upstream Port

  1

Audio

• Speakers

  Yes

• Speaker Output

  5W x 2ch

Operating Conditions

• Temperature

  0 - 40 ?

• Humidity, %

  10~80, non-condensing

Screen Calibration

• Factory Calibration

  Yes

• Factory Calibration Report

  Yes

Design

• Front Color

  Silver

• Rear Color

  Silver

• Stand Color

  Silver

• Stand Type

  HAS PIVOT

• Height Adjustable Stand

  120mm(±5.0mm)

• Swivel Stand

  -3.0° (±3.0°)~15.0° (±3.0°)

• Wall Mount

  100 x 100

Eco Mode

• Energy Efficiency Class

  C

Power, kW

• Power Supply

  AC100-240V

• Power Consumption (Max)

  78 W

• Power Consumption (Typical)

  49.0 W

• Power Consumption (DPMS)

  0.50 W

• Power Consumption (Off Mode)

  0.30 W

• Energy Consumption (Annual)

  72 kWh/year

• Type

  External Adapter

Dimensions

• Dimensions with Stand (WxHxD), mm

  614.1 x 541.5 x 203.3 mm

• Dimensions without Stand (WxHxD), mm

  614.1 x 372.2 x 46.0 mm

• Package Dimensions (WxHxD), mm

  834.0 x 133 x 434 mm

Weight, g

• Weight with Stand, kg

  7.5 kg

• Weight without Stand, kg

  4.7 kg

• Package Weight, kg

  9.6 kg

Contents

• Power Cable Length, m

  1.5 m

• HDMI Cable

  Yes

• DP Cable

  Yes

• USB 3.0 Cable

  Yes
