Technical Specifications

General Information

Number of screens: 1
Screen size: 34"
Viewable diagonal: 34.1"
Screen mode: UW-QHD
Panel type: IPS (In-Plane Switching)
Aspect ratio: 21:9

Screen and Image

Resolution: 3440 × 1440
Refresh rate: 100 Hz
Pixel density (PPI): 110
Pixel pitch: 0.2325 × 0.2325 mm
Brightness: 350 cd/m²
Contrast ratio: 1500:1
Color depth: 1.07 billion
Color gamut: 99% sRGB (CIE 1931)
Response time: 5 ms (Fast), 8 ms (GTG)
Viewing angles: 178° / 178°
Screen coating: anti-glare
Glass hardness: 3H
Backlight: LED Edge-lit

Features

sRGB
Eye Comfort Technology
Picture by Picture (PBP)
Picture in Picture (PIP)
Low Blue Light / ComfortView
Narrow Bezel
Security Lock / Cable Lock Slot / Stand Lock
Free of harmful materials (BFR Free, PVC Free, Mercury Free, Arsenic Free)

Adjustments

Stand adjustments: height, tilt, swivel, slant
Maximum height: 150 mm
Tilt angle: -5° to +21°
Swivel angle: -30° to +30°
Slant angle: ±4°
Stand included: yes
VESA mount: 100 × 100 mm

Ports and Connectivity

1 × HDMI (HDCP 1.4, up to 3440×1440 @ 100 Hz)
1 × DisplayPort 1.4 (HDCP 1.4, up to 3440×1440 @ 100 Hz)
1 × RJ-45 Ethernet
1 × USB-C upstream (DP Alt Mode, Power Delivery up to 90 W)
1 × USB-C downstream (up to 15 W)
1 × USB-B upstream
3 × USB-A 5Gbps downstream

Frequencies

Horizontal: 28 kHz
Vertical: 30–100 Hz

Power

Input voltage: 100–240V AC
Power consumption (operating): 28.7 W
Maximum: 200 W
Standby mode: 0.3 W
Off mode: 0.3 W
Current: 3 A

Operating Conditions

Operating temperature: 0°C – 40°C
Storage temperature: -20°C – 60°C
Humidity: 10% – 80% (non-condensing)
Maximum operating altitude: 5 km
Maximum storage altitude: 12.19 km

Physical Characteristics

Dimensions: 14.09" × 32.12" × 3.27"
With stand: 21.31" × 32.12" × 9.03"
Weight: 15.21 lb
Weight with stand: 21.85 lb

Package Contents

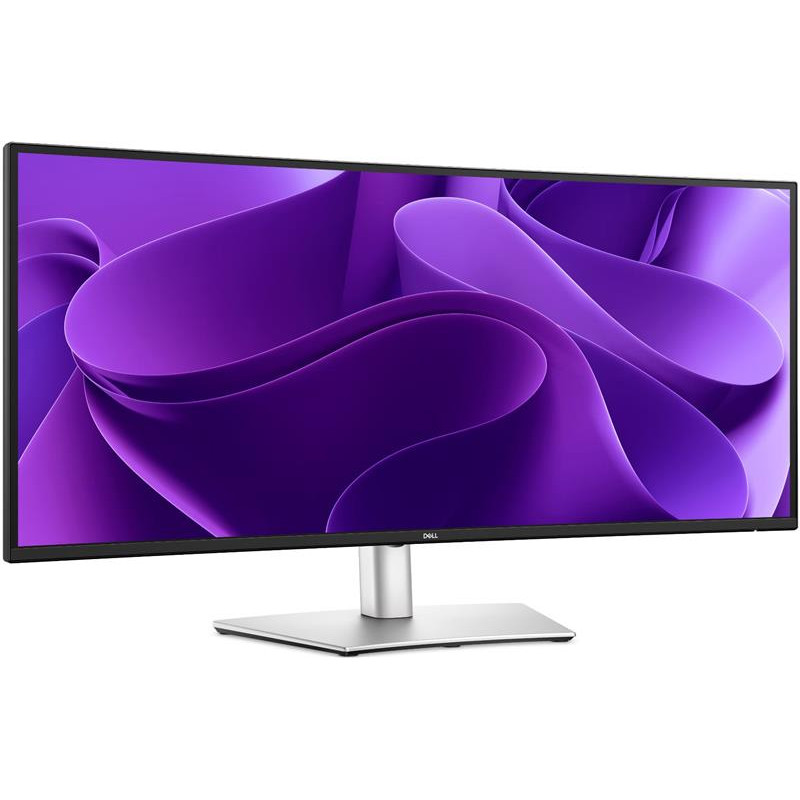

Monitor Pro 34 Plus USB-C Hub Monitor P3425WE
Stand
QR code
Safety information
Cable tie

Cables:

• power
• DisplayPort – DisplayPort (1.8 m)
• USB-C – USB-C (1.8 m)
• USB-A – USB-B (1.8 m)

Additional

Certifications: ENERGY STAR 8.0, TCO Certified, TCO Certified Edge, RoHS
Energy efficiency: ErP Lot 5
Country of manufacture: China / Taiwan
Compatibility: Dell Display Manager, DDPM
TAA compliant: yes
