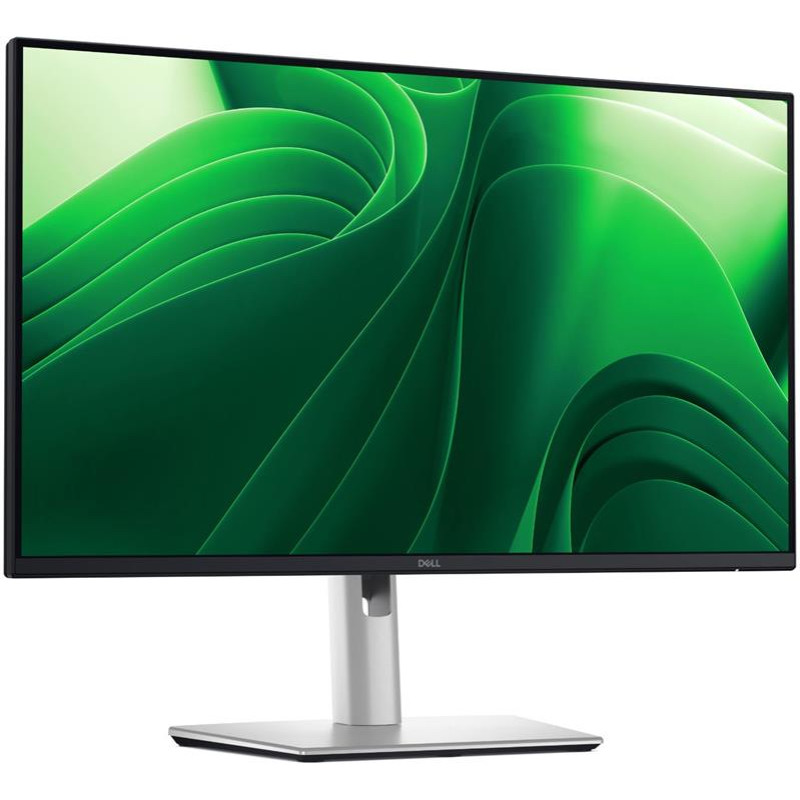

Monitor Technical Specifications

General Characteristics

• Number of Screens: 1
• Screen Size Class: 24"
• Viewable Diagonal: 23.8"
• Display Mode: WQHD
• Panel Type: IPS (In-Plane Switching)
• Aspect Ratio: 16:9
• Maximum Resolution: 2560 × 1440 (QHD) at 100 Hz
• Maximum Preset Resolution: 2560 × 1440 at 100 Hz
• Pixel Density: 123 PPI
• Pixel Pitch: 0.2058 mm × 0.2058 mm

Image Quality

• Brightness: 350 cd/m² (typical)
• Contrast Ratio: 1500:1 (native)
• Color Support: 16.7 million
• Color Gamut: 99% sRGB (CIE 1931)
• Refresh Rate: 100 Hz
• Response Time:
  • 5 ms (GTG Fast)
  • 8 ms GTG (normal mode)

Viewing Angles

• Horizontal: 178°
• Vertical: 178°

Backlight and Coating

• Backlight Type: LED Edgelight System
• Coating: Anti-glare
• Glass Hardness: 3H

Ergonomics (Adjustments)

• Height Adjustment: up to 150 mm
• Tilt: -5° to +21°
• Swivel: ±45°
• Pivot: ±90°
• Mounting Type: VESA 100 × 100 mm
• Adjustable Stand: yes
• Stand Included: yes

Features

• Narrow Bezel
• Mercury-free
• Arsenic-free glass
• PVC-free
• BFR-free
• Stand lock
• Cable lock slot
• Security lock
• Eye Comfort Technology
• sRGB support
• Anti-glare coating

Frequencies

• Horizontal Frequency: 30–150 kHz
• Vertical Frequency: 48–100 Hz

Interfaces and Connectivity

Video

• 1× HDMI (HDCP 1.4, up to 2560 × 1440 @ 100 Hz)
• 1× DisplayPort 1.4 (HDCP 1.4, up to 2560 × 1440 @ 100 Hz)
• 1× DisplayPort-out (MST, HDCP 1.4)

USB

• 1× USB-C 5Gbps (upstream, DisplayPort 1.4 Alt Mode, Power Delivery up to 90 W)
• 1× USB-C 5Gbps downstream
• 3× USB 5Gbps Type-A downstream

Network

• 1× RJ45 Ethernet (1GbE)

USB Power Delivery

• Up to 90 W

Power

• Input Voltage: 100–240 V AC
• Frequency: 50/60 Hz
• Operating Consumption: 16.5 W
• Maximum Consumption: 185 W
• Standby Mode: 0.3 W
• Off Mode: 0.3 W
• Current: 2.0 A

Operating Conditions

• Operating Temperature: 0°C – 40°C
• Storage Temperature: -20°C – 60°C
• Operating Humidity: 10% – 80% (non-condensing)
• Storage Humidity: 5% – 90% (non-condensing)
• Maximum Operating Altitude: 16400 ft (~5000 m)
• Maximum Storage Altitude: 40000 ft (~12000 m)

Physical Characteristics

Monitor without Stand

• Width: 21.21"
• Height: 12.41"
• Depth: 1.96"
• Weight: 8.33 lb (~3.78 kg)

Monitor with Stand

• Width: 21.21"
• Height: 19.55"
• Depth: 1.96"
• Weight: 12.37 lb (~5.61 kg)

Stand

• Height: 16.17"
• Width: 9.83"
• Depth: 7.15"

Bezels

• Top: 0.23"
• Bottom: 0.51"
• Left: 0.23"
• Right: 0.23"

Package Contents

• Monitor
• Stand
• QR Card
• Safety and Regulatory Information
• Cable Tie

Cables Included

• 1× Power Cable
• 1× DisplayPort–DisplayPort 1.4 (1.8 m)
• 1× USB-C – USB-C 10Gbps (100W, 1.0 m)
• 1× USB-C – USB-A 5Gbps (1.8 m)

Environmental and Certifications

• ENERGY STAR: yes
• TCO Certified: yes
• EPEAT Gold
• EPEAT Climate+
• ENERGY STAR 8.0
• ErP Lot 5
• RoHS: compliant
• Energy Efficiency: certified

Additional Information

• Compatible with Dell Display Manager
• Remote Asset Management (DDPM)
• Environmentally safe product
• Country of Manufacture: China / Thailand
