Technical Information

• Number of Screens: 1
• Screen Size Class: 22" (55.88 cm)
• Viewable Screen Size: 21.50" (54.61 cm)
• Screen Mode: Full HD
• Panel Technology: VA (Vertical Alignment)
• Response Time: 5 ms
  • Details: 8 ms (GTG), 5 ms (GTG Fast)
• Aspect Ratio: 16:9
• Pixel Pitch: 0.2493 × 0.2410 mm
• Viewing Angles:
  • Horizontal: 178°
  • Vertical: 178°
• Mount Type: Panel Mount
• Backlight: LED EdgeLight
• HDCP Support: Yes
• Tilt Angle: -5° to 21°

Features

• Narrow Bezel
• Security Lock Slot
• Kensington Security Lock
• Anti-glare Coating
• Eye Comfort Technologies

Frequencies

• Horizontal Frequency:
  • 30 – 82 kHz
  • 30 – 111 kHz (HDMI)
• Vertical Frequency:
  • 50 – 76 Hz
  • 50 – 100 Hz (HDMI)

Stand

• Adjustment: Tilt
• Stand Included: Yes
• Glass Hardness: 3H

Video

• Maximum Resolution: 1920 × 1080
• Refresh Rate: 100 Hz
• Color Support: 16.7 Million Colors
• Contrast Ratio: 3000:1
• Color Gamut: 72% NTSC (CIE 1931)
• Pixel Density (PPI): 102

Interfaces and Ports

• 1 × HDMI (HDCP 1.4, up to 1920×1080 @ 100 Hz)
• 1 × VGA

Operating Conditions

• Operating Temperature: 0°C – 40°C
• Storage Temperature: -20°C – 60°C
• Operating Humidity: 10% – 80% (non-condensing)
• Storage Humidity: 5% – 90% (non-condensing)
• Maximum Operating Altitude: 5 km
• Maximum Storage Altitude: 12.19 km

Power

• Voltage: 100–240 V AC
• Operating Consumption: 11.70 W
• Maximum Consumption: 20.70 W
• Standby Mode: 0.3 W
• Off Mode: 0.3 W
• Frequency: 50/60 Hz
• Current: 1 A·h

Physical Characteristics

• VESA Compatible: Yes
• VESA Standard: 100 × 100 mm

Without Stand:

• Height: 286.48 mm
• Width: 492.86 mm
• Depth: 211.80 mm

With Stand:

• Height: 395.75 mm
• Width: 492.86 mm
• Depth: 211.80 mm

Bezels:

• Left: 7.05 mm
• Right: 7.05 mm

Weight:

• Without Stand: 2.23 kg
• With Stand: 2.96 kg

Stand:

• Height: 181.60 mm
• Width: 219.90 mm
• Depth: 211.80 mm

Package Contents

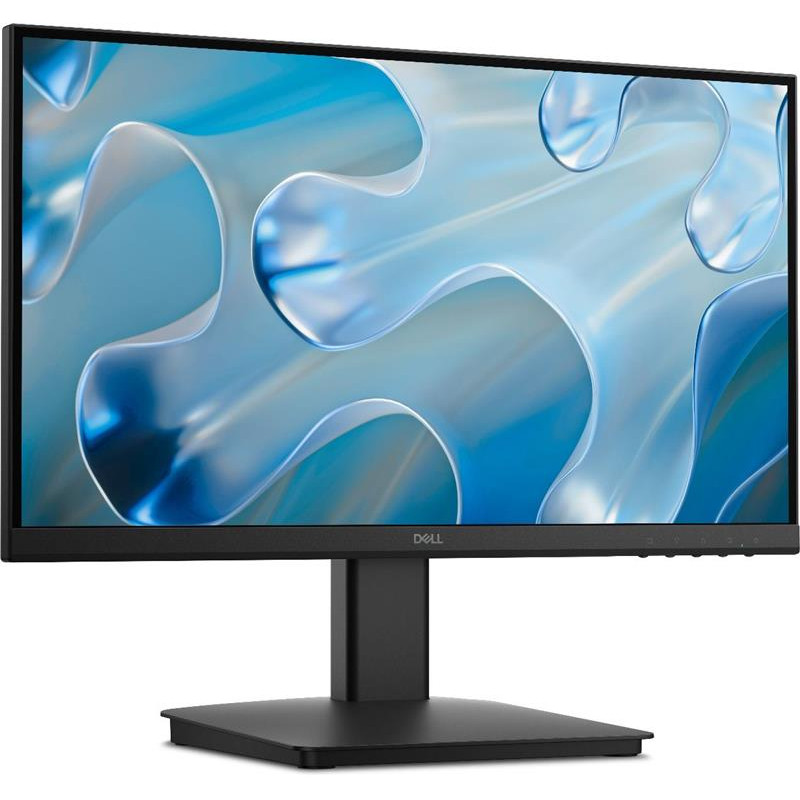

• Monitor SE2225HM
• Stand
• Cleaning Cloth
• Drivers and Documentation Disc
• Quick Start Guide
• Safety Information
• Factory Calibration Report

Cables Included

• Power Cable
• HDMI Cable (1.8 m)

Certifications and Energy Efficiency

• ENERGY STAR 8.0
• TAA Compliant
• TCO Certified
• ErP Lot 5 Compliance
• MEPS Compliance
