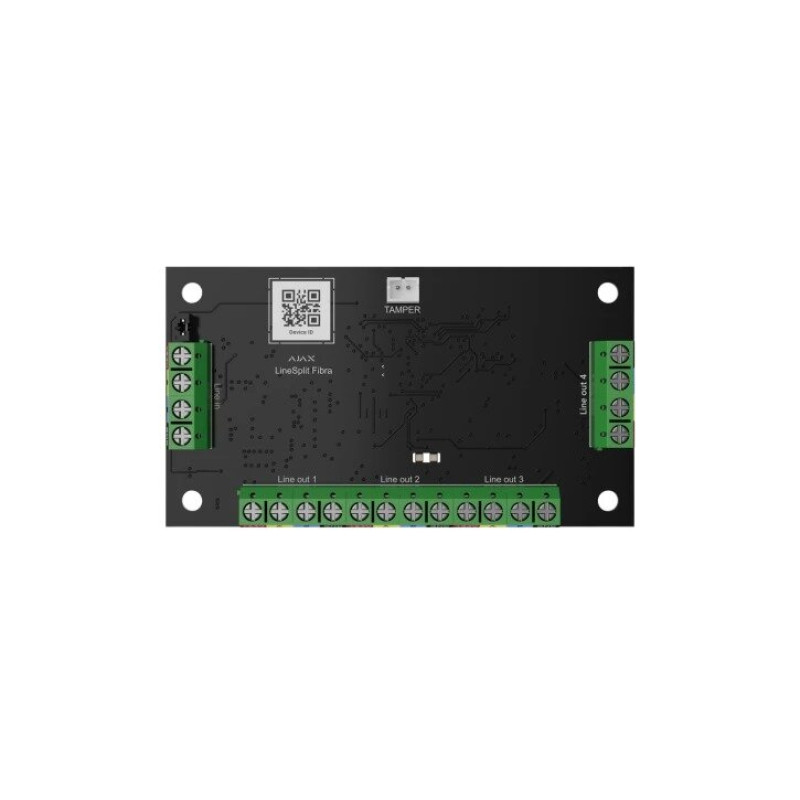

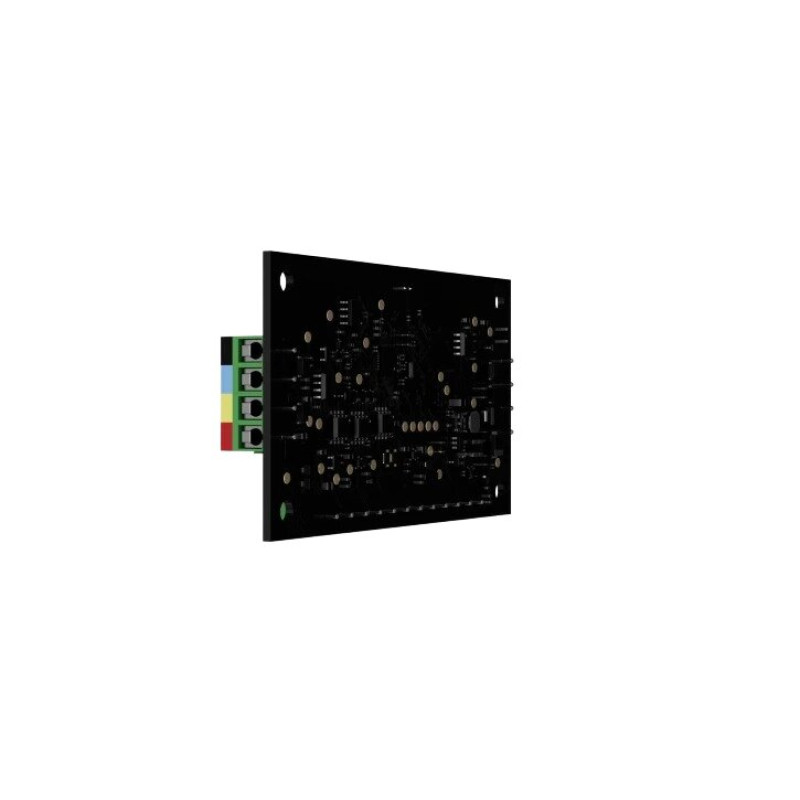

LineSplit is a new level of flexibility in installing security systems. The module splits one Fibra line into four, extends each of them by 2000 m(2), and can be installed at any point on the Fibra line (even after another LineSplit(1)). You no longer have to change wiring to replace an old security system with Ajax.
Fibra is a protocol for fast and secure two-way communication between the hub and devices.

Based on the bus connection method, Fibra instantly transmits alarms with a large amount of data: security companies and users know which device triggered, when, and where it happened.

Under maximum load, the module consumes no more than 0.22 W. Thanks to low power consumption, more devices can be connected to one Fibra line, and wired communication can be extended.

Fibra communication operates on the TDMA principle and involves regular polling of devices by the hub at a set frequency. The rest of the time, device communication modules are inactive. This significantly reduces power consumption and helps avoid interference even when multiple devices communicate with the hub simultaneously.

LineSplit inherited all the advantages of Ajax smart devices, including remote control. In Ajax apps, you can configure and test LineSplit from anywhere in the world, and receive notifications about device events.

LineSplit is installed in a Case. This enclosure has optimal cable routing channels, special holders for the module and tamper. Enclosures are available in several versions.

You can install one LineSplit module or several devices in the enclosure. The necessary minimum number of enclosures can be selected to meet the object's needs, which helps save budget and speed up security system installation.
