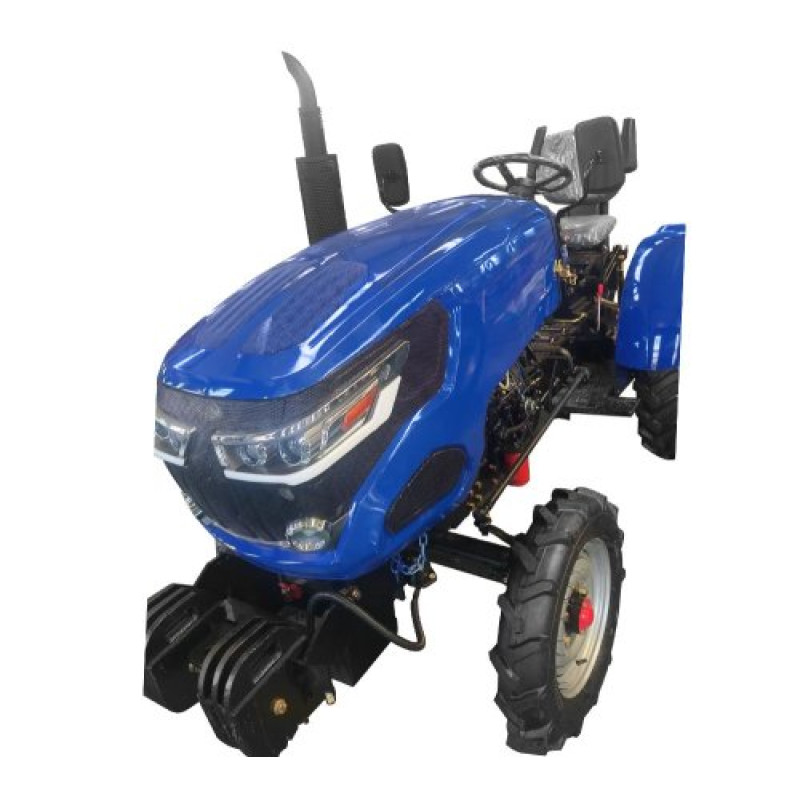

Xingtai 240 LX Mini Tractor — A Reliable Compact Assistant
The Xingtai 240 LX mini tractor from the Xingtai brand is an optimal choice for small farms, private households, and municipal services. This model combines an economical three-cylinder diesel engine, a simple mechanical gearbox, and versatile capabilities for working with mounted and trailed equipment. The Xingtai 240 LX ensures efficient soil cultivation, sowing, transportation, and other farm tasks thanks to its structural dimensions and technical parameters.
Key Advantages
- Powerful yet economical engine: 24 hp (17.6 kW).
- Reliable mechanical transmission with (3+1)x2 gear configuration for flexible speed selection.
- 540 rpm power take-off (PTO) shaft for connecting various mounted equipment.
- Compact dimensions and 220 mm ground clearance for working on various terrains and in confined spaces.
Technical Specifications
| Engine type | Three-cylinder diesel, four-stroke, with direct fuel injection, naturally aspirated, liquid-cooled |
| Engine displacement, cm3 | 1532 cm3 |
| Engine power, hp and kW | 24 hp or 17.6 kW |
| Number of engine cylinders | 3 |
| Cylinder bore | 85 mm |
| Piston stroke | 90 mm |
| Engine structural weight, kg | 234 kg |
| Wheelbase, mm | 1520 mm |
| Overall dimensions, mm | 2720x1260x1870 mm |
| Front wheel track, mm | 950 mm |
| Rear wheel track, mm | 990, 1340 mm |
| Ground clearance, mm | 220 mm |
| Drive type | 4x2 |
| Transmission type | Mechanical |
| Number of gears (forward/reverse) | (3+1)x2 |
| Clutch | Single-disc dry |
| Power take-off (PTO) shaft, rpm | 540 |
| Front wheel size | 6.00x14 |
| Rear wheel size | 9.50x20 |
| Engine oil volume, L | 5 |
| Engine cooling system volume, L | 10 |
| Fuel tank volume, L | 20 |
The Xingtai 240 LX model is suitable for a wide range of tasks: plowing, cultivation, sweeping, material transport, working with a mower or mounted cultivator. Compact dimensions (2720x1260x1870 mm) and a 1520 mm wheelbase ensure maneuverability in narrow rows and on homestead plots. The available rear wheel track of 990 or 1340 mm allows adapting the tractor to various working conditions, and the 220 mm ground clearance facilitates movement over uneven terrain.
24 hp of power combined with a mechanical transmission and a single-disc dry clutch guarantees simple and durable maintenance. The 540 rpm PTO shaft ensures compatibility with most mounted and trailed equipment. System and tank volumes (oil 5 L, cooling system 10 L, fuel tank 20 L) simplify technical maintenance and operational planning.
Brand: Xingtai. Product type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. The Xingtai 240 LX model offers a balance of price and functionality for those seeking a reliable mini tractor for everyday agricultural and municipal work.
