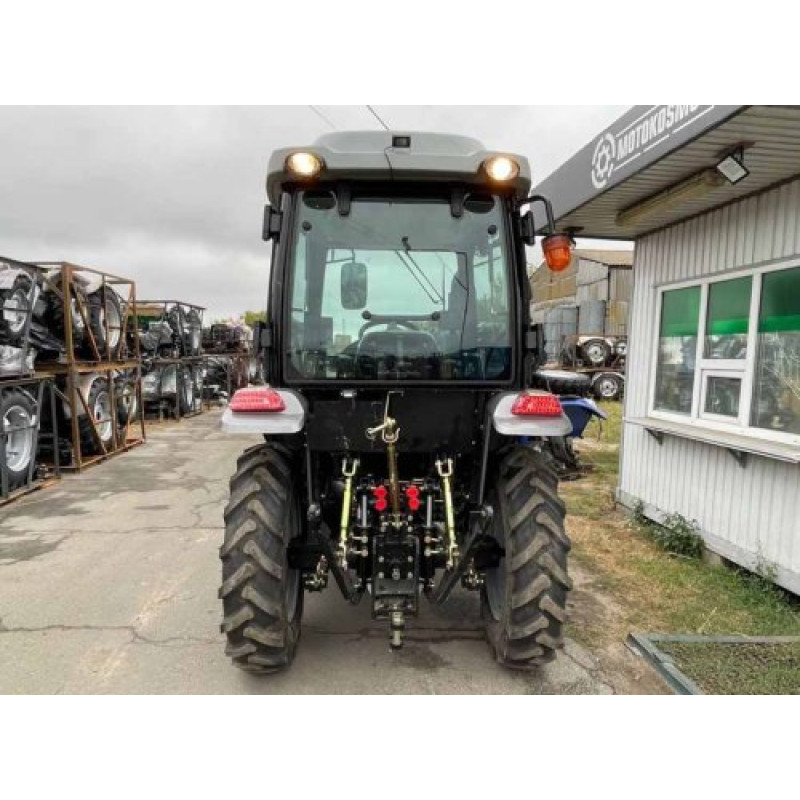

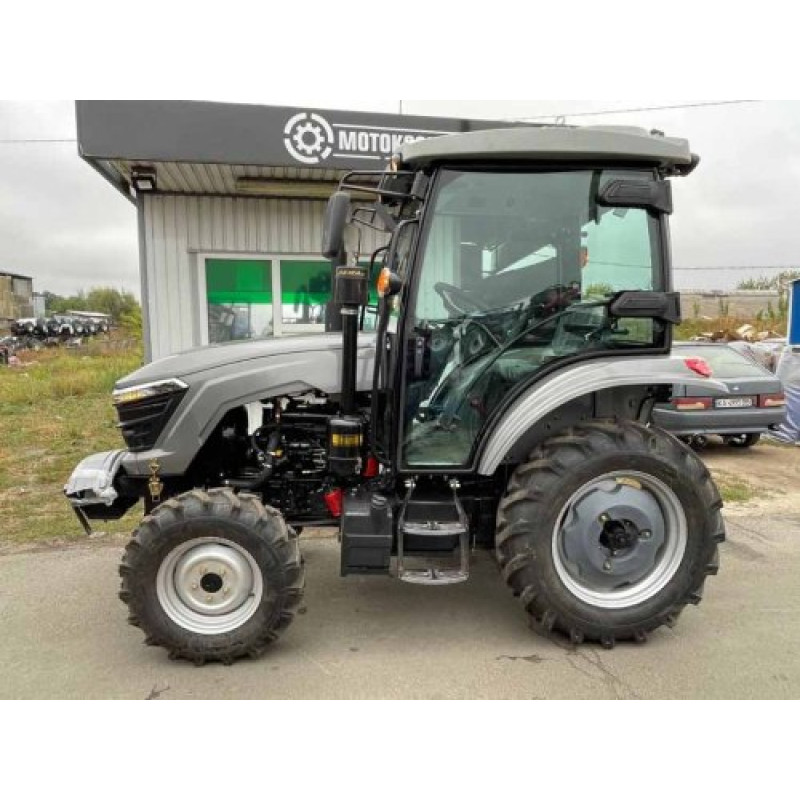

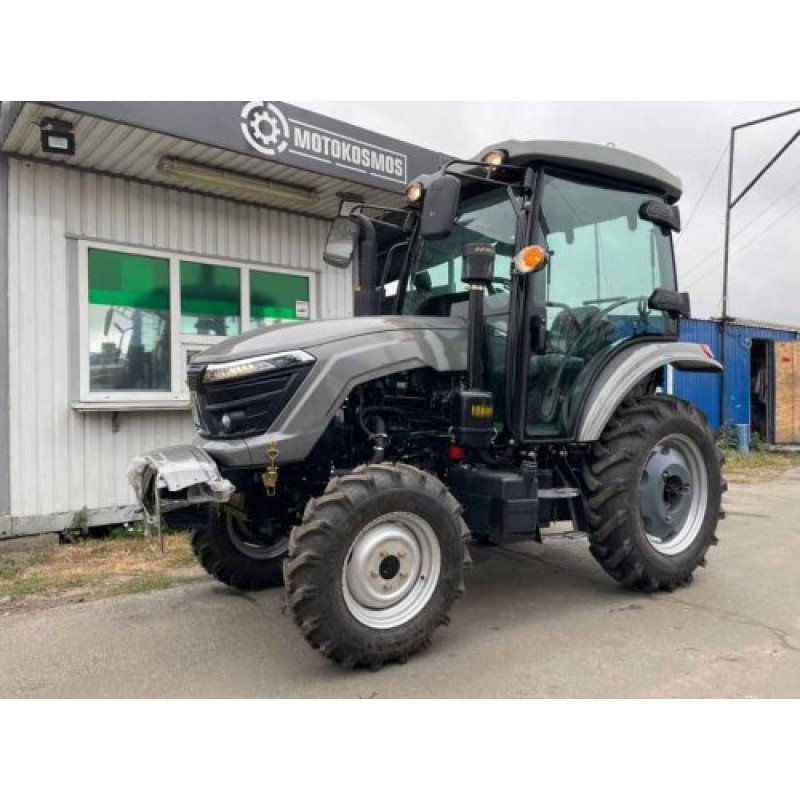

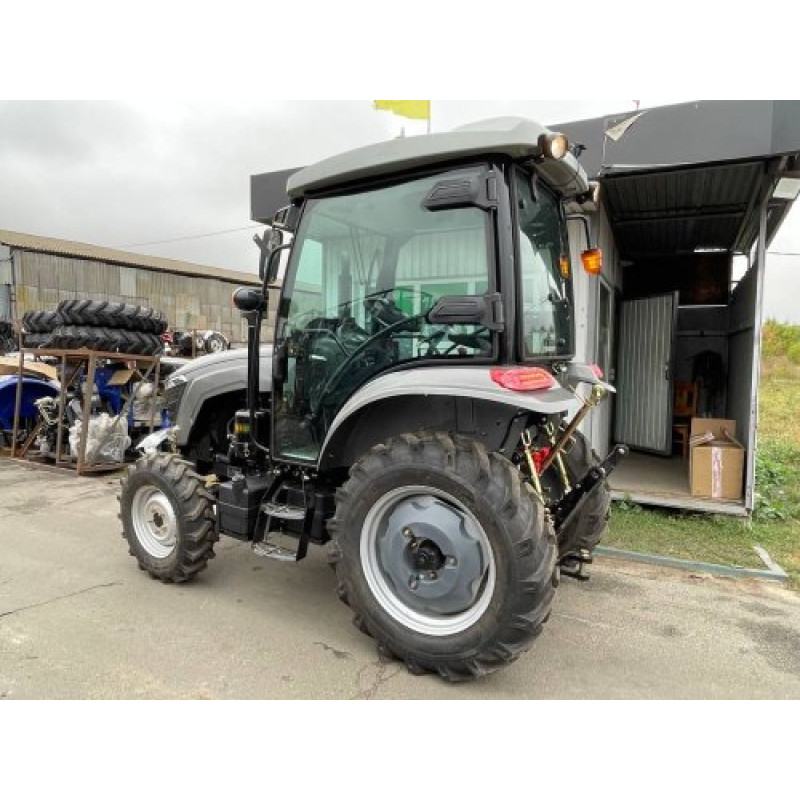

Mini Tractor Scout TY-404C with Air Conditioner

The Scout TY-404C mini tractor from the Scout brand is a compact, powerful, and comfortable unit designed for a wide range of agricultural and farm tasks in the field, garden, or farm. The model is equipped with a cabin with air conditioning for increased operator comfort, a 4-cylinder diesel engine, and 4x4 all-wheel drive, ensuring excellent проходимость even in challenging conditions.

Description and Key Features

The TY-404C is equipped with a 4-stroke KM490BT diesel engine with a displacement of 2545 cm3 and a power of 40 hp (29.42 kW). The engine is started by an electric starter, and the cooling system is liquid, closed with forced circulation. The fan drive is a V-belt transmission. The nominal fuel consumption is ≤238 g/kWh. The 4x4 wheel formula, combined with a ground clearance of 310 mm and adjustable track width, allows the tractor to adapt to various soil and terrain conditions.

Main Characteristics

• Engine power: 40 hp (29.42 kW)
• Wheel formula: 4x4
• Engine type: diesel, 4-stroke, KM490BT, 4 cylinders, vertical arrangement
• Engine displacement: 2545 cm3
• Starting system: electric starter
• Cooling system: liquid, closed, with forced circulation
• Fan drive: V-belt transmission
• Nominal fuel consumption: ≤238 g/kWh
• Gearbox: (4+4)x2
• Rear differential lock: yes
• Clutch: dry 2-disc constantly closed type
• Main drive: direct
• Steering: hydraulic
• Brakes: on the secondary shaft of the gearbox, disc
• Power take-off (PTO) shaft: rear, splined, speeds 540/1000 rpm
• Hydraulic system pump type: gear pump (NSH) for implement drive and NSH for power steering operation
• Lifting capacity of the hitch mechanism: sources indicate 750 kg (in the general list) and 700 kg (in the technical specifications)
• Ground clearance: 310 mm
• Track width: front 1230-1450 mm, rear 1160-1620 mm
• Tire size: front 7.50-16, rear 11.20-24
• Number of hydraulic outlets: 2
• Trailer connector: yes
• Compressor: yes
• Dimensions (LxWxH): 3350x1620x2600 mm
• Curb weight: 1875 kg

Features of the Configuration

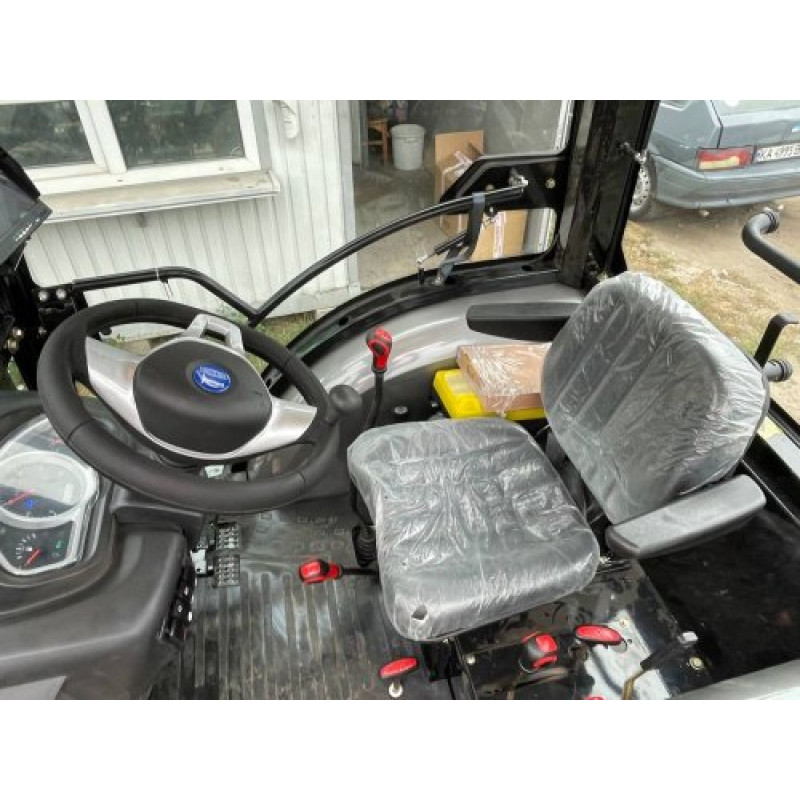

The model is equipped with air conditioning, which makes long-term operator work more comfortable in hot weather. The hydraulic system is an open center with two hydraulic outlets, ensuring efficient operation with mounted and trailed equipment. The available PTO with two speed modes (540/1000 rpm) allows connecting a wide range of working units.

Application

The Scout TY-404C mini tractor is suitable for performing the following tasks:

• plowing and soil preparation;
• sowing and harvesting;
• transportation of goods;
• care of orchards and vineyards;
• work with mounted equipment: plows, cultivators, seeders, trailers, etc.

Advantages

• compactness and maneuverability for working in confined areas;
• powerful diesel engine and high productivity;
• comfortable cabin with air conditioning for long-term work;
• versatility in using various mounted equipment;
• reliable transmission and hydraulic system for heavy operations.

Technical Specifications

The Scout TY-404C mini tractor will be a reliable assistant for those who need a balanced combination of power, comfort, and versatility in working with mounted equipment. Pay attention to the presence of air conditioning, a dual-mode PTO, and the ability to adjust the track width to adapt to your work tasks. In case of discrepancies in lifting capacity figures (750 kg in the general list versus 700 kg in the technical table), we recommend clarifying the data with the seller or in the technical documentation before purchasing.
