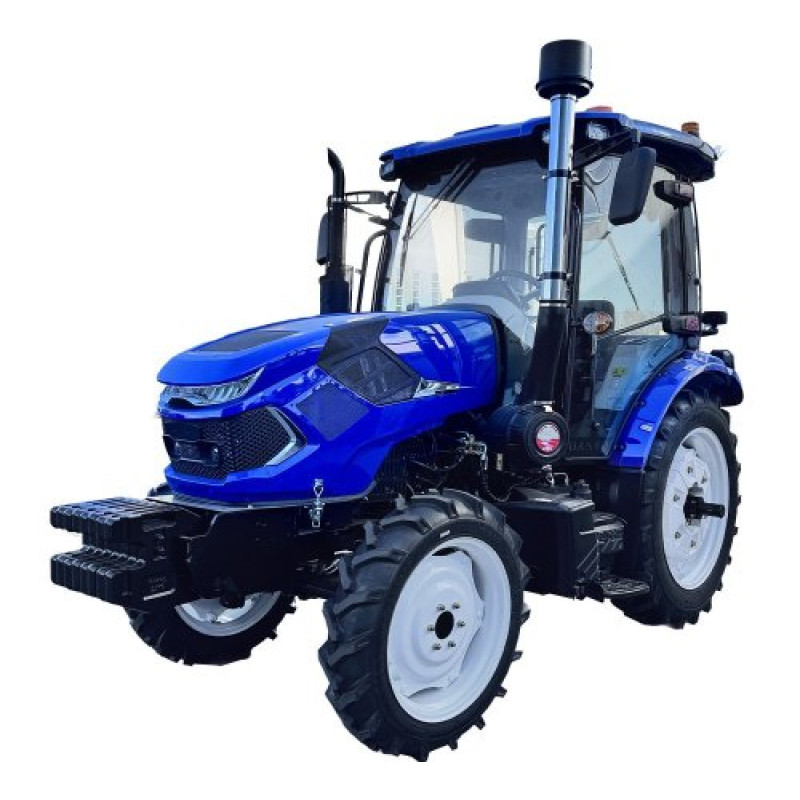

The KENTAVR H 504CCU mini tractor from the KENTAVR brand is a powerful, versatile mini tractor designed for agricultural, municipal, and light cargo transport tasks. This model belongs to the "Tractors > Mini Tractors" category and combines 50 hp (36.8 kW) of power, 4x4 all-wheel drive, and an economical diesel power unit, making it a reliable solution for various tasks in the field, garden, or for property maintenance.
Key Features
- Power: 50 hp (36.8 kW)
- Wheel formula: 4x4
- Engine brand: KM495BT
- Engine type: vertical, 4-cylinder, 4-stroke diesel with forced liquid cooling and direct injection
- Engine displacement: 3857 cm3
Detailed technical specifications for the model are provided below:
| Tractor power, hp (kW) | 50 (36.8) |
| Wheel formula | 4x4 |
| Engine brand | KM495BT |
| Engine type | vertical, 4-cylinder, 4-stroke diesel with forced liquid cooling and direct injection |
| Engine displacement, cm3 | 3857 |
| Cylinder bore/piston stroke | 3170 |
| Nominal fuel consumption, g/kWh | ≤238 |
| Transmission (gearbox) | (4+4)x2 |
| Rear differential lock | + |
| Clutch | dry, dual-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt drive |
| Brake mechanism | drum type |
| Hydraulic lift drive: | 2 hydraulic cylinders |
| Power take-off (PTO) shaft speed, rpm | 540/1000 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of mounted mechanism, kg | 850 |
| Minimum ground clearance, mm | 350 |
| Wheel track, mm | rear 1220, 1280, 1440, 1540, front 1230, 1430 |
| Tire size | rear 12.4-28.0, front 8.30-20.0 |
| Fuel tank capacity, L | 50 |
| Overall dimensions (LxWxH), mm | 3470x1560x2050 |
| Curb weight, kg | 2300 |
Detailed Description and Application
The KENTAVR H 504CCU is equipped with a reliable KM495BT diesel engine with a displacement of 3857 cm3, which provides stable 50 hp power and moderate fuel consumption (nominal consumption ≤238 g/kWh). The vertical four-cylinder design with forced liquid cooling and direct injection system ensures durability and efficient operation in various climatic conditions.
The transmission features a (4+4)x2 gearbox, allowing for optimal speeds for field and transport work. The dry dual-disc clutch ensures reliable torque transmission, and the rear differential lock enhances off-road capability on challenging terrain. Power steering with a separate pump and oil reservoir makes steering easier and more precise.
The hydraulic system with a gear pump and two hydraulic cylinders for the hydraulic lift drive allows working with a wide range of mounted equipment — the maximum lifting capacity is 850 kg. The power take-off shaft with 540/1000 rpm modes ensures compatibility with various implements: mowers, cultivators, and other mounted machines.
Practical technical solutions, such as the V-belt drive for the cooling system fan and drum brakes, add simplicity to service and operation. The minimum ground clearance of 350 mm allows for effective work on uneven fields, and the track options (rear 1220, 1280, 1440, 1540 mm and front 1230, 1430 mm) and universal tire sizes (rear 12.4-28.0 and front 8.30-20.0) ensure adaptation to various soil conditions.
With a 50 L fuel tank capacity, dimensions of 3470x1560x2050 mm, and a curb weight of 2300 kg, this mini tractor is convenient for transport and efficient farm work. The KENTAVR H 504CCU is suitable for farms, horticulture, municipal services, and for performing small-scale transport tasks.
If you need a powerful, economical, and multifunctional mini tractor, the KENTAVR H 504CCU will be a reliable assistant for performing a wide range of tasks on your farm.
