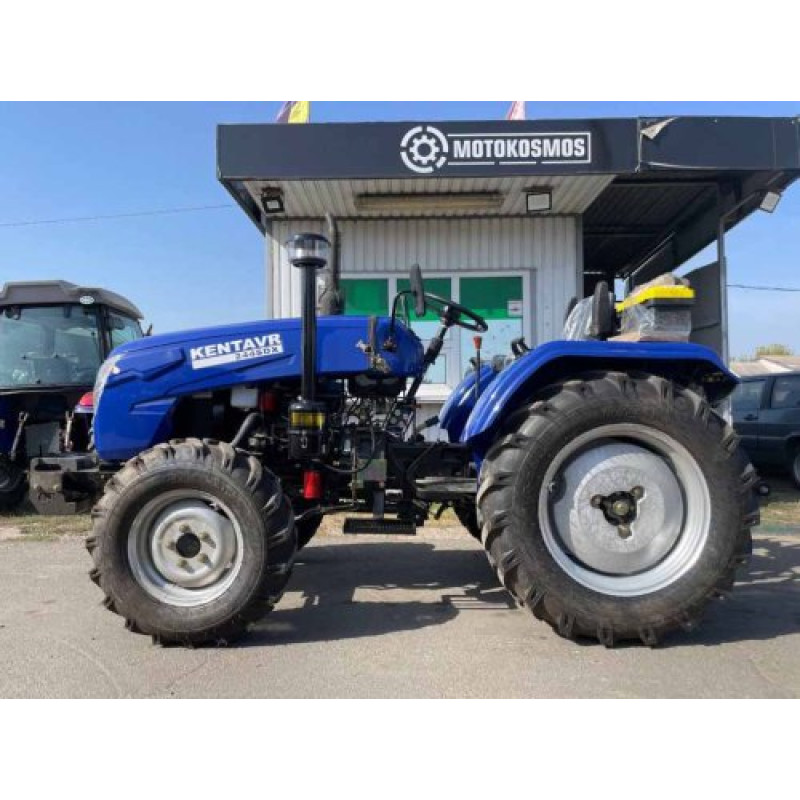

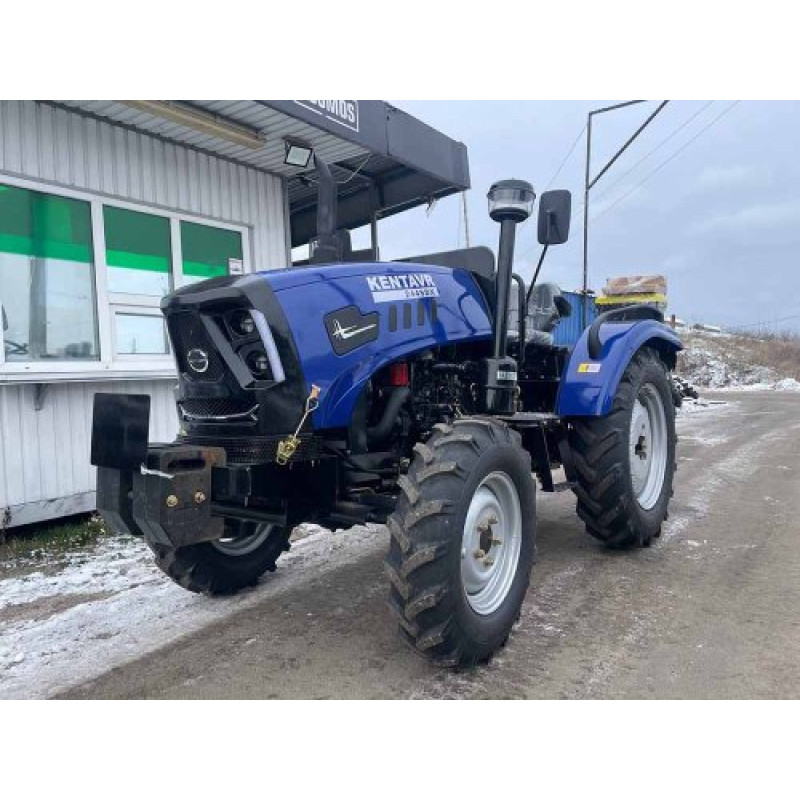

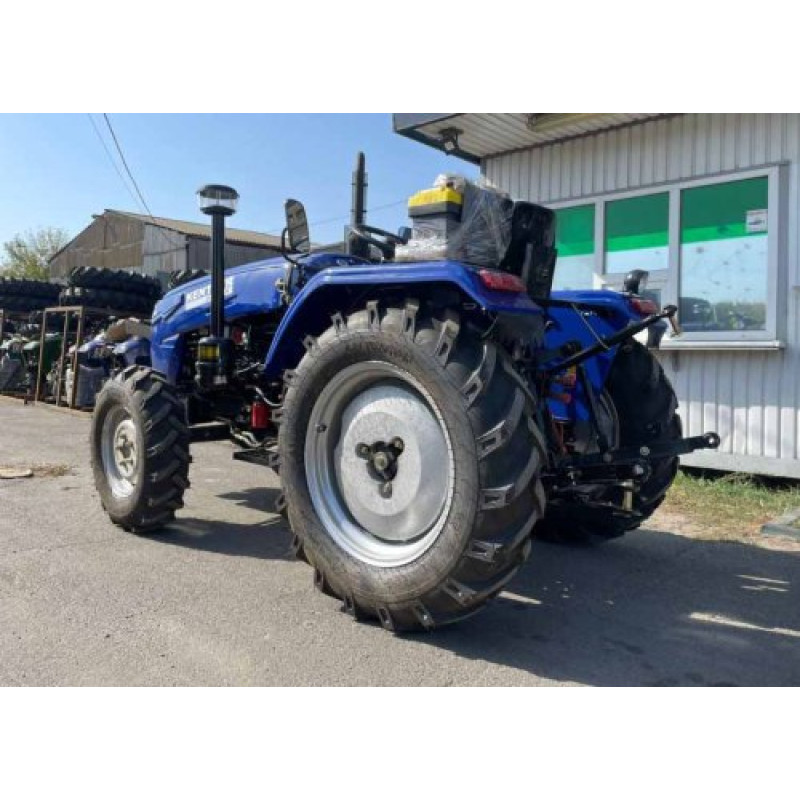

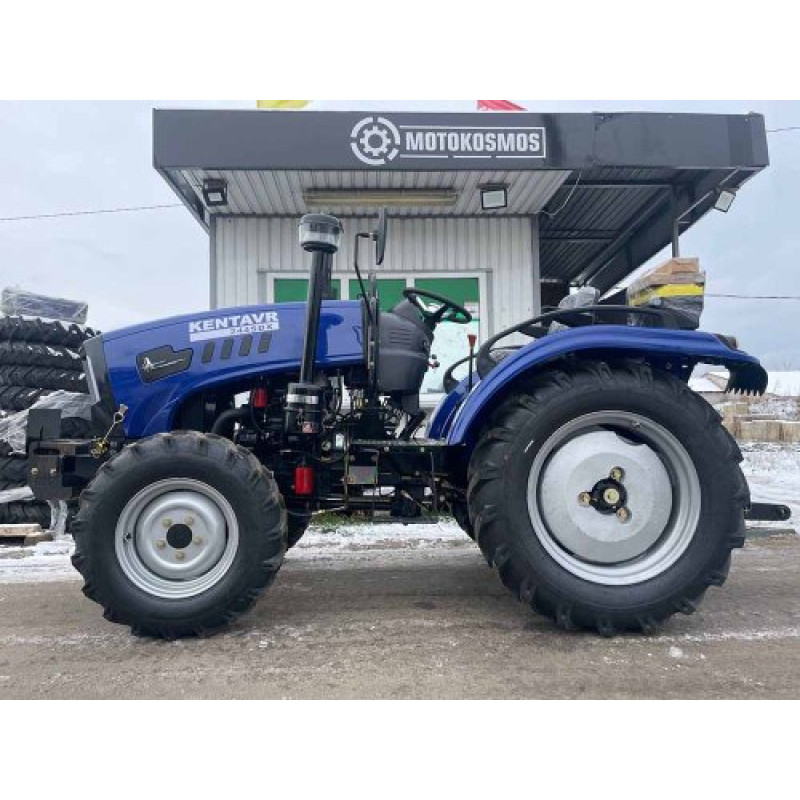

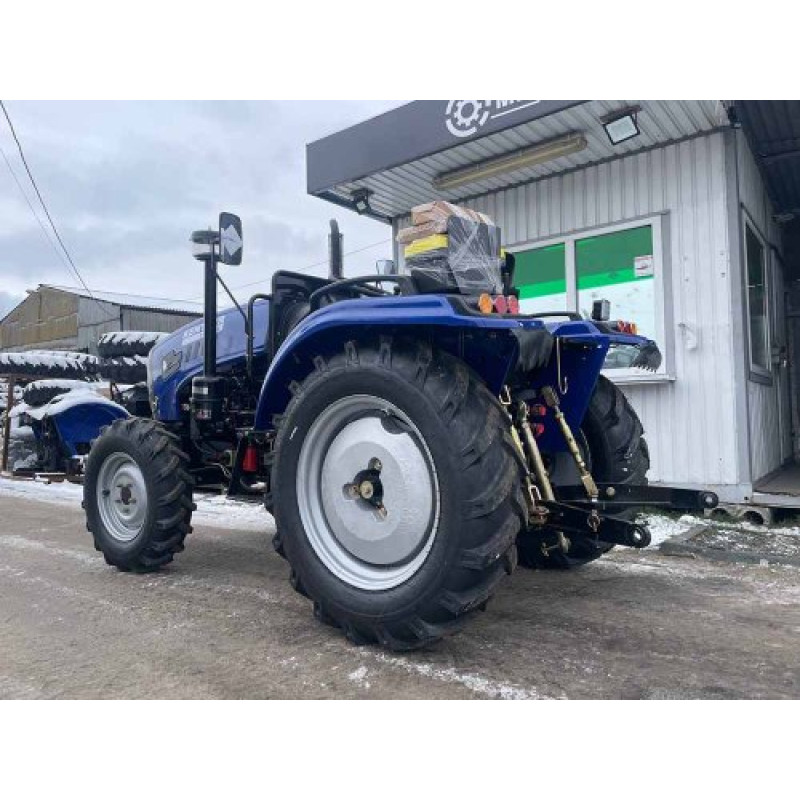

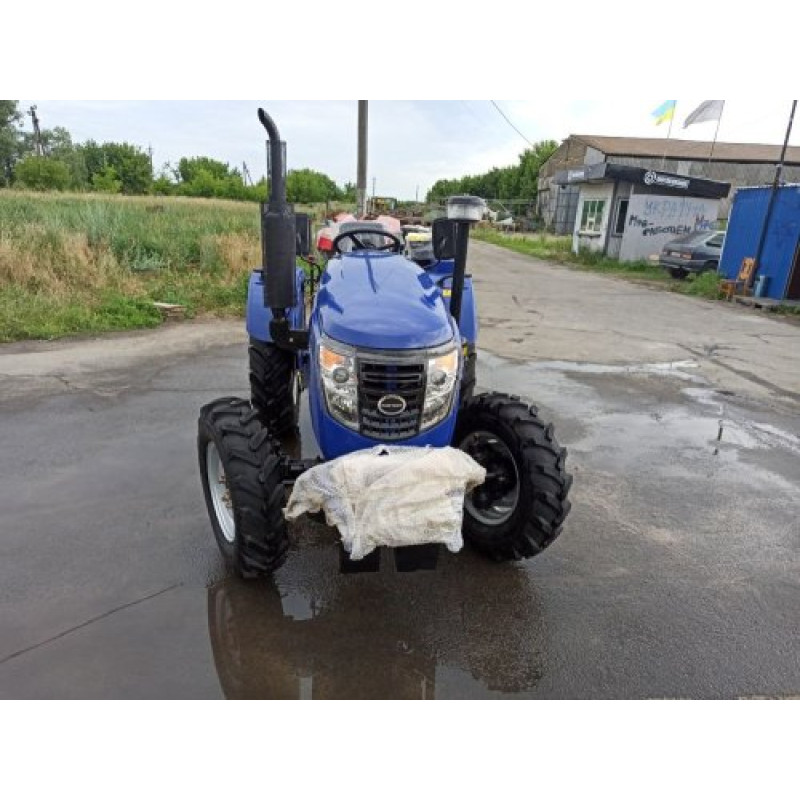

KENTAVR 244 SDX Mini Tractor — a reliable compact 4x4 tractor for your farm
KENTAVR 244 SDX is a versatile mini tractor from the manufacturer KENTAVR with 24 hp (17.65 kW) power, designed for agricultural, municipal, and general farm work. The model features a diesel 4-stroke engine with direct injection and no turbocharging, ensuring economical fuel consumption and a long service life. Compact dimensions, 4x4 all-wheel drive, and a well-designed transmission allow for efficient soil cultivation, trailer towing, and operation with mounted equipment.
Below is a complete list of technical specifications and parameters of the KENTAVR 244 SDX mini tractor for an accurate assessment of its capabilities when choosing equipment.
| Engine power, hp (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, direct injection, non-turbocharged |
| Number and arrangement of cylinders | 3, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Cooling system fan drive | V-belt drive |
| Engine displacement, cm3 | 1530 |
| Cylinder diameter / piston stroke, mm | 85 / 90 |
| Nominal engine fuel consumption, g/kW*h | ≤275 |
| Nominal engine crankshaft speed, rpm | 2300 |
| Nominal traction force, kN | 7.2 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Nominal engine oil consumption, g/kW*h | 2.31 |
| Gearbox (transmission) | (4+1)x2 |
| Oil type for transmission and rear axle | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission oil) |
| Oil type for front axle | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission oil) |
| Rear differential lock | + |
| Clutch | dry 2-disc, constantly closed type |
| Main drive | direct |

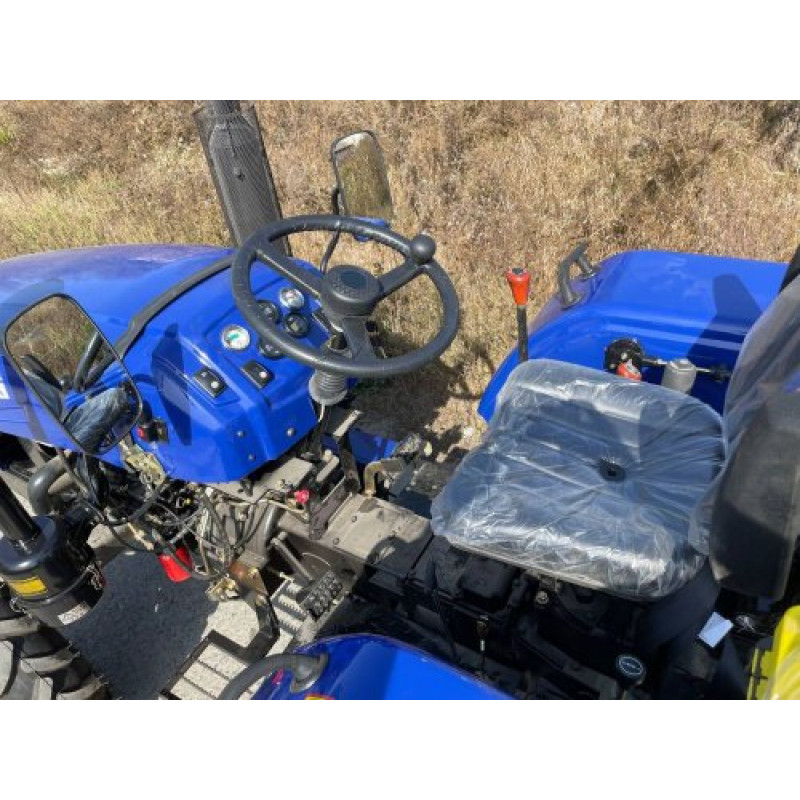

| Steering | mechanical |
| Brakes | on rear wheels, brake drums |

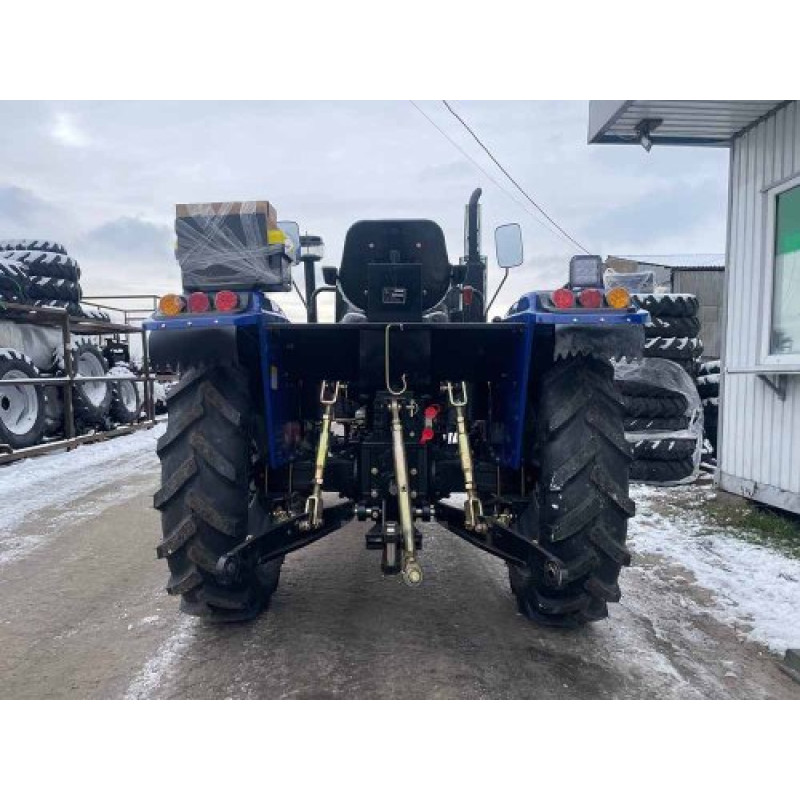

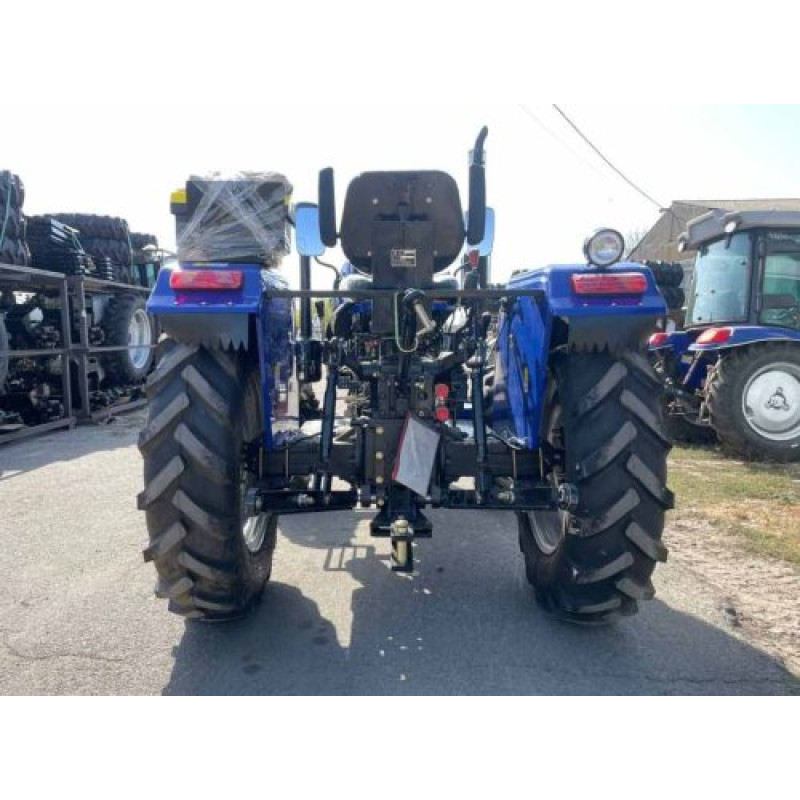

| Power take-off (PTO) | rear, splined |
| Hydraulic system pump type | gear pump |
| Power take-off (PTO) speed, rpm | 540 / 1000 |
| Maximum lifting capacity of mounted mechanism, kg | 420 |
| Minimum ground clearance, mm | 300 |
| Wheelbase, mm | 1730 |
| Wheel track, mm | front 1220, 1440; rear 1120-1450 |
| Tire size | front 7.50-16; rear 11.20-24 |
| Minimum turning radius, m | without brakes 3.5; with brakes 3.2 |
| Travel speed, km/h | forward 0.37-30.64; reverse 0.49-12.23 |
| Fuel tank capacity, L | 18.5 |
| Engine crankcase volume, L | 4.5 |
| Transmission and rear axle crankcase volume, L | 14.0 |
| Front axle crankcase volume, L | 3.0 |
| Engine cooling system volume, L | 6.0 |
| Number of hydraulic outputs | 2 |
| Trailer connector (socket) | + |
| Power steering | + |
| Overall dimensions (L x W x H), mm | 3400x1465x1980 |
| Curb weight, kg | 1350 |
The (4+1)x2 transmission, rear differential lock, and dry 2-disc clutch ensure reliable torque transfer and high cross-country capability. The presence of a rear splined PTO with 540/1000 rpm modes allows for connecting a wide range of mounted and trailed equipment: seeders, plows, cultivators, mowers, and other implements.
Efficient hydraulics based on a gear pump and two hydraulic outputs simplify work with mounted mechanisms, while power steering reduces operator fatigue during maneuvering. A minimum ground clearance of 300 mm and adjustable wheel track make the KENTAVR 244 SDX suitable for working both in fields and for general municipal tasks within settlements.
Recommended lubricants: for the engine, use mineral or semi-synthetic oils for diesel engines; for the gearbox and axles, use transmission oils Silver SAE 85W-90, Gold SAE 80W-90, or Platinum SAE 75W-90. The volumes of the crankcase and other systems are indicated in the table, simplifying maintenance planning.
The KENTAVR 244 SDX is suitable for owners of small farms, farmers, and municipal enterprises looking for an economical, maneuverable, and reliable mini tractor with balanced characteristics of power, lifting capacity (420 kg), and compactness (3400x1465x1980 mm, weight 1350 kg). The 18.5 L fuel tank and economical diesel engine guarantee long operation without frequent refueling.
If you need a versatile and easy-to-maintain mini tractor for various tasks, the KENTAVR 244 SDX offers an excellent balance of price, quality, and functionality.
