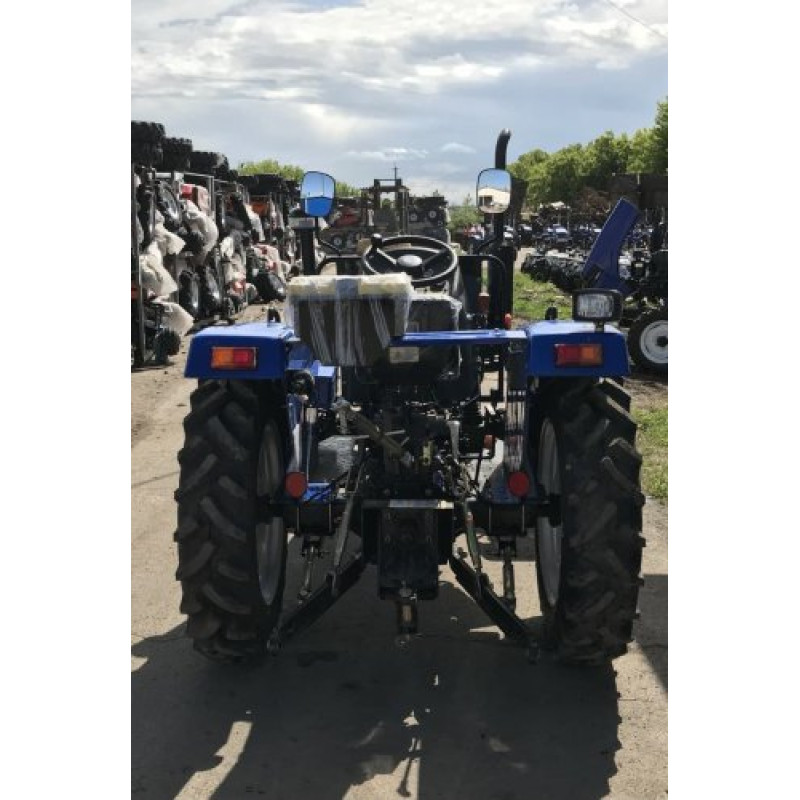

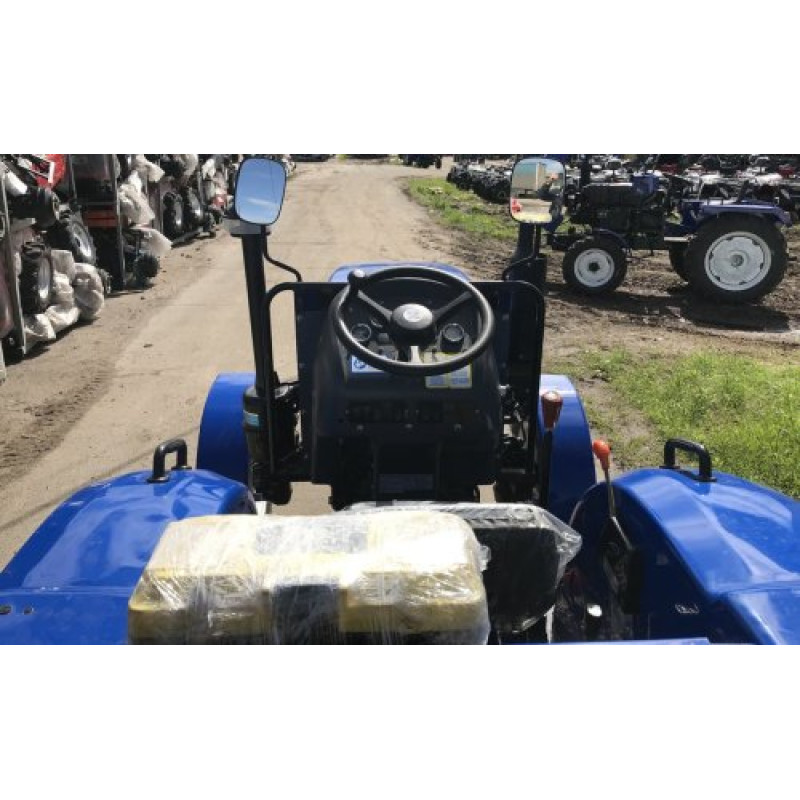

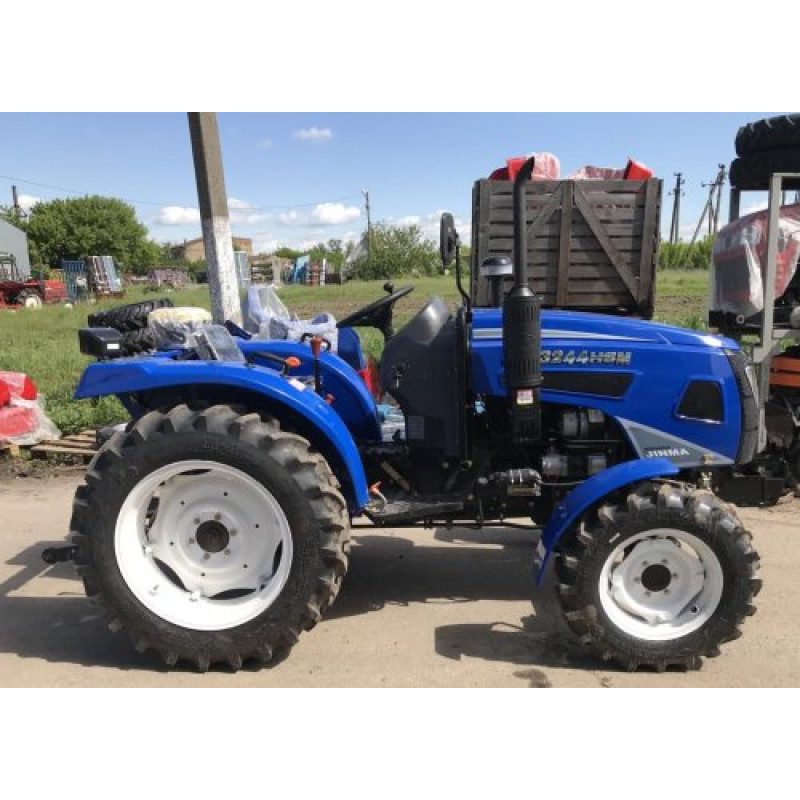

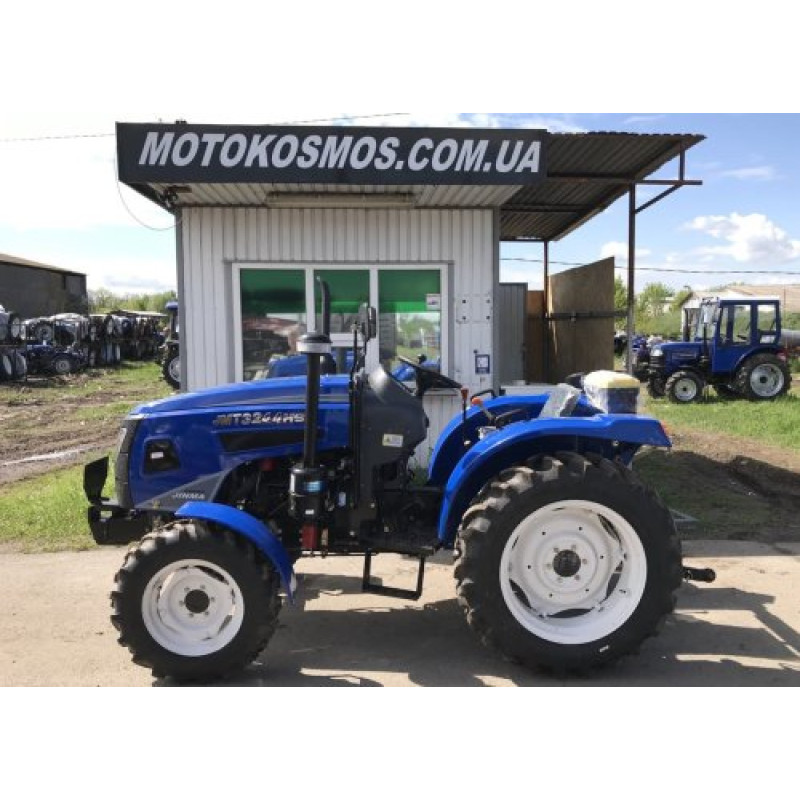

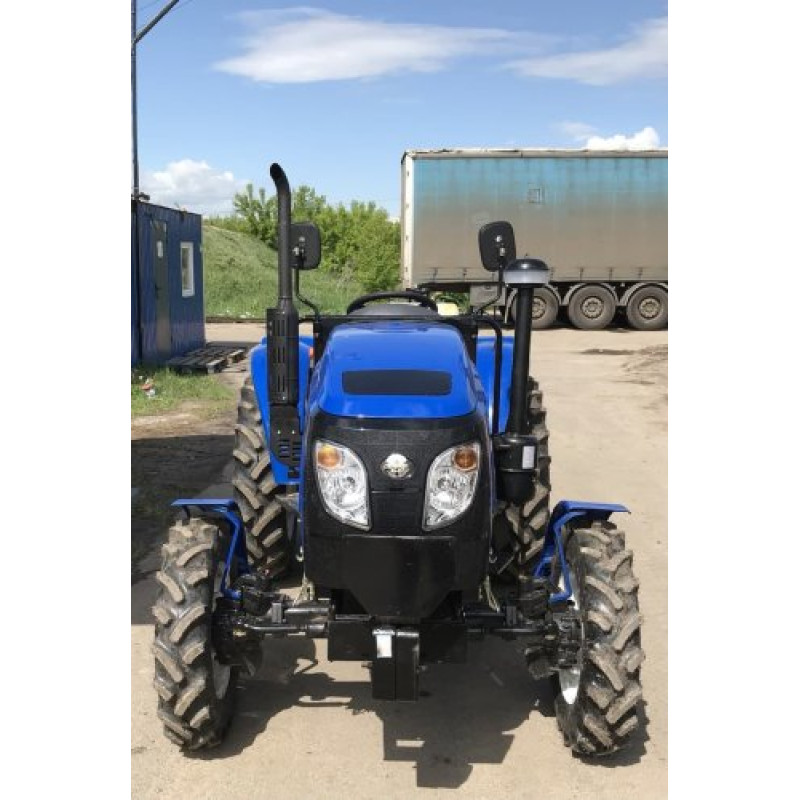

Jinma JMT 3244 HSM Mini Tractor — Reliable and Affordable Equipment from Jinma

The Jinma JMT 3244 HSM mini tractor is designed with European standards and soil and climate characteristics in mind. Manufacturer: Jinma. After merging with Mahindra Yueda Tractor Company, the Jinma brand significantly expanded its machine lineup, and the JMT 3244 HSM model demonstrates a combination of modern design, reliability, and affordable price. This machine is suitable for both private farms and small commercial enterprises, performing a wide range of tasks: soil cultivation, sowing, fodder harvesting, area cleaning, and cargo transportation.

Engine and Operating Characteristics. The Jinma JMT 3244 HSM is equipped with a KM 385VT diesel engine with a power output of 17.6 kW / 24 hp. It is a 4-stroke, three-cylinder vertical engine with a displacement of 1532 cc; cylinder bore/piston stroke — 85 x 90 mm. Nominal crankshaft speed — 2350 rpm. The cooling system is water-cooled, and starting is done by electric starter. The fuel pump type is plunger inline. Fuel consumption — 248 g/kWh, nominal engine oil consumption — 2.04 g/kWh.

Transmission, Working Units, and Versatility. The gearbox has a wide range of speeds: 16 forward and 4 reverse (designated as (4+1)x2), allowing for optimal mode selection for various agricultural operations. The clutch is single-disc. The presence of a dual-mode power take-off (PTO) shaft (540/1000 rpm) expands compatibility with mounted and trailed equipment. The three-point hitch allows for attaching plows, cultivators, harrows, mowers, trailers, and other equipment, quickly adapting the tractor to specific tasks.

Hydraulics, Control, and Operating Capacities. The model is equipped with power steering, which enhances comfort during maneuvering. Useful capacities: fuel tank volume 30 L; engine crankcase volume 6.6 L; gearbox and rear axle crankcase — 14 L; front axle crankcase — 6 L; engine cooling system volume — 10 L; lift housing volume — 8 L. The nominal traction force is 6.5 kN.

Wheel Formula, Tracks, and Tires. Thanks to the 4x4 wheel formula and adjustable tracks, the tractor adapts to various working conditions. The rear wheel track can be 1220; 1290; 1300; 1380 mm. The front wheel track — 1000; 1080; 1140; 1180; 1220; 1260; 1320; 1400 mm. Tire sizes: rear 9.5-24, front 6.00-16. The wheelbase is 1700 mm, minimum ground clearance — 350 mm.

Dimensions and Weight. Overall dimensions of the tractor: 3180x1440x1900 mm. Model weight — 1308 kg. These parameters make the JMT 3244 HSM maneuverable and convenient for use in confined areas and farmyards.

The Jinma JMT 3244 HSM is a versatile solution for beginner farmers and experienced users looking for an optimal price-quality ratio. By purchasing this model, you get a reliable base for a wide range of tasks and the ability to select mounted equipment for your needs; when ordering mounted implements together with the tractor, we provide consultation and delivery.

Technical Specifications:

If you plan to buy the Jinma JMT 3244 HSM in Ukraine, our managers will help with selecting mounted equipment and placing an order. You can make a purchase through the website cart or by contacting us for consultation on optimal configuration and delivery.
