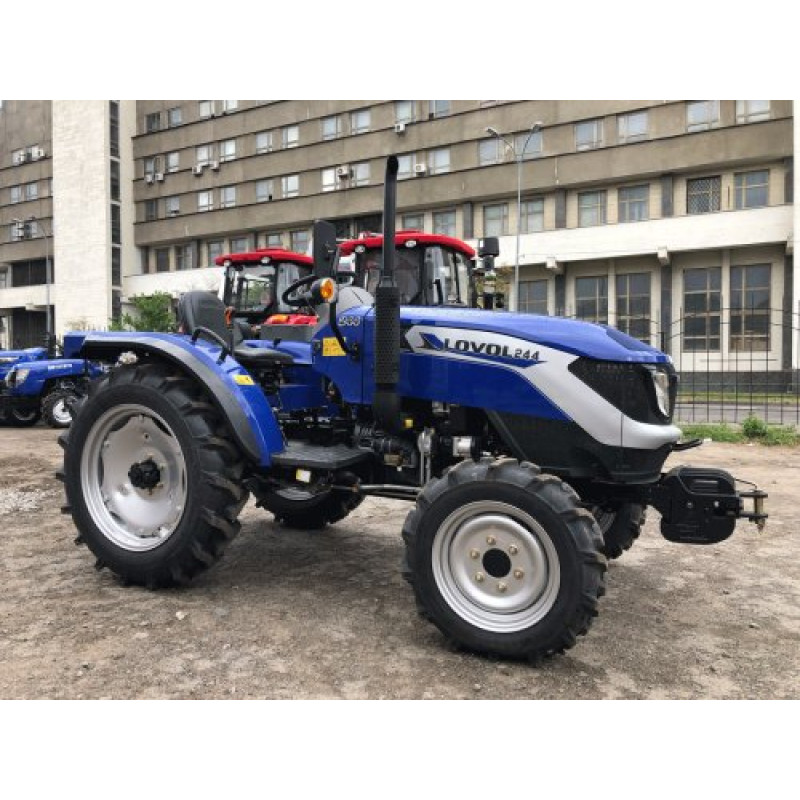

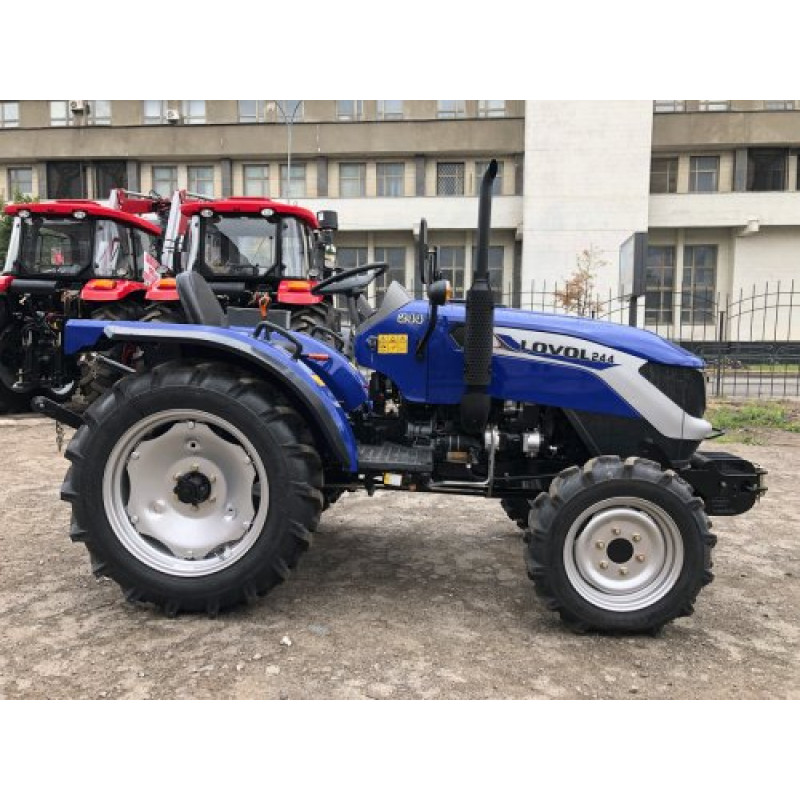

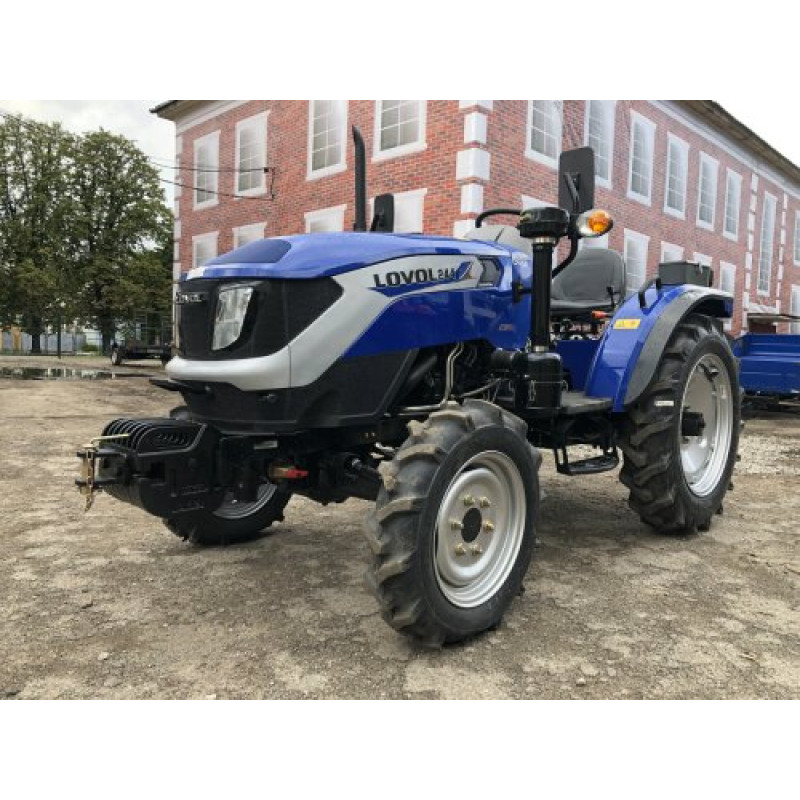

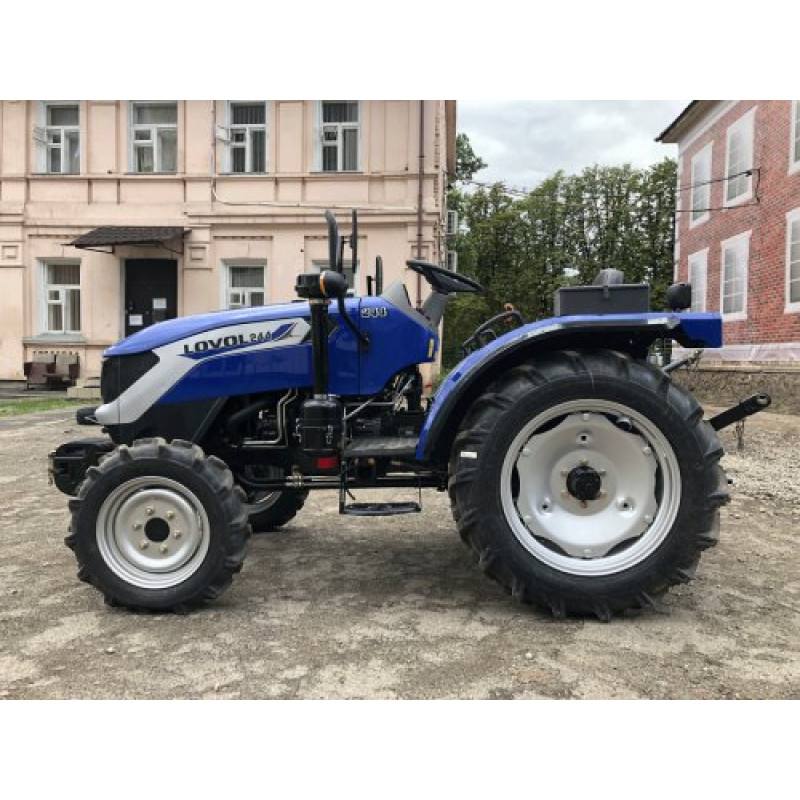

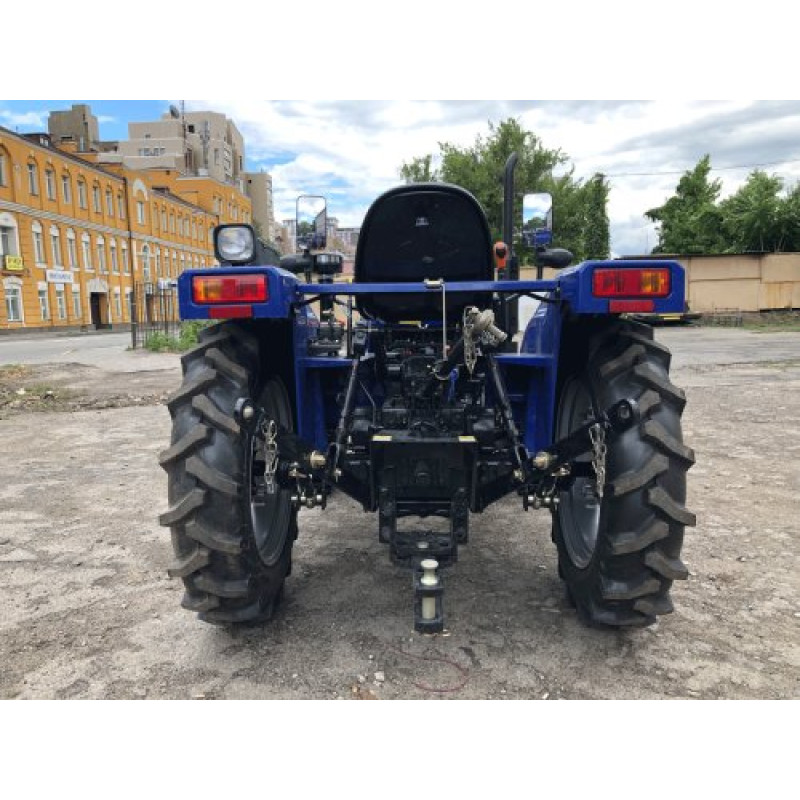

Mini Tractor FOTON-LOVOL TL-244 (Creeper Gear) from the Foton brand is a compact and reliable mini tractor from the new TL-244 model range with an installed creeper gear, combining high traction, fuel efficiency, and ease of operation. This machine is designed for small farms, communal enterprises, and for performing seasonal work where precision and maneuverability are important for soil cultivation, crop planting, snow removal, and cargo transportation.
Who is the Foton-Lovol TL-244 with Creeper Gear designed for?
The creeper gear is a special mechanism that reduces the tractor's speed while increasing traction, making the TL-244 indispensable for meticulous tasks: planting, cultivation, precise soil tillage, and working with attachments. The 4x4 all-wheel drive and rear differential lock ensure excellent grip and проходимость on challenging terrains and various soil types.
Key Advantages and Equipment
- Engine: 4-stroke diesel engine with water cooling, 24 hp (17.6 kW) power, 1532 cm3 displacement, nominal speed 2350 rpm, guaranteeing efficient operation and economical fuel consumption.
- Engine start is performed using an electric starter with safe start for easy ignition in various conditions.
- Creeper gear for increased traction at low speeds, ensuring precision in task execution.
- 4x4 all-wheel drive and rear differential lock for better grip and проходимость in challenging conditions.
- Hydraulic system with two high-performance pumps and power steering for comfortable and easy tractor control.
- Gearbox: mechanical, non-synchronized (4 forward + 4 reverse) x 2, providing a wide range of speeds and optimal operation with attachments.
- Clutch: dry, dual-disc; dry-type, shoe brakes for reliable braking.
- Power Take-Off (PTO) shaft: 540/1000 rpm for connecting various mounted and trailed equipment.
Practical Application
The Foton-Lovol TL-244 is ideal for tilling land, preparing beds, tending crops, harvesting, transporting goods on the plot, clearing roads and sidewalks of snow, and for communal work. Its compact dimensions allow the tractor to be used in narrow areas and greenhouses where large machinery cannot pass.
Specifications:
| Engine power, hp (kW) | 24 hp (17.6) |
| Wheel formula | 4x4 |
| Engine type | 4-stroke diesel engine with water cooling |
| Engine start | electric starter with safe start |
| Engine displacement, cm3 | 1 532 |
| Nominal fuel consumption g / kW * h | ≤278 |
| Nominal crankshaft speed rpm | 2 350 |
| Nominal traction force kN | 6.5 |
| Gearbox (КПП) | non-synchronized, mechanical (4 forward +4 reverse) x 2 |
| Rear differential lock | Yes |
| Clutch | Dry, dual-disc |
| Power steering | Yes |
| Brake mechanism | dry type, shoe |
| Power Take-Off (PTO) shaft speed rpm | 540/1000 |
| Wheelbase, mm | 1 639 |
| Front wheel track, mm | 1 215 |
| Rear wheel track, mm | 960~1 460 |
| Front tire size | 6.0-16 |
| Rear tire size | 9.50-24 |
| Theoretical forward speed, km / h | 26.02 |
| Theoretical reverse speed, km / h | 24.24 |
| Fuel tank volume L | 32 |
| Engine crankcase volume, L | 5.0 |
| Gearbox and rear axle crankcase volume, L | 20.0 |
| Lift housing volume, L | 9.0 |
| Front axle crankcase volume, L | 6.0 |
| Engine cooling system volume, L | 10 |
| Overall dimensions (LxWxH), mm | 3453/ 1440/ 2495 |
| Structural weight, kg | 1320 |
Where to buy and additional options
Flash Army online store offers the official configuration of the Foton-Lovol TL-244 mini tractor with warranty and delivery in Kyiv and Ukraine. The store offers sets of attachments and spare parts for customizing the tractor for specific tasks — from plows and cultivators to mounted snowplows and trailers. Before purchasing, you can clarify details, receive photos, videos, and expert consultation.
Brand: Foton. Product type: Tractors > Mini Tractors.
Other technical details and photos/videos can be clarified with store consultants before purchase.
