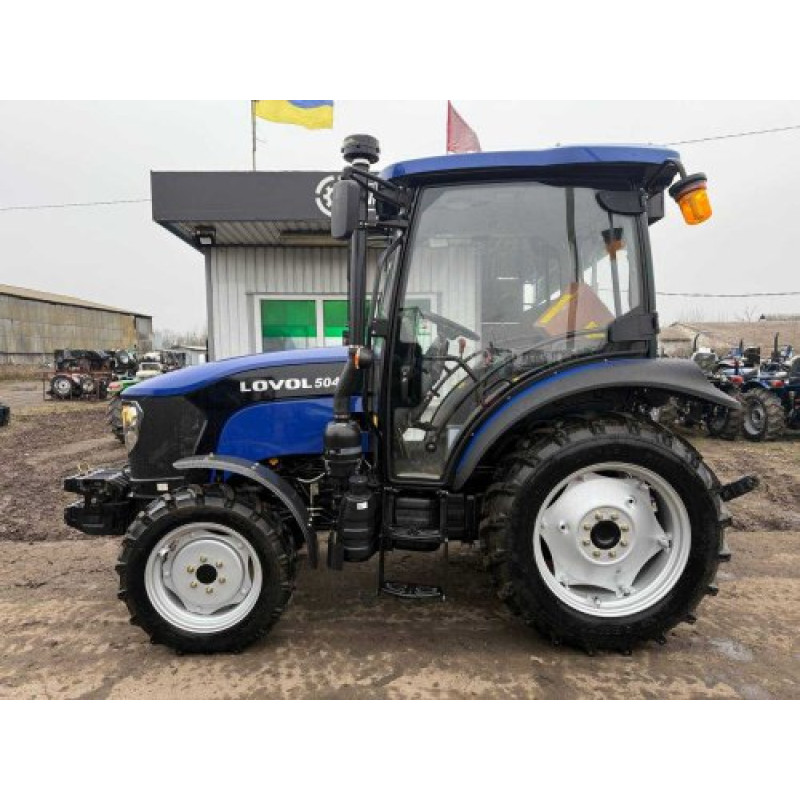

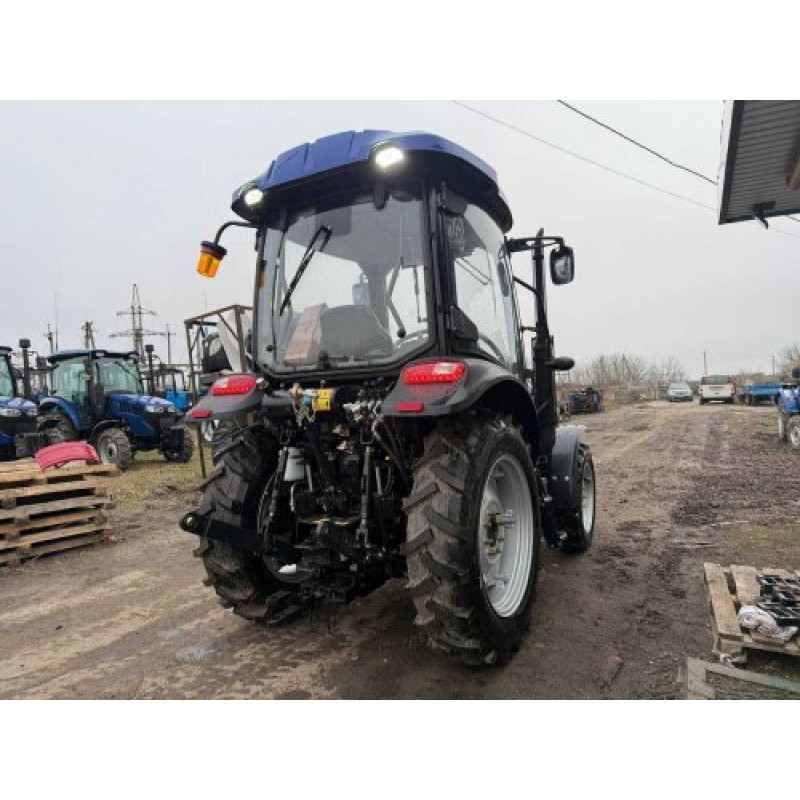

Foton-Lovol FT504 CNC Mini Tractor with Remote Lever — A Powerful, Versatile Assistant for Your Farm
Model: Foton-Lovol FT504 CNC Mini Tractor with Remote Lever. Brand: Foton. Category: Mini Tractors. This unit combines a reliable diesel engine, 4x4 all-wheel drive, modern transmission, and an advanced hydraulic system, making it ideal for field work, soil cultivation, transportation, and municipal services.
Below are the full technical specifications for detailed review:
Engine brand | A498BT-6A | |
Engine power, hp (kW) | 50 (36.78) | |
Wheel drive | 4x4 | |
Engine type | diesel, 4-stroke, direct injection, non-turbocharged | |
Number and arrangement of cylinders | 4, vertical | |
Engine start system | electric starter | |
Cooling system | liquid, closed, | |
Cooling system fan drive | V-belt drive | |
Engine displacement, cm3 | 3168 | |
Nominal engine fuel consumption, | ≤ 225 | |
Nominal engine crankshaft speed, rpm | 2400 | |
Nominal traction force, kN | 13.5 | |
Engine oil type | mineral or semi-synthetic for diesel engines | |
Nominal engine oil consumption, | 1.6 | |
Transmission (gearbox) | (4×3)+(4×3) | |
Transmission and rear axle oil type | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90. (transmission oil) | |
Front axle oil type | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90. (transmission oil) | |
Rear differential lock | + | |
Clutch | dry, dual-action, constantly closed type | |
Final drive | direct | |
Brakes | on rear wheels, disc, with mechanical drive | |
Power take-off (PTO) | rear, splined | |
Hydraulic system pump type | gear pump | |
Power take-off (PTO) speed, rpm | 540 / 1000 | |
Maximum lifting capacity of hitch mechanism, kg | 660 | |
Minimum ground clearance, mm | 300 | |
Wheelbase, mm | 2000 | |
Wheel track, mm | front | 1250, 1320 |
rear | 1220, 1300, 1320, 1400, 1700, 1800 | |
Tire size | front | 8.30-20 |
rear | 12.4-28 | |
Minimum turning | without brakes | 3.2 |
with brakes | 4.1 | |
Travel speed, km/h | forward | 2.37-38.46 |
reverse | 2.07-33.71 | |
Fuel tank capacity, L | 65 | |
Engine crankcase volume, L | 6 | |
Front axle crankcase volume, L | 7.0 | |
Engine cooling system volume, L | 14.0 | |
Number of hydraulic outlets | 2 | |
Rear weights | - | |
Front weights | 6x25 kg | |
Overall dimensions (L x W x H), mm | 4000x1600x2600 | |
Curb weight, kg | 2544 | |
Brief overview of key advantages:
- Powerful and reliable A498BT-6A diesel engine, 50 hp (36.78 kW) with a displacement of 3168 cm3, provides stable traction and efficiency at a nominal 2400 rpm.
- 4x4 all-wheel drive and a nominal traction force of 13.5 kN guarantee confident operation in difficult soil conditions and on slopes.

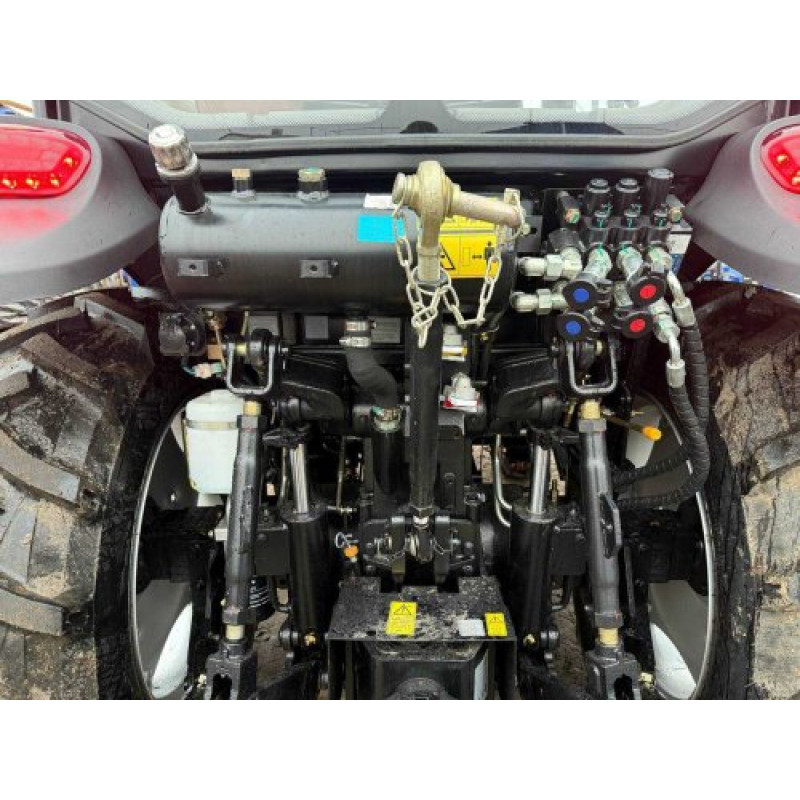

- Advanced hydraulic system with a gear pump and 2 hydraulic outlets, as well as a rear PTO with speeds of 540/1000 rpm, make the tractor versatile for connecting plows, cultivators, mowers, and other attachments (maximum lifting capacity 660 kg).
- Reliable transmission ((4×3)+(4×3) gear combination), dual dry clutch, and rear differential lock ensure smooth shifting, control, and durability in field conditions.
- Adjustable track parameters and various tire sizes (front 8.30-20, rear 12.4-28) allow the machine to be adapted to different crops and terrains.
Operating resources and costs: Nominal fuel consumption ≤ 225 g/kWh, engine oil consumption 1.6 g/kWh. Fuel tank capacity — 65 L. Engine crankcase volume — 6 L; front axle crankcase volume — 7.0 L; cooling system volume — 14.0 L. For transmission and axles, recommended transmission oils are: Silver SAE 85W-90, Gold SAE 80W-90, or Platinum SAE 75W-90, which simplifies servicing and ensures availability of consumables.
Dimensions and maneuverability: Dimensions of 4000x1600x2600 mm and a curb weight of 2544 kg, combined with a minimum ground clearance of 300 mm, allow operation in both open fields and areas with obstacles. A minimum turning radius of 3.2 m (without brakes) and 4.1 m (with brakes) ensures convenient maneuvering in confined spaces.
The Foton-Lovol FT504 CNC Mini Tractor with Remote Lever is a robust, multifunctional, and economical unit suitable for farms, private households, and municipal services requiring a reliable machine with good traction, wide capabilities for attachments, and convenient maintenance.
