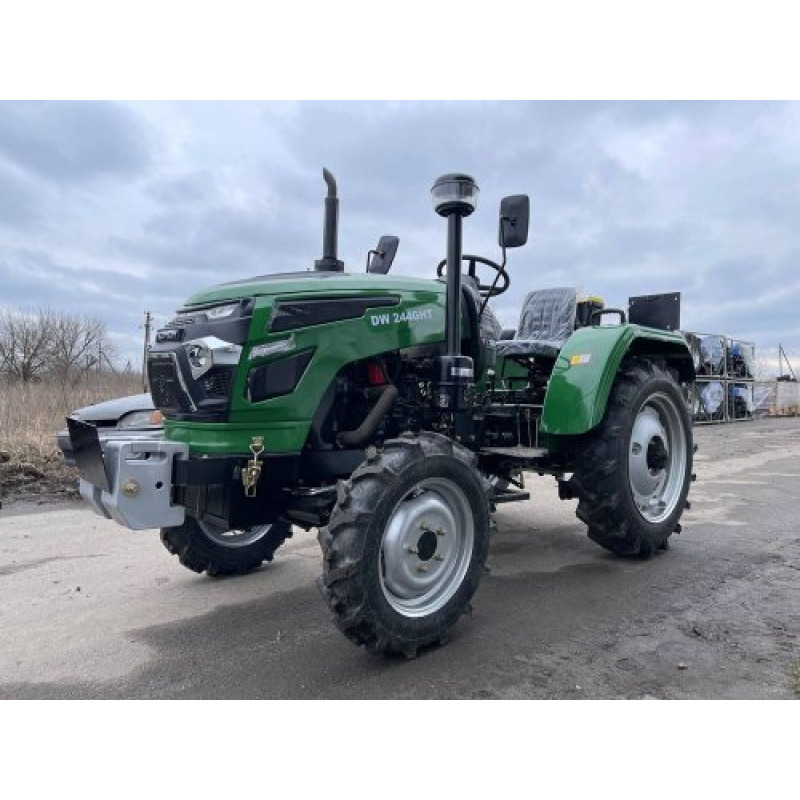

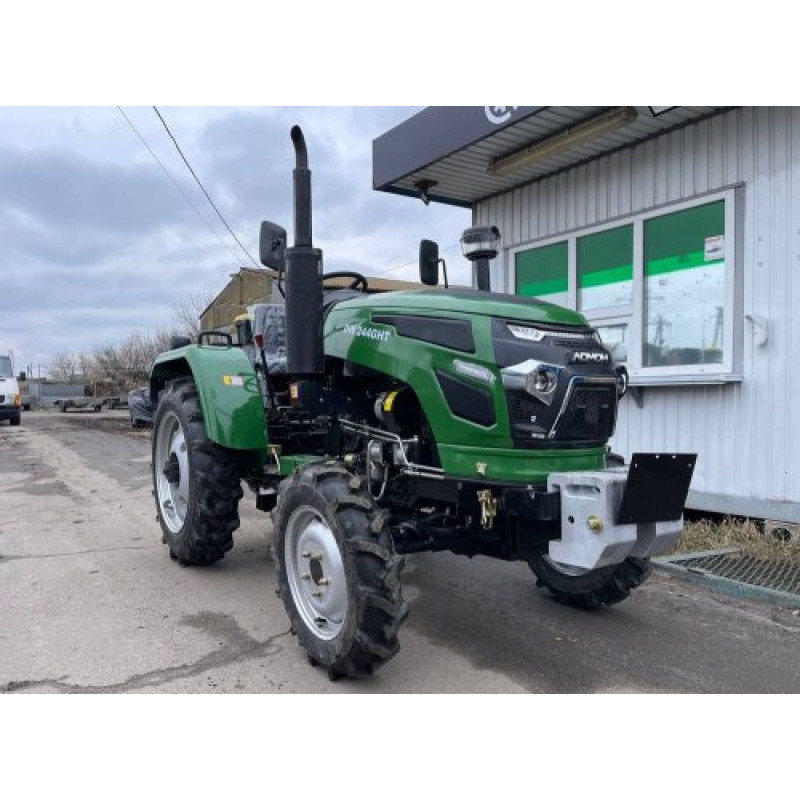

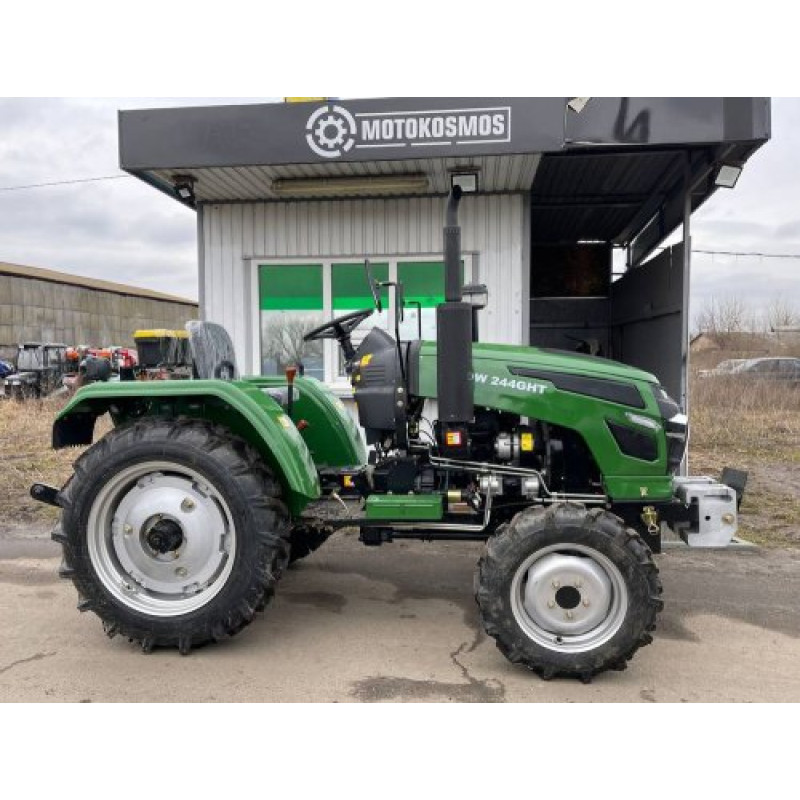

Mini Tractor DW 244 GHT — Overview, Advantages, and Technical Data

Model: The DW 244 GHT mini tractor from manufacturer DW is a versatile compact tractor for private and municipal farms, as well as agricultural work. This mini tractor combines a reliable diesel engine, 4x4 all-wheel drive, and a convenient configuration for a wide range of tasks: soil cultivation, sowing, area cleaning, fodder harvesting, and cargo transportation.

Key Features Briefly: The machine is equipped with a three-cylinder vertical diesel engine with direct injection (model KM385BT, Lydon factory mentioned), displacement of 1530 cm3, power of 24 hp (17.65 kW). Liquid cooling with forced circulation, electric starter for ignition. Full 4x4 drive, mechanical gearbox with (4+1)x2 configuration, rear differential lock available. Reliable design with a dry single-disc clutch, direct main drive, and rear splined power take-off shaft.

Aggregation and Operation Details: The KM385BT engine demonstrates stable torque and durability under load, requiring infrequent maintenance if regulations are followed. Rated crankshaft speed is 2350 rpm. The mini tractor's traction force is 7.2 kN, allowing it to work with various mounted and trailed implements.

Transmission and Drive: The mechanical gearbox has (4+1) gears in two ranges, providing a sufficient number of speeds for field and transport work; levers are located to the side of the driver. The presence of a rear differential lock increases проходимость in difficult conditions. The main drive is direct, the clutch is dry, single-disc.

Hydraulics and PTO: The tractor is equipped with gear pumps (НШ) for hitch drive and for power steering operation, has power steering and one hydraulic output. The power take-off shaft is rear, splined. The technical table indicates PTO speeds of 540 / 720 rpm; the complete set also mentions PTO operating modes of 540 and 1000 rpm, providing flexible options for connecting various attachments.

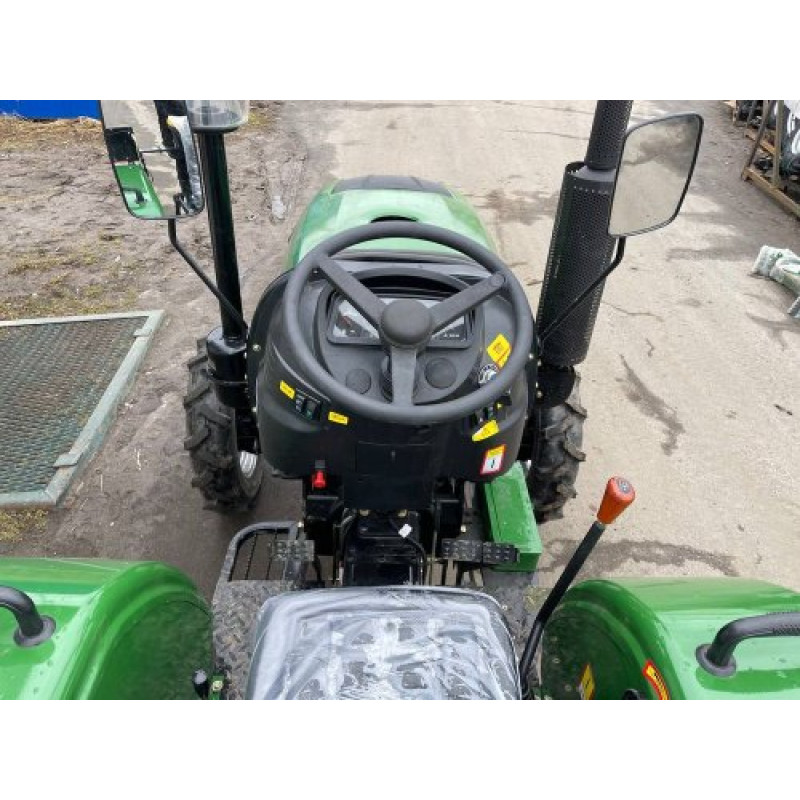

Comfort and Additional Equipment: Features include a spring-loaded seat with stiffness adjustment, an automotive-type dashboard with backlighting, side-mounted gear lever, counterweights, wheel fenders, and a convenient toolbox near the hood. The most important components are accessible for inspection: the hood easily opens thanks to shock absorbers or gas struts.

Dimensions and Capacities: Minimum ground clearance 330 mm, wheelbase 1760 mm, front tires 6.50-16 and rear 9.50-24. There is a trailer electrical connector. Fuel tank capacity — 21 L; engine crankcase capacity — 3 L; gearbox and rear axle crankcase capacity — 11 L; front axle crankcase capacity — 3 L. Curb weight of the mini tractor — 1310 kg.

Who is the DW 244 GHT suitable for: This model is ideal for small and medium-sized farms, municipal enterprises, horticulture, and farms requiring a versatile compact tractor with the ability to work with attachments. All-wheel drive, a reliable diesel engine, and the presence of hydraulics make the DW 244 GHT an effective solution for most tasks in the field and on the farm. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.

Purchase and Service

Flash Army online store offers a new DW 244 GHT mini tractor with full equipment and an official manufacturer's warranty. Payment is possible by cash, bank transfer, credit, or installment. Delivery across Ukraine is free. We offer consultation on configuration selection, assistance with attachment selection, and after-sales service.

The DW 244 GHT mini tractor is a combination of reliability, functionality, and ease of use. If you need a compact powerful tractor with all-wheel drive, a developed hydraulic system, and rich equipment — the DW 244 GHT is worth considering.
