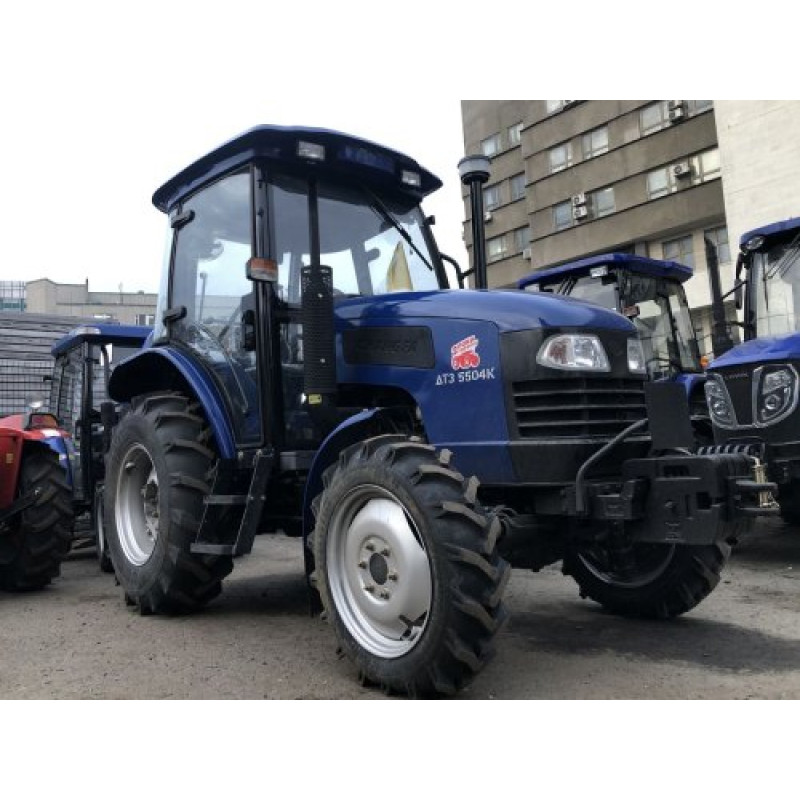

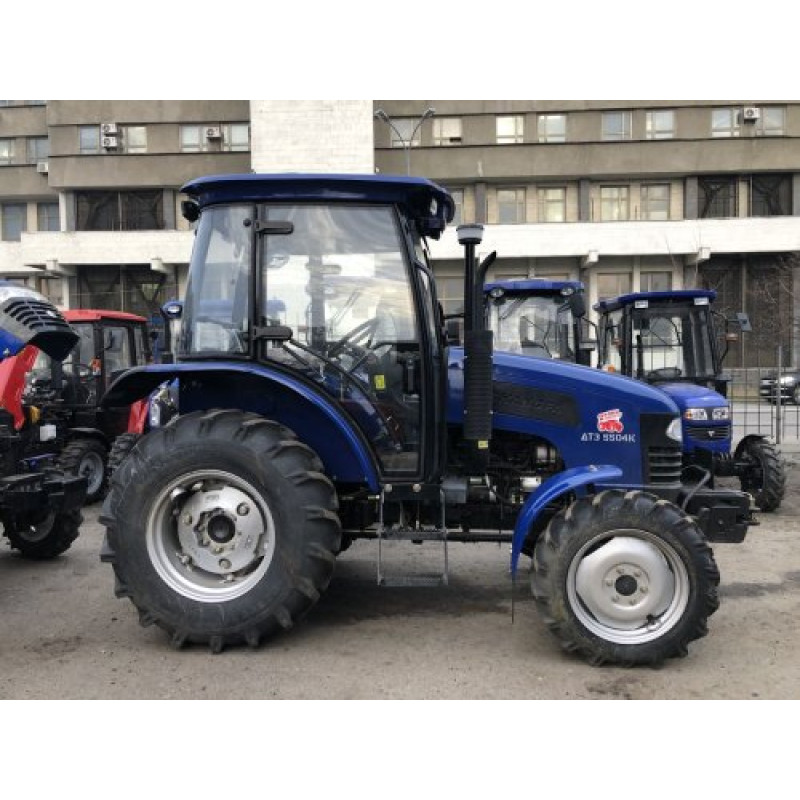

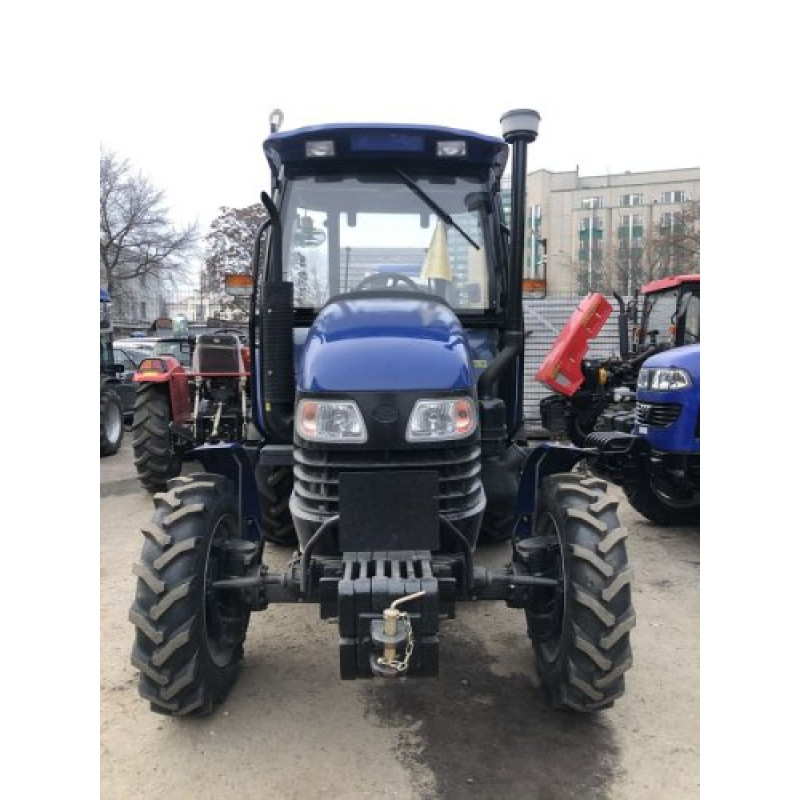

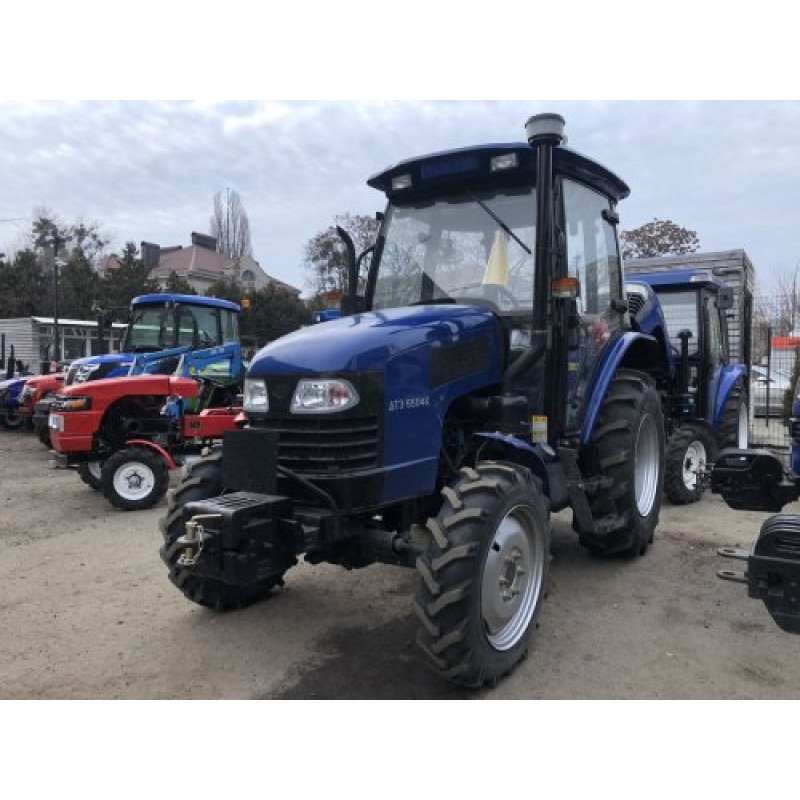

Mini Tractor DTZ 5504K — A Powerful and Versatile Assistant for Your Farm

The DTZ 5504K mini tractor from the manufacturer DTZ is reliable, multifunctional equipment designed for private households, farms, and municipal work. The model features a heated cabin for comfortable operation in cold weather, excellent off-road capability and maneuverability, as well as a wide range of possibilities for working with attachments: soil cultivation, sowing, inter-row care, harvesting, area cleaning, and snow removal.

Advantages and Key Features

This tractor combines simple operation with versatile application. With a full set of attachments, the DTZ 5504K allows you to:

  • effectively cultivate soil of varying complexity;

  • perform sowing and harvesting;

  • carry out plant care, watering, and inter-row cultivation;

  • clean garden and park areas, and adjacent territories;

  • clear snow and perform other seasonal work.

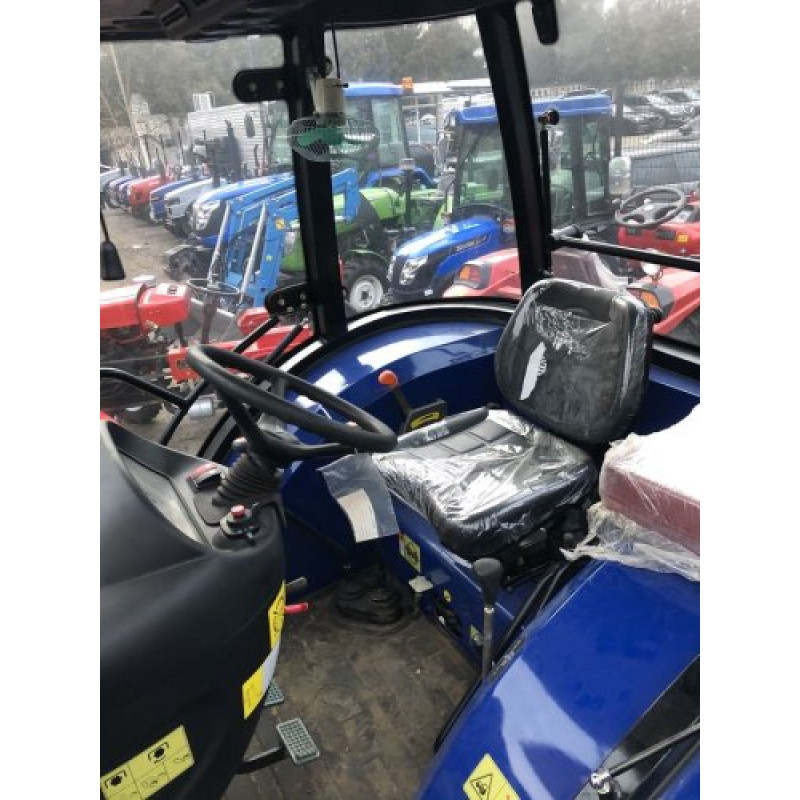

The heated cabin makes winter work comfortable, and power steering simplifies maneuvering. The installed disc brakes on the rear wheels enhance operational safety, and the rear differential lock provides better off-road capability in difficult conditions.

Price, Delivery, and Benefits

The cost of the DTZ 5504K mini tractor is $13,550. By purchasing from the Flash Army online store, you receive 100% original equipment and free delivery across Ukraine at the company's expense. Investment in such a tractor often pays for itself in the first year of operation due to increased productivity and time savings.

We also recommend familiarizing yourself with other models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350 hp, DW 244, DTZ 5404K, Solis 26 Tractor, Solis 50, Shifeng SF-244.

Still have questions? Call the manager at the number listed on the website — they will provide all relevant information and help with selecting additional equipment.

Technical Specifications:

Engine Brand

CF4B50T-Z

Engine Power, hp (kW)

50 (36.78)

Wheel Formula

4x4

Engine Type

diesel, 4-stroke, direct injection, non-turbocharged

Number and Arrangement of Cylinders

4, vertical

Engine Start System

electric starter

Cooling System

liquid, closed,
with forced circulation of coolant

Cooling System Fan Drive

V-belt drive

Engine Displacement, cm3

2545

Nominal Engine Fuel Consumption, g / kW * h

≤ 243

Nominal Engine Crankshaft Speed, rpm

2400

Nominal Traction Force, kN

12

Engine Oil Type

mineral or semi-synthetic for diesel engines

Nominal Engine Oil Consumption, g / kW * h

1.6

Gearbox (Transmission)

(4x3)+(4x3)

Transmission and Rear Axle Oil Type

Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90
(transmission)

Front Axle Oil Type

Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90
(transmission)

Rear Differential Lock

+

Clutch

dry, 2-disc,
constantly closed type

Final Drive

direct

Brakes

on rear wheels, disc

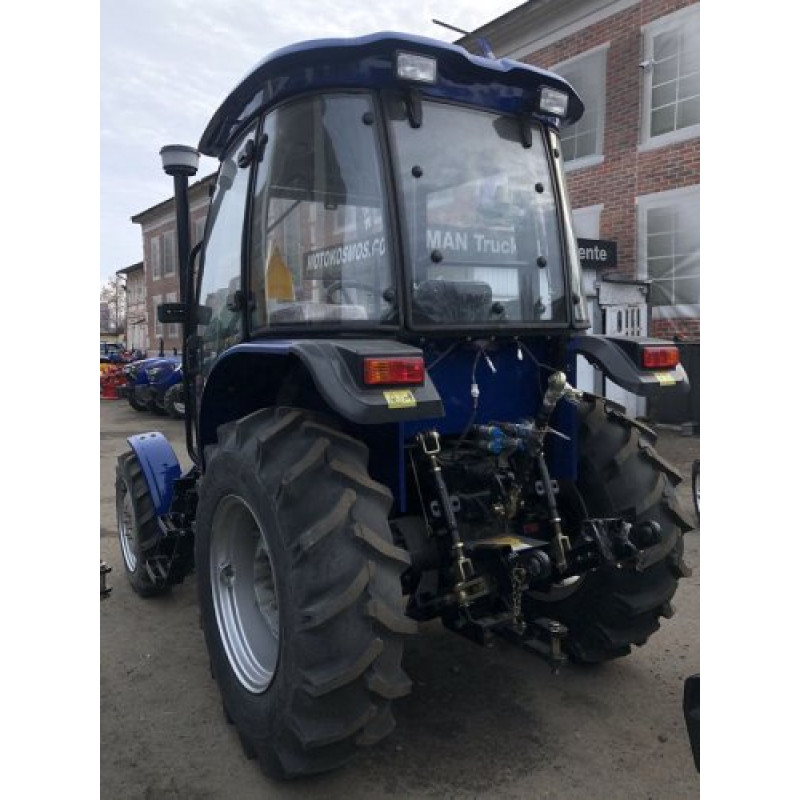

Power Take-Off (PTO) Shaft

rear, splined

Hydraulic System Pump Type

gear pump

Power Take-Off (PTO) Shaft Speed, rpm

540 / 1000

Maximum Lifting Capacity of Mounted Mechanism, kg

650

Minimum Ground Clearance, mm

320

Wheelbase, mm

2050

Wheel Track, mm

front

1470, 1570, 1670, 1710

rear

1380, 1480, 1580

Tire Size

front

8.30-20

rear

14.90-24

Minimum Turning
Radius, m

without brakes

4.3

with brakes

3.8

Travel Speed, km/h

forward

1.8-28.7

reverse

0.5-16.3

Fuel Tank Capacity, l

52

Engine Crankcase Volume, l

7

Transmission and Rear Axle Crankcase Volume, l

27.0

Front Axle Crankcase Volume, l

7.0

Engine Cooling System Volume, l

14.0

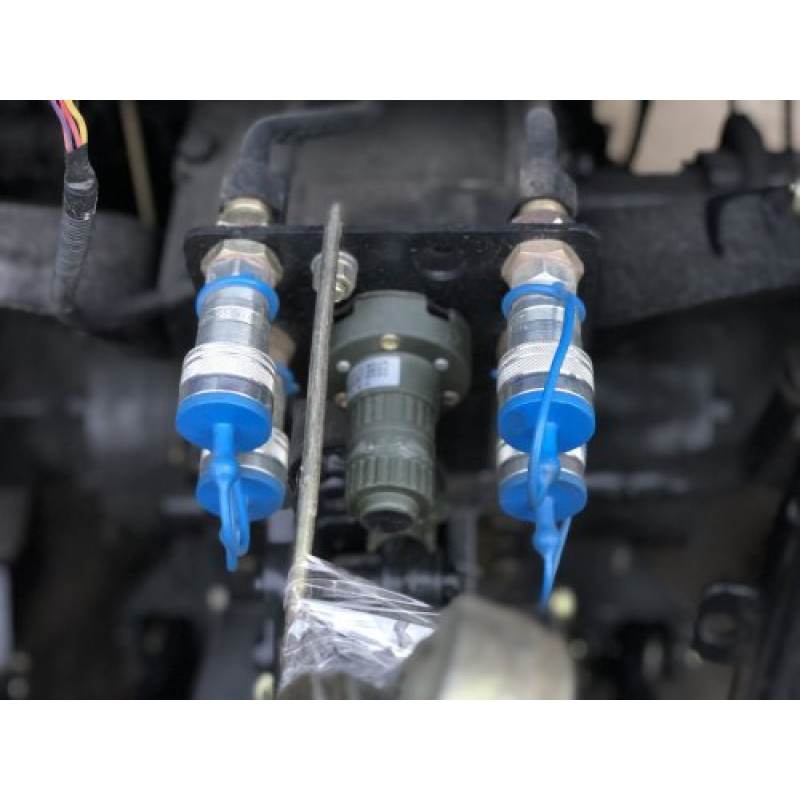

Number of Hydraulic Outlets

4

Trailer Connector (Socket)

+

Compressor

-

Power Steering

+

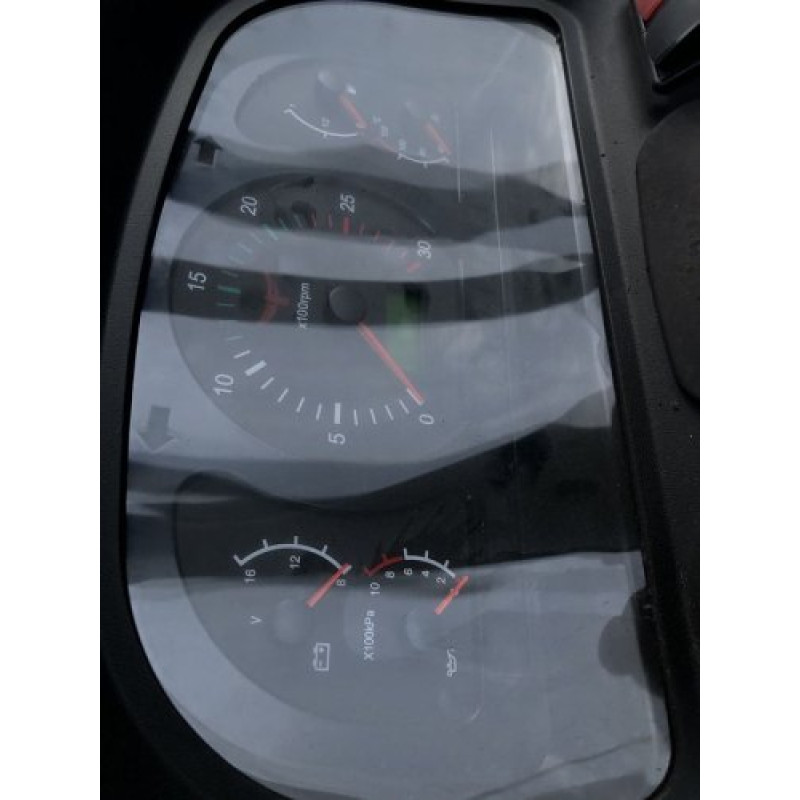

Hour Meter

+

Seat with Shock Absorber

+

Rear Weights

2 x 45 kg.

Front Weights

6 x 20 kg.

Overall Dimensions (L x W x H), mm.

3800x1800x2500

Curb Weight, kg

2660

Manufacturer: DTZ. Category: Tractors > Mini Tractors.

The DTZ 5504K is an excellent choice for those who need a powerful diesel engine, a reliable hydraulic system with 4 outlets, a 2-speed PTO (540/1000 rpm), disc brakes, differential lock, and a comfortable heated cabin. Its technical parameters and equipment make this model a versatile solution for various tasks on the field, farm, or in municipal services.
