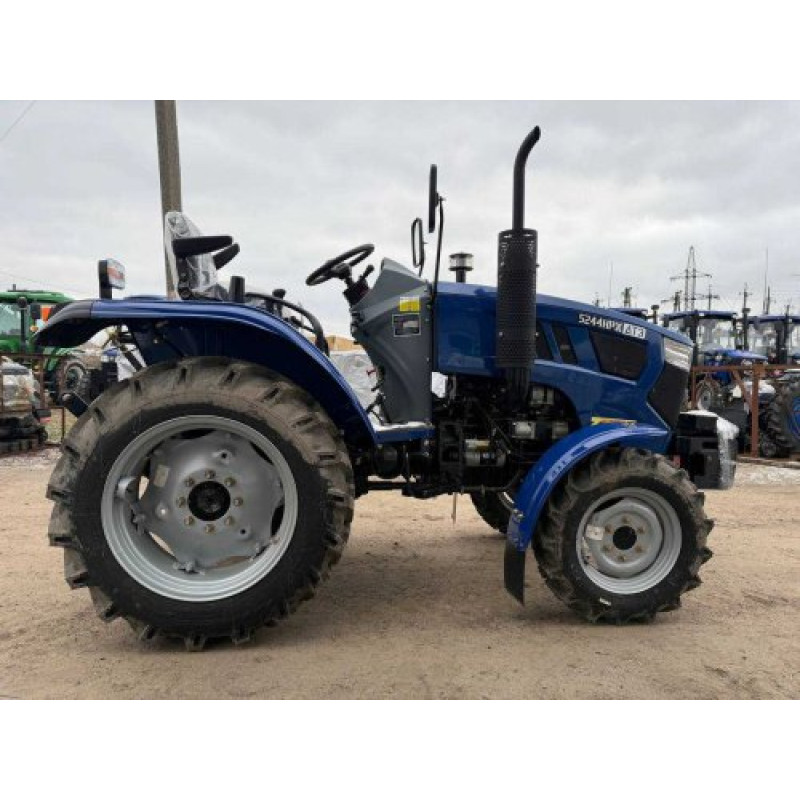

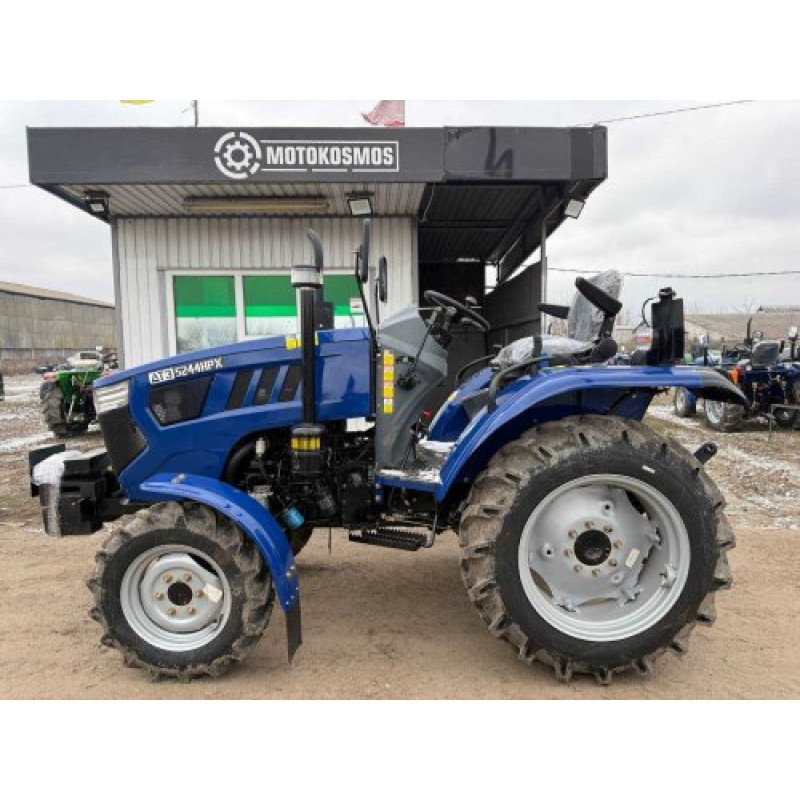

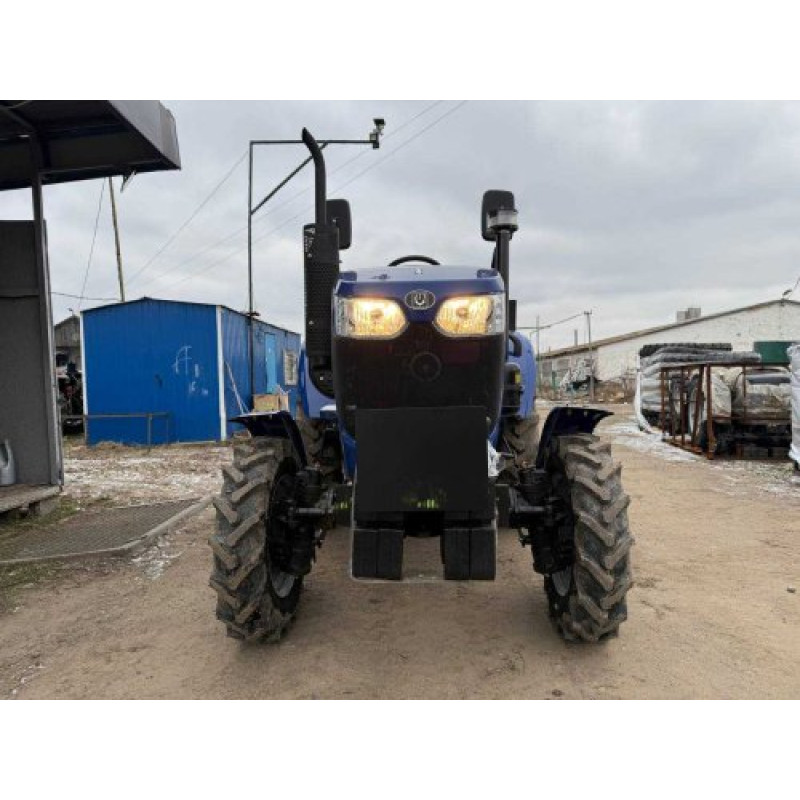

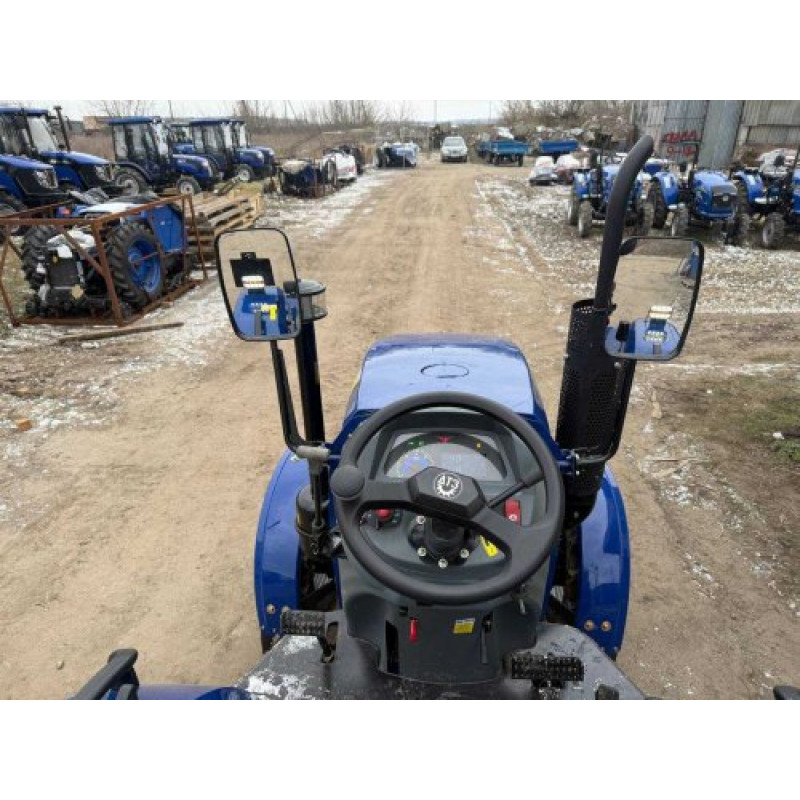

Mini Tractor DTZ 5244 HPX NEW
Model Overview: The DTZ 5244 HPX NEW mini tractor is a versatile compact tractor from the manufacturer DTZ, designed for work in private households, on farms, and in the municipal sector. This mini tractor combines a reliable diesel engine, 4x4 all-wheel drive, and a wide range of technical specifications for efficient operation with various attachments.
Manufacturer: DTZ. Category: Tractors > Mini Tractors.
| Engine Model: | DD390 |
| Engine Power: | 24 hp |
| Wheel Formula: | 4x4 |
| Engine Type: | diesel, 4-stroke, with direct injection |
| Number and Arrangement of Cylinders: | 3, vertical |
| Starting System: | electric starter |
| Cooling System: | liquid, closed with forced circulation of coolant |
| Engine Displacement: | 1909 |
| Rated Engine Crankshaft Speed, rpm: | 2350 |
| Transmission (Gearbox): | 9+9 |
| Clutch: | dual-disc |
| Power Take-Off (PTO): | rear, splined |
| Hydraulic System Pump Type: | gear pump |
| PTO Speed, rpm: | 540/1000 |
| Maximum Lifting Capacity of Hitch Mechanism, kg: | 414 |
| Minimum Ground Clearance, mm: | 350 |
| Wheelbase, mm: | 1700 |
| Wheel Track, mm: | front 1170, 1370; rear: 1200, 1320, 1400 |
| Front Tire Size: | 6.50-16; rear: 11.2-24 |
| Travel Speed, km/h: | forward 2.62-42.7; reverse 2.56-41.6 |
| Fuel Tank Capacity, L: | 39.0 |
| Overall Dimensions (L x W x H), mm: | 3400x1500x2020 |
| Weight, kg: | 1515 |
The DD390 engine develops 24 hp at a nominal 2350 rpm. It is a three-cylinder vertically arranged diesel with a direct injection system, equipped with an electric starter for easy starting and a liquid closed cooling system with forced circulation. The 1909 cm3 displacement provides balanced fuel efficiency and traction for various tasks.

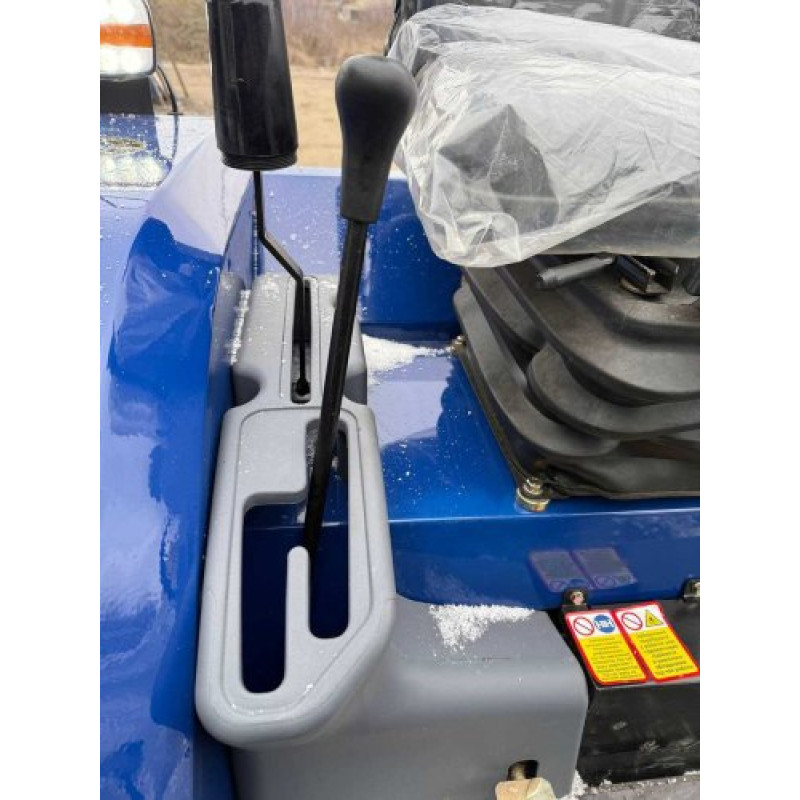

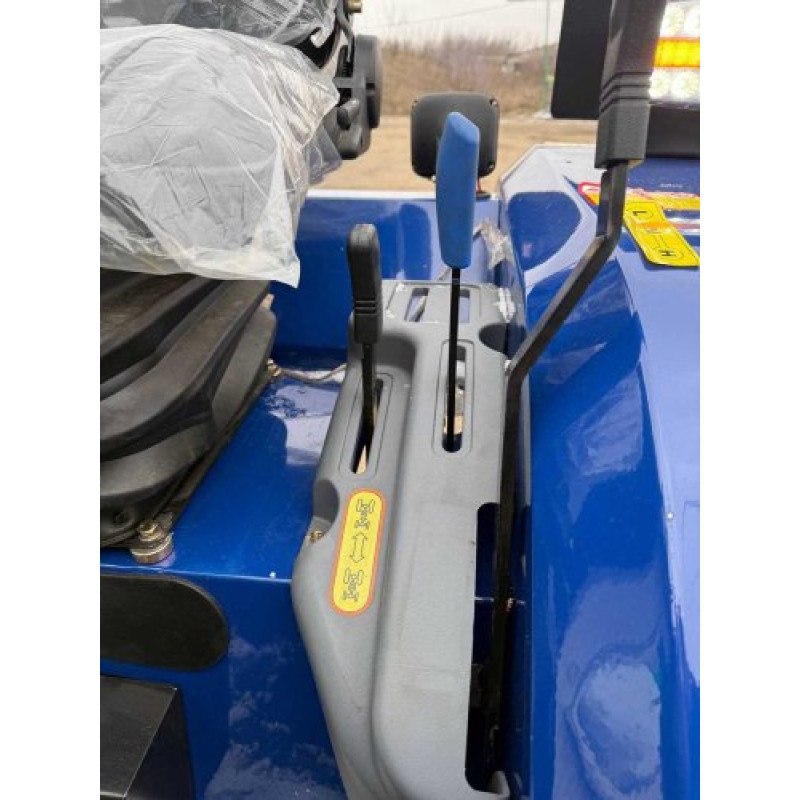

The 9+9 transmission offers a wide range of speeds: forward 2.62–42.7 km/h, reverse 2.56–41.6 km/h, allowing for both low-speed operation with attachments and quick movement between plots. The dual-disc clutch ensures reliable torque transfer. The rear splined PTO with speeds of 540/1000 rpm is compatible with most modern mounted and trailed implements.

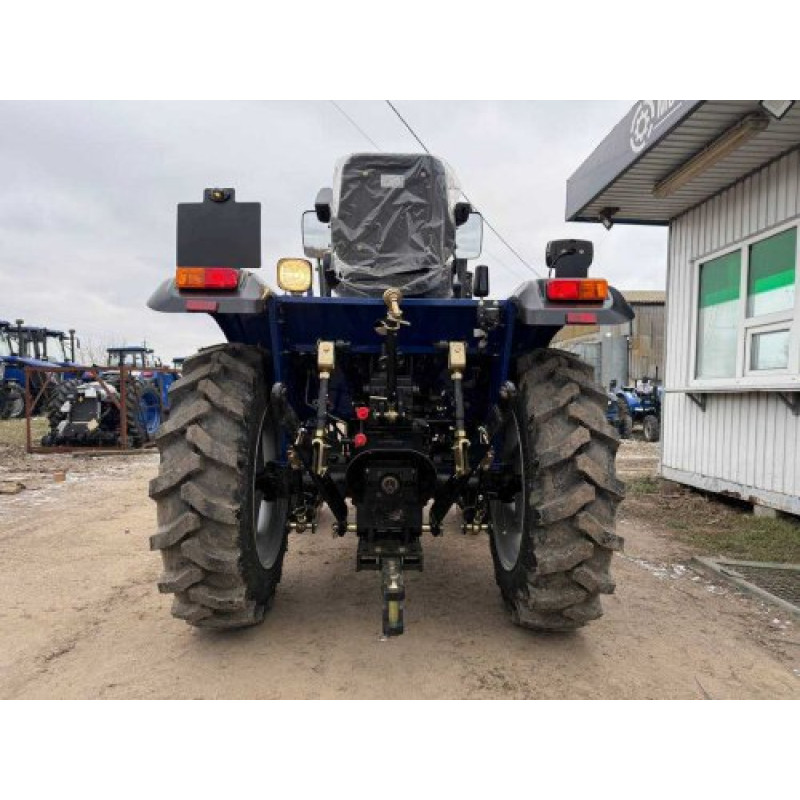

The hydraulic system based on a gear pump and a maximum hitch mechanism lifting capacity of 414 kg allow for efficient use of plows, harrows, balers, mowers, and other attachments. A minimum ground clearance of 350 mm makes it possible to work on uneven terrain and in row crops.
Various track width options and tire sizes (front 6.50-16; rear 11.2-24) enhance off-road capability and allow the tractor to be adapted to specific field or yard conditions. A wheelbase of 1700 mm, dimensions of 3400x1500x2020 mm, and a weight of 1515 kg make the machine compact, maneuverable, and stable during operation and transport.
The 39 L fuel tank capacity ensures long autonomous operation in the field or on the farm. Thanks to its combination of compactness, power, and versatility, the DTZ 5244 HPX NEW mini tractor is an excellent choice for agricultural, municipal, and household tasks: tillage, material transport, and work with attachments.
Order the DTZ 5244 HPX NEW mini tractor if you need a reliable assistant for work in the field, garden, or farm — a compact, economical, and multi-purpose unit.
