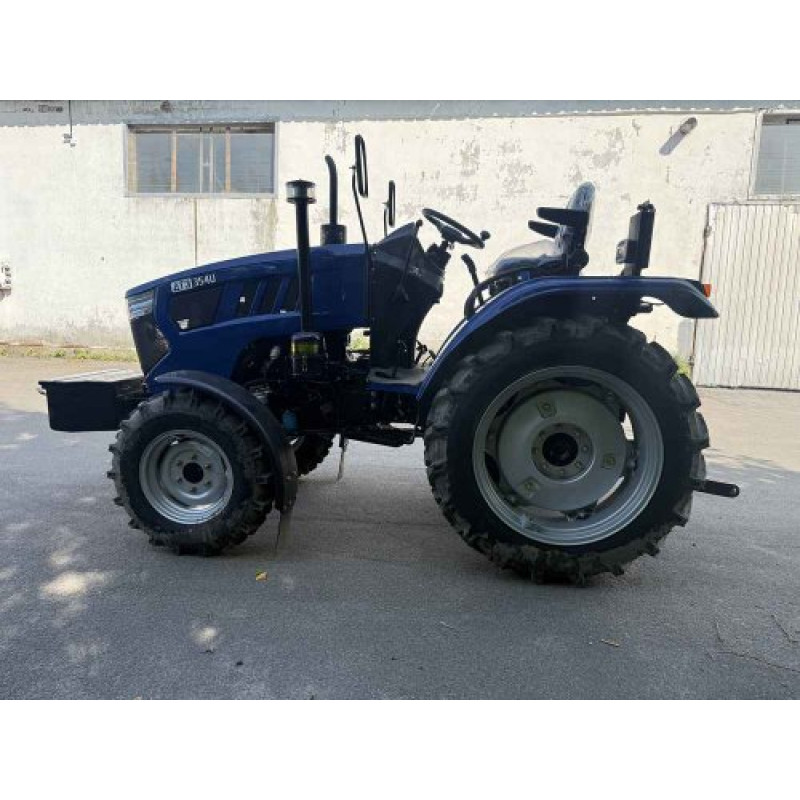

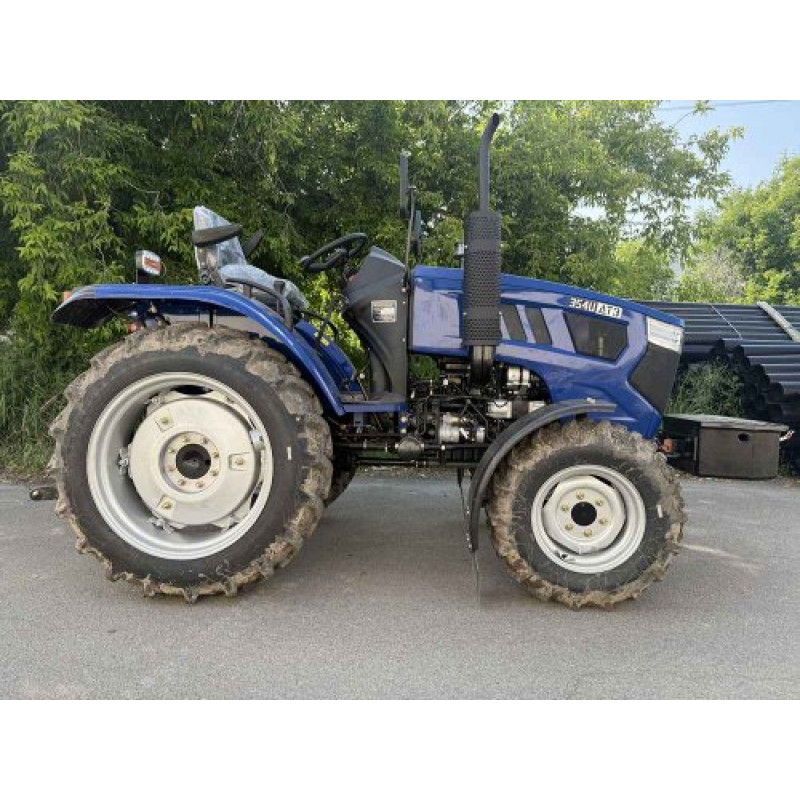

Mini Tractor DTZ 354U
Mini Tractor DTZ 354U is a modern compact tractor designed for a wide range of agricultural, garden, and municipal tasks. Combining small dimensions with reliable technical specifications, this model is ideal for private households, farms, and businesses that require a versatile and productive unit.
The heart of the tractor is a 35 hp CF3B35T diesel engine, 4-stroke, with direct injection and three vertical cylinders. The starting system is an electric starter, and cooling is liquid-based, closed with forced circulation. The engine displacement is 1909 cm3, and the nominal crankshaft speed is 2300 rpm.

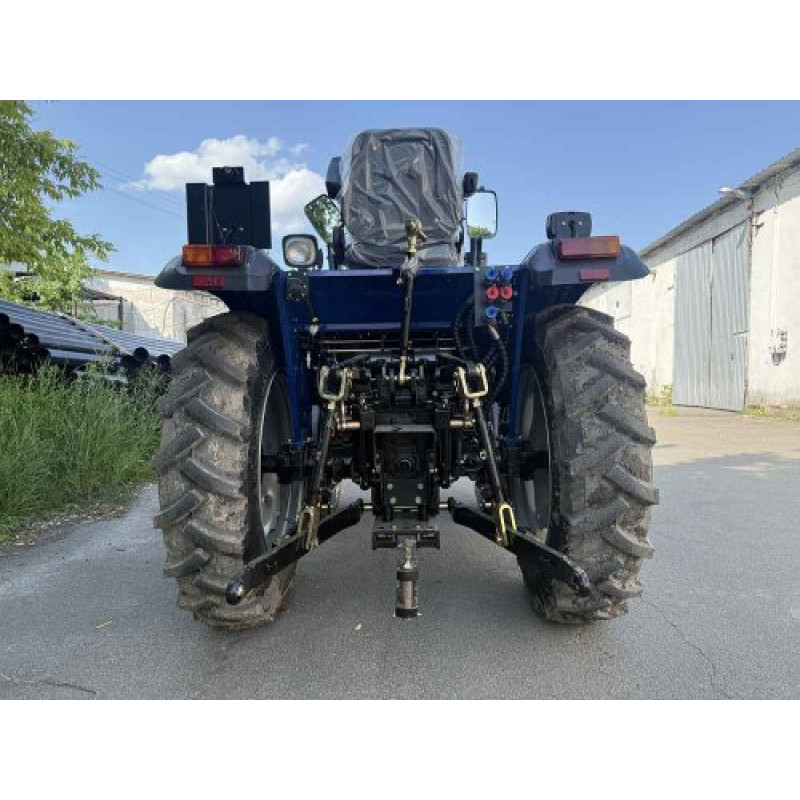

The transmission features a 9+9 gearbox with a dual-disc clutch, ensuring smooth gear changes and reliable operation. The 4x4 wheel formula provides excellent cross-country capability on various soil types and in challenging conditions. The power take-off (PTO) shaft is a rear splined type with speed modes of 540/1000 rpm, allowing for the connection of a wide range of mounted and trailed equipment.
The hydraulic system is equipped with a gear pump and provides a maximum lifting capacity of the mounted mechanism up to 800 kg, enabling work with heavy mounted units.
Key dimensional and operational parameters: minimum ground clearance 300 mm, wheelbase 1700 mm, adjustable rear wheel track — 1400; 1300; 1200; 1100 mm. Tire sizes: front — 7.50-16, rear — 11.2-28. The fuel tank capacity of 32 L allows for extended operation without frequent refueling.
The tractor's speed characteristics provide forward movement in the range of 2.62–42.7 km/h and reverse 2.56–41.6 km/h. Tractor dimensions: 3400x1500x2020 mm; curb weight — 1660 kg.
Advantages of the DTZ 354U: reliable CF3B35T diesel engine, practical 4x4 transmission, powerful PTO with two speed modes, efficient hydraulics, and significant lifting capacity for mounted equipment. Thanks to these features, the mini tractor is suitable for plowing, cultivation, transportation, work with mounted equipment, and other farm tasks.
Technical specifications in a convenient format:
Technical Specifications:
| Engine: | CF3B35T |
| Engine power, hp: | 35 |
| Wheel formula: | 4x4 |
| Engine type: | diesel, 4-stroke with direct injection |
| Number and arrangement of cylinders: | 3, vertical |
| Engine starting system: | electric starter |
| Cooling system: | liquid, closed with forced circulation of cooling fluid |
| Engine displacement, cm3: | 1909 |
| Nominal engine crankshaft speed, rpm: | 2300 |
| Gearbox (КП): | 9+9 |
| Clutch: | dual-disc |
| Power take-off (PTO) shaft: | rear splined |
| Hydraulic system pump type: | gear pump |
| Power take-off (PTO) shaft speed, rpm: | 540/1000 |
| Maximum lifting capacity of mounted mechanism, kg: | 800 |
| Minimum ground clearance, mm: | 300 |
| Wheelbase, mm: | 1700 |
| Wheel track, mm: | front -; rear: 1400; 1300; 1200; 1100 |
| Tire size: | front 7.50-16; rear: 11.2-28 |
| Travel speed, km/h: | forward 2.62-42.7; reverse 2.56-41.6 |
| Fuel tank volume, L: | 32 |
| Overall dimensions (L x W x H), mm: | 3400x1500x2020 |
| Curb weight, kg: | 1660 |
The DTZ 354U mini tractor is an efficient and economical tool for your farm, combining mobility, power, and versatility. It will ensure high-quality performance of field work, land cultivation, and territory maintenance with minimal operating costs.
