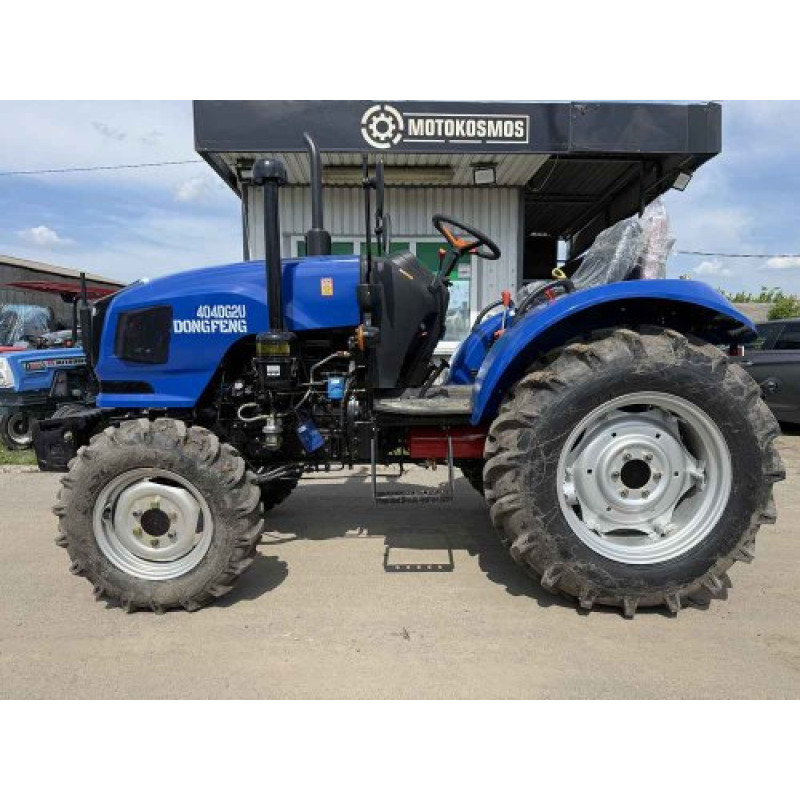

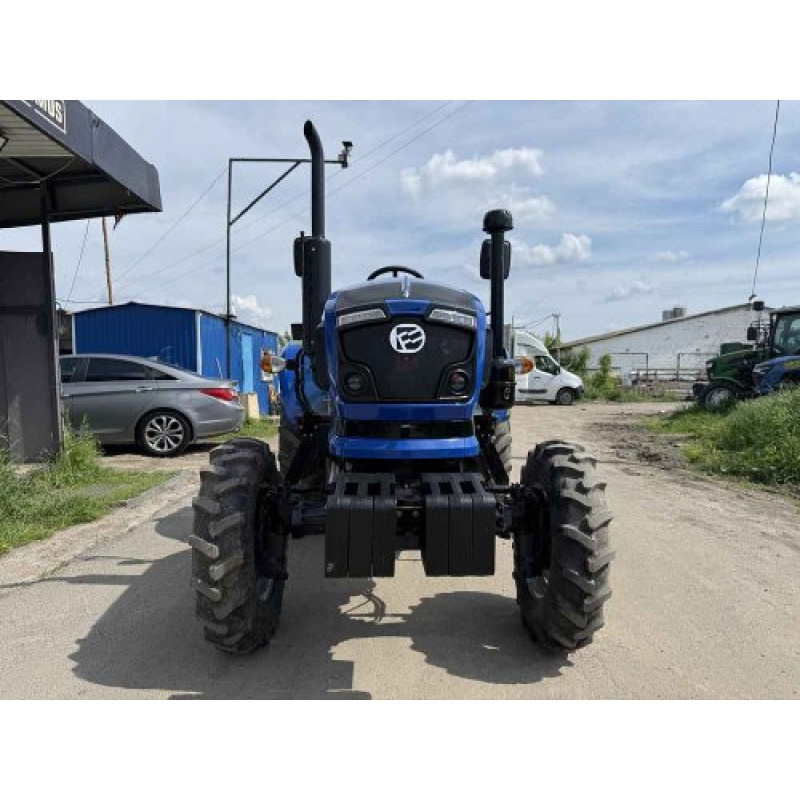

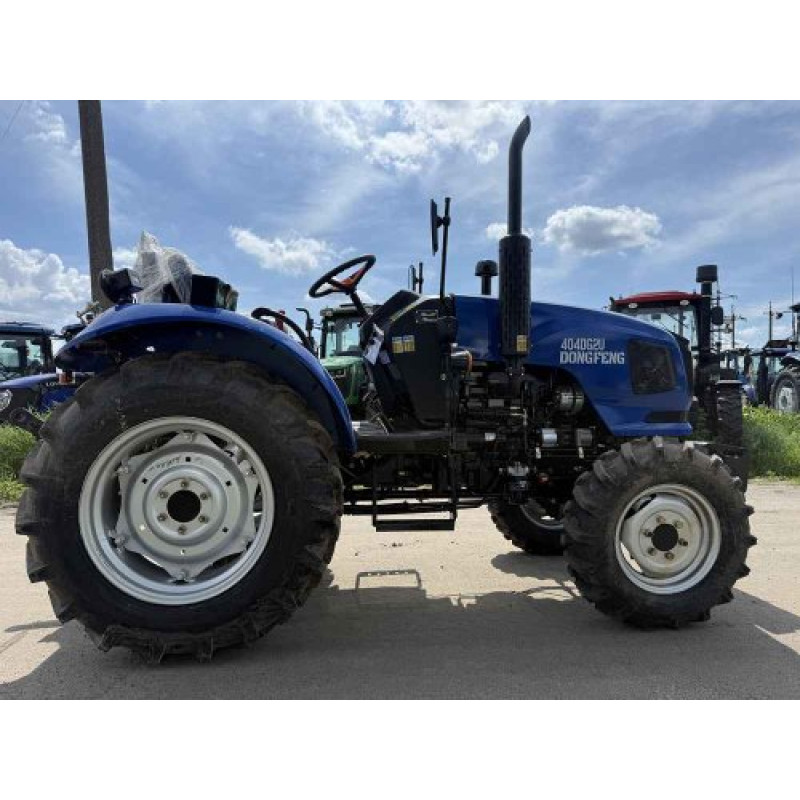

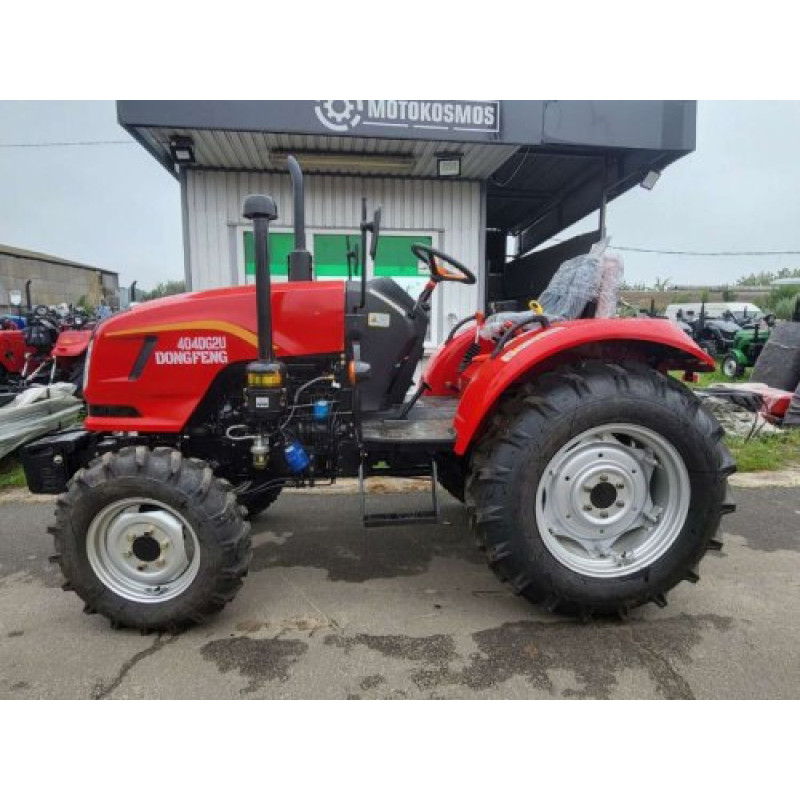

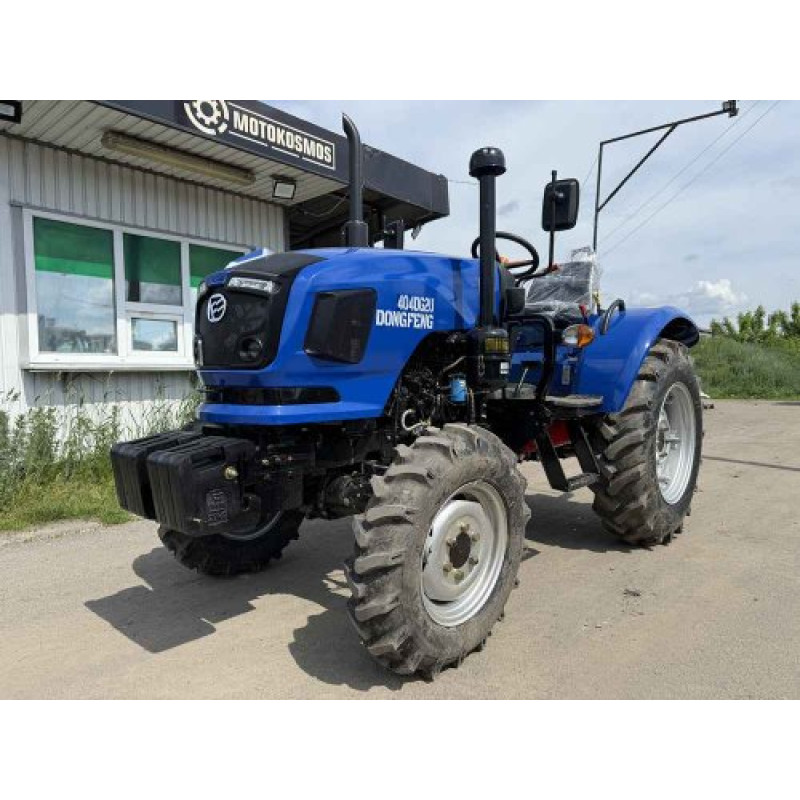

DongFeng 404 DG2U Mini Tractor — A Reliable Assistant for Farming and Gardening
The DongFeng 404 DG2U mini tractor from the manufacturer DongFeng is a versatile and durable machine with a 4×4 wheel formula, designed to perform a wide range of agricultural, municipal, and park maintenance tasks. The model is equipped with an economical vertical 4-cylinder engine with direct injection, ensuring stable traction with low fuel consumption. Its 40 hp (29.4 kW) power allows for plowing, soil preparation, transport operations, and work with mounted equipment.
Key Advantages
- Power: 40 hp (29.4 kW) — for performing a wide range of tasks.
- Engine: efficient ZN490BT model with a displacement of 2545 cm³ and an electric starter for easy ignition.
- Transmission: reliable (4+4)×2, reverse gearbox and a dry dual-disc clutch ensure durability and ease of operation.
- Comfort and Control: power steering and rear differential lock for better traction on difficult terrains.
- PTO: power take-off shaft with speeds of 540/720 rpm for connecting various mounted equipment.
Technical Specifications:
| Tractor power, hp (kW) | 40 (29.4) |
| Wheel formula | 4 × 4 |
| Engine model | ZN490BT |
| Engine type | Vertical, 4-cylinder with forced liquid cooling and direct injection. |
| Engine start | electric starter with safe start |
| Engine displacement, cm³ | 2545 |
| Cylinder bore / piston stroke | 90 × 100 |
| Nominal fuel consumption, g / kWh | ≤ 255 |
| Fuel pump type | Plunger, inline |
| Nominal engine crankshaft speed, rpm | 2400 |
| Nominal traction force, kN | 7.86 |
| Nominal engine oil consumption, g/kWh | ≤ 2.04 |
| Gearbox (transmission) | (4 + 4)x2, reverse |
| Rear differential lock | Yes |
| Clutch | Dry, dual-disc |
| Power steering | Yes |
| Cooling system fan drive | V-belt drive |
| Braking mechanism | drum type |
| Power take-off (PTO) shaft speed, rpm | 540/720 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of mounted mechanism, kg | 665 |
| Minimum ground clearance, mm | 370 |
| Wheelbase, mm | 1910 |
| Wheel track, mm | rear 1100-1500, front 1100, 1400 |
| Tire size | rear 7.5 × 16, front 12.4 × 24 |
| Minimum turning radius, m | with one-sided brake 3.5 |
| Theoretical travel speed, km / h | forward 1.47—25.01, reverse 1.13—19.20 |
| Fuel tank capacity, L | 28 |
| Engine crankcase capacity, L | 6.6 |
| Gearbox and rear axle crankcase capacity, L | 35 |
| Front axle crankcase capacity, L | 5 |
| Engine cooling system capacity, L | 12 |
| Overall dimensions, (L × W × H), mm | 3460x1570x2180 |
| Structural weight, kg | 1770 |
The DongFeng 404 DG2U is suitable for private farms, small agricultural enterprises, and municipal services that require a reliable mini tractor with good cross-country capability, a powerful engine, and the ability to work with various mounted equipment. A 28 L fuel tank and well-designed lubrication and cooling systems ensure long operation without frequent refueling and downtime. If you need a balanced mini tractor for field work, transport operations, and territory maintenance, the DongFeng 404 DG2U is an excellent choice.
Brand: DongFeng. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
