Mini Tractor DongFeng 244 DG2U
Manufacturer: DongFeng. Category: Tractors > Mini Tractors.
The DongFeng 244 DG2U mini tractor is a reliable multi-purpose unit for farm and municipal work. This compact 24 hp (17.6 kW) tractor combines a high-quality vertical three-cylinder 4-stroke diesel engine with forced liquid cooling and direct injection, an electric starter with safe start, and economical fuel consumption. Thanks to 4×4 all-wheel drive, rear differential lock, and power steering, it provides excellent cross-country capability and maneuverability in various conditions.
Key Advantages and Purpose: versatile use for plowing, cultivation, working with attachments, transporting goods on the farm, and garden care; compact dimensions of 3250x1570x1980 mm combined with a structural weight of 1560 kg for stable field operation.
Technical Specifications:
| Tractor power, hp (kW) | 24 (17.6) |
| Wheel formula | 4×4 |
| Engine type | vertical, 3-cylinder 4-stroke diesel with forced liquid cooling and direct injection |
| Engine start | electric starter with safe start |
| Engine displacement, cm³ | 1532 |
| Cylinder diameter / piston stroke | 85 × 90 |
| Nominal fuel consumption, g/kWh | 248 |
| Fuel pump type | plunger, in-line |
| Nominal engine crankshaft speed, rpm | 2350 |
| Nominal traction force, kN | 5.8 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Nominal engine oil consumption, g/kWh | 2.04 |
| Gearbox (transmission) | (4+4)×2 |
| Oil type in gearbox, rear axle | transmission oil |
| Oil type in front axle | transmission oil |
| Rear differential lock | + |
| Clutch | dry, dual-disc |
| Power steering | + |
| Cooling system fan drive | V-belt drive |
| Braking mechanism | drum type |
| Power take-off (PTO) speed, rpm | 540 / 1000 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of attachment mechanism, kg | 423 |
| Minimum ground clearance, mm | 380 |
| Wheelbase, mm | 1750 |
| Wheel track, mm | front 1100, 1400 rear 1100, 1200, 1400, 1500 |
| Tire size | front 6.5-16, rear 11.2-24 |
| Minimum turning radius, m | with one-sided brake 2.8 ± 0.2, without brake 3.45 ± 0.2 |
| Theoretical travel speed, km/h | forward 1.4—25.5, reverse 1.41—25.69 |
| Fuel tank volume, L | 25 |
| Engine crankcase volume, L | 6.5 |
| Gearbox and rear axle crankcase volume, L | 20 |
| Front axle crankcase volume, L | 5 |
| Engine cooling system volume, L | 8 |
| Overall dimensions, (L × W × H), mm | 3250x1570x1980 |
| Structural weight, kg | 1560 |

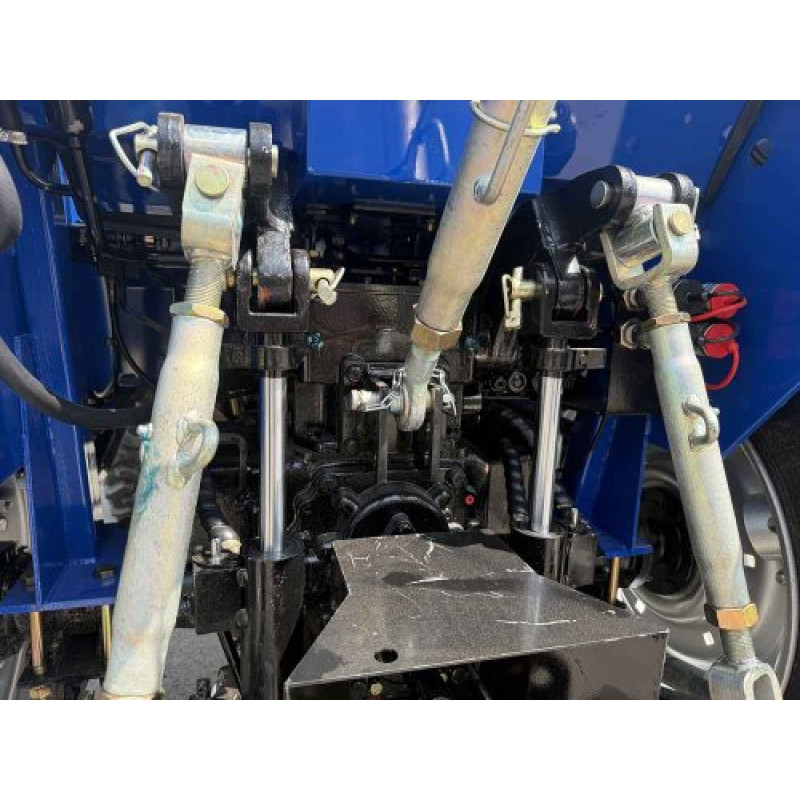

The DongFeng 244 DG2U is equipped with a full-fledged hydraulic system with a gear pump, allowing efficient operation with attachments and achieving a maximum lifting capacity of 423 kg. The PTO with two modes, 540/1000 rpm, makes the tractor compatible with a wide range of agricultural implements. A small minimum ground clearance of 380 mm and adjustable track allow the tractor to be adapted to various crops and working conditions.
This mini tractor features economical fuel and oil consumption, a reliable (4+4)×2 gearbox, a dry dual-disc clutch, and drum brakes, ensuring long-term operation. A 25 L fuel tank capacity and spacious gearbox and axle crankcases guarantee stable operation in the field and on farm plots. The theoretical travel speed is 1.4—25.5 km/h forward and 1.41—25.69 km/h reverse, allowing for both slow tillage operations and cargo transportation.
If you are looking for a compact yet powerful tractor for diverse work on the farm and in the municipal sector, the DongFeng 244 DG2U is an excellent choice due to its combination of high cross-country capability, reliable diesel engine, and practical configuration.
