All about product
Description
Specification
Reviews 0
Questions0

0 Leave a review
Product Code: FA94-3404-94
2 615 грн.
Buy this product in 1 click:
Main specifications
AVR voltage stabilization function: is
Battery life, min: 10-15
Built-in battery capacity, Ah: 7
Frequency range, Hz: 50/60
Height, mm: 140
All specifications
We will deliver this product:
Payment
Description

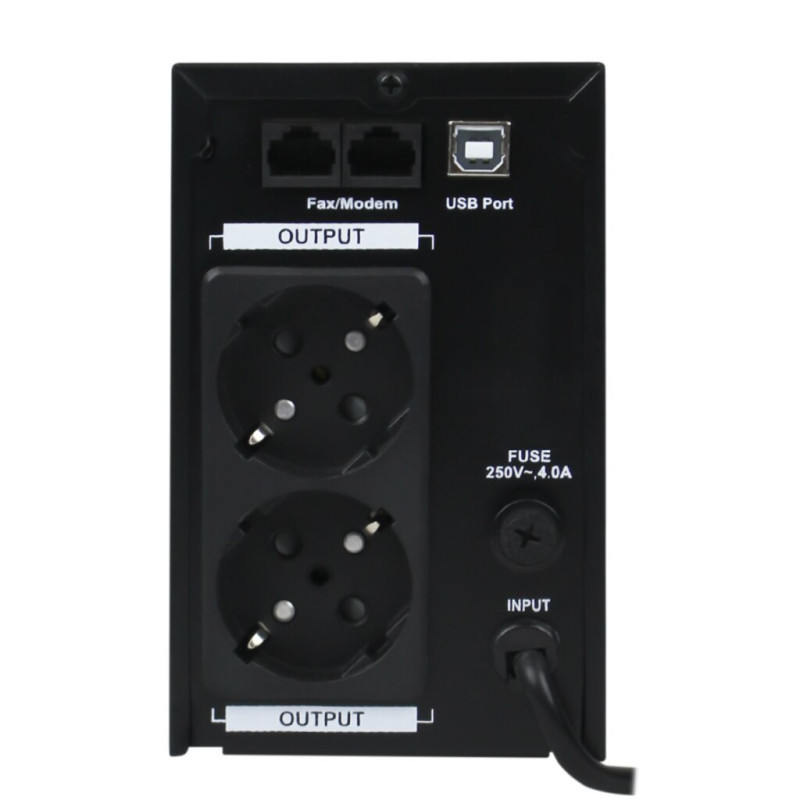

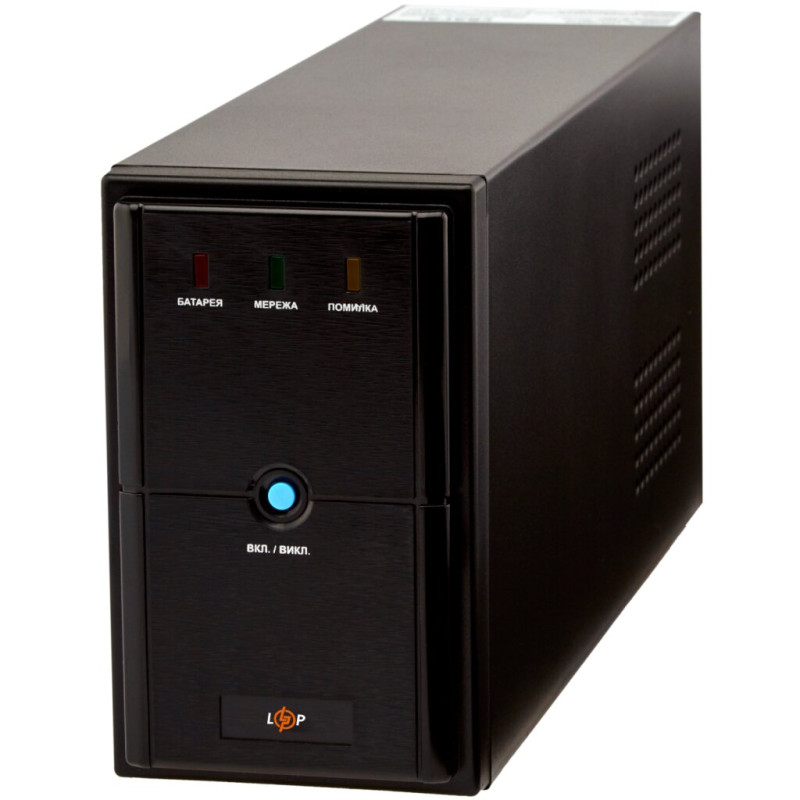

The LPM-U625VA uninterruptible power supply (UPS) is a line-interactive device with an approximated sine wave output. It is used to stabilize the voltage in the power supply network for household, office, or industrial equipment. The device can provide autonomous operation for appliances (during power outages) from a battery for 10-15 minutes. The transfer time to autonomous mode is 4-6 ms. The LPM-U625VA UPS is recommended for connection to television or audio equipment (including security video surveillance devices), kitchen or household appliances, as well as lighting fixtures. Power consumption is 625VA/437W. The device operates with an input voltage range of 145-290V. The output voltage is 220V±10%. The frequency range is 50/60 Hz. The type of mains connection is a Euro plug. For connecting electrical appliances, the external side of the LPM-U625VA UPS housing is equipped with two Euro sockets. The interface for connecting to a personal computer is USB. The housing material is a metal alloy. The housing color is black. On the external side of the housing, in addition to the plug and sockets, there is an LCD indicator that shows the operating mode of the LPM-U625VA (from mains or from battery). Dimensions are 308x85x139 mm. Weight is 4.5 kg.

Specifications
AVR voltage stabilization function is
Battery life, min 10-15
Built-in battery capacity, Ah 7
Frequency range, Hz 50/60
Height, mm 140
Housing material metal
Indication type LED
Input voltage range, V 145-290
Length, mm 305
Network Connection Type Europlug
Nominal battery voltage, V 12
Number of built-in batteries, pcs 1
Number of Outputs 2
Operating temperature, °C 0 ~ +40
Output voltage waveform Approximated sine wave
Output voltage waveform from battery Approximated sine wave
Output voltage, V 230±10%
Output waveform from mains pure sine wave
PC connection interface USB
Power, VA/W 625/437
Protection against short circuit, voltage surges, overload, discharge, overcharge of batteries
Switching time, ms 4-6
Type line-interactive
Type of UPS load connection Euro socket
Volume, m³ 0.00996
Warranty, months 24 - for UPS, 12 - for battery
Weight, kg 4.5
Width, mm 85
Color black
