Product Code: FA94-10358-94
4 745 грн.
Buy this product in 1 click:
Main specifications
AVR voltage stabilization function: is
Battery life, min: 10-15
Built-in battery capacity, Ah: 7
Frequency range, Hz: 50/60
Height, mm: 160
All specifications
We will deliver this product:
Payment
Description

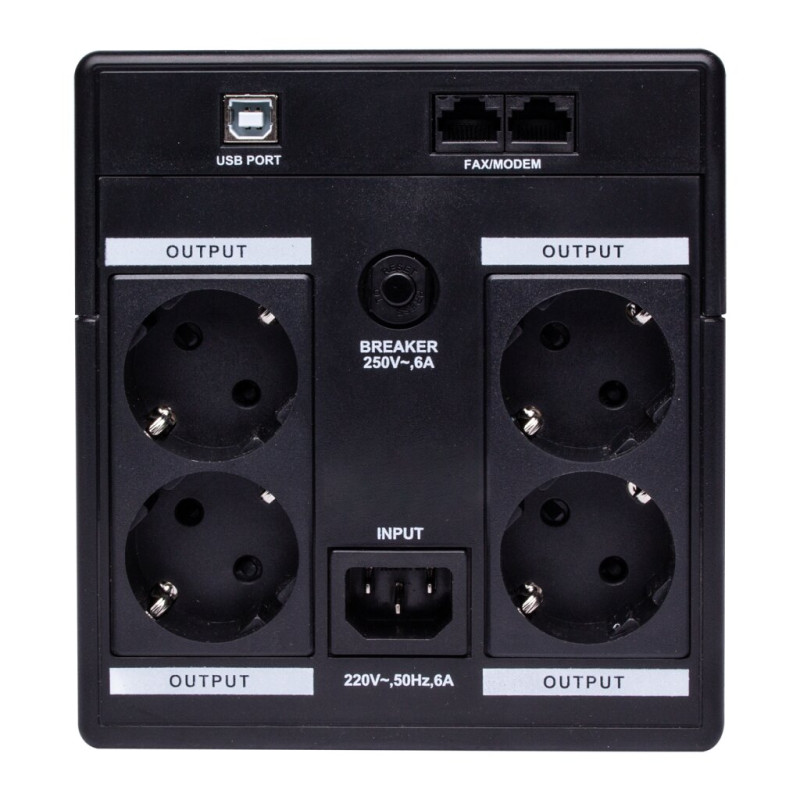

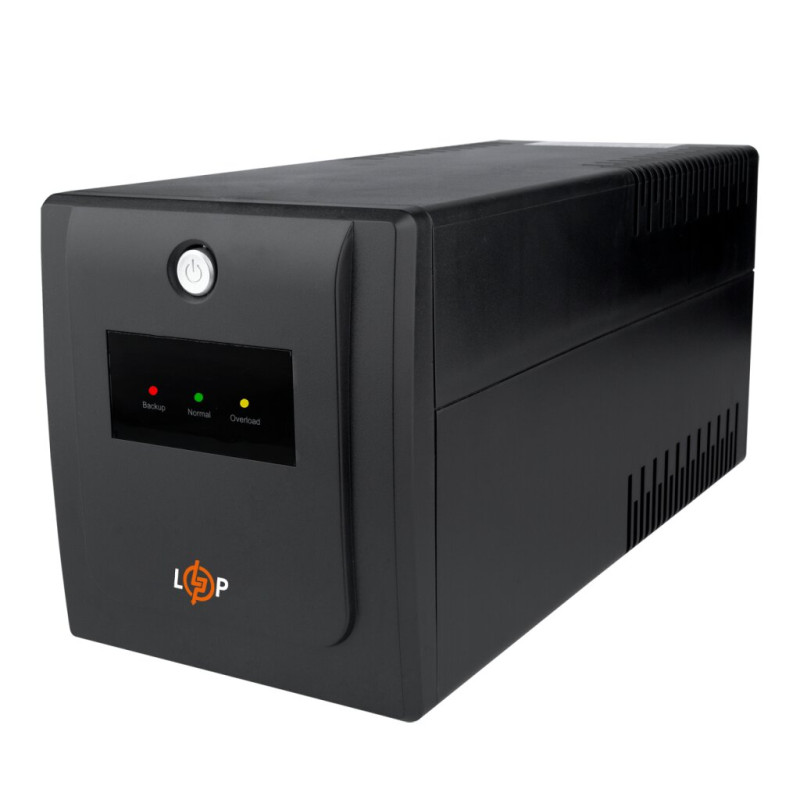

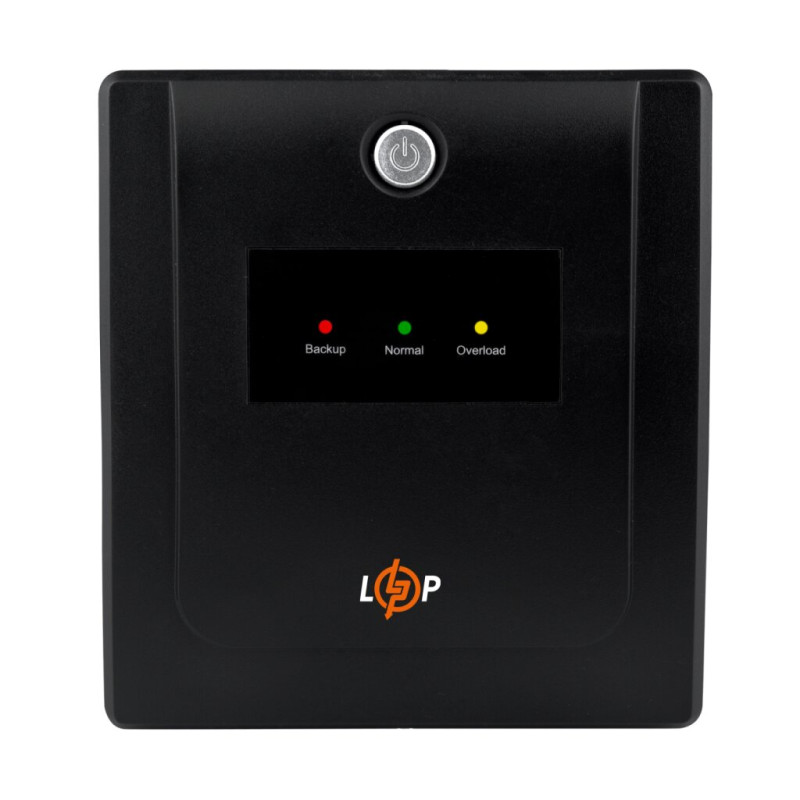

The LPM-U1100VA-P line-interactive uninterruptible power supply (UPS) provides backup power for computer equipment and functions as a voltage stabilizer. The LogicPower LPM-U1100VA-P UPS can simultaneously connect four devices with a total power of up to 770 W. Connection type is a standard European-type socket. Cold start and auto-restart functions upon power restoration are automatically activated by a new-generation microprocessor. Operating input voltage is 145-290V. Output is a stable 220V±10% (optimal voltage for comfortable operation of office equipment). This UPS model is equipped with an RJ-11 connector and a functional USB port, which allows viewing input or output voltage, device modes (frequency, battery charge/discharge level, inverter load, temperature). It also allows checking alarm situations: UPS disconnection, power outage, low battery voltage, UPS shutdown, malfunctions, testing, and bypass. More details on these and other functions can be found in the "PowerManager II" manual.

Specifications
AVR voltage stabilization function is
Battery life, min 10-15
Built-in battery capacity, Ah 7
Frequency range, Hz 50/60
Height, mm 160
Housing material Plastic
Indication type LED
Input voltage range, V 145-290
Length, mm 350
Network Connection Type Europlug
Nominal battery voltage, V 12
Number of built-in batteries, pcs 2
Number of Outputs 4
Operating temperature, °C 0 ~ +40
Output voltage waveform Approximated sine wave
Output voltage waveform from battery Approximated sine wave
Output voltage, V 230±10%
Output waveform from mains pure sine wave
PC connection interface USB
Power, VA/W 1100/770
Protection against short circuit, voltage surges, overload, discharge, overcharge of batteries
Switching time, ms 2-6
Type line-interactive
Type of UPS load connection Euro socket
Volume, m³ 0.02475
Warranty, months 24 - for UPS, 12 - for battery
Weight, kg 8.2
Width, mm 145
Color black
