Product Code: FA94-4983-94
4 106 грн.
Buy this product in 1 click:
Main specifications
AVR voltage stabilization function: is
Battery life, min: 10-15
Built-in battery capacity, Ah: 7.5
Frequency range, Hz: 50/60
Height, mm: 188
All specifications
We will deliver this product:
Payment
Description

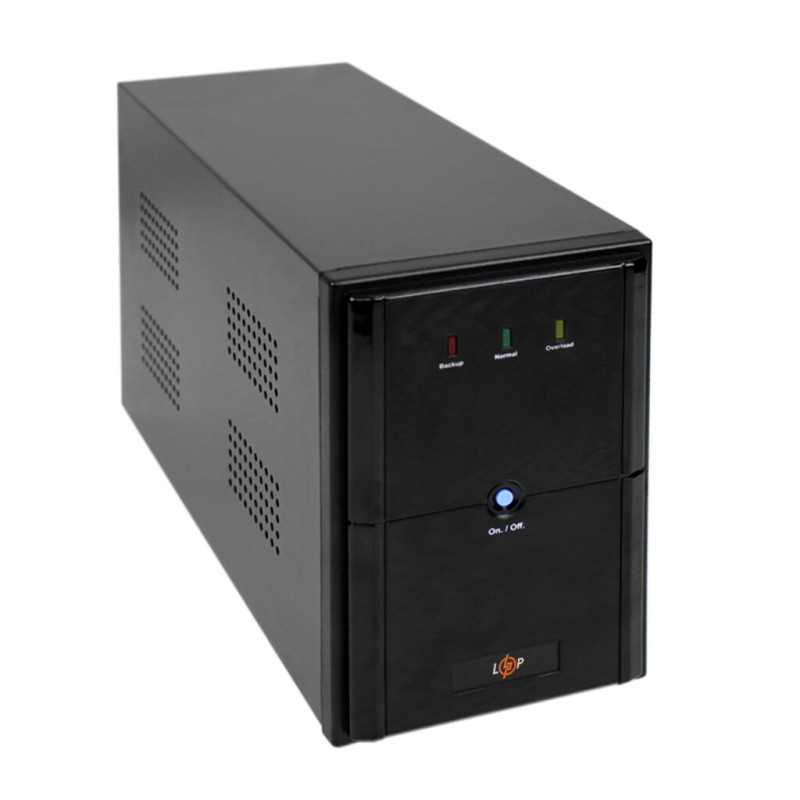

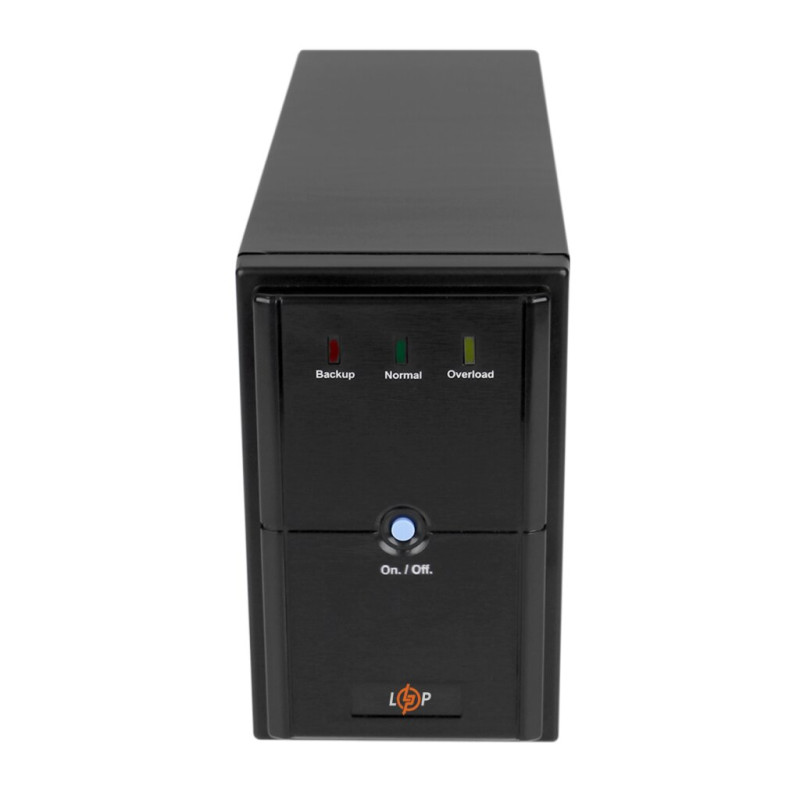

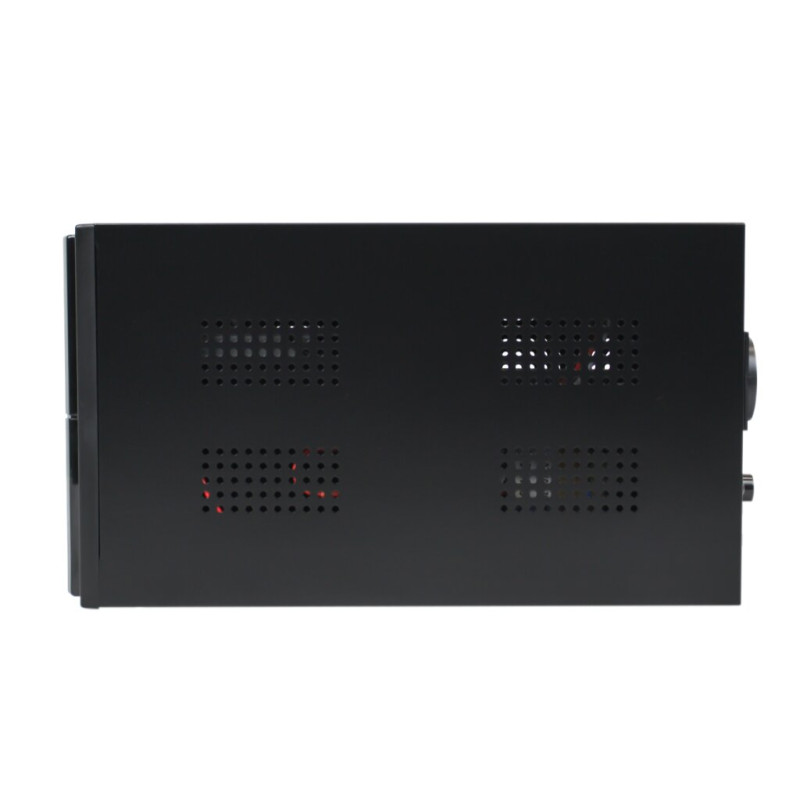

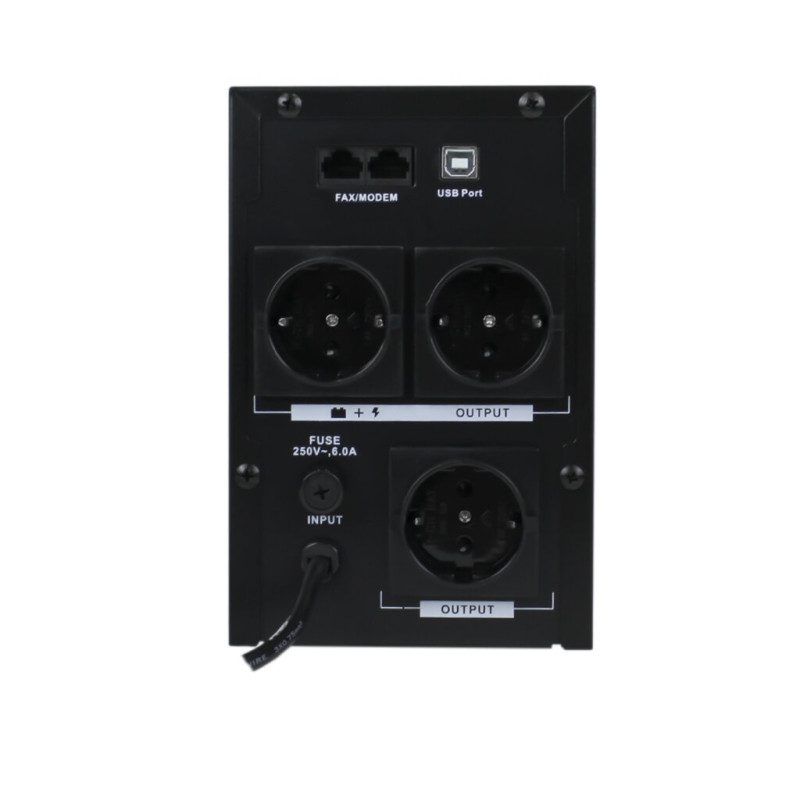

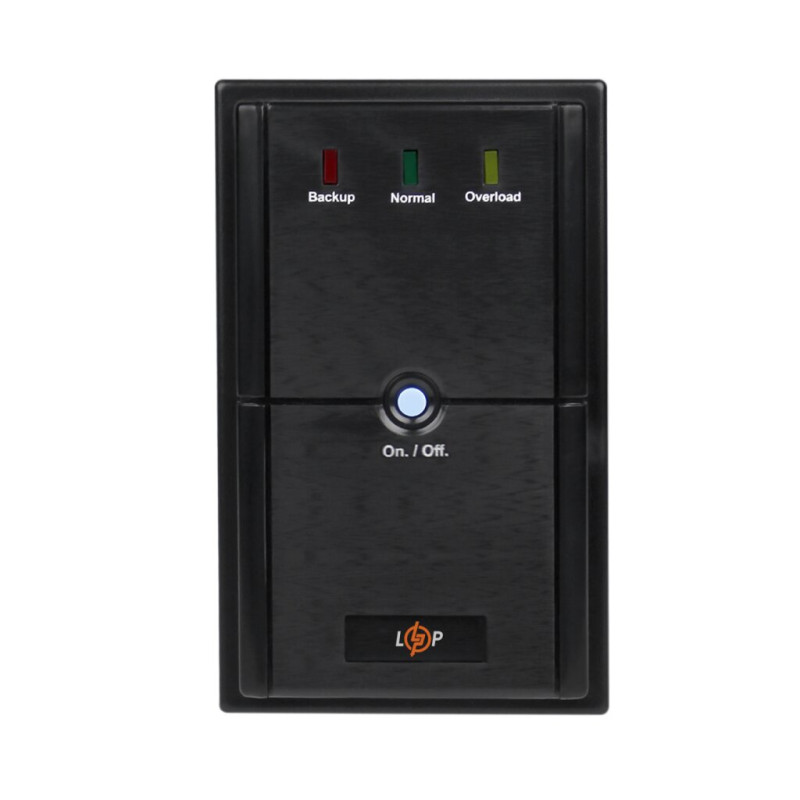

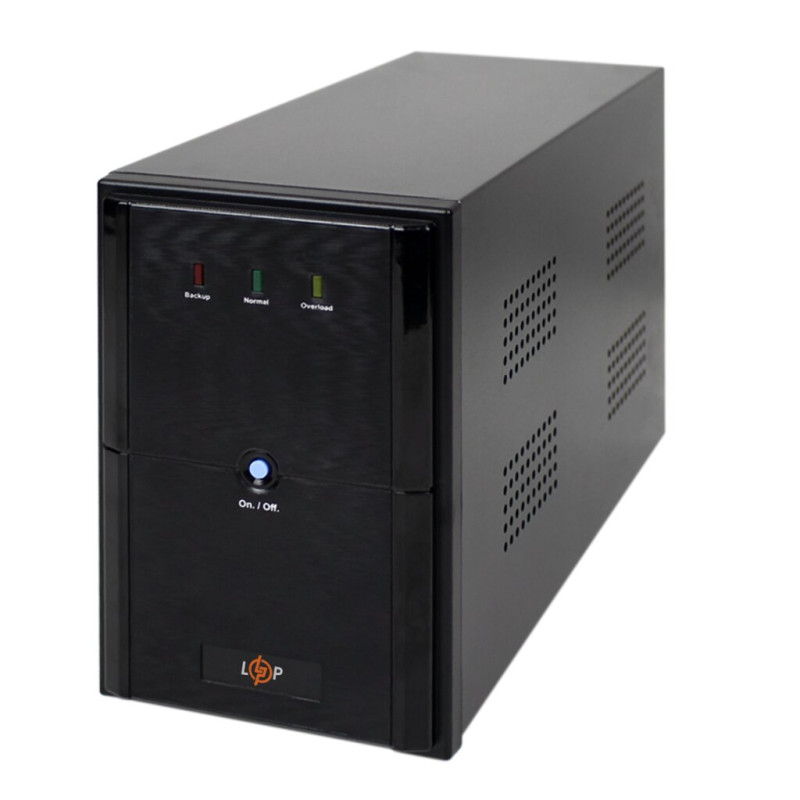

The line-interactive uninterruptible power supply LPM-U1100VA has an approximated sine wave output voltage. The model is used as an uninterruptible power supply for kitchen or household appliances, television or audio equipment (including security video surveillance devices), as well as lighting fixtures. Power consumption - 1100VA/770W. The LPM-U1100VA UPS has reliable protection against short circuits, voltage surges, overloads, discharge, and overcharge of batteries. In case of power outages, the LPM-U1100VA UPS supports the operation of electrical appliances from the battery (offline mode) for 10-15 minutes. The model is equipped with two 12V 7.5 Ah batteries. The switching time to offline mode is 4-6 ms. The uninterruptible power supply (UPS) LPM-1100VA stabilizes the input voltage in the network in the range from 145-290V to 220V±10%. Frequency range - 50/60 Hz. The UPS casing is made of high-strength metal alloy. Color - black. The external surfaces of the casing feature: - a Euro plug for connection to the mains; - 3 European-type sockets for connecting electrical appliances; - LED light indication showing the operating mode of the device (from mains or from battery); - USB interface for connecting to a personal computer. Dimensions - 331x121x187 mm. Weight - 9.3 kg.

Specifications
AVR voltage stabilization function is
Battery life, min 10-15
Built-in battery capacity, Ah 7.5
Frequency range, Hz 50/60
Height, mm 188
Housing material metal
Indication type LED
Input voltage range, V 145-290
Length, mm 340
Network Connection Type Europlug
Nominal battery voltage, V 12
Number of built-in batteries, pcs 2
Number of Outputs 3
Operating temperature, °C 0 ~ +40
Output voltage waveform Approximated sine wave
Output voltage waveform from battery Approximated sine wave
Output voltage, V 220±10%
Output waveform from mains pure sine wave
PC connection interface USB
Power, VA/W 1100/770
Protection against short circuit, voltage surges, overload, discharge, overcharge of batteries
Switching time, ms 4-6
Type line-interactive
Type of UPS load connection Euro socket
Volume, m³ 0.022508
Warranty, months 24 - for UPS, 12 - for battery
Weight, kg 9.3
Width, mm 121
Color black
