Product Code: FA94-4979-94
3 052 грн.
Buy this product in 1 click:
Main specifications
AVR voltage stabilization function: is
Battery life, min: 10-15
Built-in battery capacity, Ah: 9
Frequency range, Hz: 50/60
Height, mm: 140
All specifications
We will deliver this product:
Payment
Description

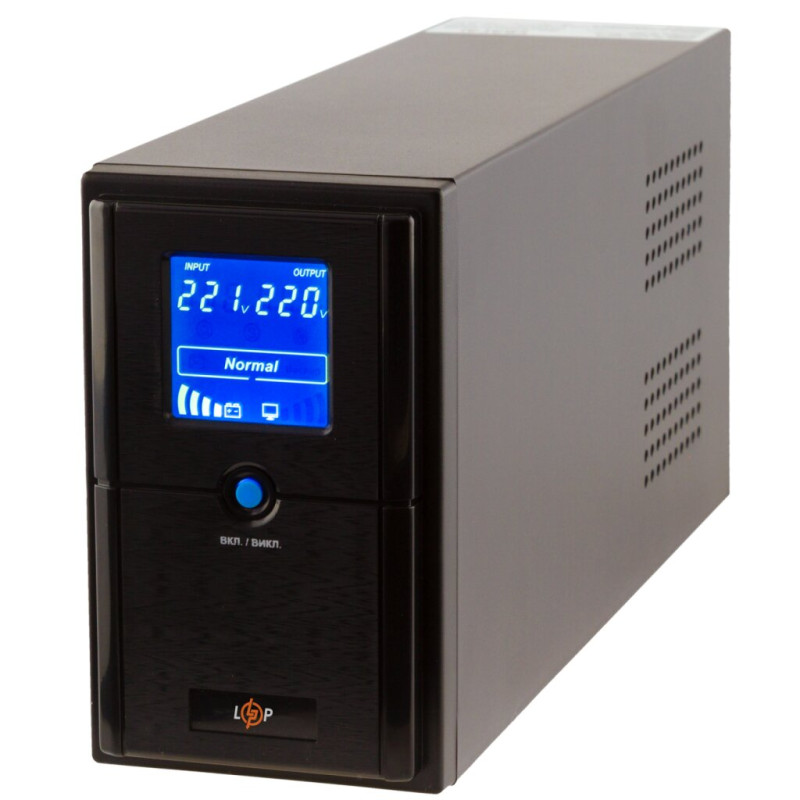

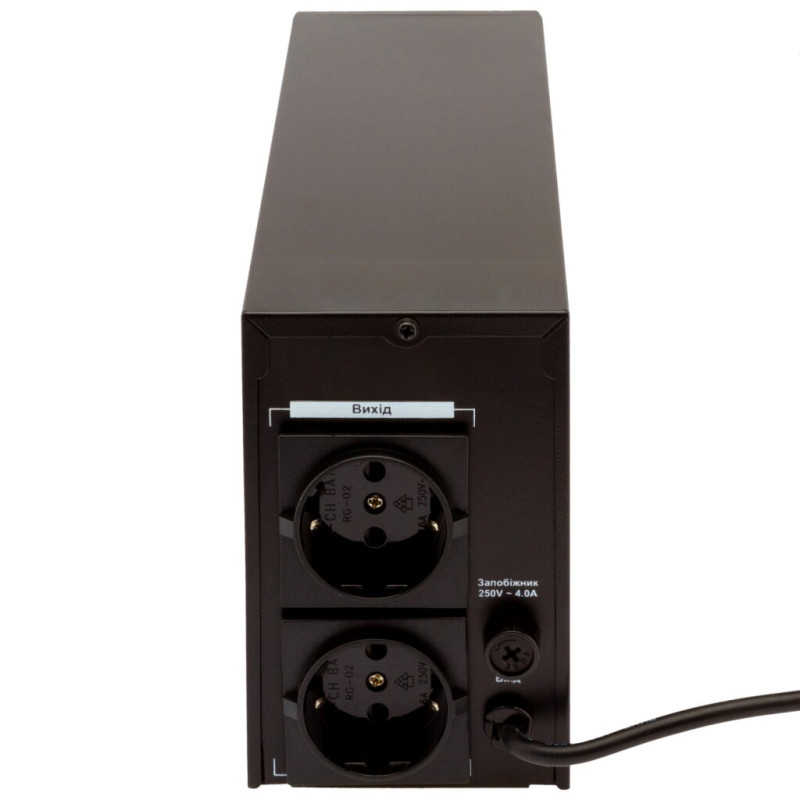

The LPM-L825VA uninterruptible power supply is an ideal choice for a UPS for household, office, or industrial equipment based on the "price-quality" criterion. The device belongs to line-interactive uninterruptible power supplies with an approximated sine wave and has excellent protective functions: against short circuit, voltage surges, overload, discharge, and overcharge of batteries. The LPM-L825VA UPS is recommended for connection to kitchen or household appliances, television or audio equipment (including security video surveillance devices), as well as lighting fixtures. Power consumption - 825VA/577W. The device supports the operation of electrical appliances in autonomous mode (from the battery) for 10-15 minutes. Battery type - 12V 9 Ah. Switching time to autonomous mode - 4-6 ms. The LPM-L825VA UPS stabilizes the input voltage in the network in the range of 145-290V to an output voltage of 220V±10%. Frequency range - 50/60 Hz. The casing is made of high-strength metal alloy. Casing color - black. On the outer surfaces of the casing are located: - a Europlug for connection to the mains; - 2 European-type sockets for connecting electrical appliances; - LED light indication showing in which mode the device operates (from mains or from battery). Dimensions - 305x85x139 mm. Weight - 5.6 kg.

Specifications
AVR voltage stabilization function is
Battery life, min 10-15
Built-in battery capacity, Ah 9
Frequency range, Hz 50/60
Height, mm 140
Housing material metal
Indication type LCD
Input voltage range, V 145-290
Length, mm 305
Network Connection Type Europlug
Nominal battery voltage, V 12
Number of built-in batteries, pcs 1
Number of Outputs 2
Operating temperature, °C 0 ~ +40
Output voltage waveform Approximated sine wave
Output voltage waveform from battery Approximated sine wave
Output voltage, V 220±10%
Output waveform from mains pure sine wave
PC connection interface no
Power, VA/W 825/577
Protection against short circuit, voltage surges, overload, discharge, overcharge of batteries
Switching time, ms 4-6
Type line-interactive
Type of UPS load connection Euro socket
Volume, m³ 0.01035
Warranty, months 24 - for UPS, 12 - for battery
Weight, kg 5.5
Width, mm 85
Color black
