Product Code: FA94-4976-94
2 402 грн.
Buy this product in 1 click:
Main specifications
AVR voltage stabilization function: is
Battery life, min: 10-15
Built-in battery capacity, Ah: 7
Frequency range, Hz: 50/60
Height, mm: 140
All specifications
We will deliver this product:
Payment
Description

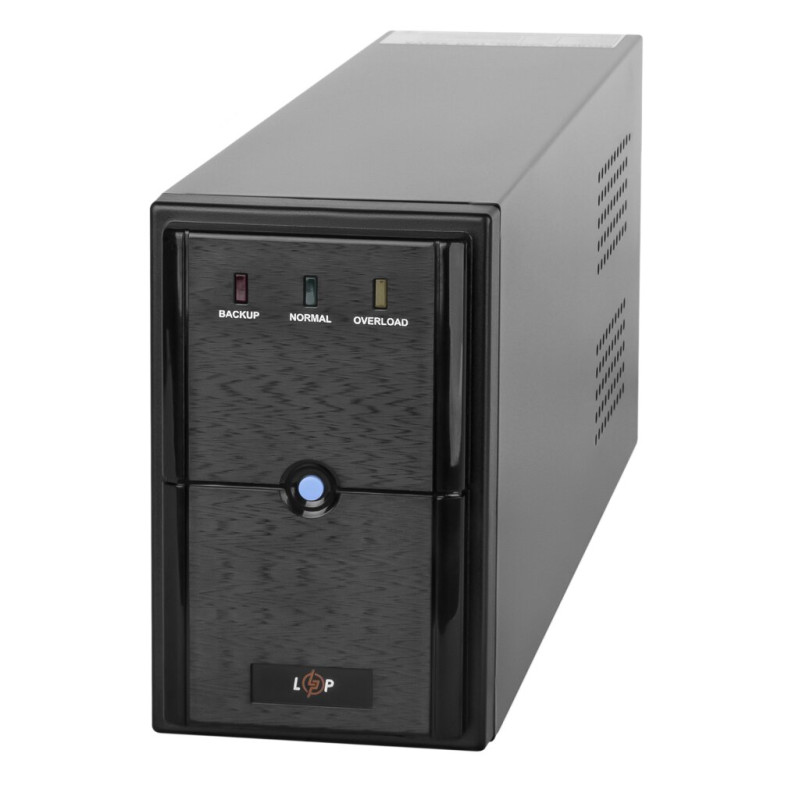

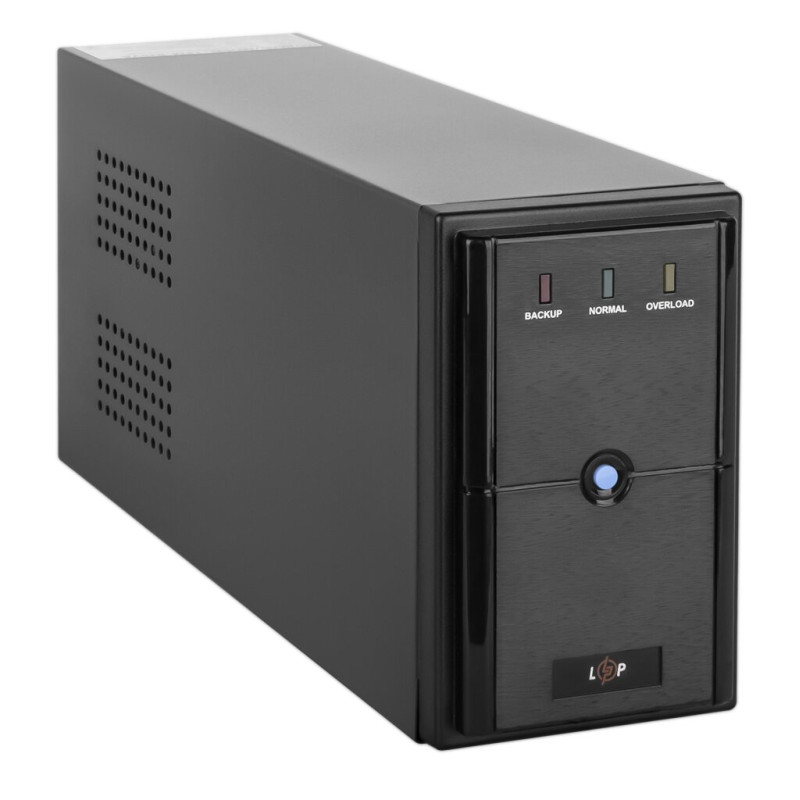

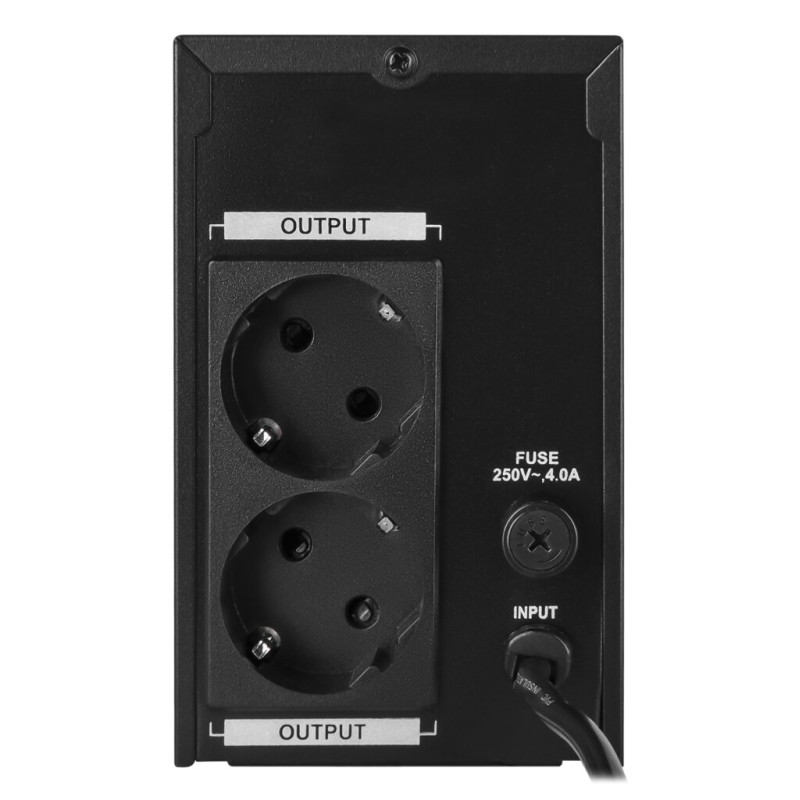

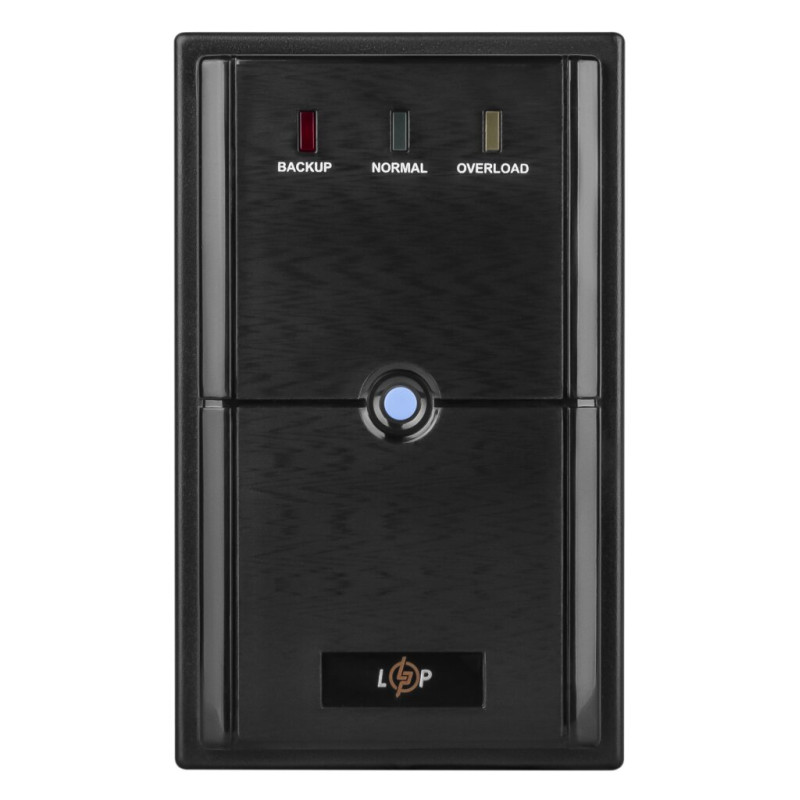

The LPM-625VA uninterruptible power supply (UPS) is used to stabilize the voltage in the power grid for household, office, or industrial equipment. The device can provide autonomous operation of appliances (during power outages) from a battery for 10-15 minutes. The switching time to autonomous mode is 4-6 ms. The LPM-625VA UPS is a line-interactive device with an approximated sine wave, recommended for connecting to television or audio equipment (including security video surveillance devices), kitchen or household appliances, as well as lighting fixtures. Power consumption is 625VA/437W. The device withstands an input voltage range of 145-290V. The output voltage is 220V±10%. The frequency range is 50/60 Hz. The connection type to the mains is a Europlug. For connecting electrical appliances, the exterior of the LPM-625VA UPS housing is equipped with two Euro sockets. On the exterior of the housing, there is an LCD indicator that shows the operating mode of the device (from mains or battery). Dimensions are 308x85x139 mm. Weight is 4.5 kg. The housing material is metal. The housing color is black.

Specifications
AVR voltage stabilization function is
Battery life, min 10-15
Built-in battery capacity, Ah 7
Frequency range, Hz 50/60
Height, mm 140
Housing material metal
Indication type LCD
Input voltage range, V 145-290
Length, mm 305
Network Connection Type Europlug
Nominal battery voltage, V 12
Number of built-in batteries, pcs 1
Number of Outputs 2
Operating temperature, °C 0 ~ +40
Output voltage waveform Approximated sine wave
Output voltage waveform from battery Approximated sine wave
Output voltage, V 230±10%
Output waveform from mains pure sine wave
PC connection interface no
Power, VA/W 625/437
Protection against short circuit, voltage surges, overload, discharge, overcharge of batteries
Switching time, ms 4-6
Type line-interactive
Type of UPS load connection Euro socket
Volume, m³ 0.010201
Warranty, months 24 - for UPS, 12 - for battery
Weight, kg 4.5
Width, mm 85
Color black
