Fenix HL40R Cree XP-L HI V2 Headlamp — Overview and Features

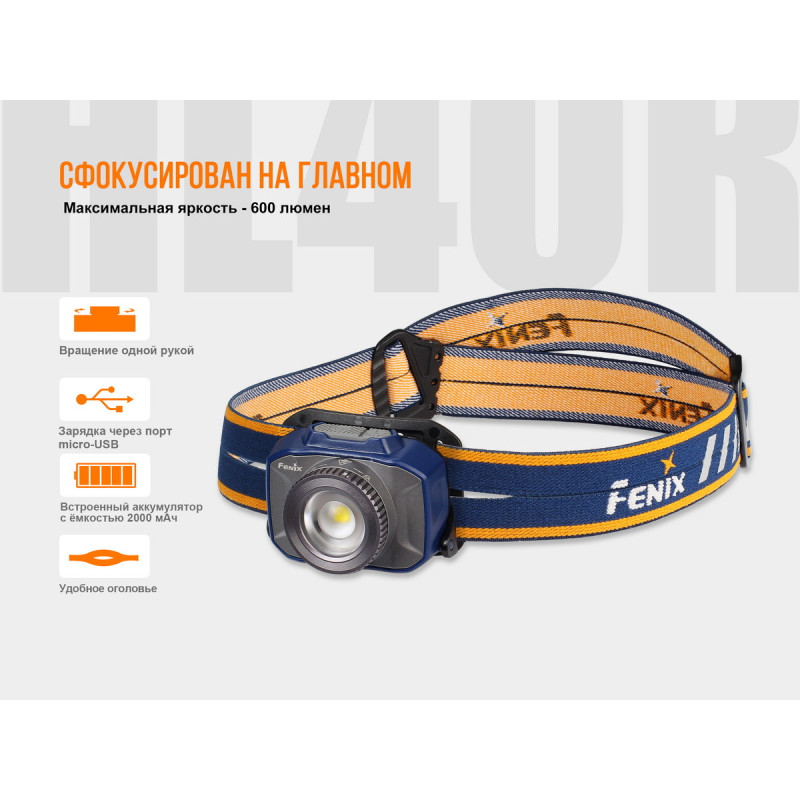

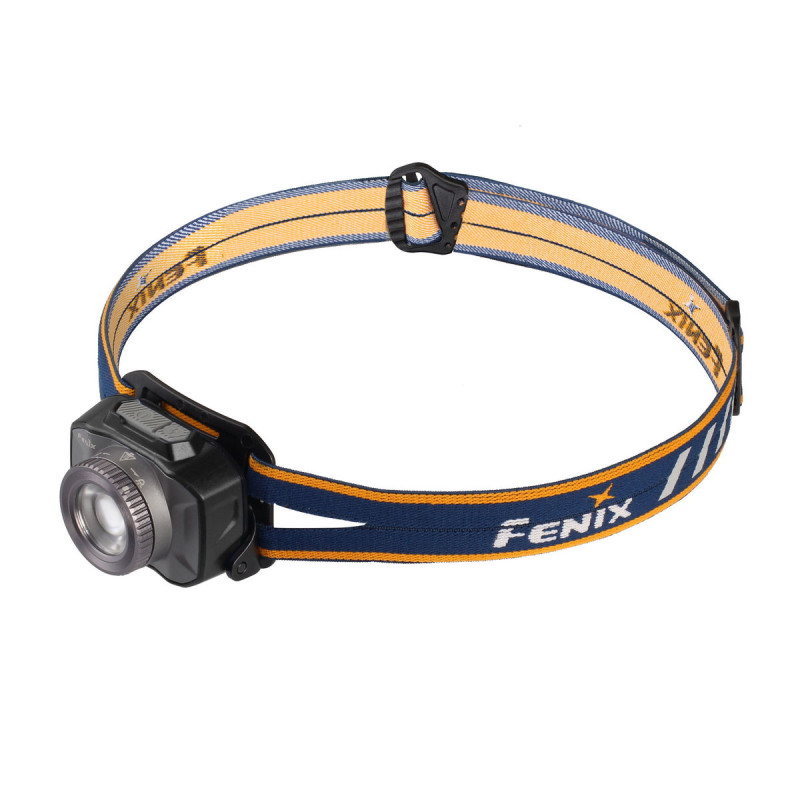

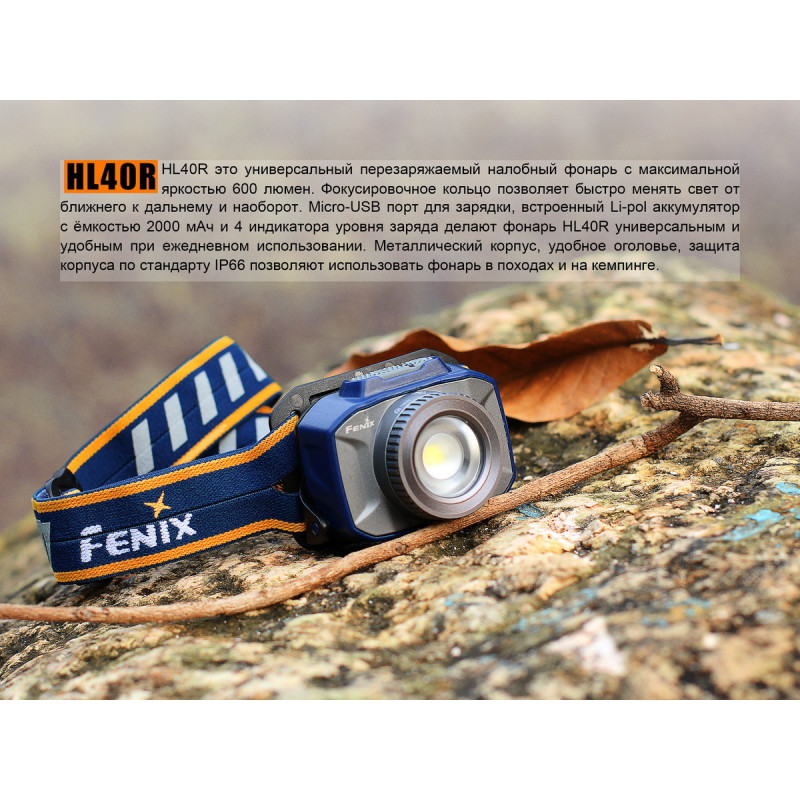

The Fenix HL40R is a compact and powerful headlamp from the Fenix brand, designed for camping, hiking, and professional use. The model is equipped with a Cree XP-L HI V2 LED and features a built-in 2000 mAh lithium-polymer battery. The headlamp combines the convenience of a head-mounted design with adjustable angle and beam focusing, making it a versatile solution for reading in a tent, illuminating a camp, or navigating a trail.

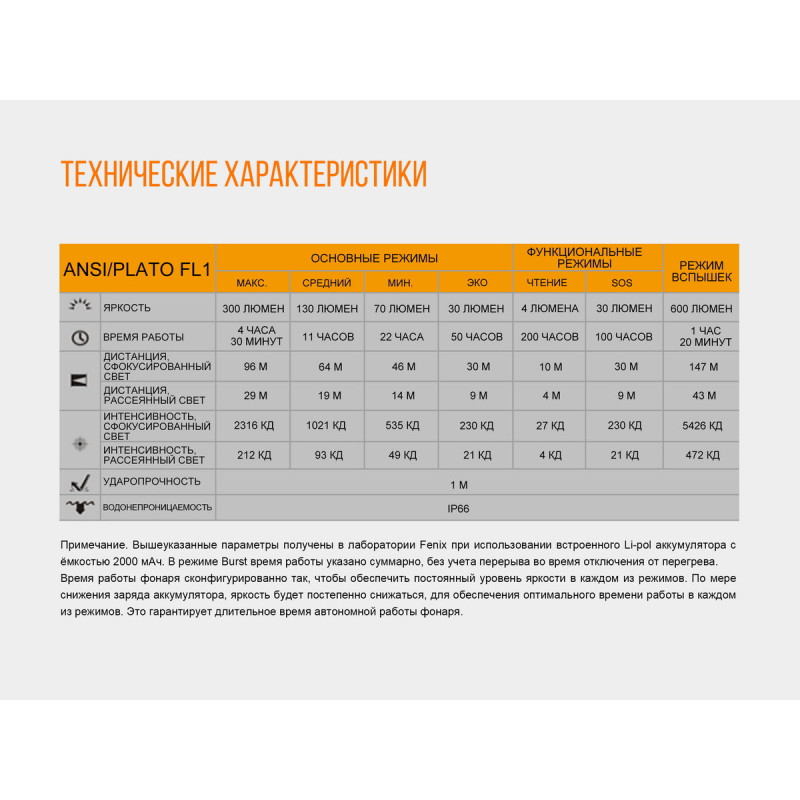

| Fenix HL40R Cree XP-L HI V2 Headlamp | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| ANSI | Main Modes | Functional Modes | Flash Mode | ||||||
| Maximum | Medium | Minimum | Eco | Reading | SOS | ||||
| Brightness | 300 lumens | 130 lumens | 70 lumens | 30 lumens | 4 lumens | 30 lumens | 600 lumens | ||
| Runtime | 4 hours 30 minutes | 11 hours | 22 hours | 50 hours | 200 hours | 100 hours | 1 hour 20 minutes | ||
| Distance | Focused Light | 96 m | 64 m | 46 m | 30 m | 10 m | 30 m | 147 m | |
| Flood Light | 26 m | 19 m | 14 m | 9 m | 4 m | 9 m | 43 m | ||
| Impact Resistance | 1 m | ||||||||
| Water Resistance | IP66 | ||||||||
| Dimensions | 68 mm (length) x 54 mm (width) x 42 mm (height) | ||||||||
| Weight | 130 grams (without batteries) | ||||||||
| Package Contents | Headlamp, head strap with top strap, charging cable | ||||||||
| Power Source | Integrated 2000 mAh Li-Polymer battery | Reflector Type | Smooth | ||||||
| Body Material | Aircraft-grade aluminum, plastic | Optical System Type | Reflector | ||||||
| Body Coating | Packaging | Cardboard box | |||||||
| Activation | Button on top of body | Mode Switching | Button on top of body | ||||||
Unique Features and Controls

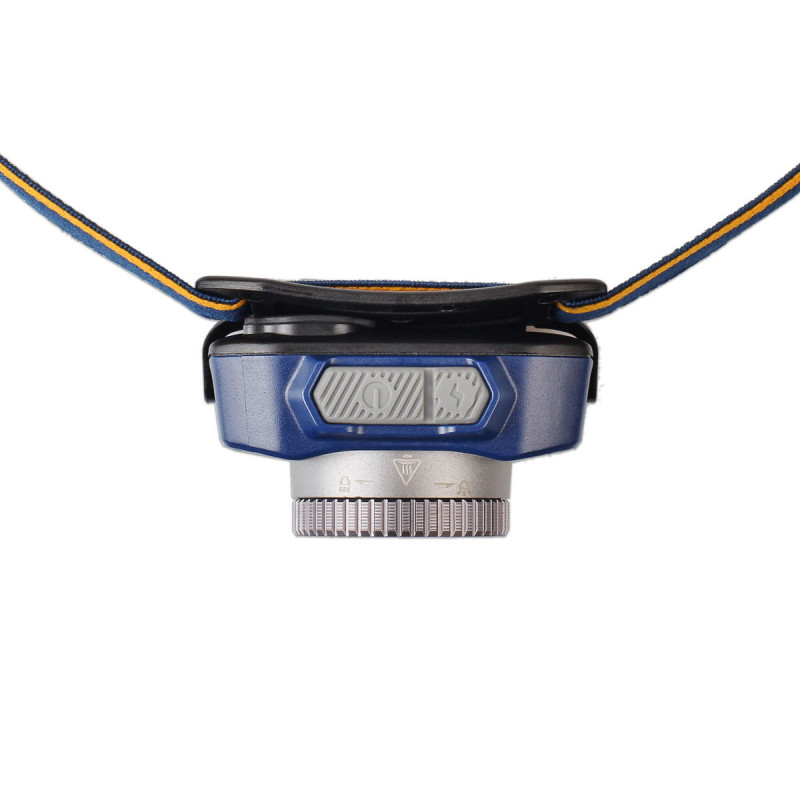

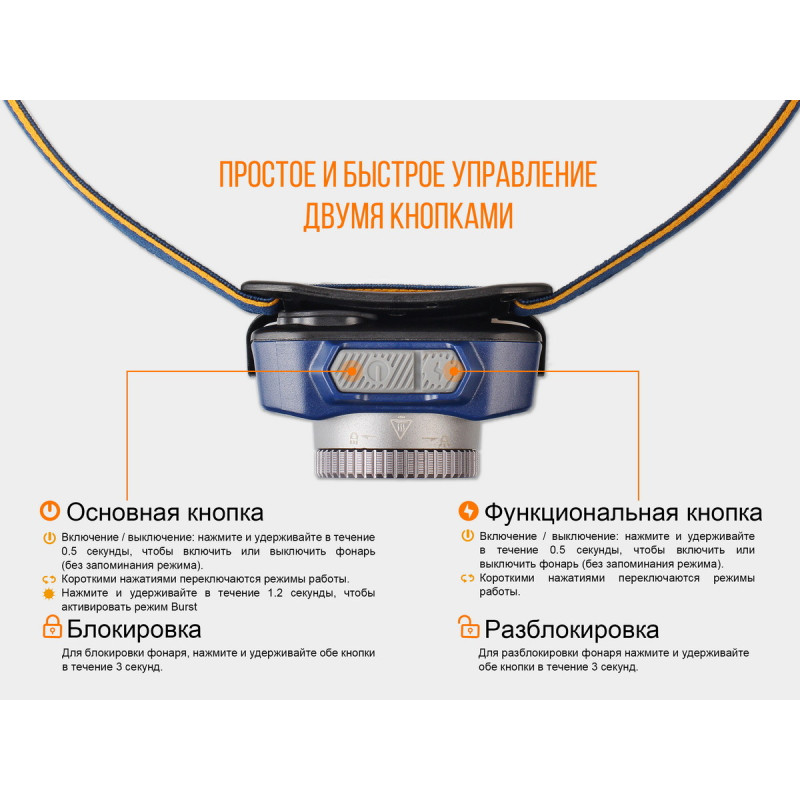

The HL40R has seven operating modes, grouped into two subsystems for convenient access: main modes and functional modes. Activation and switching are performed using two buttons on the body. A long press of 0.5 seconds activates Eco mode (30 lumens), then short presses allow sequential switching between Eco, Minimum (70 lumens), Medium (130 lumens), and Maximum (300 lumens). The functional group similarly allows activating Reading mode (4 lumens) and SOS mode (30 lumens). Turbo (600 lumens) is activated by holding the button for 1.2 seconds but automatically turns off after 1 minute to prevent overheating; it can be reactivated if needed.

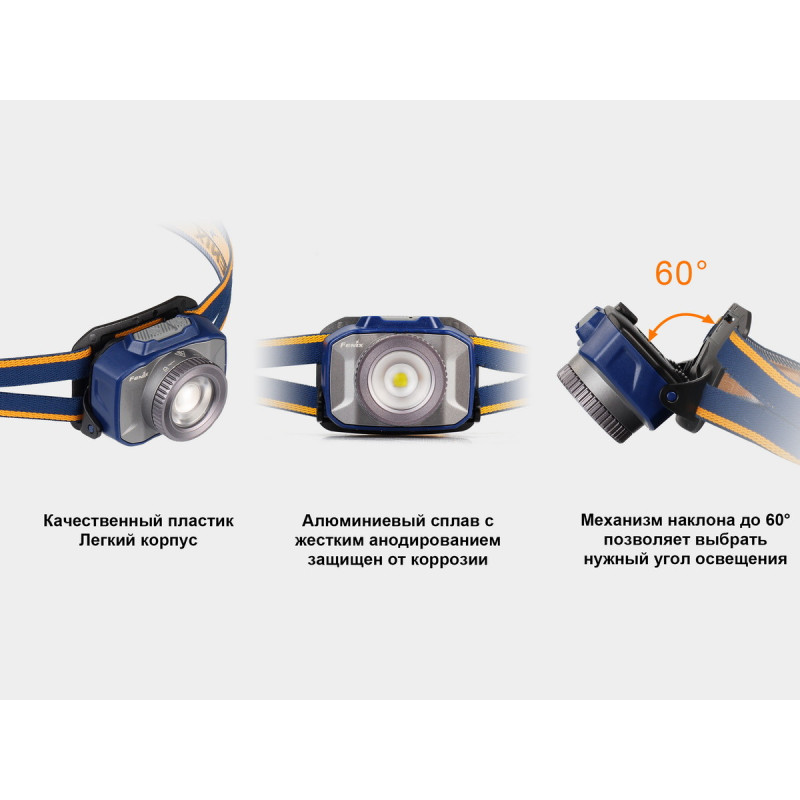

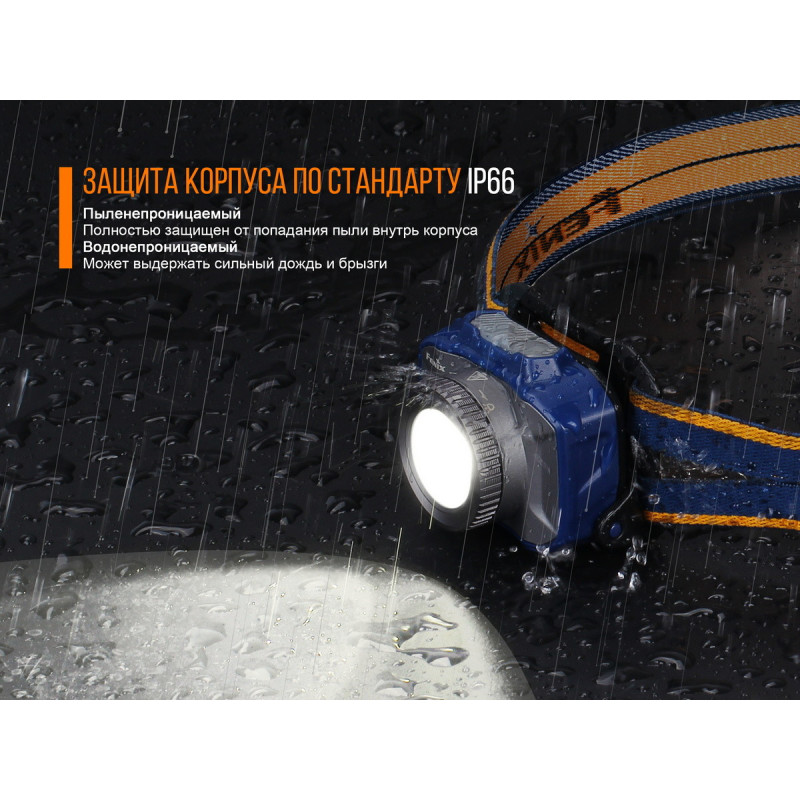

The headlamp body is made of durable aircraft-grade aluminum combined with plastic, ensuring reliability and resistance to damage. The HL40R withstands drops from a height of up to 1 m and has an IP66 water protection rating, meaning it will work in the rain. It weighs 130 grams without batteries and has dimensions of 68×54×42 mm.
Battery and Charging

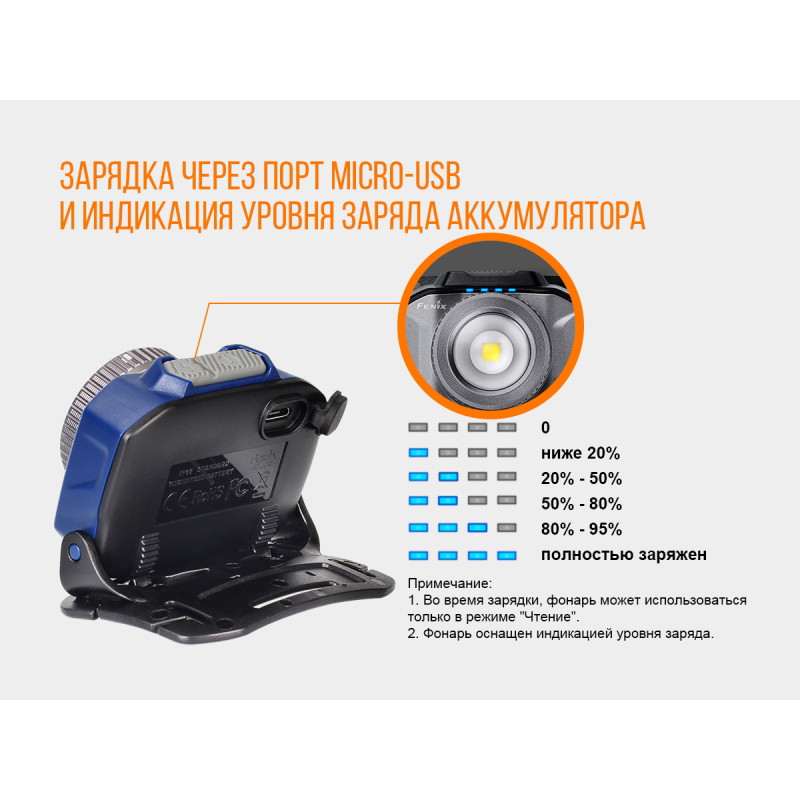

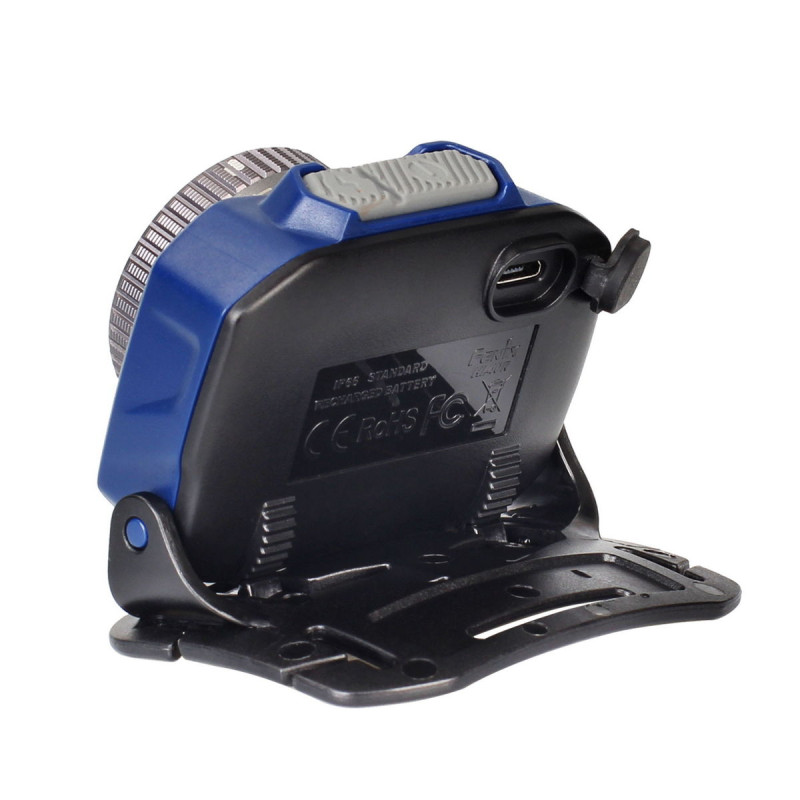

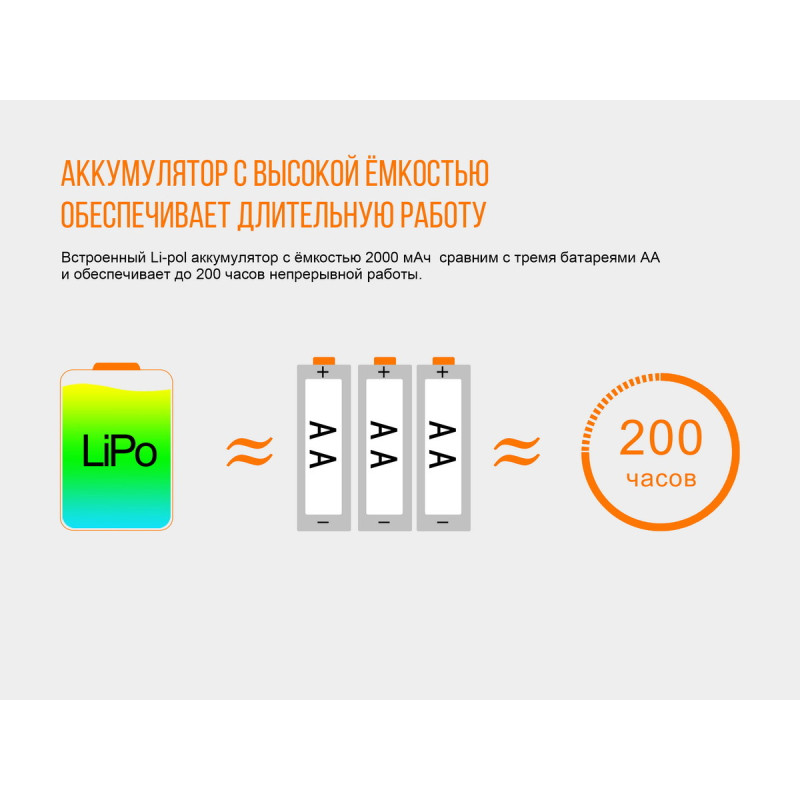

The model features a built-in 2000 mAh lithium-polymer battery, equivalent to the capacity of about three AA batteries. Charging is done via a USB/micro-USB cable, which is included in the package. The built-in charge level indicator provides information through a clear sequence of LEDs: one flashing LED means less than 20%, combinations of flashing and steady lights indicate intermediate levels, and four steady LEDs mean a full charge. During operation, the headlamp also shows the approximate charge level: four LEDs — 80–100%, three — 60–80%, two — 40–60%, one — 20–40%, one flashing — less than 20%.
Mounting and Optics

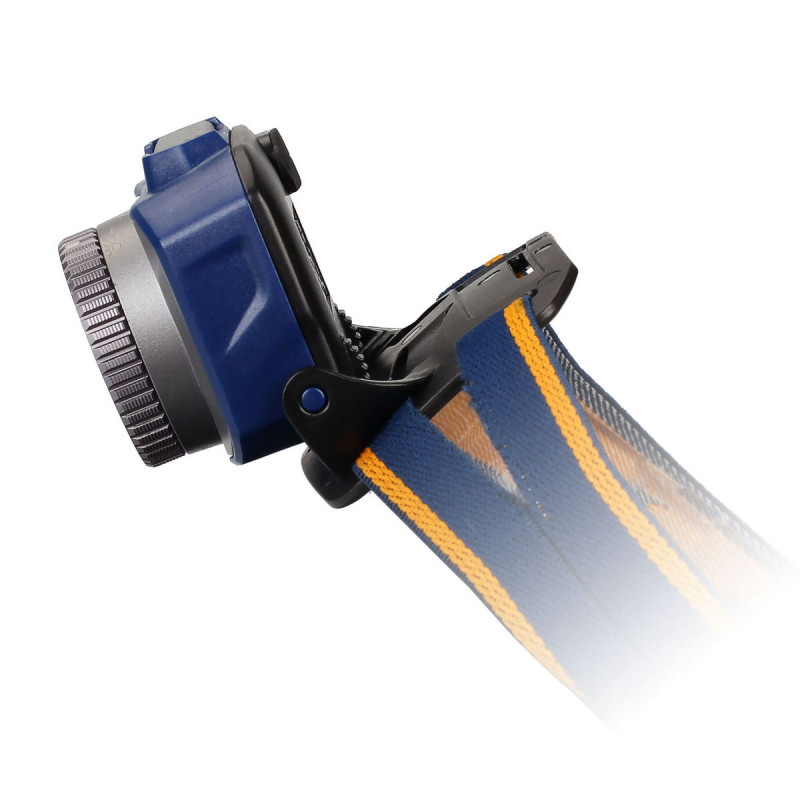

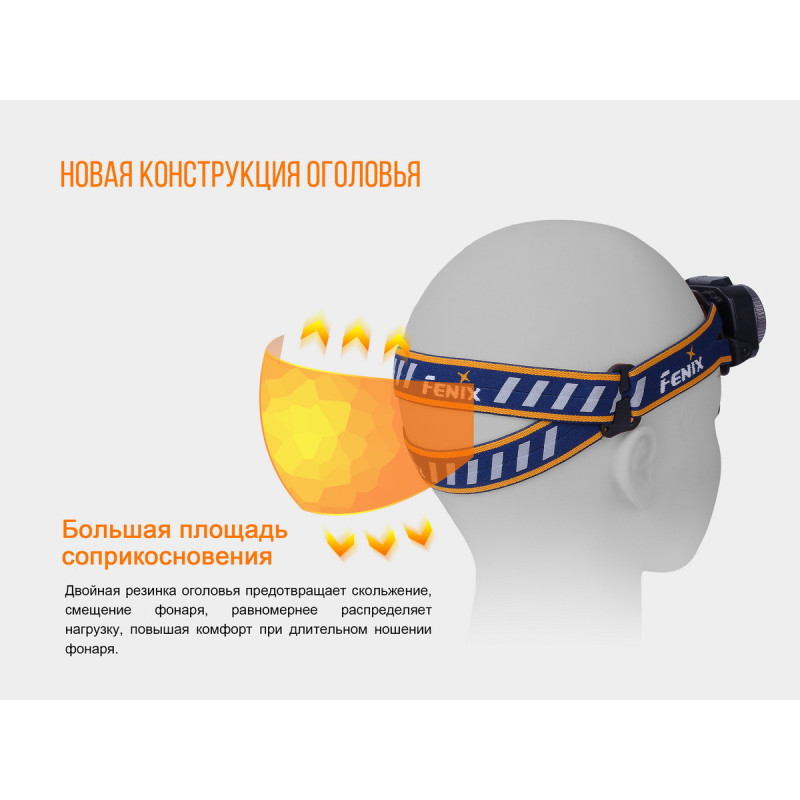

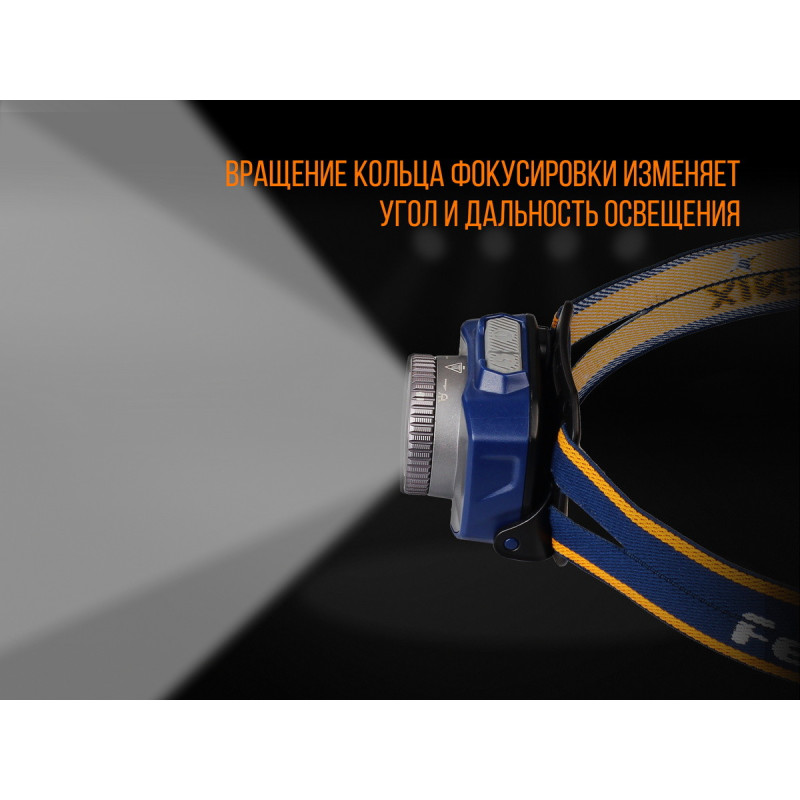

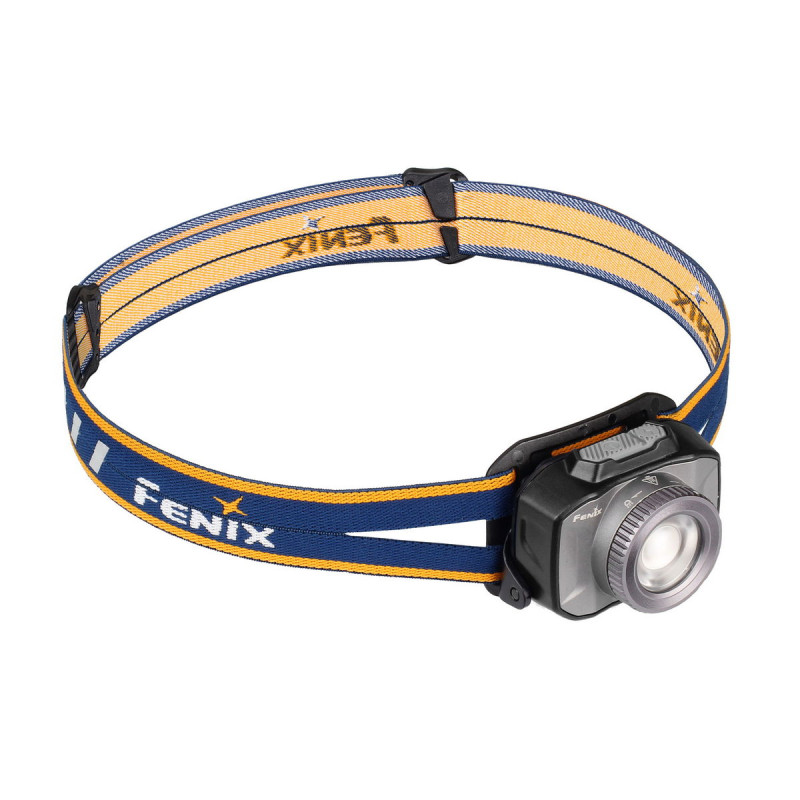

The headlamp comes with an elastic strap featuring a split occipital band for secure fixation on the head or helmet. The swivel mount allows the device to be tilted vertically up to 60°. For precise adjustment of the beam angle and width, a rotating ring is provided, which changes the focus from a narrow 13° beam (with radial illumination) to a wide, uniform flood of 52°–75°. The illumination distance varies from 4 m in the lowest brightness mode to 147 m in the most effective focused mode.

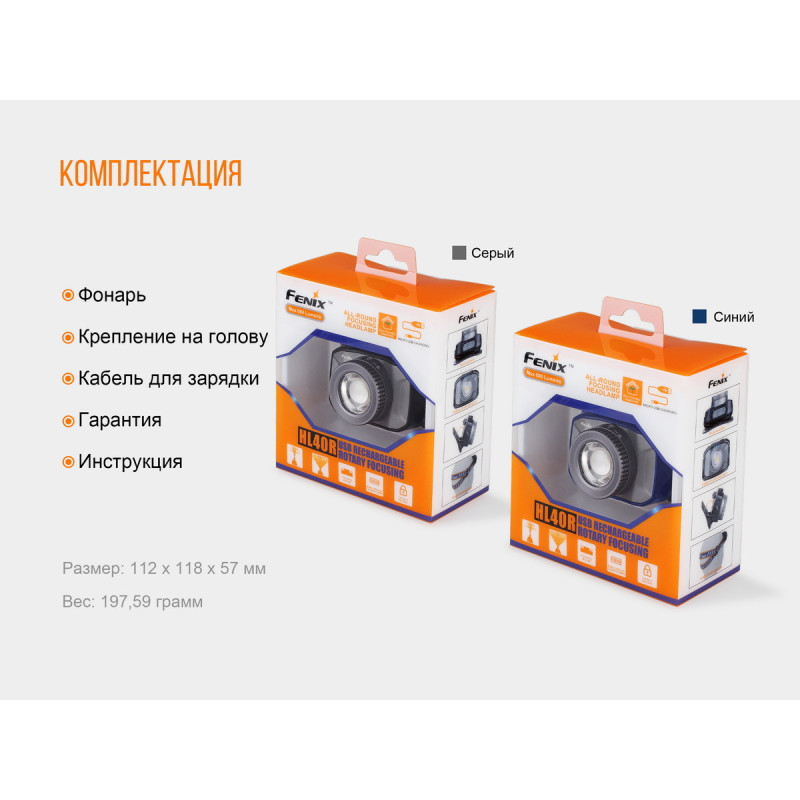

Package Contents:- Fenix HL40R headlamp;
- head strap with top strap;
- charging cable (USB / micro-USB).

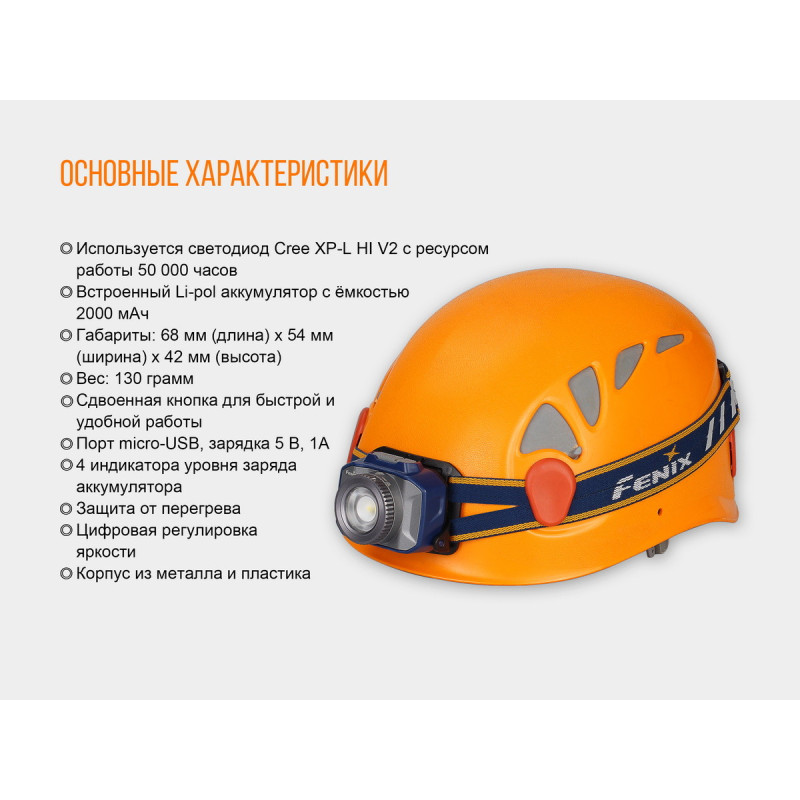

- type: tactical headlamp;
- LED: Cree XP-L HI V2;
- maximum brightness: 600 lumens (Turbo);
- 7 operating modes, divided into groups for convenience;
- two-button control, button lock capability for safe carrying;
- built-in 2000 mAh battery with USB charging and charge indicator;
- runtime up to 200 hours in eco mode;
- body material: aircraft-grade aluminum and durable plastic;
- reflector type: smooth, reflector-based optical system;
- IP66 protection rating, impact resistance up to 1 m;
- improved head strap with adjustment and 60° rotation;
- dimensions: 68×54×42 mm, weight 130 g (without batteries).
Warranty: The official warranty period for the Fenix HL40R headlamp is 2 years.
