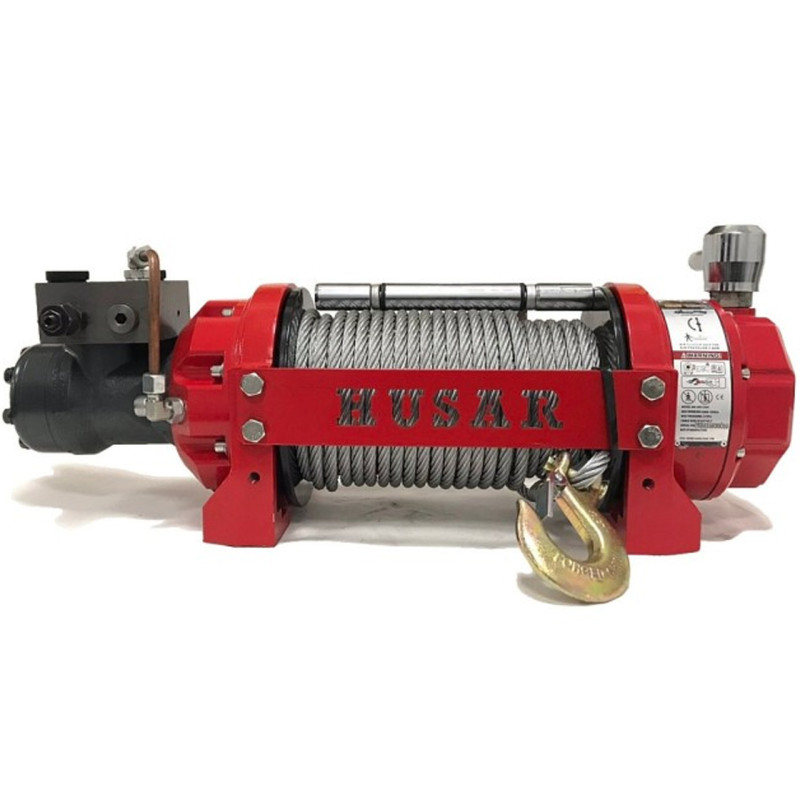

Hydraulic Winch 5.4 t BST HS 12000 LBS Husar Winch
The Husar Winch model BST HS 12000LBS is a powerful hydraulic solution with a pulling force of 12000 LBS (5443 kg), designed for operation in challenging conditions. The manufacturer HUSAR WINCH is a Polish brand known for the high quality of its winches for the automotive, industrial, and defense sectors. Each unit undergoes testing at proving grounds, ensuring reliability during operation in field conditions and on construction sites.
BST HS series winches are ideal for pulling heavy vehicles, equipment, and loads in hard-to-reach terrain. The device is recommended for use on tractors, SUVs, trailers, and other roadside vehicles where strong hydraulic pulling force and fast cable operation are required.
Our company offers professional installation and mounting of winches by certified specialists both at our service station and on the customer's premises. Proper installation is key to safe operation and equipment longevity. The estimated time for work depends on the winch design and mounting location; typically, installation with bracket fabrication takes about 8 hours.
For more information on winch installation and connection, please contact our manager or refer to the sections on our website. We also offer related accessories and components necessary for safe operation: cables, pulleys, shackles, and other elements.
Brand: Husar
Product Type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Winches
Technical Specifications of Husar Winch
BST HS 12000LBS | Technical Specifications |
Pulling Force | 12000 LBS (5443kg) |
Motor | 100 hp |
Oil Flow | 5～60 l/min |
Oil Pressure | 15Mpa |
Gearbox | 2-stage planetary |
Gear Ratio | 17.6:1 |
Cable | 25.5 m x Ø 10.2 mm 8-M10 |
Fairlead | 4-way roller fairlead |
Weight | 51 kg |
Mounting Bolt Pattern | 374.2 mm×114.3 mm |
Overall Dimensions | (LxWxH) 519mm × 235mm × 246mm |
Line Speed and Current Consumption (1st layer of cable) | ||||||
Load | LBS | 0 | 4000 | 6000 | 8000 | 12000 |
kg | 0 | 1814 | 2722 | 3629 | 5443 | |
Winding Speed | m/min | 0.9 | 1.8 | 3.6 | 7.2 | 9.5 |
Oil Pressure | PSI | 435.1 | 986.2 | 1334.3 | 1740.4 | 2175 |
Oil Flow | l/min | 5.0 | 10.0 | 20.0 | 40.0 | 60.0 |
Line Speed and Current Consumption (1st layer of cable) | |||||
Cable Layer | 1 | 2 | 3 | 4 | |
Max. Load | LBS | 12000 | 8000 | 6000 | 4000 |
kg | 5543 | 3629 | 2722 | 1814 | |
Remaining Cable on Drum | m | 7 | 15 | 18.6 | 25.5 |
Husar Winch is a proven Polish manufacturer with a wide range of products: electric, hydraulic, manual, chain, and industrial winches, as well as accessories — compressors, pulleys, shackles, cables, and much more. All products are certified and come with an official manufacturer's warranty. By choosing the BST HS 12000LBS winch, you get a reliable tool for heavy-duty work, quality assurance, and technical support.
