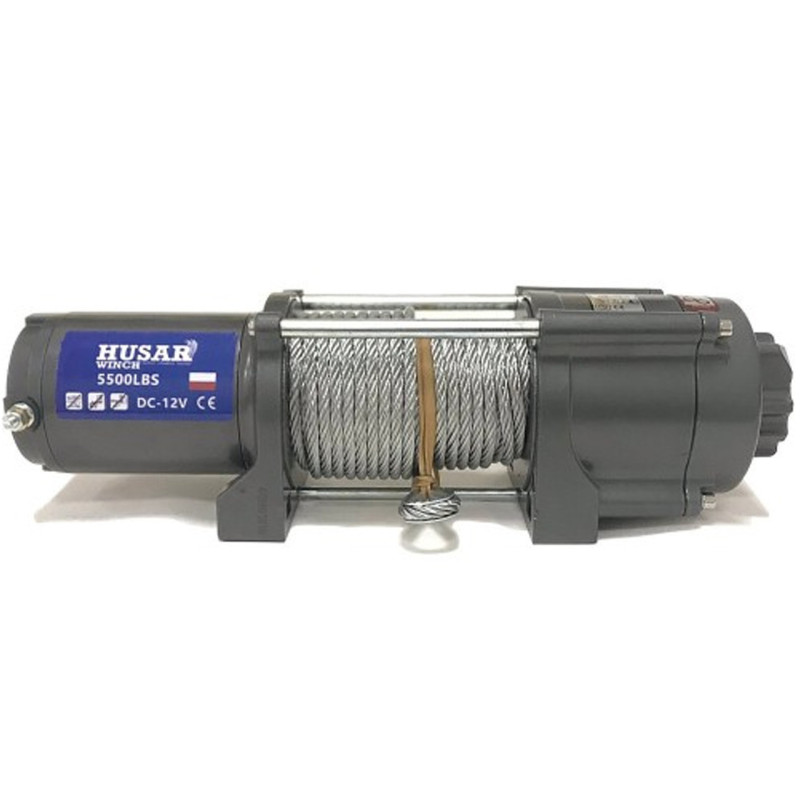

Electric Winch for ATV 2.5t 12V BST 5500 LBS Husar Winch
Husar BST 5500 LBS is a reliable electric winch designed for demanding operating conditions on ATV and UTV quad bikes, for plow-type units, and light special equipment. Manufacturer: Husar (Poland). This model combines high pulling force and ease of maintenance: high-quality seals protect internal components from dust and moisture, an automatic brake secures the load in the desired position, and a wired handlebar-mounted remote control provides convenient remote operation.
The 2.5 hp electric motor operates on a 12-volt onboard power supply. The winch is equipped with a strong steel cable with a diameter of 6 mm and a length specified in the description: the general description states 14.5 m of cable, while the technical specifications indicate 14 m. The cable is wound onto the drum using roller fairleads (fairlead: rollers). The gear ratio of the reducer is 166:1.
Winding speed and current consumption on the first layer of the cable are shown in the table below; without load, the winch winds the cable at a speed of 3.9 m/min, at maximum load the speed decreases to 1.1 m/min. The automatic brake ensures safety when the engine is switched off.
| Line Speed and Current Consumption (1st Layer of Cable) | ||||||
|---|---|---|---|---|---|---|
| Load | LBS | 0 | 2000 | 3000 | 4500 | 5500 |
| kg | 0 | 1523 | 1750 | 2057 | 2495 | |
| Winding Speed | m / min | 3.9 | 2.6 | 2.1 | 1.4 | 1.1 |
| Current Consumption | amperes | 28 | 120 | 160 | 220 | 280 |
Pulling performance depending on the cable layer and the remaining cable on the drum for each layer are provided separately, allowing for an assessment of the device's real capabilities in operating conditions.
| Pulling Force Depending on Cable Layer | ||||||
|---|---|---|---|---|---|---|
| Cable Layer | 1 | 2 | 3 | 4 | ||
| Max. Load | LBS | 5500 | 4535 | 3858 | 3357 | |
| kg | 2495 | 2057 | 1750 | 1523 | ||
| Remaining Cable on Drum | m | 3.7 | 8 | 12.8 | 14.5 | |
| Technical Specifications | |
| Pulling Force | 5500 lbs / 2495 kg |
| Voltage | 12 volts |
| Motor | 2.5 hp |
| Cable Length | 14 m |
| Cable Diameter | 6 mm |
| Brake | automatic |
| Winch Weight | 15.5 kg |
| Mounting Holes | 168 mm x 76.2 mm |
| Fairlead | rollers |
| Gear Ratio | 166:1 |
| Wired Remote Control | Yes (handlebar mount) |
| Country of Manufacture | Poland |
Purpose and Advantages: The Husar BST 5500 LBS winch is ideal for use on ATVs and light special equipment in off-road conditions, where reliability and protection from dust and moisture are important. Easy installation (mounting holes 168 mm x 76.2 mm are specified) and the presence of a wired remote control make operation convenient and safe. A strong cable and roller fairlead ensure even winding and a long service life.
Included: winch with 2.5 hp electric motor, steel cable (14.5 m in general description), roller fairlead, wired remote control. Information is provided for informational purposes.
