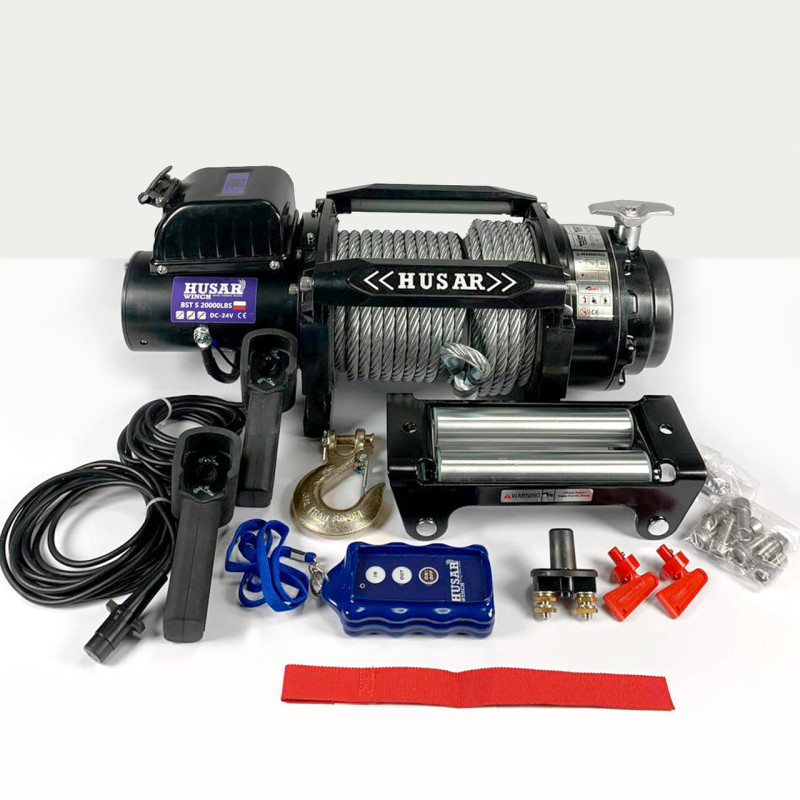

Electric Winch 9t 24V BST S 20000LBS Husar Winch

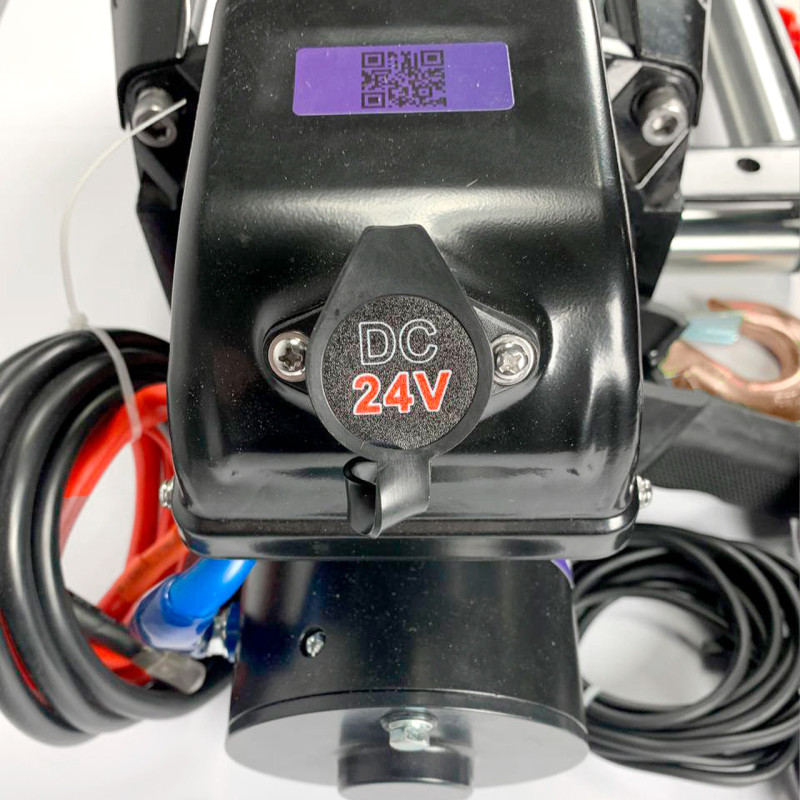

The powerful HUSAR WINCH electric winch model BST S 20000LBS is designed for heavy lifting and pulling tasks with a maximum load capacity of up to 9 tons (20000 lbs / 9072 kg). It operates on a 24V onboard power supply and is suitable for use in construction, agriculture, on off-road vehicles, and specialized transport. Brand: Husar. Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Winches.

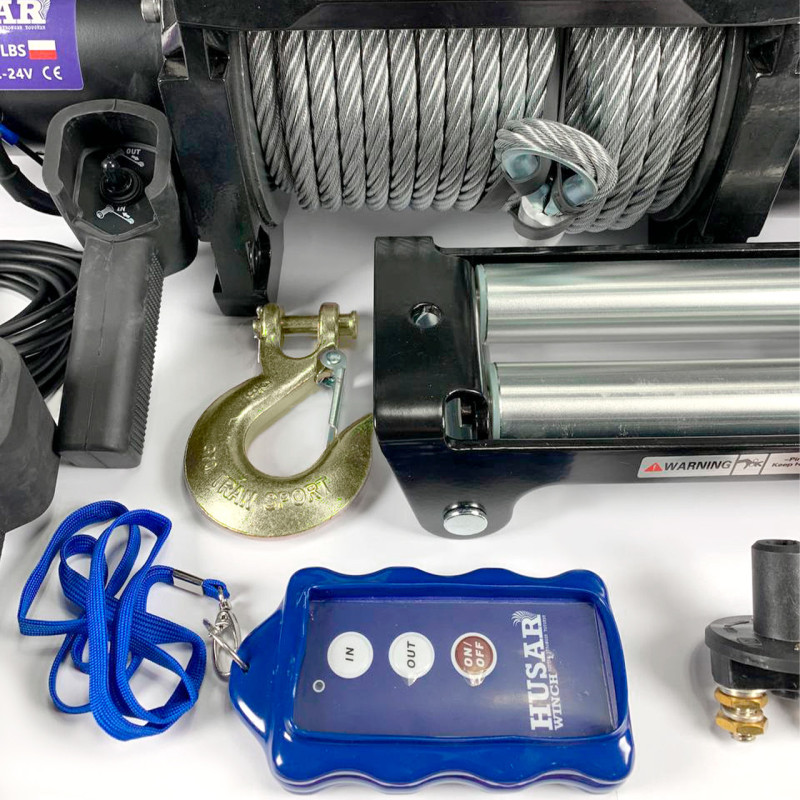

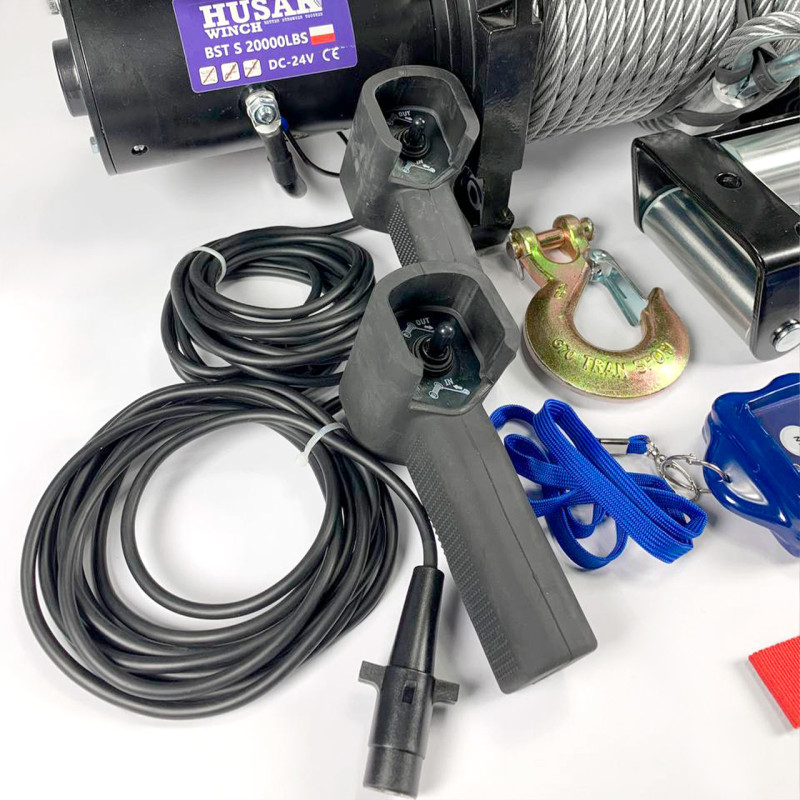

The winch is equipped with a reliable 6.0 kW (7.9 hp) electric motor, a 3-stage planetary gearbox with a 450:1 gear ratio, and a dynamic brake for safety under load. Control is possible via both wired connection and remote control, making operation convenient and safe. The winch body and mechanisms are made of durable materials for resistance to external influences and longevity in intensive use.

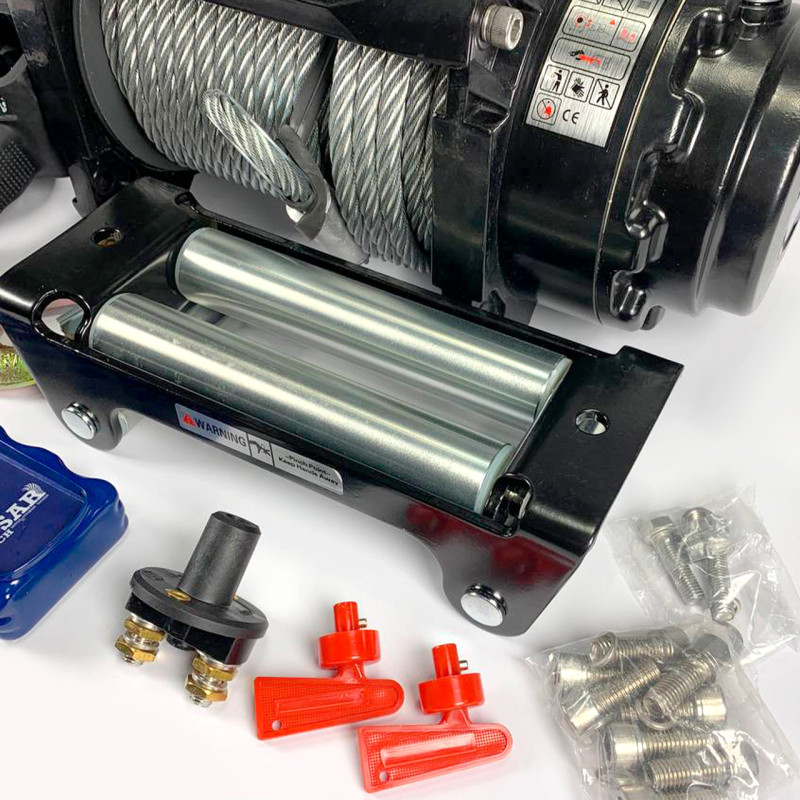

Rope: 30 m x 12 mm; roller fairlead — 4-way; winch weight — 67 kg. Mounting bolt patterns: 254 mm × 114.3 mm and 254 mm × 165.1 mm. Overall dimensions (WxDxH): 620 mm × 214 mm × 290 mm. These parameters allow for precise selection of the bracket and installation location.

Winding speed and current consumption for the 1st layer of rope at 24V: no load speed 4.4 m/min at 40 A; at 5670 kg (12500 LBS) load — 1.6 m/min at 180 A consumption; 6350 kg (14000 LBS) — 1.4 m/min at 200 A; 7938 kg (17500 LBS) — 1.2 m/min at 250 A; maximum load 9072 kg (20000 LBS) — 1.0 m/min at 265 A. This data helps plan operation and power supply when operating under various loads.

Pulling force depending on rope layer: 1st layer — 20000 Lb (9072 kg); 2nd layer — 16160 Lb (7330 kg); 3rd layer — 13557 Lb (6149 kg); 4th layer — 11677 Lb (5297 kg). Remaining rope on drum: 1st layer — 6 m; 2nd layer — 13 m; 3rd layer — 21 m; 4th layer — 25.5 m.

We offer professional installation of the winch by certified specialists at our service station or at the customer's location. Proper installation and fastening are crucial for safe operation; the estimated time for work is about 8 hours, including bracket fabrication, depending on the winch type and installation conditions. More about installation and winch connection can be found on our website or by contacting our manager.

Husarwinch 9t 24V Winch Specifications

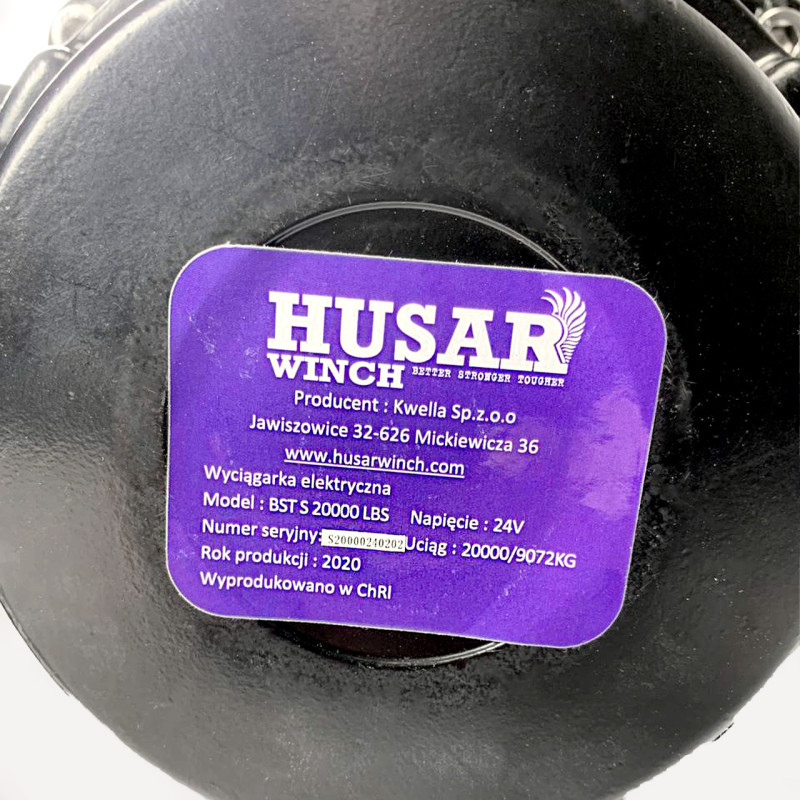

Husar Winch is a renowned Polish brand with certified products: electric, hydraulic, manual, chain, and industrial winches, as well as accessories (compressors, pulleys, shackles, ropes, etc.). All products come with an official manufacturer's warranty.
