Electric Winch 8.165t Husar Winch BST S 18000 LBS

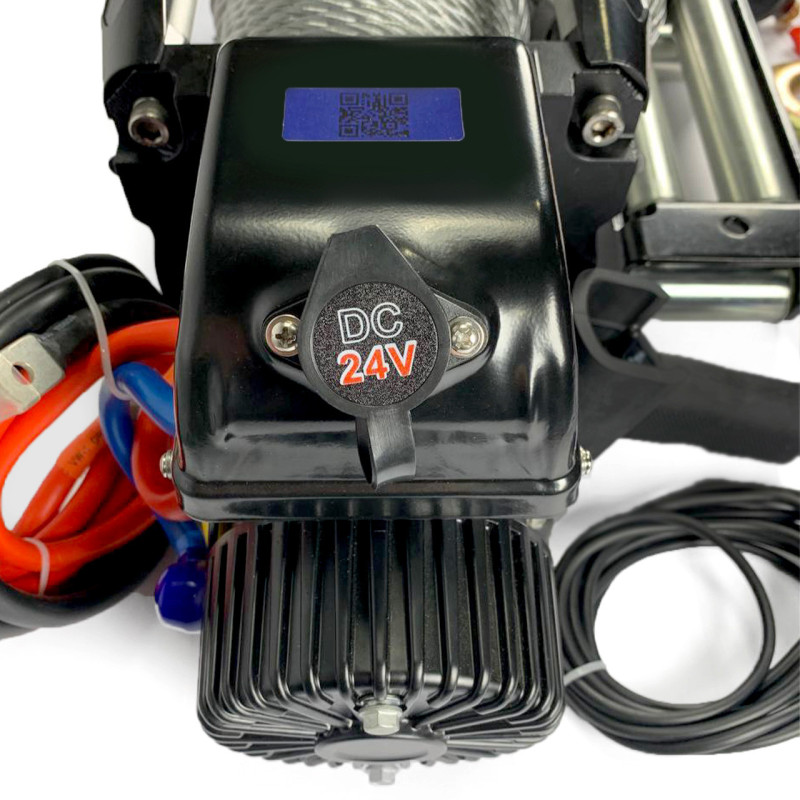

The powerful and reliable electric winch BST S 18000LBS from the Husar Winch brand is an ideal solution for off-road vehicles, special equipment, and demanding work conditions. This model provides a pulling force of 18000LBS / 8165 kg and operates on a 24V onboard power supply. The winch is equipped with a high-efficiency 24V motor with parameters of 5.5 kW / 7.5 hp, a three-stage planetary gearbox, and a gear ratio of 450:1, ensuring confident starting and smooth operation under load.
The winch has the following equivalent.

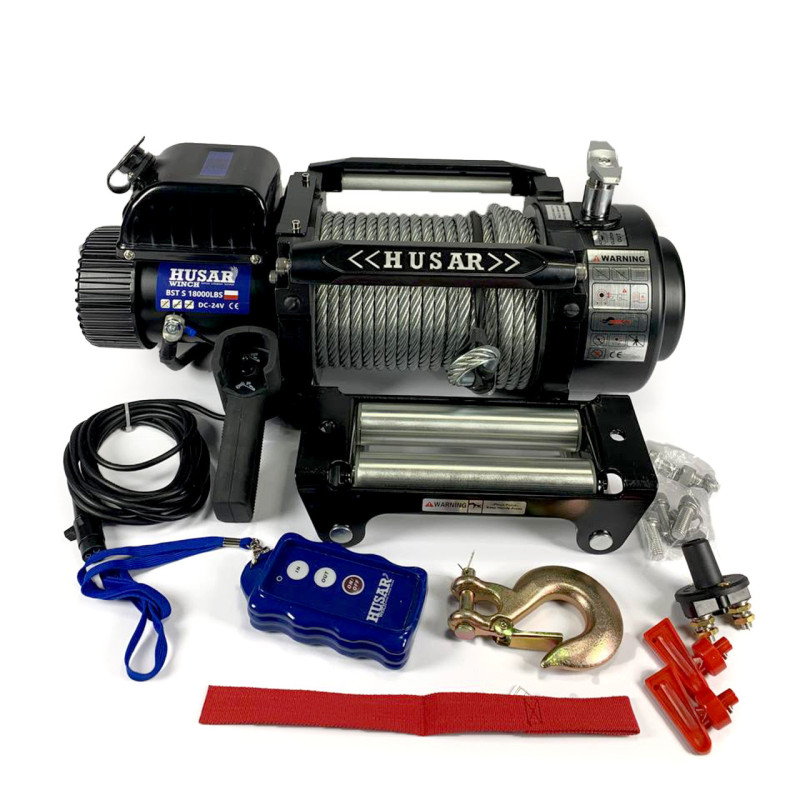

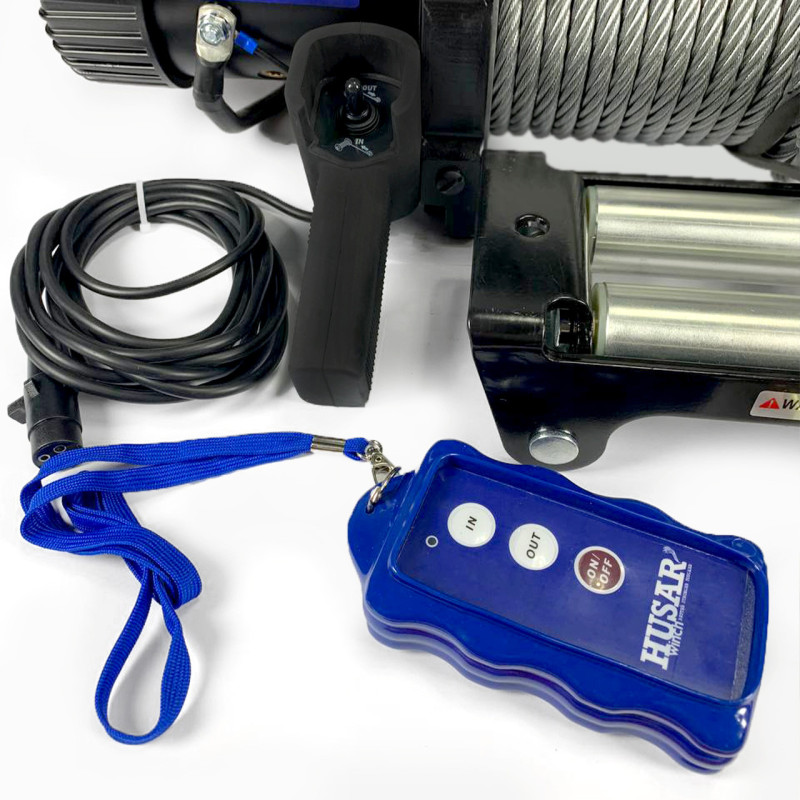

The model comes with a wired and remote control, a dynamic brake, and a steel cable 25.5 m long with a diameter of Ø 11 mm. The design includes 4-way roller fairleads for even cable winding, and the device weighs 68 kg. Mounting bolt pattern: 219 mm x 114.3 mm (4-M12). Overall dimensions (WxDxH): 593 mm × 226 mm × 294 mm.
Our company offers professional installation and mounting of winches by certified specialists both at our service station and on the customer's premises. Proper installation is key to safe and long-lasting operation. The estimated time for work depends on the type of winch and the availability of a mounting location, averaging about 8 hours, including bracket fabrication. More about winch installation and connection can be found on our website or by contacting a company manager.
Technical Specifications of the Electric Winch
| Model: | BST S 18000LBS | |||
| Pulling Force | 18000LBS / 8165 kg | |||
| 24V Motor | 5.5 kW / 7.5 hp | |||
| Control | Wired / Remote control | |||
| Gearbox | 3-stage planetary | |||
| Gear Ratio | 450:1 | |||
| Brake | Dynamic | |||
| Cable | 25.5 m x Ø 11 mm | |||
| Fairlead | 4-way roller fairlead | |||
| Weight | 68 kg | |||
| Mounting Bolt Pattern | 219mm x 114.3 mm 4-M12 | |||
| Overall Dimensions | (WxDxH) 593mm × 226mm × 294mm | |||
| Cable Winding Speed and Current Consumption (1st layer of cable) | ||||||
| Load | LBS | 0 | 1000 | 12000 | 15000 | 18000 |
| kg | 0 | 4536 | 5443 | 6804 | 8165 | |
| Current Cons. | m / min 24V | 4.9 | 2.2 | 2.1 | 1.8 | 1.7 |
| amps 24V | 48 | 140 | 145 | 191 | 235 | |
| Pulling Force Depending on Cable Layer | ||||||
| Cable Layer | 1 | 2 | 3 | 4 | ||
| Max. Load | LBS | 18000 | 15000 | 12000 | 10100 | |
| kg | 8165 | 6804 | 5443 | 4581 | ||
| Cable Remaining on Drum | M | 6 | 13 | 21 | 28.5 | |
Husar Winch is a renowned Polish brand with a proven reputation. The company offers a wide range of electric, hydraulic, manual, chain, and industrial winches, as well as accessories: compressors, pulleys, shackles, cables, and other equipment. All products are certified and come with an official manufacturer's warranty. If you need a reliable winch for your car or professional equipment, the BST S 18000LBS model will be an excellent choice due to its high load capacity, strong steel cable, and proven design.
