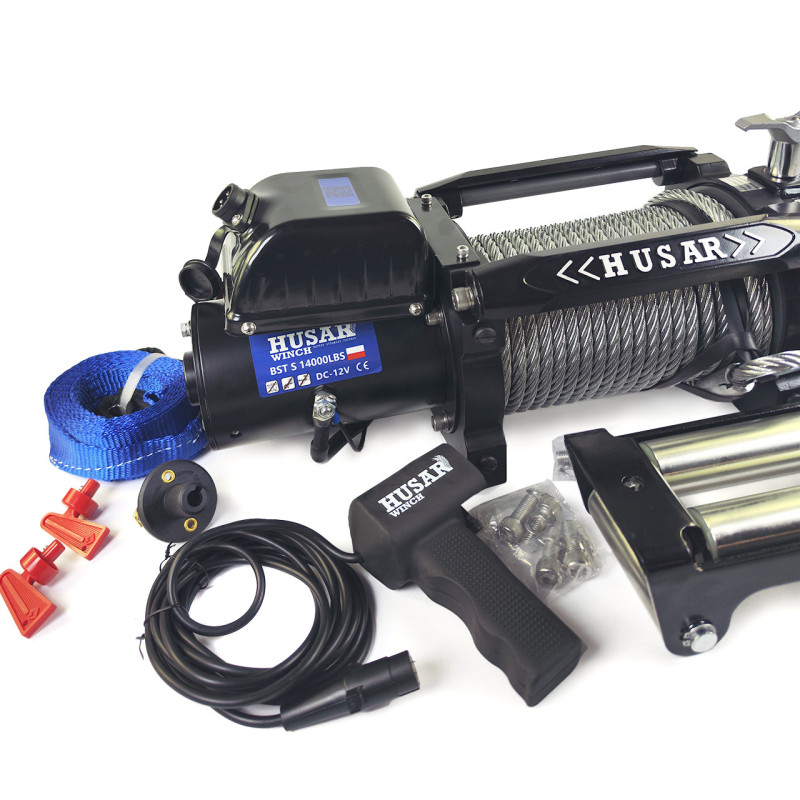

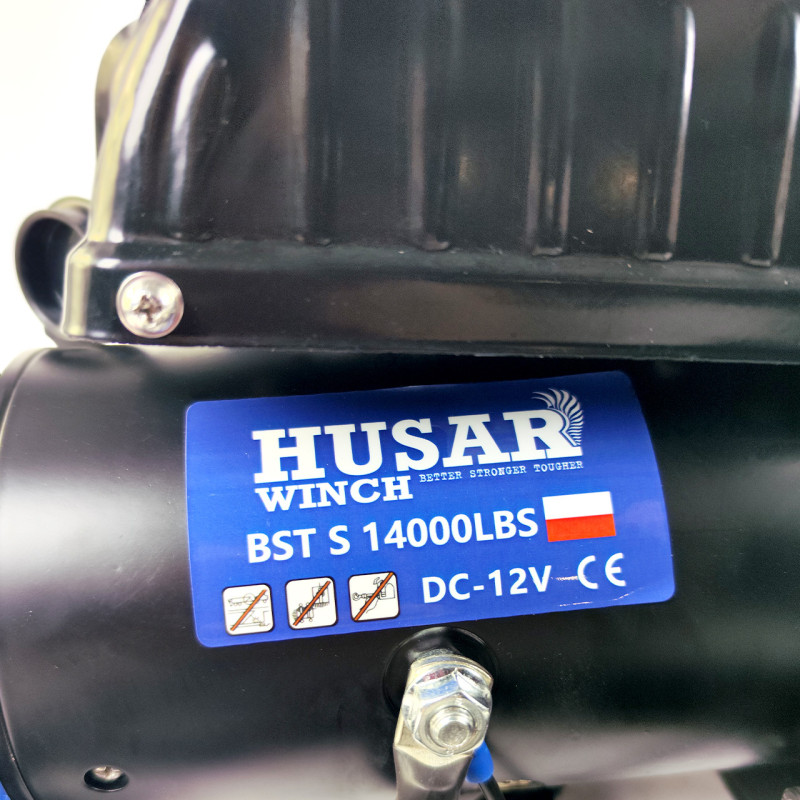

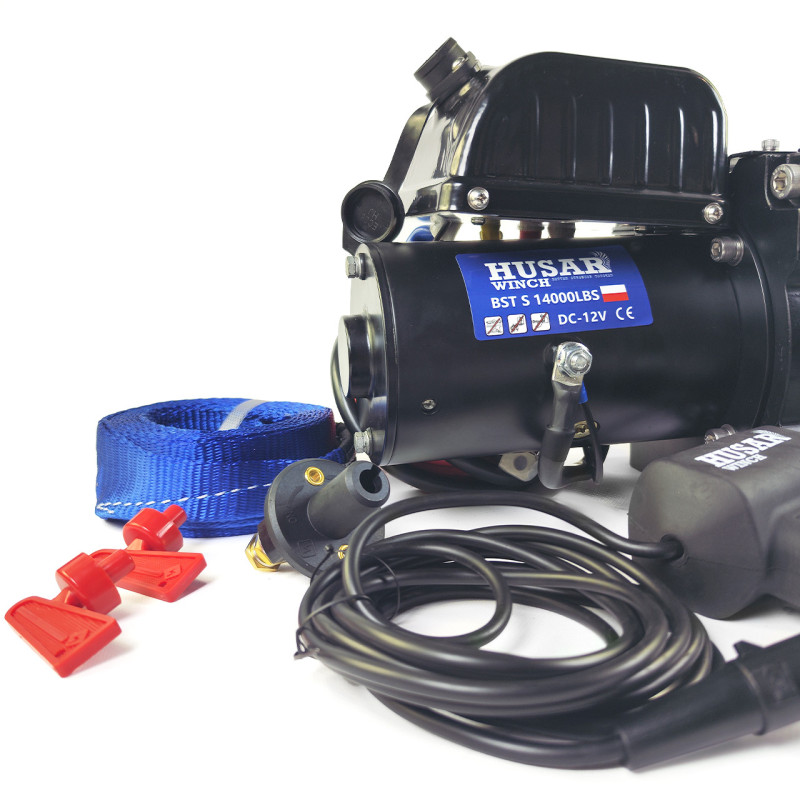

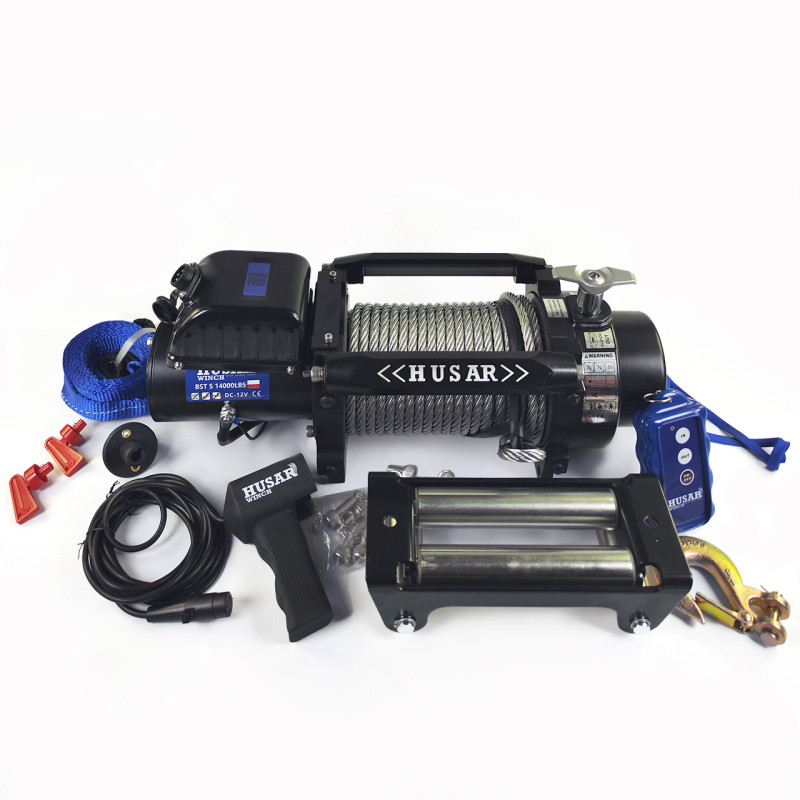

Electric Winch 6.3 t 12V Husar Winch BST S 14000 LBS
Husar Winch BST S 14000 LBS is a powerful electric winch with a nominal pulling force of 6.3 tons (14000 LBS / 6350 kg), designed for installation on SUVs, tow trucks, special equipment, and trailers. The model is equipped with a reliable 12-volt electric motor, ensuring stable operation even under maximum loads. Thanks to its three-stage planetary gear system, the winch guarantees smooth and efficient operation, while the built-in automatic braking system securely holds the load and prevents its unintentional displacement.
The winch offers multi-mode control options: wired and remote control, allowing you to choose a convenient operating method. The 28.5 m long steel cable with a diameter of 10.2 mm ensures reliable and durable use in field conditions. The gear ratio is 332:1, and the brake is implemented as dynamic braking.
The company offers professional installation of the winch by certified specialists at our service station or on the customer's premises. Proper installation of the equipment is crucial for safe operation. The estimated time for completion depends on the type of winch and the availability of a mounting location, and is approximately 8 hours, including bracket fabrication. More details on winch installation and connection can be found on our website or by contacting a manager.
Manufacturer: Husar (Husar Winch) — a well-known Polish brand that supplies certified products with an official warranty: electric, hydraulic, manual, chain, and industrial winches, as well as accessories for SUVs, compressors, pulleys, shackles, and cables. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Winches.
| BST S 14000LBS | Technical Specifications | |||
| Pulling Force | 14000LBS / 6350 kg | |||
| Motor 12V / 24V | 6.7 hp / 5.1 kW / 6.4 hp 4.8 kW | |||

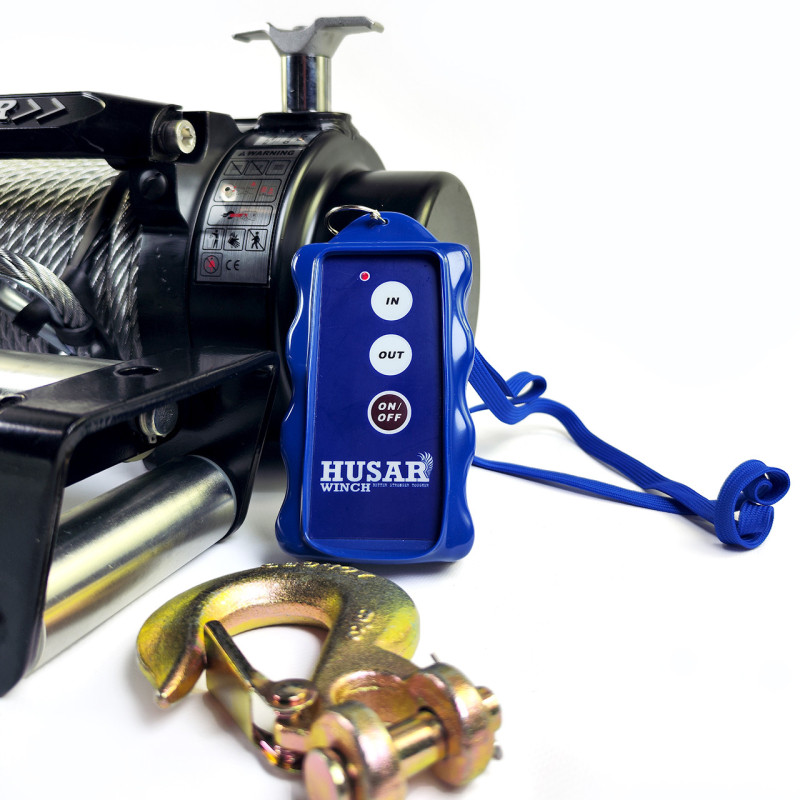

| Control | Wired / Remote Control | |||
| Gear System | 3-stage planetary | |||
| Gear Ratio | 332:1 | |||
| Brake | Dynamic | |||
| Cable | 28.5 m x Ø 10.2 mm | |||

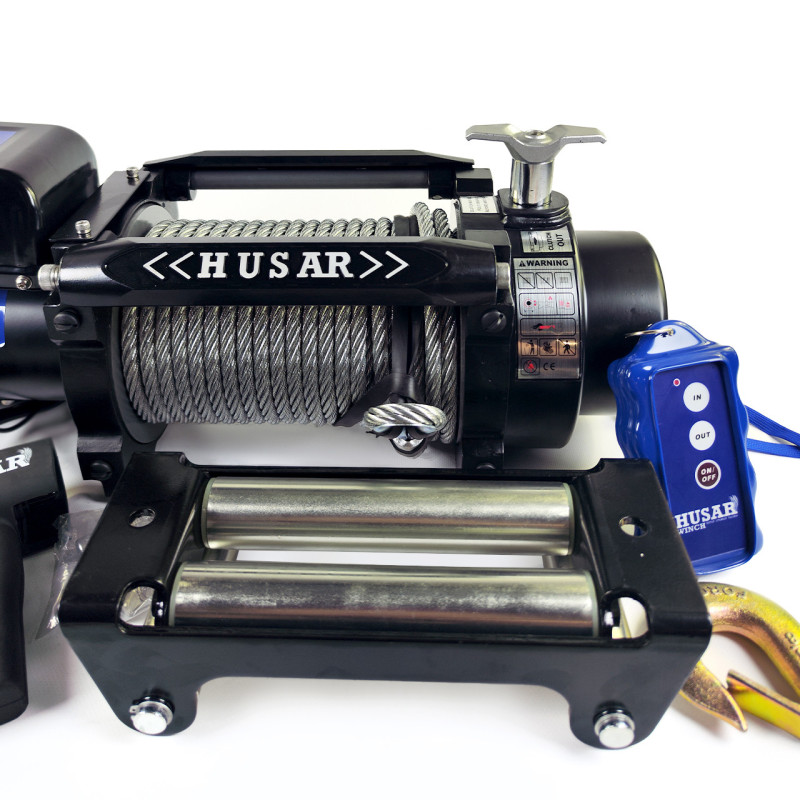

| Fairlead | 4-way roller fairlead | |||
| Weight | 58 kg | |||
| Mounting Bolt Pattern | 254 mm x 114.3 mm 4-M12 | |||

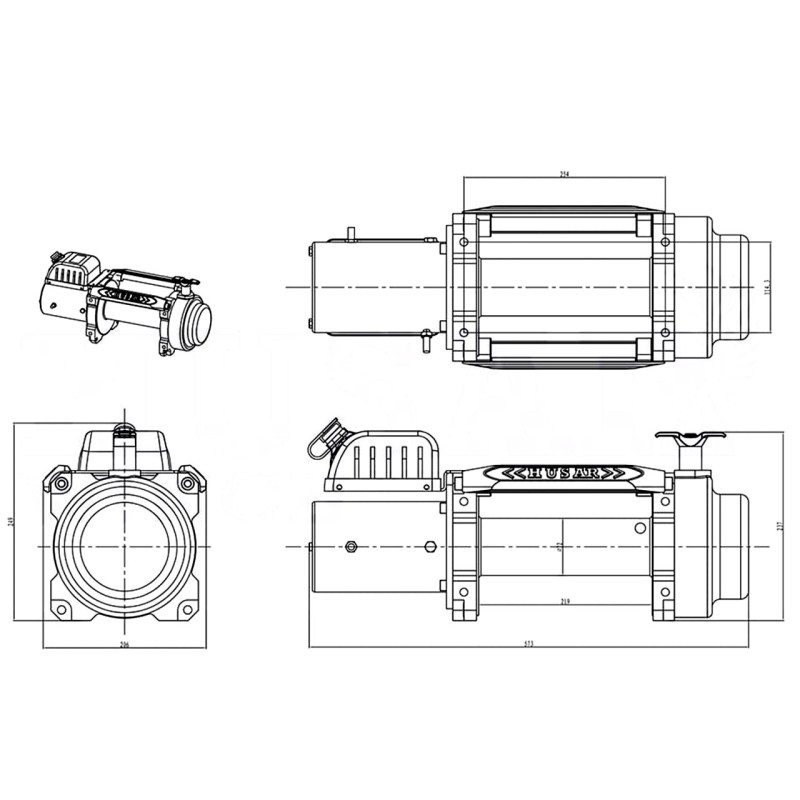

| Overall Dimensions | (WxDxH) 593 mm × 226 mm × 294 mm | |||
| Cable Winding Speed and Current Consumption (1st layer of cable) | |||||
| Load | LBS | 0 | 8000 | 10000 | 14000 |
| kg | 0 | 3629 | 4536 | 6350 | |
| Winding Speed | m / min 12V | 5 | 1.9 | 1.7 | 1.2 |
| m / min 24V | 5.4 | 2 | 1.8 | 1.5 | |
| Current Consumption | amps 12V | 80 | 310 | 350 | 480 |
| amps 24V | 40 | 145 | 185 | 250 | |
| Pulling Force by Cable Layer | |||||
| Cable Layer | 1 | 2 | 3 | 4 | |
| Winding Speed | LBS | 14000 | 11255 | 9410 | 8085 |
| kg | 6350 | 5105 | 4268 | 3667 | |
| Remaining Cable on Drum | M | 5.6 | 12.5 | 20 | 28.5 |
Husar Winch is a proven Polish brand that has earned the trust of consumers in Europe and Asia. All products are certified and come with an official manufacturer's warranty. The BST S 14000 LBS winch combines high pulling characteristics, a reliable electric motor, an efficient planetary gear system, and a modern braking system, making it an excellent choice for heavy-duty tasks and professional applications.
