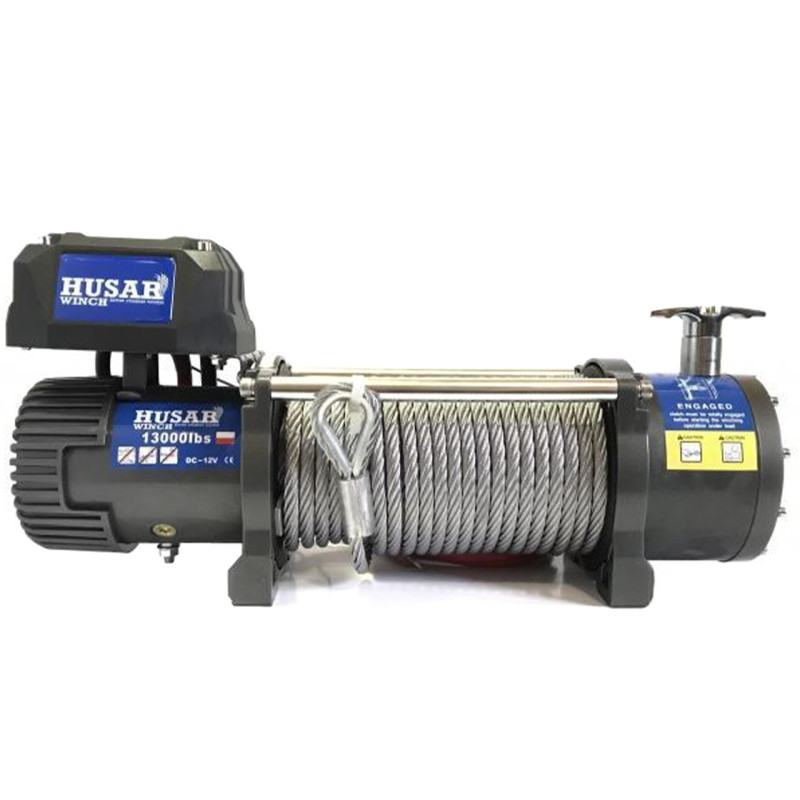

Electric Winch 5.9 t 24V BST 13000 LBS Husar Winch
The Husar BST 13000 LBS is a professional electric winch with a pulling capacity of over 5 tons, designed for heavy-duty tasks and extreme operating conditions. This model is suitable for installation on off-road vehicles, small and medium-sized specialized equipment, as well as for towing and lifting loads. The description combines all technical data and information from the original specification: model BST 13000 LBS, brand Husar (Husar Winch), and detailed parameters of the device's durability and dimensions.

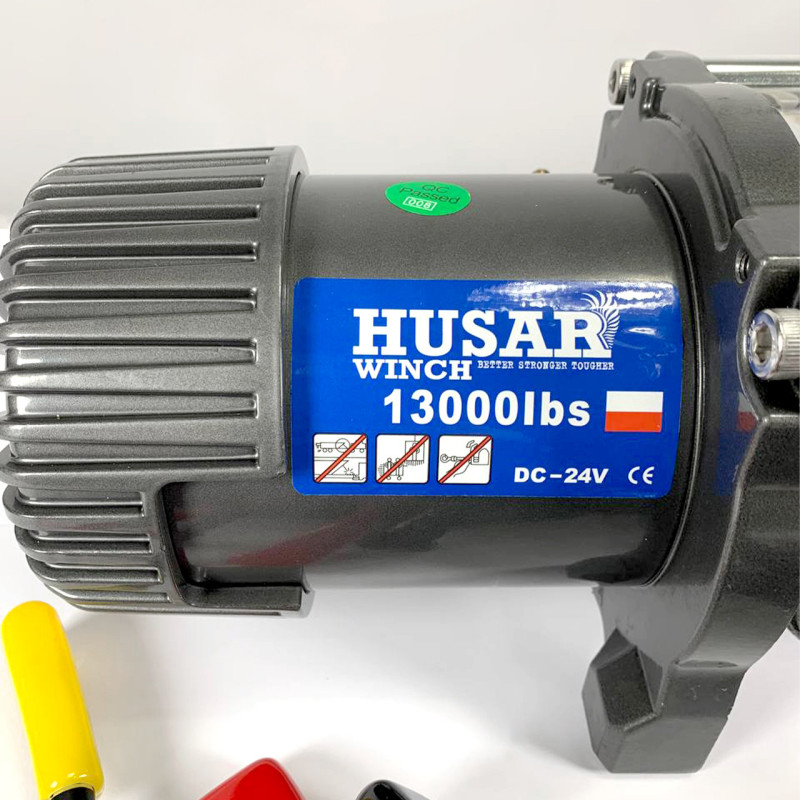

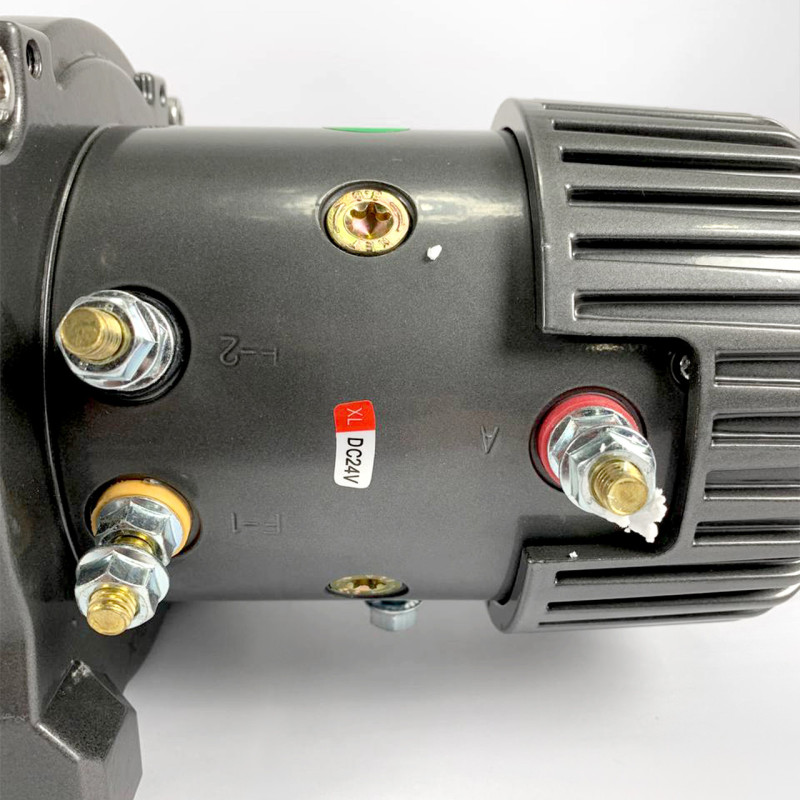

The winch is equipped with a powerful 24V electric motor, ensuring stable and reliable operation under maximum loads. The technical table also lists the engine characteristics as 12V — 6.5 kW / 8.5 hp; this data is preserved to fully reproduce the original specification. A high-efficiency planetary gear system guarantees smooth rope movement, and the built-in automatic brake securely holds the load in the desired position, preventing accidental displacement.
The company offers installation and mounting services for winches by certified specialists at our service station or on the customer's premises. Correct installation is crucial for safe and long-term operation. The estimated time for completion depends on the type of winch and the availability of mounting space; it usually takes about 8 hours, including the fabrication of a custom bracket.
You can find more information about the installation and connection of the winch on our website or by contacting our manager. We provide certified service and warranty support for all Husar Winch brand products.
Technical Specifications of the BST 13000 LBS Winch
| Pulling Force (single line) | 5897 kg (13,000 lbs) |
| Motor | 24V (in model description); in table: 12V — 6.5 kW / 8.5 hp |
| Rope (diameter x length) | 26 mm x 10 m |
| Mounting Bolt Pattern | 254 mm and 114.3 mm |
| Dimensions (length x width x height) | 546 mm x 160 mm x 218 mm |
| Net Weight (kg) | 38 |
Rope Speed and Motor Current (first layer):
| Rope Load | 0 | 4000 kg | 6000 kg | 10000 kg | 13000 kg |
| Rope Speed | 6.8 m/min | 3.8 m/min | 3 m/min | 2.1 m/min | 1.7 m/min |
Husar Winch is a renowned Polish brand that has earned the trust of consumers in many European and Asian countries. The brand offers a wide range of electric, hydraulic, manual, chain, and industrial winches, as well as accessories: compressors, pulleys, shackles, ropes, and other equipment. All Husar Winch products are certified and come with an official manufacturer's warranty.
Model: BST 13000 LBS. Brand: Husar. Product Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Winches.
This is a reliable solution for off-road vehicle owners, service crews, and businesses requiring a high-pulling capacity winch with proven quality.
