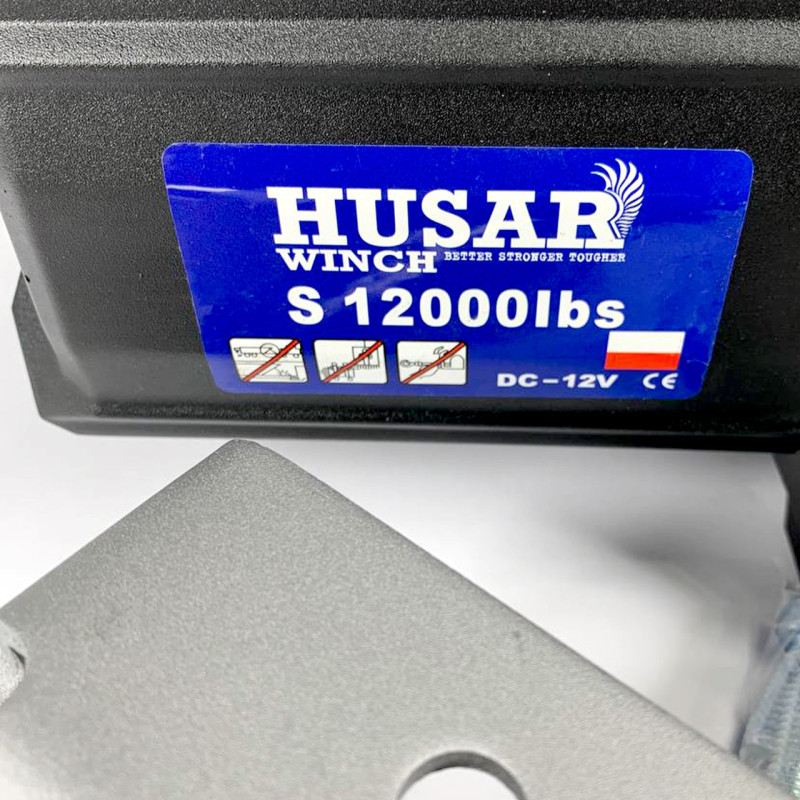

Electric Winch Husar BST S 12000 LBS (5.5 t / 5443 kg)
Electric Winch 5.5t BST S 12000 LBS Husar Winch is a reliable and powerful device from the Polish manufacturer Husar, designed for industrial and off-road use. This model operates on a 12-volt onboard power supply, has a pulling force of 12000 lbs (5443 kg), and will be indispensable for towing, rescue operations, or work on a construction site.

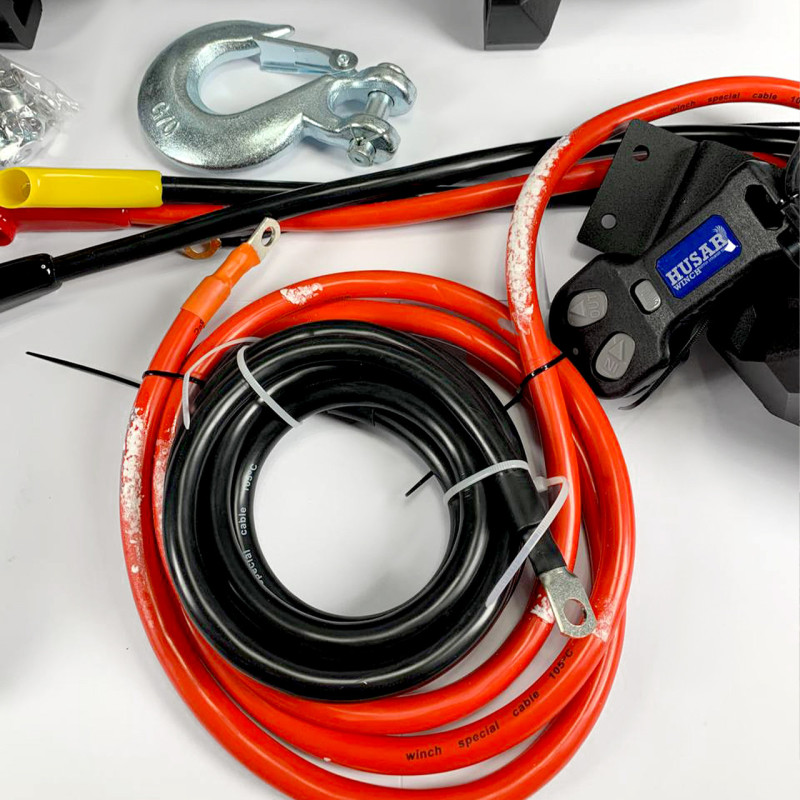

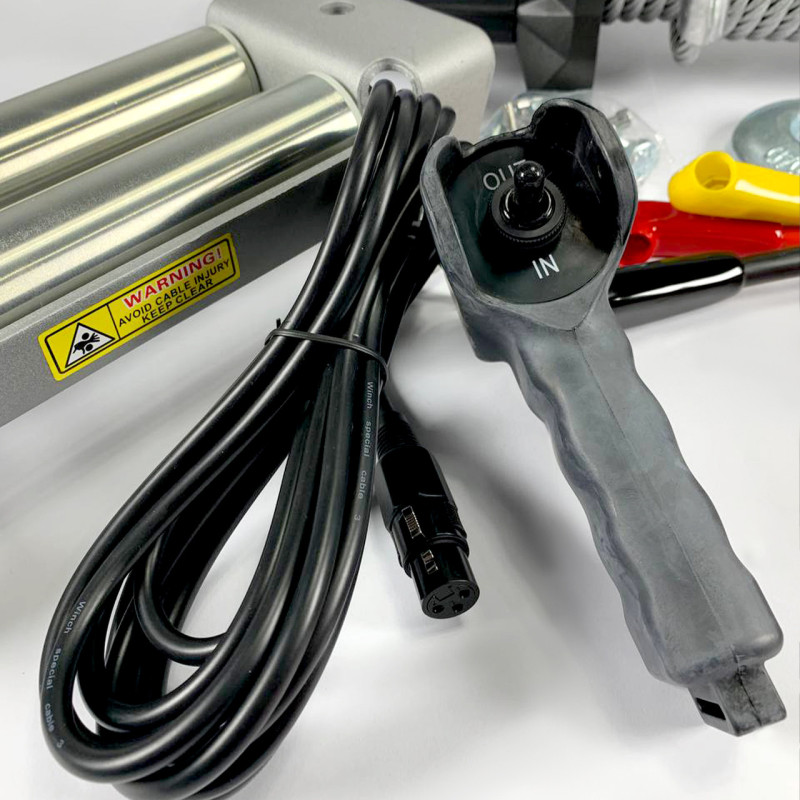

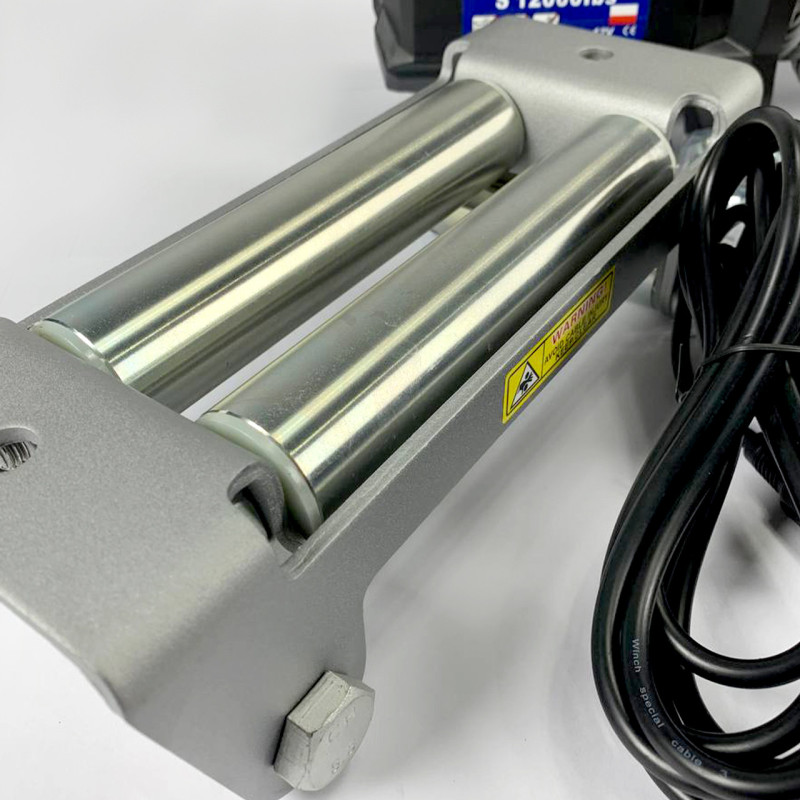

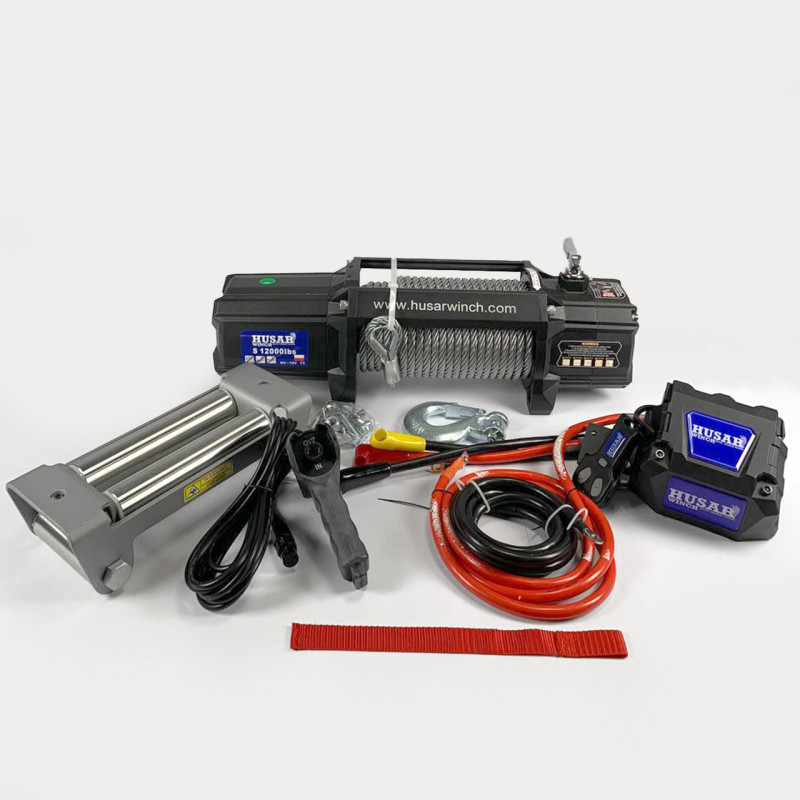

The winch design includes a 6 hp motor, a 25 m long cable with a diameter of 9.5 mm, an automatic brake, and a 3-stage planetary gearbox. Roller fairleads (cable guide — rollers) are provided for proper cable winding. The kit includes wired and wireless remote controls, ensuring convenient and safe operation from a distance. The winch weighs 38 kg, mounting holes: 254 mm x 114.3 mm, gear ratio 265:1.
It is important to remember: as the number of cable layers on the drum increases, the nominal pulling force decreases. Therefore, when working with heavy loads, it is recommended to use additional rigging and not overload the mechanism. For long-term and safe operation of the winch, the company offers professional installation by certified specialists both at our service station and on the customer's premises; the estimated time for work is about 8 hours, including bracket manufacturing, depending on the type of winch and the accessibility of the mounting location.
Key Features and Equipment
Model: BST S 12000 LBS. Manufacturer: Husar (Poland). Power supply voltage: 12 volts. Pulling force: 12000 lbs / 5443 kg. Motor: 6 hp. Cable length: 25 m, cable diameter: 9.5 mm. Gearbox: 3-stage, planetary. Brake: automatic. Cable guide: rollers. Control remotes: wired and wireless. Weight: 38 kg.
Parameters of the Husar BST S 12000 LBS Electric Winch:
| Line Speed and Motor Current (first layer) | ||||||
| Rope Load | lbs | 0 | 4000 | 6000 | 10000 | 12000 |
| kg | 0 | 1814 | 2722 | 4536 | 5443 | |
| Rope Speed | m/min | 6.8 | 3.8 | 3 | 2.1 | 1.7 |
| Power Consumption | amps | 80 | 170 | 210 | 310 | 360 |
Pulling Performance by Layers:
| Pulling Force Depending on Rope Layer | ||||||
| Rope Layer | 1 | 2 | 3 | 4 | ||
| Pulling Rope | lbs | 12000 | 9900 | 8300 | 7000 | |
| kg | 5443 | 4490 | 3765 | 3175 | ||
| Amount of Rope on Drum | M | 6 | 13 | 22 | 25 | |
| Technical Specifications | |
| Pulling Force | 12000 lbs / 5443 kg |
| Voltage | 12 volts |
| Motor | 6 hp |
| Cable Length | 25 m |
| Cable Diameter | 9.5 mm |
| Gearbox | 3-stage, planetary |
| Brake | automatic |
| Wireless Remote Control | Yes |
| Winch Weight | 38 kg |
| Mounting Holes | 254 mm x 114.3 mm |
| Cable Guide | rollers |
| Gear Ratio | 265:1 |
| Wired Remote Control | Yes |
| Country of Origin | Poland |
Husar Winch is a renowned Polish brand with a wide range of electric, hydraulic, manual, chain, and industrial winches, as well as off-road accessories: compressors, pulleys, shackles, ropes, and other equipment. All products are certified and come with an official manufacturer's warranty.
Product Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Winches. Manufacturer: Husar (Poland). For detailed information on installation and connection, please contact our manager or visit the company website.
