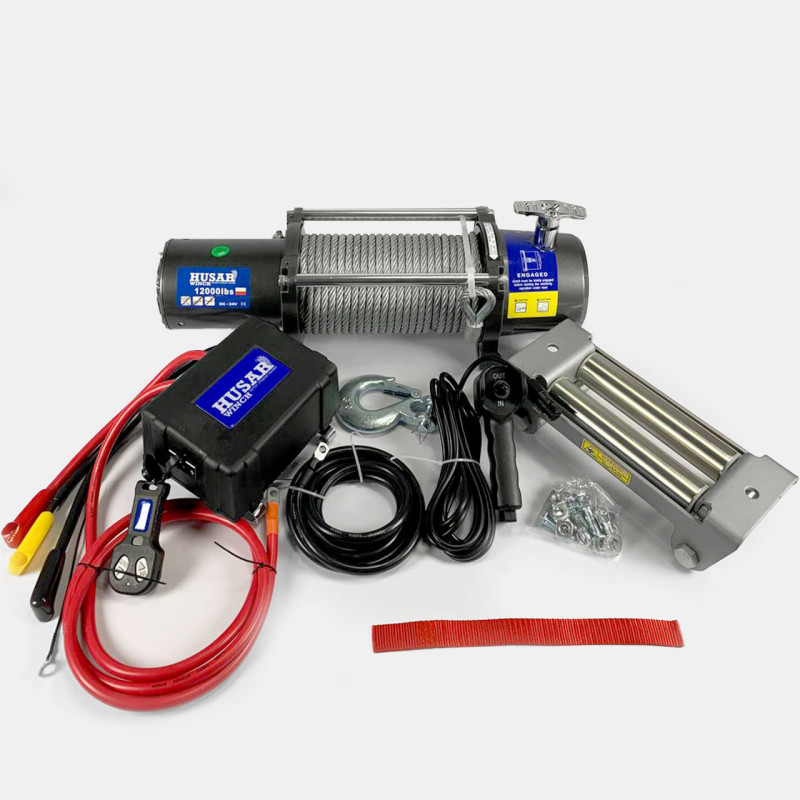

Husar BST 12000 LBS (24V) Electric Winch — 5443 kg, 25 m Steel Cable
The professional Husar electric winch model BST 12000 LBS 24V is ideal for SUVs, special vehicles, and heavy-duty automotive applications. Its maximum pulling force is 12000 lbs / 5443 kg, ensuring reliable recovery and towing of heavy loads. The winch comes with a 25-meter steel cable with a diameter of 9.5 mm and a powerful 6 hp motor, providing high performance when operating at 24 volts.
The winch design incorporates reliable safety and mechanical elements: an automatic brake, a 3-stage planetary gearbox, and a roller fairlead that ensures proper cable winding onto the drum. Control is possible via both wired and wireless remotes, making operation convenient in any conditions.
Advantages and Applications
- High pulling force — 5443 kg (12000 lbs) for the most demanding tasks.
- Cable length of 25 m and diameter of 9.5 mm for reliability and durability.
- Robust planetary gearbox with a gear ratio of 265:1.
- Automatic brake guarantees load retention when the motor is off.

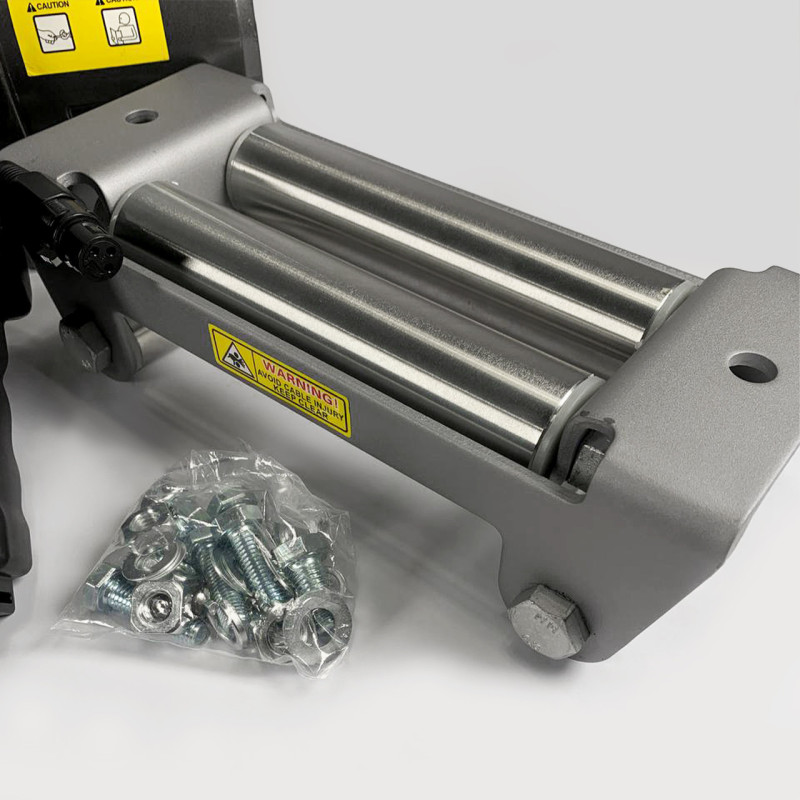

- Roller fairlead and a set of mounting hardware for quick installation.

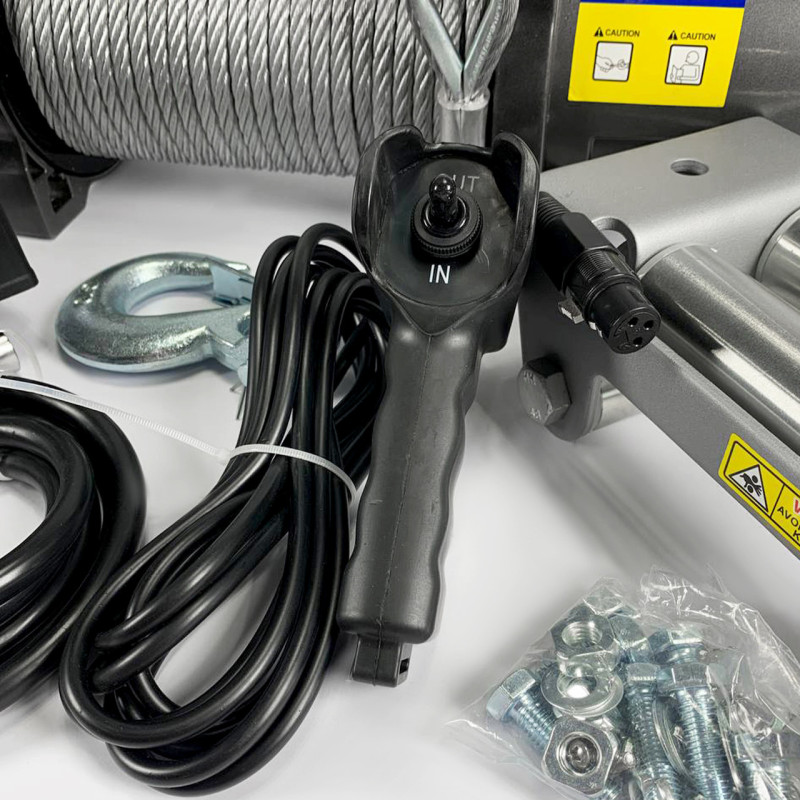

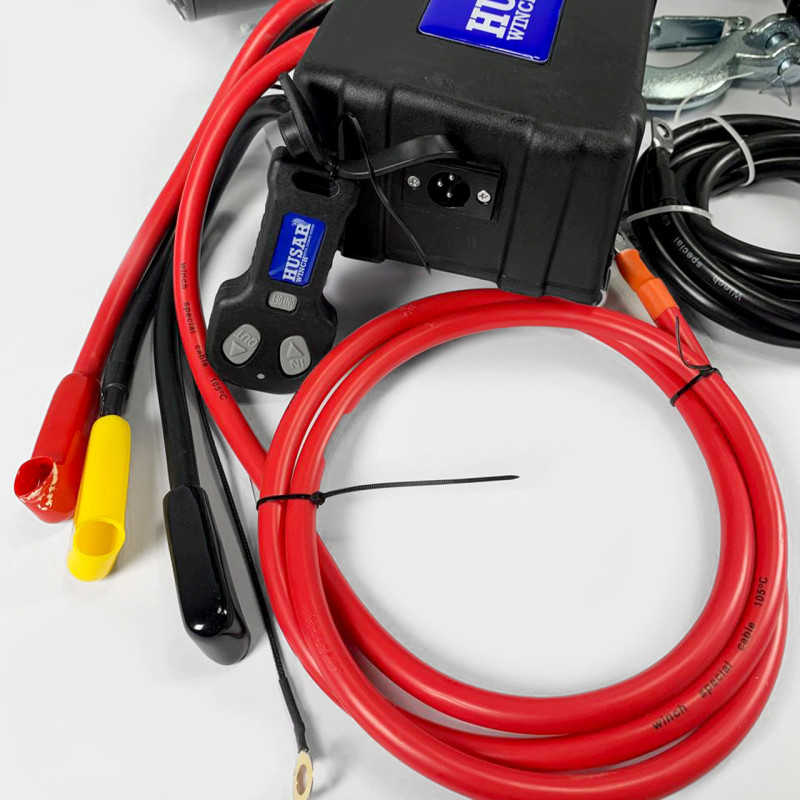

- Support for wired and wireless remote controls.
The winch is easy to install on almost any vehicle thanks to its reliable mounts. Our company provides installation services by certified specialists, both at our service station and at the customer's location. The estimated installation time is about 8 hours, including bracket fabrication, depending on the winch type and mounting location accessibility. Installation and connection details can be clarified with a manager.
Husar Winch Electric Winch Parameters:
| Line Speed and Motor Current (First Layer) | ||||||
| Rope Load | lbs | 0 | 4000 | 6000 | 10000 | 12000 |
| kg | 0 | 1814 | 2722 | 4536 | 5443 | |
| Line Speed | m/min | 10 | 7 | 5.5 | 3.2 | 2.7 |
| Current Draw | amps | 45 | 70 | 95 | 185 | 240 |
Pulling Performance on Layers:
| Pulling Force Depending on Cable Layer | ||||||
| Cable Layer | 1 | 2 | 3 | 4 | ||
| Pulling Rope | lbs | 12000 | 9900 | 8300 | 7000 | |
| kg | 5443 | 4490 | 3765 | 3175 | ||
| Rope Quantity on Drum | M | 6 | 13 | 22 | 25 | |
Technical Specifications
| Pulling Force | 12000 lbs / 5443 kg |
| Voltage | 24 volts |
| Motor | 6 hp |
| Cable Length | 25 m |
| Cable Diameter | 9.5 mm |
| Gearbox | 3-stage, planetary |
| Brake | automatic |
| Wireless Remote Control | Yes |
| Wired Remote Control | Yes |
| Winch Weight | 38 kg |
| Mounting Holes | 254 mm x 114.3 mm |
| Fairlead | rollers |
| Gear Ratio | 265:1 |
| Country of Origin | Poland |
Information provided for informational purposes only.
Husar Winch is a renowned Polish brand that supplies certified winches and accessories across Europe and Asia. The brand's product range includes electric, hydraulic, manual, and industrial winches, as well as compressors, pulleys, shackles, cables, and other accessories. All products come with an official manufacturer's warranty.
