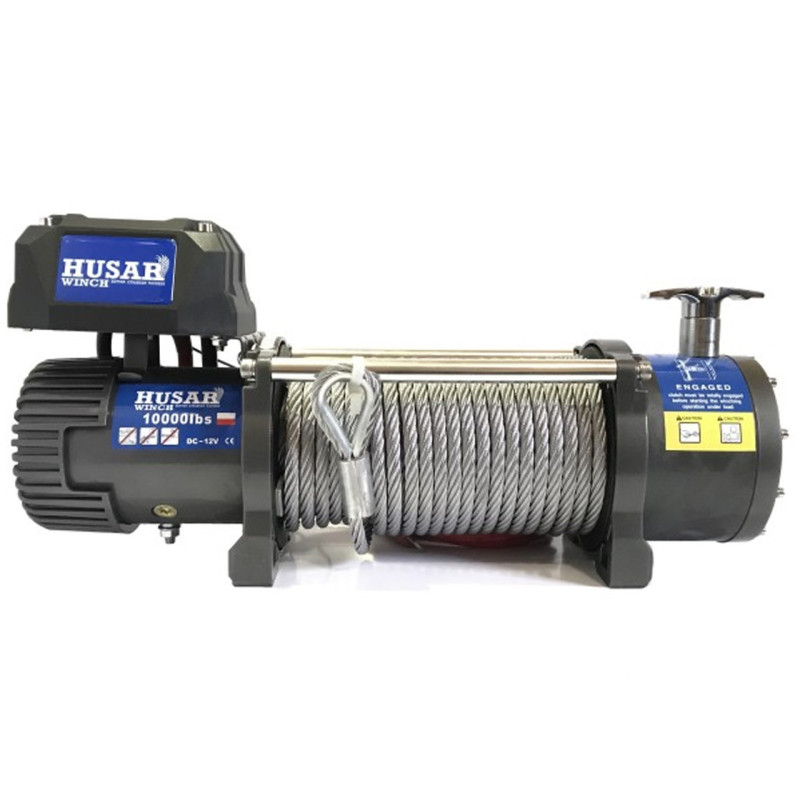

Electric Winch 4.5 t 12V BST 10000 LBS Husar winch
The powerful and reliable electric winch BST 10000 LBS from the Husar Winch brand is an ideal solution for field work, off-road trips, and industrial applications. The model provides a maximum pulling force of 10,000 lbs (4536 kg) and is suitable for installation on most vehicles. The design is based on a 3-stage planetary gearbox and an automatic brake, which ensure secure load fixation and prevent spontaneous cable unwinding.

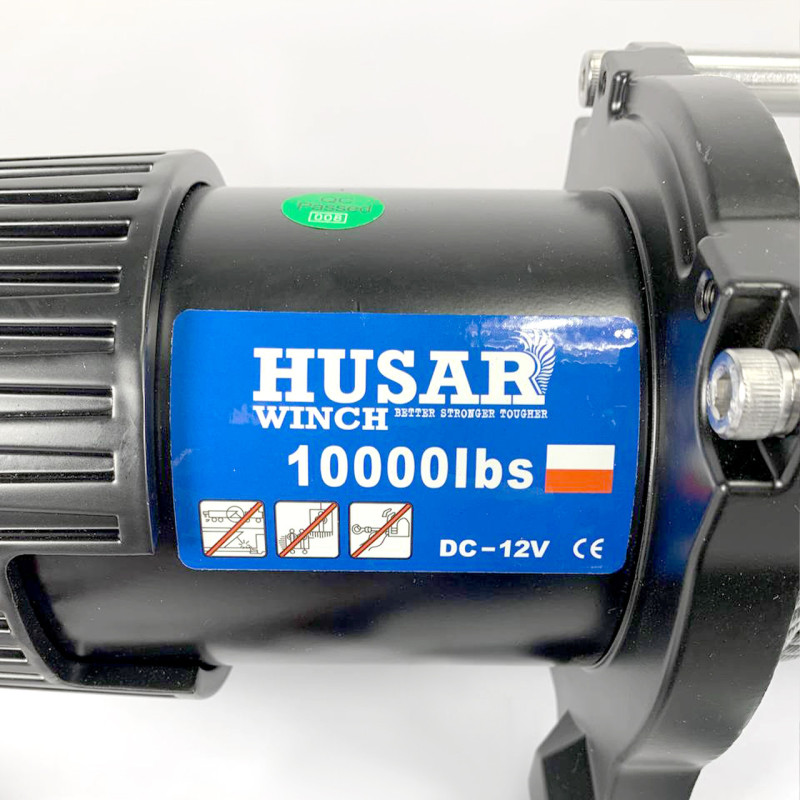

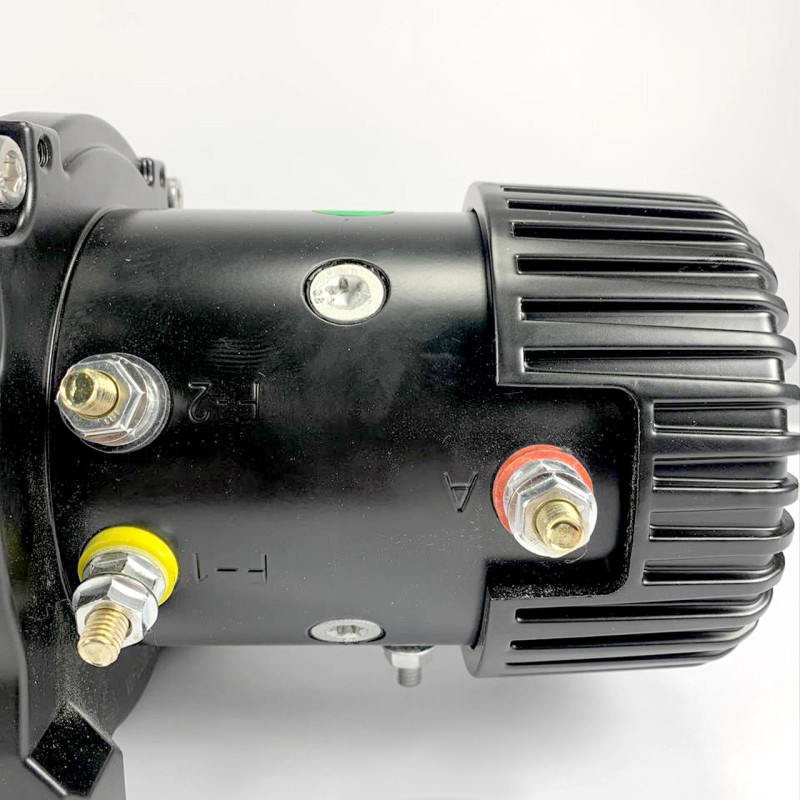

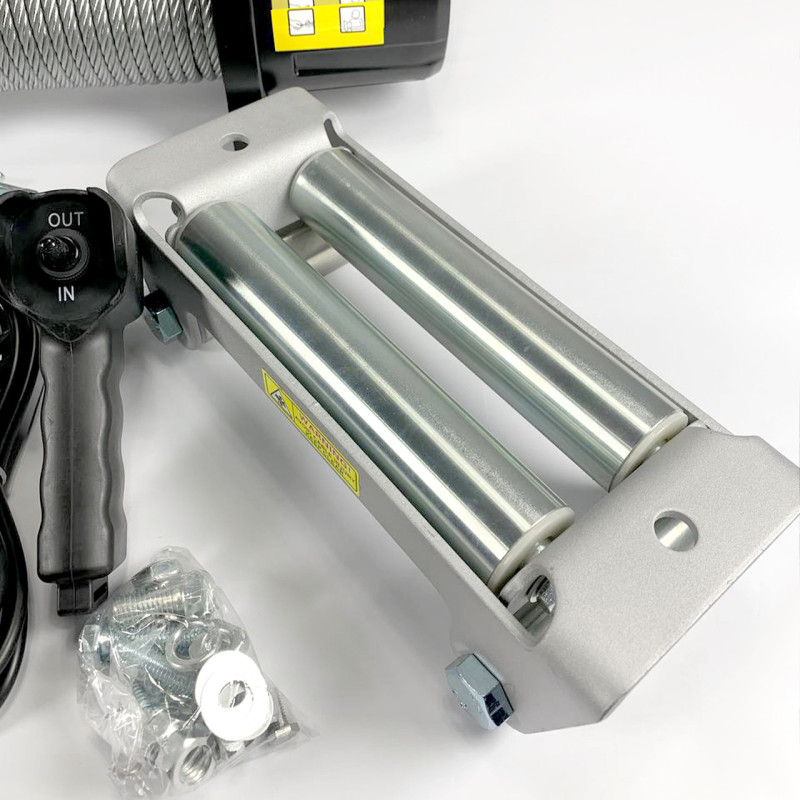

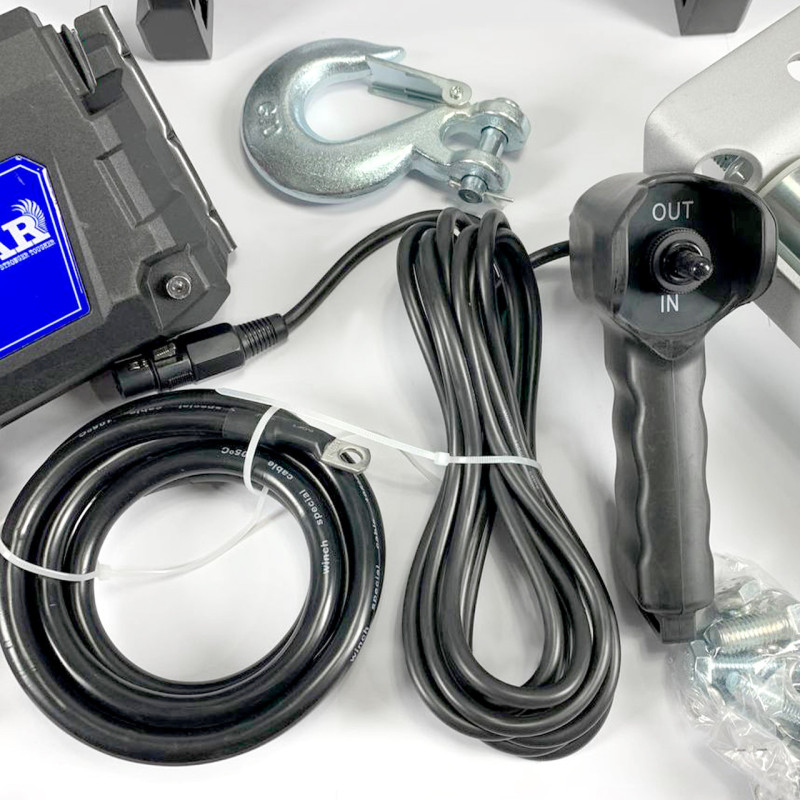

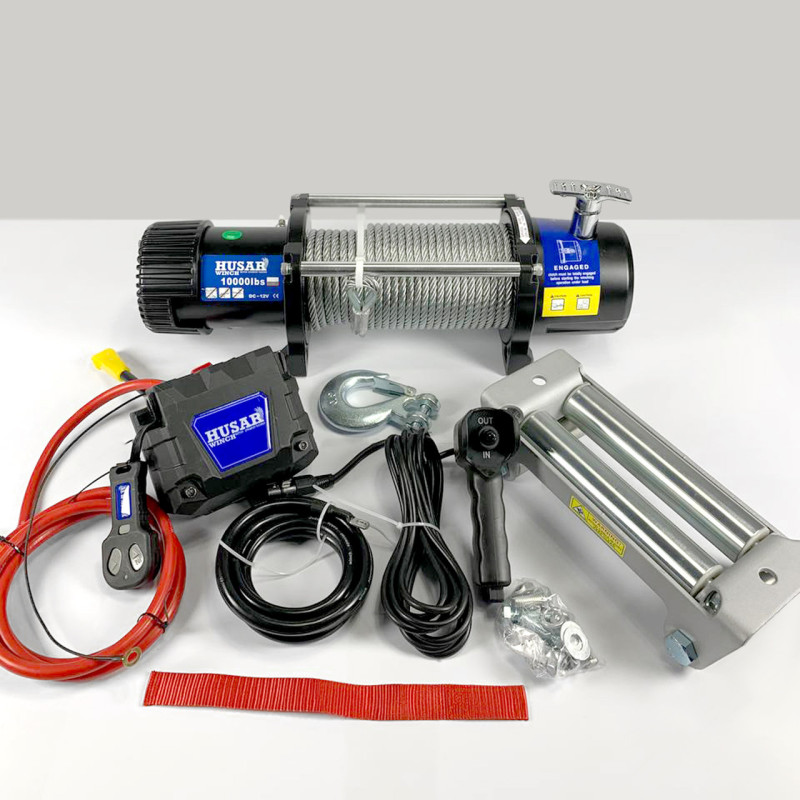

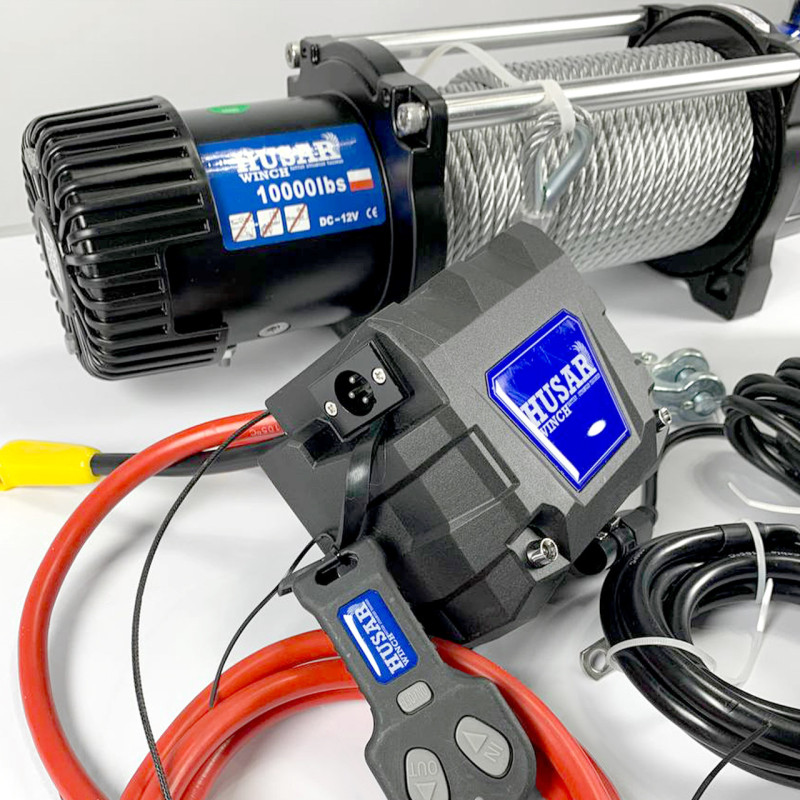

The winch is equipped with a roller fairlead, a 5.5 hp electric motor, a 28 m long steel cable with a diameter of 8.5 mm, and includes both wired and wireless remote controls. Please note: the actual pulling force varies depending on the number of cable layers on the drum — the more layers, the less pulling force.
The device operates on a 12-volt electrical system, requires no complex maintenance, is easy to use, and reliable in long-term operating conditions.
We provide professional installation and mounting services for winches by certified specialists both at our service station and on the customer's premises. Installation time depends on the type of winch and the mounting location design; the approximate completion time is up to 8 hours, including bracket fabrication if necessary. More details about the installation and winch connection can be found on the website or by contacting our manager.
Husar winch electric winch parameters:
| Line speed and motor current (first layer) | ||||||
| Rope load | units | 0 | 2000 | 6000 | 8000 | 10000 |
| pounds / kilograms | 0 / 0 | 2000 / 907 | 6000 / 2722 | 8000 / 3629 | 10000 / 4536 | |
| Rope speed | m/min | 6.8 | 4.88 | 2.98 | 2.44 | 1.8 |
| Power consumption | amperes | 80 | 130 | 230 | 290 | 350 |
Pulling performance on layers:
| Pulling force depending on rope layer | ||||||
| Rope layer | 1 | 2 | 3 | 4 | ||
| Pulling rope | pounds | 10000 | 8800 | 7800 | 6600 | |
| kilograms | 4535 | 3990 | 3538 | 2994 | ||
| Amount of rope on drum | M | 6 | 13.2 | 22 | 28 | |
Winch dimensions: dimensions and overall measurements for installation are provided in the technical documentation; available mounting holes: 254 mm x 114.3 mm.
Technical specifications
| Pulling force | 10000 lbs / 4536 kg |
| Voltage | 12 volts |
| Motor | 5.5 hp |
| Cable length | 28 m |
| Cable diameter | 8.5 mm |
| Gearbox | 3-stage, planetary |
| Brake | automatic |
| Wireless remote control | Yes |
| Wired remote control | Yes |
| Winch weight | 35 kg |
| Mounting holes | 254 mm x 114.3 mm |
| Fairlead | rollers |
| Gear ratio | 218:1 |
| Country of origin | Poland |
Information provided for informational purposes.
Husar Winch is a renowned Polish brand with proven quality. The brand's products are represented throughout Europe and Asia and come with an official warranty. The assortment includes electric, hydraulic, manual, chain, and industrial winches, as well as accessories: compressors, pulleys, shackles, cables, etc.
If you need assistance with selection, installation, or choosing additional equipment, please contact our managers for professional consultation and service.
