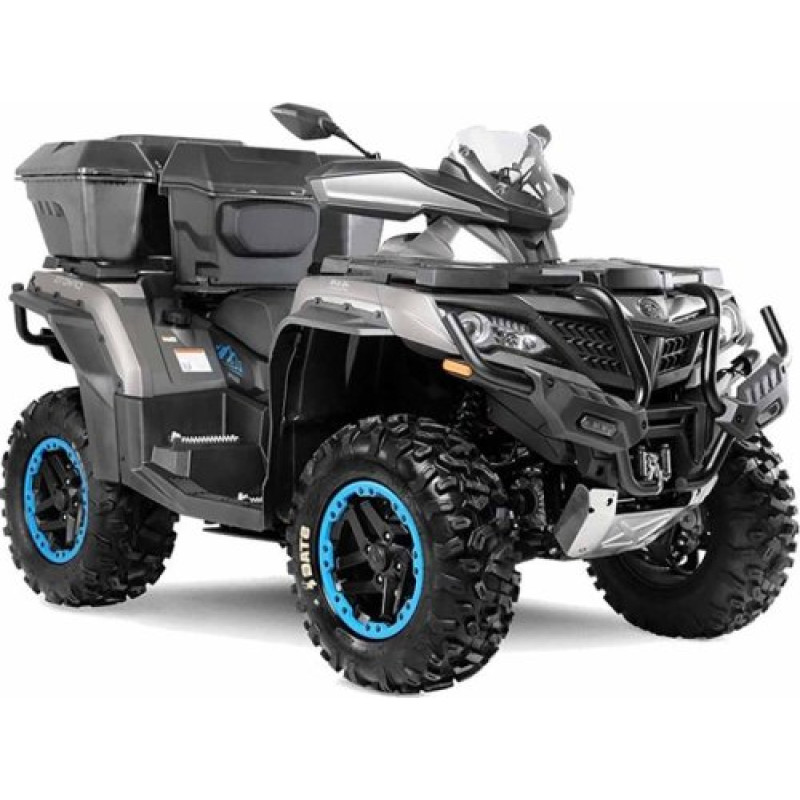

CFMOTO CFORCE 1000 Overland Quad Bike — Powerful and Reliable All-Terrain Vehicle
The CFMOTO CFORCE 1000 Overland quad bike from CFMOTO is a versatile vehicle in the category Motor Vehicles > Quad Bikes, designed for long journeys, heavy farm work, and active recreation. The model combines a large 963 cm3 twin-cylinder V-Twin engine, a modern BOSCH fuel injection system, and a reliable automatic transmission for comfortable driving in any conditions.
Description and Purpose
The CFORCE 1000 Overland is designed for both intensive off-road use and touring with cargo. The robust frame design and durable ABS plastic bodywork ensure long-term operation, while the tubular metal bodywork is integrated into the frame, allowing for the installation of additional storage boxes and equipment.
Key Features
- Engine Power: 75 hp, providing confident acceleration and high traction.
- Engine Type: Gasoline, 4-stroke, 2 cylinders (V-Twin) with EFI injector.
- Fuel System: BOSCH electronic fuel injection for economical and stable ignition.
- Starting System: Electric starter for convenient starting in various climatic conditions.
- Cooling: Liquid-cooled, ensuring stable operation under prolonged loads.
- Transmission: Automatic (V-belt variator) with P/R/N/H/L modes and rear differential lock for enhanced off-road capability.
- Chassis: Front independent suspension on double A-arms with gas-oil shock absorbers (205 mm travel); rear swingarm suspension with trailing arms (195 mm travel).
- Brakes: Hydraulic, 4-piston, dual-circuit front and rear for effective braking.
- Practicality: 30 L fuel tank capacity, 1480 mm wheelbase, dimensions 2300x1260x1450 mm.
Below are detailed technical specifications of the model for easy reference:
| Engine power, hp | 75 |
| Wheel formula | 4x4 |
| Engine type | gasoline, 4-stroke, 2 cylinders (V-Twin), EFI injector |
| Engine displacement, cm3 | 963 |
| Fuel system | electronic fuel injection (BOSCH) |
| Engine starting system | electric starter |
| Cooling system | liquid |
| Rated engine speed, rpm | 7000±150 |
| Torque, Nm / rpm | 79 at 5500 |
| Transmission (gearbox) | automatic (V-belt variator) |
| Gearbox modes | P/R/N/H/L |
| Rear differential lock | yes |
| Final drive | direct |
| Front brakes | hydraulic, 4-piston, dual-circuit |
| Rear brake | hydraulic, 4-piston, dual-circuit |
| Wheelbase, mm | 1480 |
| Tire size | front 27x9-14, rear 27x11-14 |
| Fuel tank volume, L | 30 |
| Dimensions, LxWxH mm | 2300x1260x1450 |
| Front suspension | independent on double A-arms, gas-oil shock absorbers with adjustment options, travel - 205 mm |
| Rear suspension | swingarm with trailing arms, gas-oil shock absorbers, travel - 195 mm |
| Equipment | rearview mirrors, handguards, LCD instrument panel, winch, alloy wheels, tow hitch |
| Electrics | front lenses with H4 halogen lamps 35W (low/high beam), front and rear marker lights, brake light, turn signals, horn, speedometer |
| Battery | sealed lead-acid |
| Plastic bodywork | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal bodywork | tubular, integrated into the frame with the possibility of installing additional storage boxes |
The CFORCE 1000 Overland is ideally suited for a wide range of tasks: farm work, cargo transport in hard-to-reach areas, and touring with luggage. Thanks to equipment such as a winch, tow hitch, alloy wheels, handguards, mirrors, and an LCD instrument panel, the quad bike comes almost ready for use without additional outfitting.
Technical solutions — rear differential lock, liquid cooling, effective hydraulic brakes — enhance safety and predictability of the vehicle's behavior on the trail. The durable ABS plastic bodywork, along with the tubular metal frame, allows for the installation of additional storage boxes and accessories for long trips.
Manufacturer: CFMOTO. Product category: Motor Vehicles > Quad Bikes.
