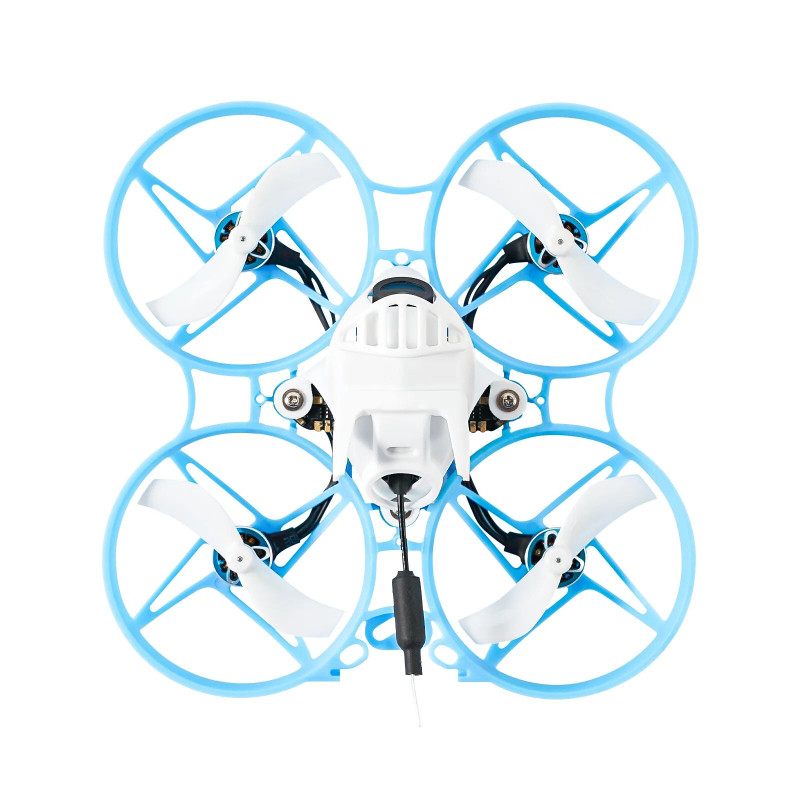

Meteor75 FPV Quadcopter with Analog Video and ELRS Protocol — Compact Brushless Drone by BetaFPV

The Meteor75 Brushless Whoop Quadcopter (2022) from BetaFPV is a lightweight and reliable micro FPV drone, designed for beginners and those seeking a compact platform for indoor and outdoor flights. This quadcopter combines modern hardware: an F4 1S 5A FC flight controller with Serial ELRS 2.4G support, powerful 0802SE 19500KV brushless motors, and an optimized 75mm frame for stable and agile flight behavior.

Key Features

• BT2.0 battery connector provides lower internal resistance and better discharge capability compared to PH2.0.
• Updated 0802SE 19500KV brushless motors weigh only 1.88g each and deliver excellent thrust with minimal mass.
• 40mm 2-blade propellers with a 1.0mm shaft ensure efficiency and flight stability.
• C03 FPV micro camera weighing 1.45g with 1200 TVL resolution, 1/3" CMOS sensor, and a 2.1mm lens with a 160° field of view provides clear images for FPV goggle flights.
• Molded camera canopy (1.60g) enhances durability and heat resistance, reliably protecting the camera and drone structure.
• F4 1S 5A FC flight controller with Serial ELRS 2.4G allows updating the ELRS module separately to V3.0 without reflashing Betaflight on the FC.
• ESC based on the BB51 platform (instead of BB21) comes with Bluejay 96k ESC firmware for maximum output from the 0802SE 19500KV motors.
• Updated BOSCH BMI270 gyroscope increases flight accuracy and stability.
• The ultralight Meteor75 frame weighs only 5.68g; the battery slot is positioned closer to the center of gravity for smoother flight behavior, and upon landing, the drone touches down on the motor screws, not the battery.
• Various colors of spare parts, canopies, and BETAFPV stickers are available for appearance customization.

Specifications

• Model: Meteor75 Brushless Whoop Quadcopter (2022)
• FC & ESC: F4 1S 5A FC, Serial ELRS 2.4G; BB51 ESC with Bluejay 96k
• Frame: 75mm
• Motors: Brushless 0802SE 19500 KV (1.88g/pc)
• Propellers: 40mm, 2-blade (1.0mm shaft)
• Camera: C03 FPV, 1200 TVL, 1/3" CMOS, 2.1mm lens, 160° FOV (weight 1.45g)
• Camera Tilt: 30° (default) / 20° (optional mount)
• Receiver: ELRS 2.4G
• VTX: M03 25–350mW VTX
• Battery: BT2.0 450mAh 1S 30C
• Flight Time: up to 6 min (stable flight) / up to 4.5 min (acro)
• Total Weight: approx. 24.98g

Package Contents

• 1 × Meteor75 Brushless Whoop Quadcopter
• 2 × 450mAh 1S 30C BT2.0 connector batteries
• 1 × BT2.0 charger and voltage tester
• 1 × USB Type-C cable
• 1 × Carrying case
• 1 × Spare 40mm propellers (1.0mm shaft)
• 1 × Screwdriver
• 3 × Decorative parts
• 1 × 20° lens mount for C03 camera
• 1 × 30° lens mount for C02 camera
• 1 × Screw pack

The Meteor75 by BetaFPV is a balanced platform for learning and entertainment: compact dimensions, powerful 19500KV motors, and ExpressLRS support make it an excellent choice for first steps into the world of FPV, while updated hardware (BB51 ESC, Bluejay 96k, BOSCH BMI270) ensures reliable and predictable performance during more complex maneuvers. The presence of a molded canopy, central battery slot, and a package including two batteries and a case makes the set ready for flight right out of the box.

Product category: Drones & Quadcopters > Drones for Beginners. Manufacturer: BetaFPV.
