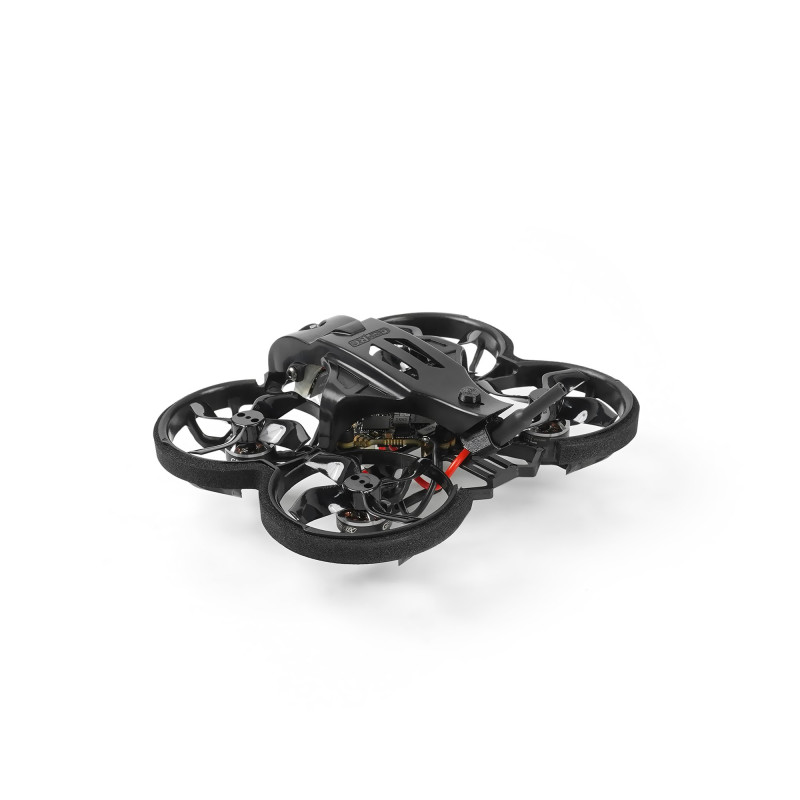

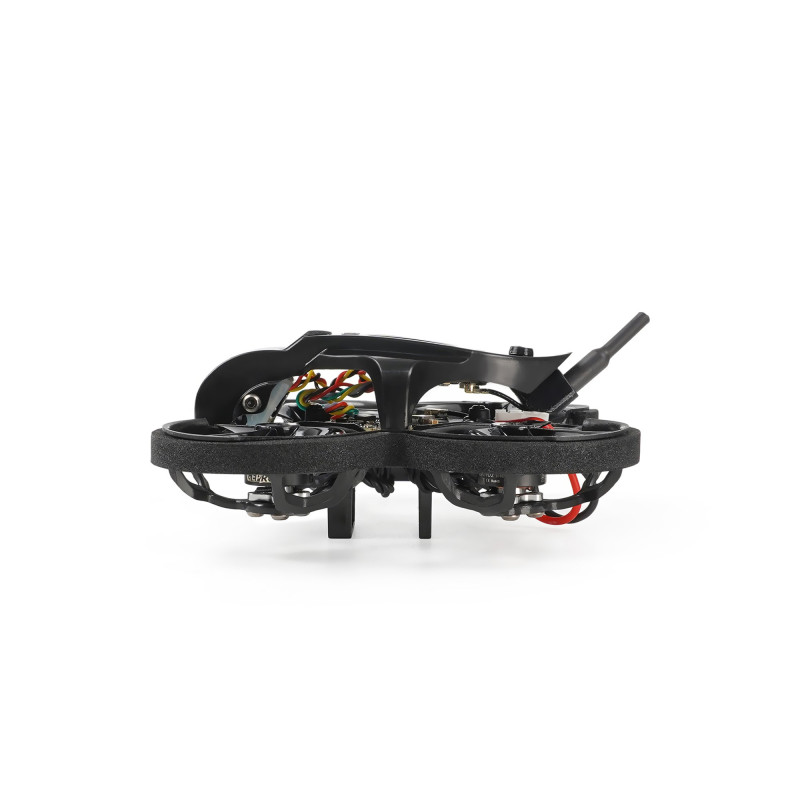

GEPRC TinyGO ELRS Quadcopter – FPV Drone for Training and 4K Video Recording

Brand: GEPRC. TinyGO — a compact FPV quadcopter designed for beginners and pilots who want to capture cinematic 4K video. The drone operates on the ELRS 2.4G protocol and is available in two versions: TinyGo Racing — a lightweight version for tricks and freestyle, and TinyGo 4K with a pre-installed Caddx Loris 4K camera and an SD card slot for local video recording.

The camera's placement is designed so that propellers and frame elements are not visible in the frame, significantly enhancing the professional appearance of recordings. The VTX RAD Whoop 5.8G with adjustable power from 25~400mW is responsible for stable video signal, minimizing the "jello" effect in videos and improving frame smoothness during flight.

The GEP-TG16 frame with a 79mm motor base makes TinyGO compact and convenient for indoor flights and navigating through narrow openings. Additional EVA foam in the protective frame increases impact resistance and protects the drone's internal components during collisions and hard landings.

The TAKER F411 8Bit 12A flight controller with an STM32F411 microcontroller and an IMU 42688-P inertial module ensures precise and stable operation; 8-bit 12A ESCs guarantee controllability and crisp motor response. The integrated ELRS SPI receiver provides reliable communication with the transmitter, and the 16Mb black box allows for flight analysis.

Key Advantages

• Two versions: for freestyle (TinyGo Racing) and with a professional 4K camera (TinyGo 4K).
• Ideal for home training and flying in confined spaces; compact size allows navigating through narrow areas.
• Thoughtful camera placement ensures no propellers in the frame — videos have a professional look.
• VTX RAD Whoop 5.8G with 25~400mW power minimizes the "jello" effect in video recordings.
• The 4K version supports SD card recording with 4K@60fps for cinematic footage.
• Reliable TAKER F411 8Bit 12A flight controller with STM32F411 and IMU 42688-P for stable, predictable flights.
• Protective frame with EVA foam enhances safety during collisions and extends the drone's lifespan.
• Compact 79mm motor base makes the drone versatile for indoor flights.

TinyGo Technical Specifications

• Name: TinyGO
• Type: TinyWoop
• Frame: GEP-TG16
• Motor Base: 79 mm
• FC: TAKER F411 8Bit 12A
• MCU: STM32F411
• IMU: 42688-P
• Black Box: 16Mb
• OSD: BetaFlight OSD with AT7456E chip
• ESC: 8Bit 12A
• VTX: RAD Whoop 5.8G 25~400mW VTX
• Camera: Runcam Nano2 / Caddx Loris 4K 60fps
• Propeller: GEMFAN 1636*4 (4 pairs)
• Motors: GR1102 10000Kv
• Receiver: Integrated ELRS SPI receiver
• Max Flight Time: 6 min
• Weight: TinyGO 4K - 54.8 g / TinyGO Racing - 48 g

TinyGo 4K Version Technical Specifications

• Camera: Loris 4K
• Image Sensor: 1/2.7" CMOS sensor
• Horizontal: 800TVL
• TV System: NTSC/PAL switchable
• Video Resolution: 1080P@60fps / 1080P@90fps / 2.7K@60fps / 4K@30fps / 4K@60fps
• Input Power: DC 4.5-20V
• FPV FOV: 165°
• Recording FOV: 170°
• Minimum Illumination: 0.01 lux
• Lens: 1.8mm
• Operating Current: 380mA@5V / 160mA@12V
• OSD Menu: Yes (supports voltage display)
• Video Files: MOV
• Audio: Supported
• Electronic Shutter: PAL: 1/50-100,000; NTSC: 1/60-100,100
• Video Output: CVBS

Product Category: Drones & Quadcopters > Drones for Beginners. TinyGO — an excellent choice for both beginners and experienced pilots looking for a compact FPV drone with 4K recording capabilities. Thanks to ELRS, high-quality VTX, thoughtful camera placement, protective frame with EVA, and reliable electronics, this quadcopter combines safety, maneuverability, and excellent video quality.
