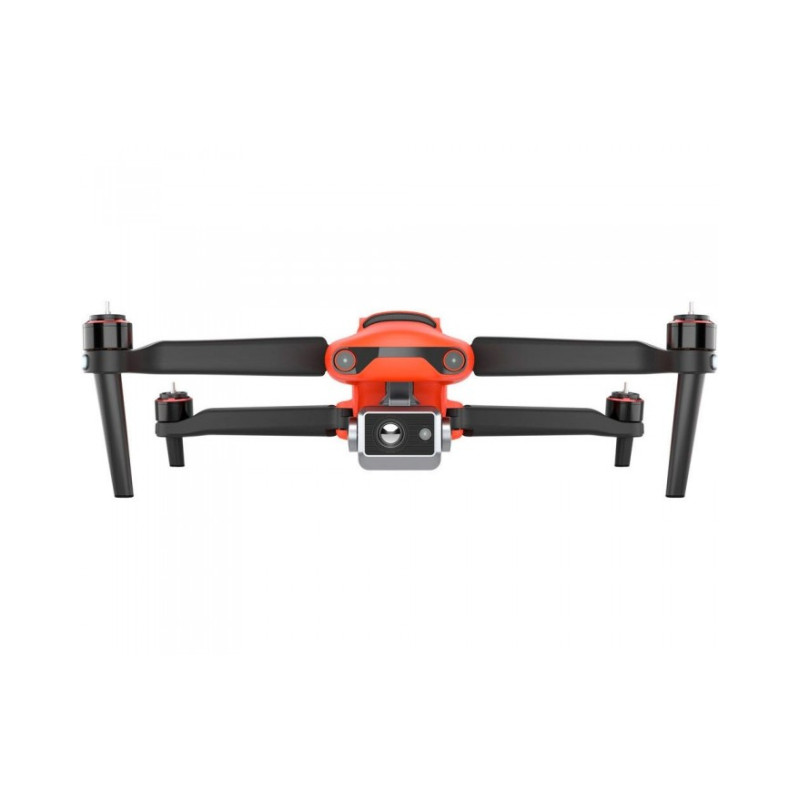

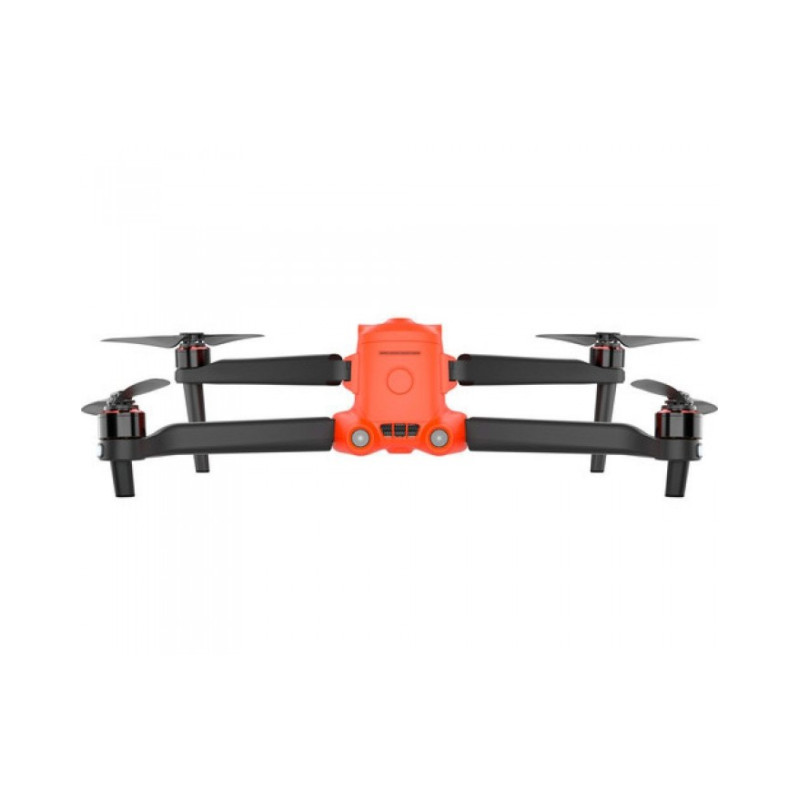

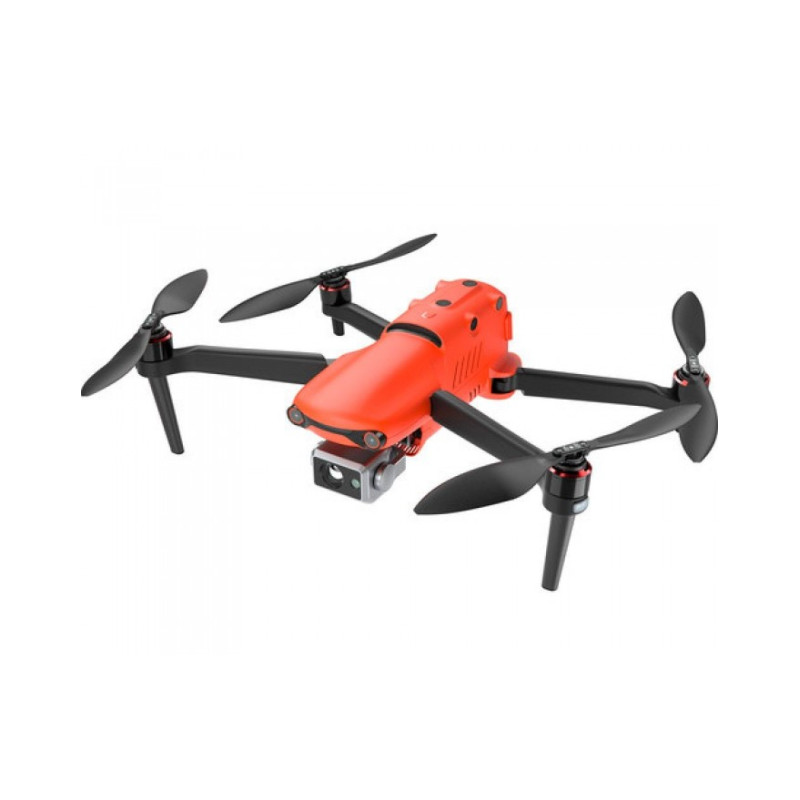

Autel EVO II Dual Rugged Bundle (640T) V2 Quadcopter from Nvectech is a compact and high-tech thermal imaging drone designed for professional video shooting, inspections, rescue operations, and public safety tasks. The combination of a 48 MP RGB camera and a FLIR Boson 640T thermal imager with 640x512 resolution makes this device a versatile tool for working in challenging conditions where high image detail and infrared analysis are required.

Key Advantages

The RGB camera provides 8K (7680x4320) shooting with 4x zoom capability and high resolution, allowing for detailed footage and cropping video to 4K without loss of quality. The FLIR Boson (640T) thermal imager with a 12 µm pixel pitch and 30 Hz refresh rate produces smooth thermal images and allows detection of objects up to 146 meters away with high accuracy. Both streams — thermal and RGB — have embedded metadata, simplifying analysis and documentation of work.

Functionality

The EVO II Dual Rugged Bundle supports up to 10 thermal palettes for adaptation to various scenarios, features Autel IR PC Tool software for infrared thermal analysis, TempAlarm temperature alarm, and an isothermal image enhancement system. The LiveDeck function allows real-time video transmission to private or public networks, sharing streams with command centers or during online presentations.

The platform is equipped with 19 sensor groups, including 12 visual scanners, a main camera, ultrasonic sensors, and an IMU, enabling 3D map creation and real-time route planning. The Dynamic Track 2.0 system simultaneously models target location and speed, predicts trajectory, and continuously tracks up to 64 objects; effective observation range — up to 25 km.

Package Contents

• 1 x Autel EVO II Dual V2 quadcopter (including gimbal and cover)
• 1 x 8K camera + thermal imager (640T)
• 1 x remote controller
• 3 x pairs of propellers
• 2 x EVO II batteries
• 1 x charger
• 1 x EVO II charging hub
• 1 x RC charging cable
• 1 x 32 GB SD card
• 1 x RC connection cable (Micro Type B and Type C)
• 1 x storage and transport case

Technical Specifications

• Max. takeoff weight: 2 kg
• Max. flight time: up to 38 minutes
• Max. speed: up to 72 km/h
• Flight range: up to 25 km
• Remote control signal transmission range: FCC: 9 km; CE: 5 km
• Satellite positioning systems: GPS, GLONASS, VIO, ATTI
• ISO range: 100–3200
• Max. video bitrate: 120 Mbps
• Sensor: 8K camera: 1/2" CMOS 48 MP; 640T thermal imager: 640 x 512, 12 µm pixel pitch
• Lens: 8K camera focal length: 25.6 mm; thermal imager focal length: 14 mm; field of view ~79°
• Digital zoom: 1 to 8x
• Shooting modes: single shot
• Photo resolution: 8000 x 6000 (4:3); 7680 x 4320 (16:9); 4000 x 3000 (4:3); 3840 x 2160 (16:9)
• Video resolution: 7680 x 4320 p25; 5760 x 3240 p30; 3840 x 2160 p60; 2720 x 1528 p120; 1920 x 1080 p120
• Built-in memory: 8 GB; SD support: up to 32 GB
• Battery capacity: 7100 mAh
• Operating temperature range: -10° to 40°C
• Dimensions: folded: 228 x 133 x 110 mm; unfolded: 424 x 354 x 110 mm
• Weight: 1150 g

The Autel EVO II Dual Rugged Bundle (640T) V2 is a modular and expandable quadcopter that combines advanced thermal imaging diagnostics and high-quality RGB imaging capabilities, making it an ideal choice for professionals in inspections, security, and rescue operations. The model belongs to the "Drones and Quadcopters > FPV Drones" category and comes as a complete set with all necessary accessories for quick flight startup and complex mission execution.

Other features: embedded metadata for thermal and RGB images, analytics functions, compatibility with professional Autel tools for processing and saving temperature readings and detailed infrared analysis.
