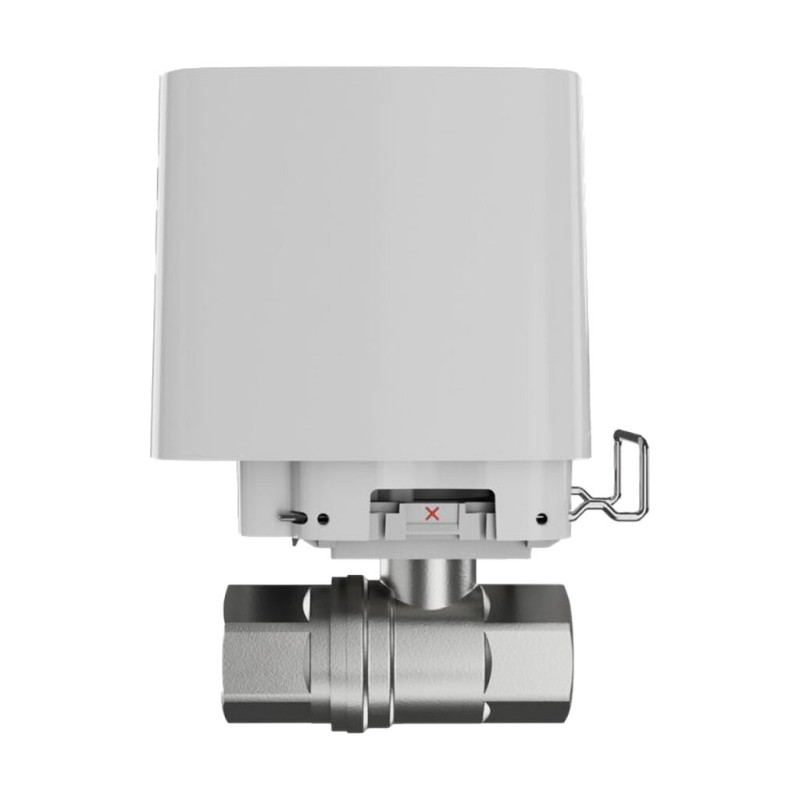

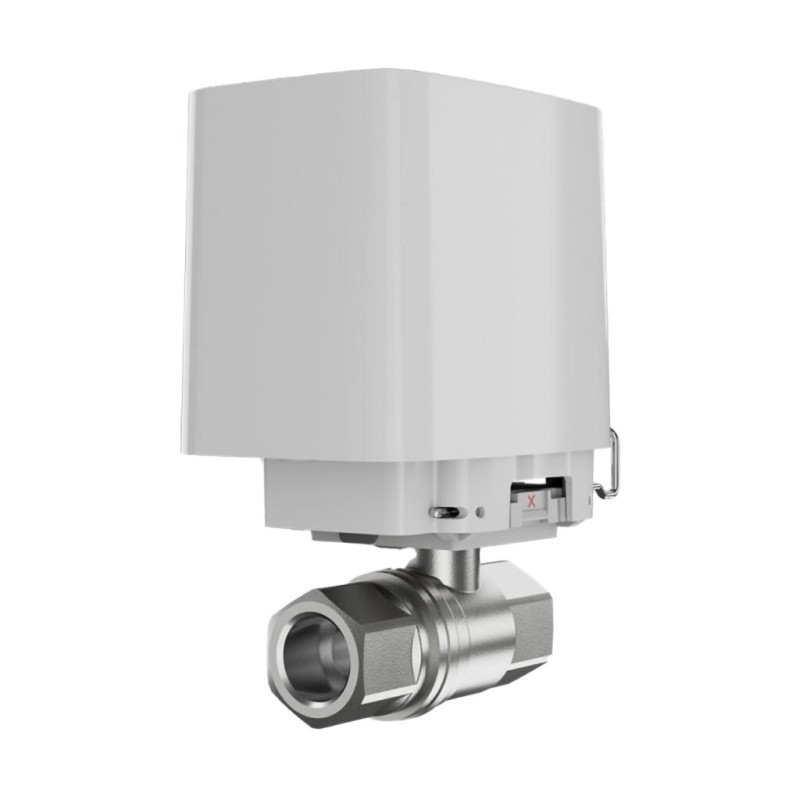

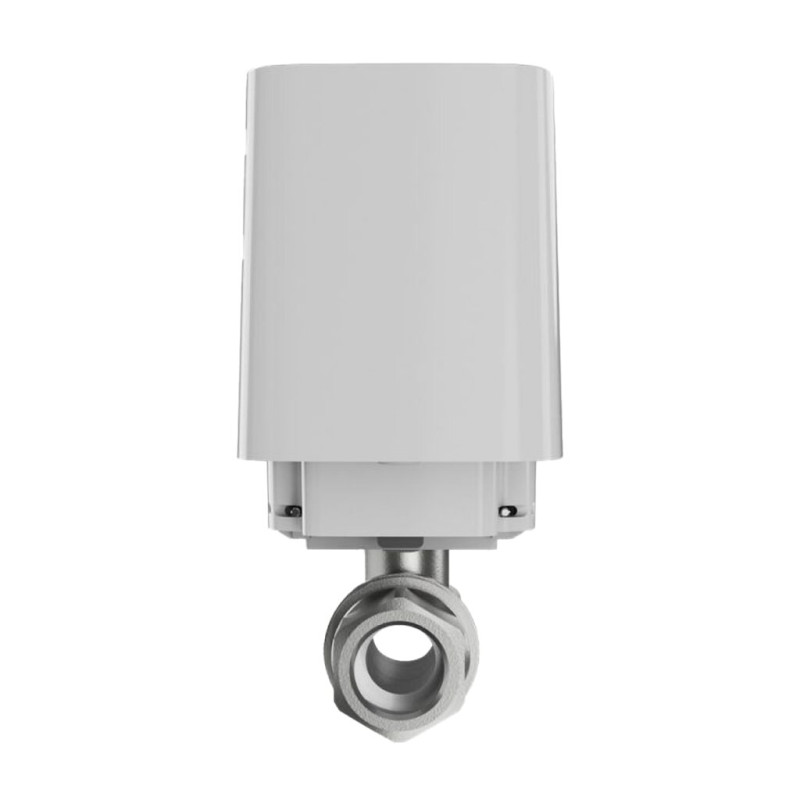

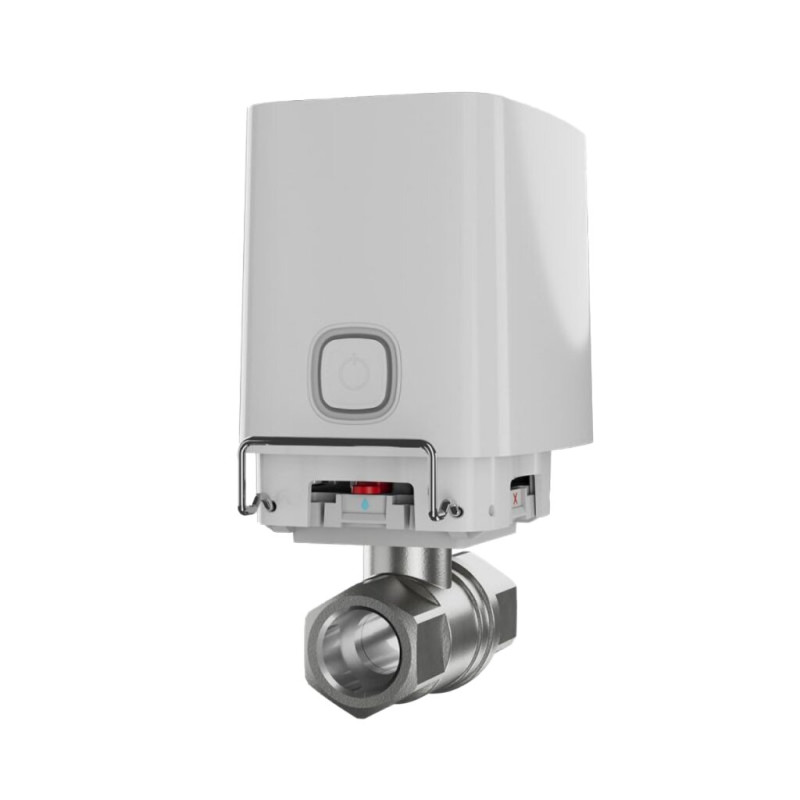

Ajax WaterStop Wireless Water Shutoff Valve with Remote Control

WaterStop by Ajax is an innovative solution that allows you to control water supply and ensure security at your facility, even remotely. This device combines a shutoff valve and a powerful autonomous actuator with a control unit. WaterStop will automatically shut off the water supply according to a predefined scenario, helping to eliminate leaks in time and prevent damage.

The system operates via two-way encrypted radio communication based on Ajax's proprietary Jeweller protocol!

Ajax WaterStop Package Contents:

• Electric actuator with manual control button (open/close)
• Pre-installed power batteries
• Actuator fixing bracket on the valve: standard (pre-installed) and anti-sabotage
• Mounting platform with handle for manual valve shutoff
• Shutoff valve with internal thread from the Italian brand Bonomi

Actuator Features:

• 4 mounting positions on the valve
• High torque: up to 8.5 Nm
• Full closing time: 5 s
• Completely autonomous operation due to installed rechargeable batteries: 4 pcs, type CR123A
• Possibility to connect an external power source 9-12 V = (power supply unit not included)
• Overcurrent and overheating protection
• LED indication
• Easy installation: no tools required
• Compatible with all ball valves conforming to ISO 5211 standard

Specifications:

Series: WaterStop

Product type: Motorized valve

Nominal diameter (DN): 25

Connection: Threaded

Thread size (inch): 1"

Power supply: 9 V= 12 V

Power element: 4 x CR123A battery

Torque: 8.5 Nm

Device control/adjustment method: Wireless

Rotation time: 5 s

Manual control capability: Yes

Cable length: No cable

Color: White

Warranty: 2 years

Max. operating temperature: +120°С

Max. operating pressure. PN (RU): 10 bar

Body material: Brass
