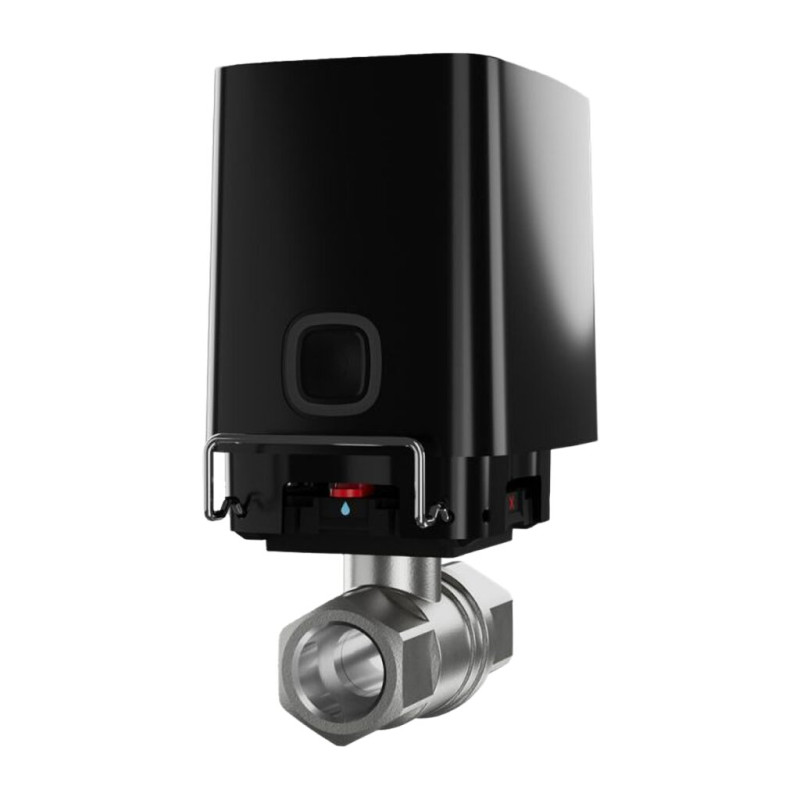

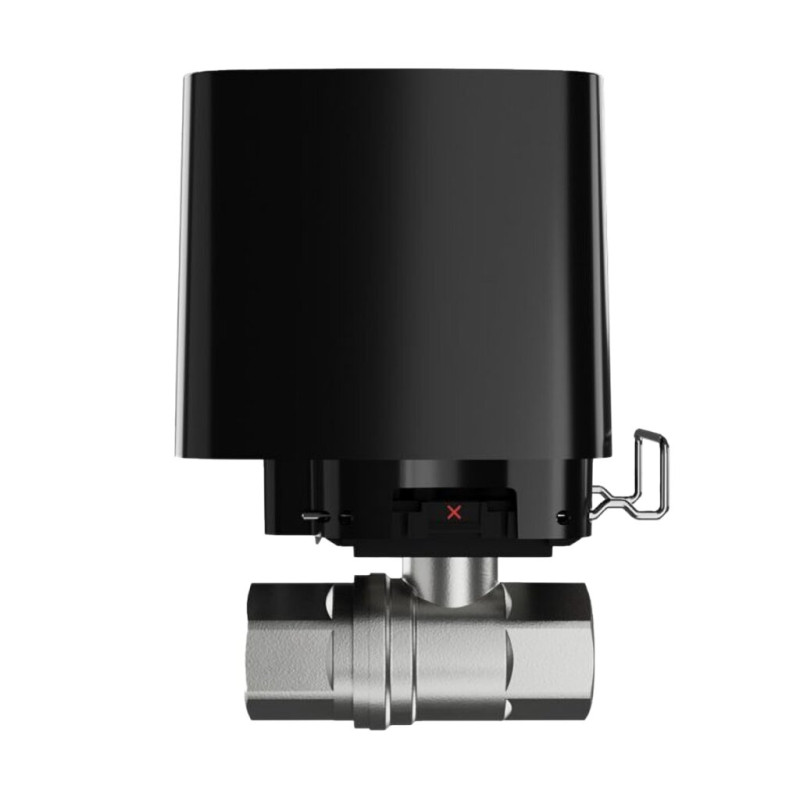

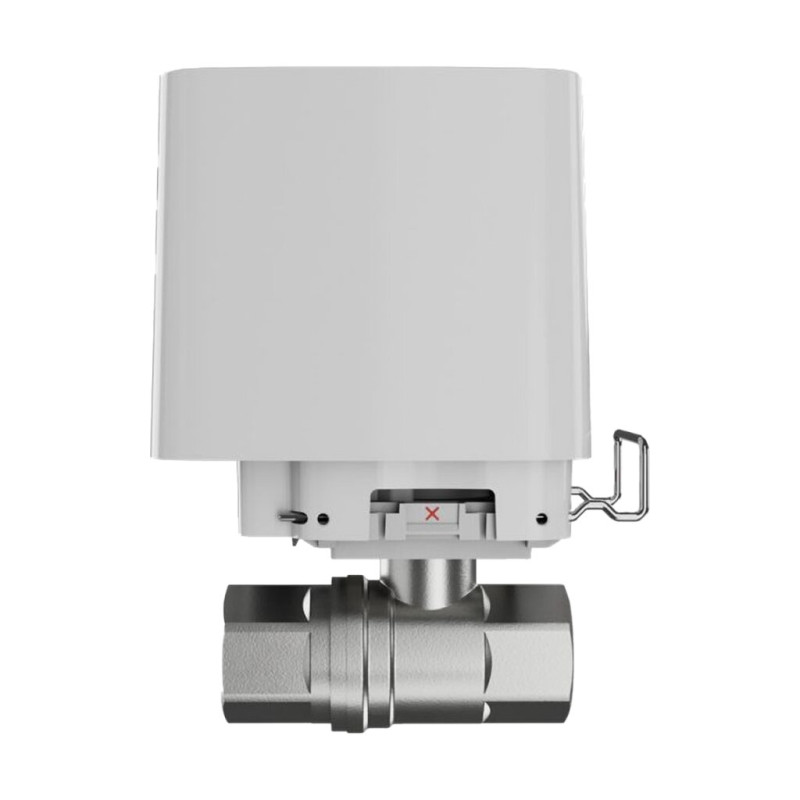

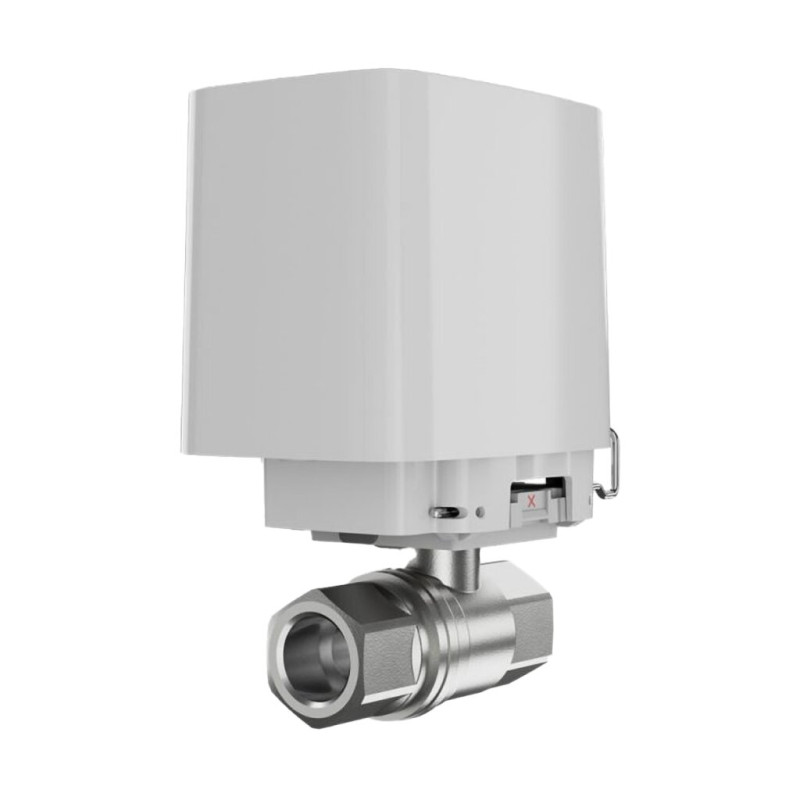

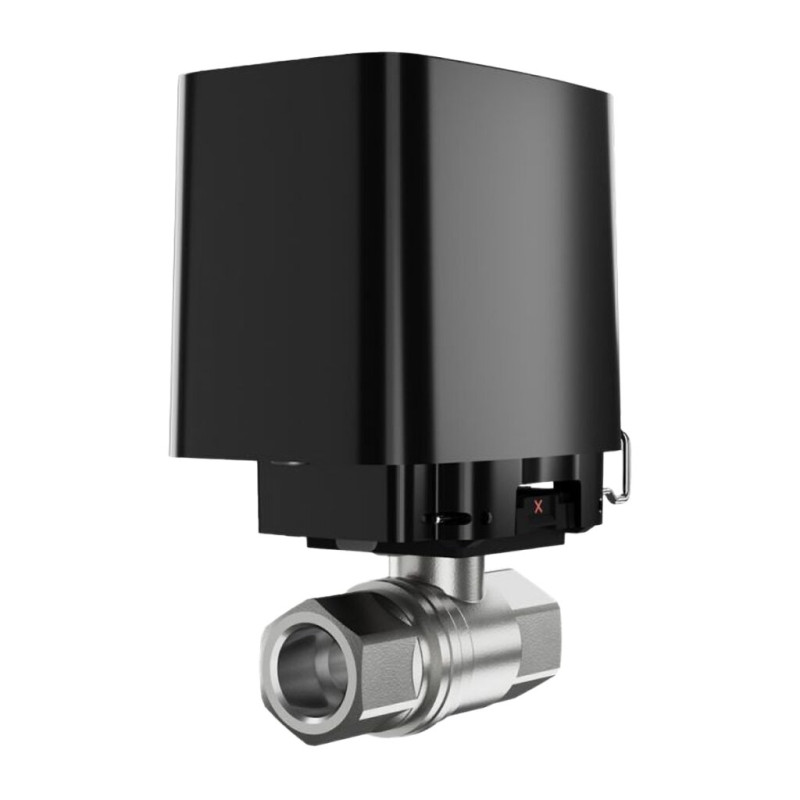

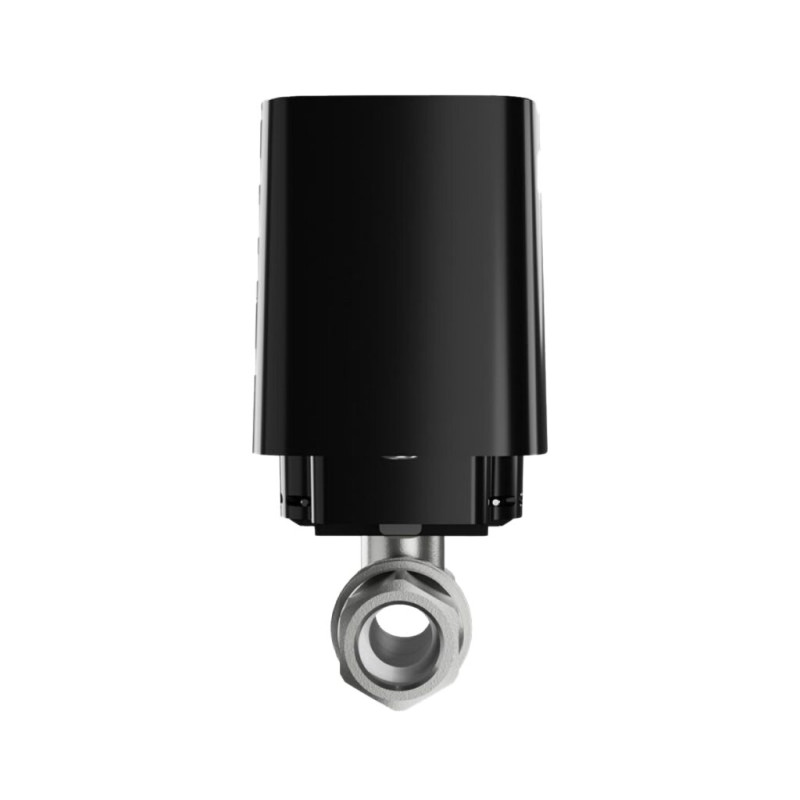

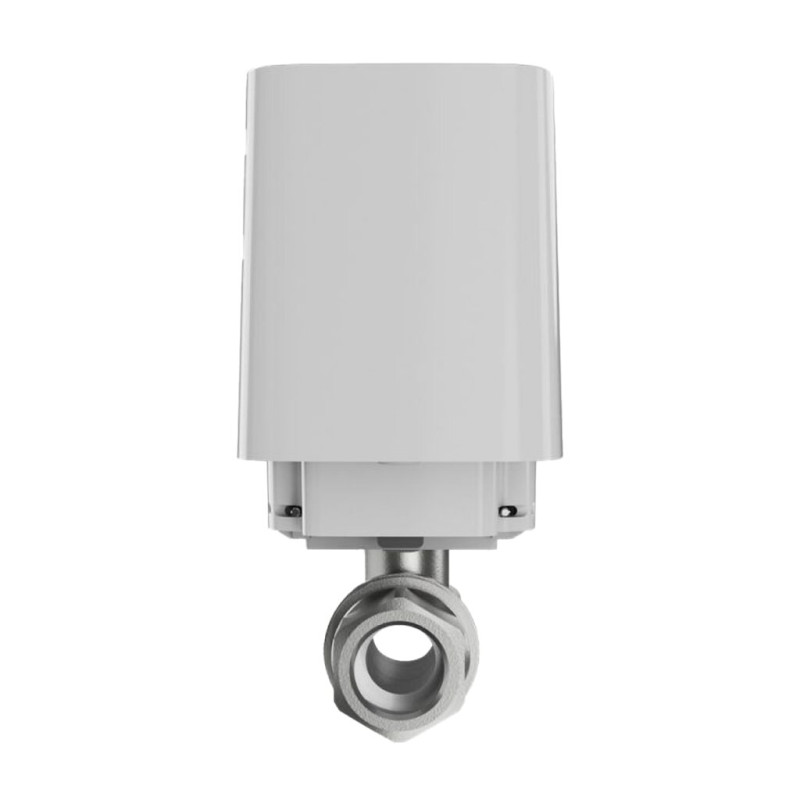

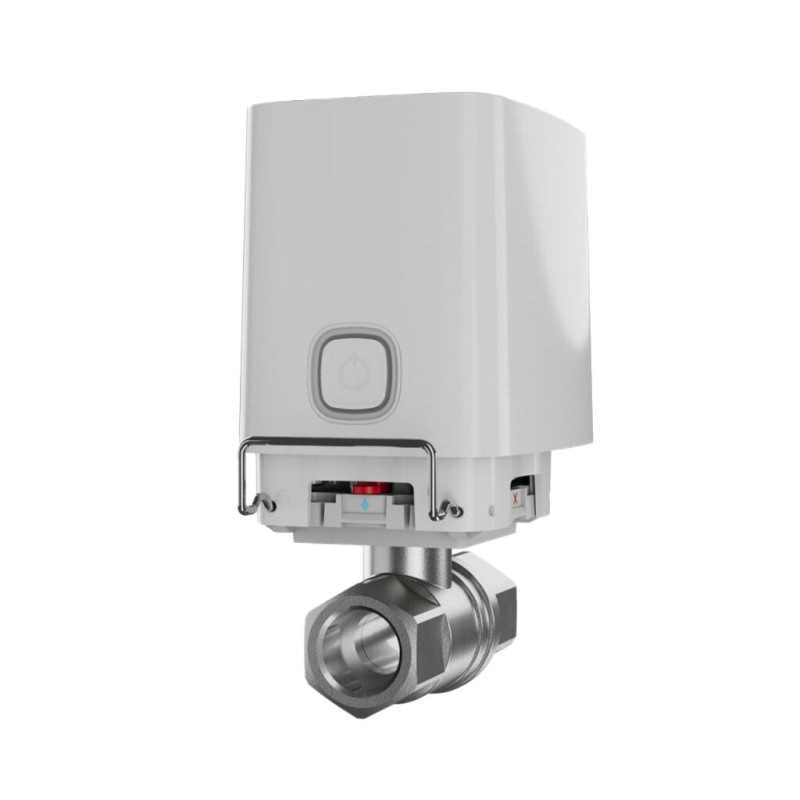

Ajax WaterStop Wireless Remote-Controlled Water Shutoff Valve

Ajax WaterStop is an innovative solution that allows you to control water supply and ensure safety at your facility, even remotely. This device combines a shutoff valve and a powerful autonomous actuator with a control unit. WaterStop will automatically shut off the water supply according to a pre-set scenario, helping to promptly eliminate leaks and prevent damage.

The system operates via two-way encrypted radio communication based on Ajax's proprietary protocol - Jeweller!

Ajax WaterStop Package Contents:

• electric actuator with manual control button (open/close)
• pre-installed power batteries
• actuator fixing bracket: standard (pre-installed) and anti-sabotage
• mounting platform with handle for manual valve shutoff
• shutoff valve with internal thread from Italian brand Bonomi

Electric Actuator Features:

• 4 mounting positions on the valve
• high torque: up to 8.5 Nm
• full closing time: 5 s
• fully autonomous operation thanks to installed rechargeable batteries: 4 pcs, type CR123A
• possibility to connect an external power source 9-12 V = (power supply unit not included)
• protection against overcurrent and overheating
• LED indication
• simple installation: no tools required
• compatible with all ball valves conforming to ISO 5211 standard

Specifications:

Series^ WaterStop

Product Type: motorized valve

Nominal Diameter (DN): 25

Connection: threaded

Thread Size (inch): 1"

Power Supply: 9 V= 12 V

Power Element: 4 x CR123A battery

Torque: 8.5 Nm

Device Control/Adjustment Method: Wireless

Rotation Time: 5 s

Manual Control Capability: yes

Cable Length: no cable

Color: black

Warranty: 2 years

Max. Operating Temperature: +120°С

Max. Operating Pressure. PN (RU): 10 bar

Body Material: brass

Ajax WaterStop Wireless Remote-Controlled Water Shutoff Valve

Ajax WaterStop is an revolutionary solution that allows you to control water supply and ensure safety at your facility, even remotely. This device combines a shutoff valve and a powerful autonomous actuator with a control unit. WaterStop will automatically shut off the water supply according to a pre-set scenario, helping to promptly eliminate leaks and prevent damage.

The system operates via two-way encrypted radio communication based on Ajax's proprietary protocol - Jeweller!

Ajax WaterStop Package Contents:

• electric actuator with manual control button (open/close)
• pre-installed power batteries
• actuator fixing bracket: standard (installed) and anti-sabotage
• mounting platform with handle for manual valve shutoff
• shutoff valve with internal thread from Italian brand Bonomi

Electric Actuator Features:

• 4 mounting positions on the valve
• high torque: up to 8.5 Nm
• full closing time: 5 s
• fully autonomous operation thanks to installed rechargeable batteries: 4 pcs, type CR123A
• possibility to connect an external power source 9-12 V = (power supply unit not included)
• protection against overcurrent and overheating
• LED indication
• simple installation: no tools required
• compatible with all ball valves conforming to ISO 5211 standard

Specifications:

Series: Ajax WaterStop

Product Type: motorized valve

Nominal Diameter (DN): 15

Connection: threaded

Thread Size in Inches: 1/2"

Rotation Time: 5 s

Torque: 8.5 Nm

Device Control/Adjustment Method: wireless

Power Supply: 9 V= 12 V

Power Element: 4 x CR123A battery

Manual Control: yes

Cable Length: no cable

Color: white

Warranty: 2 years

Max. Operating Pressure. PN (RU): 10 bar

Maximum Operating Temperature: +120°С

Body Material: brass
