Additionally, a coaxial flue kit Ø60/100 condensing art. 3.024598 is required.

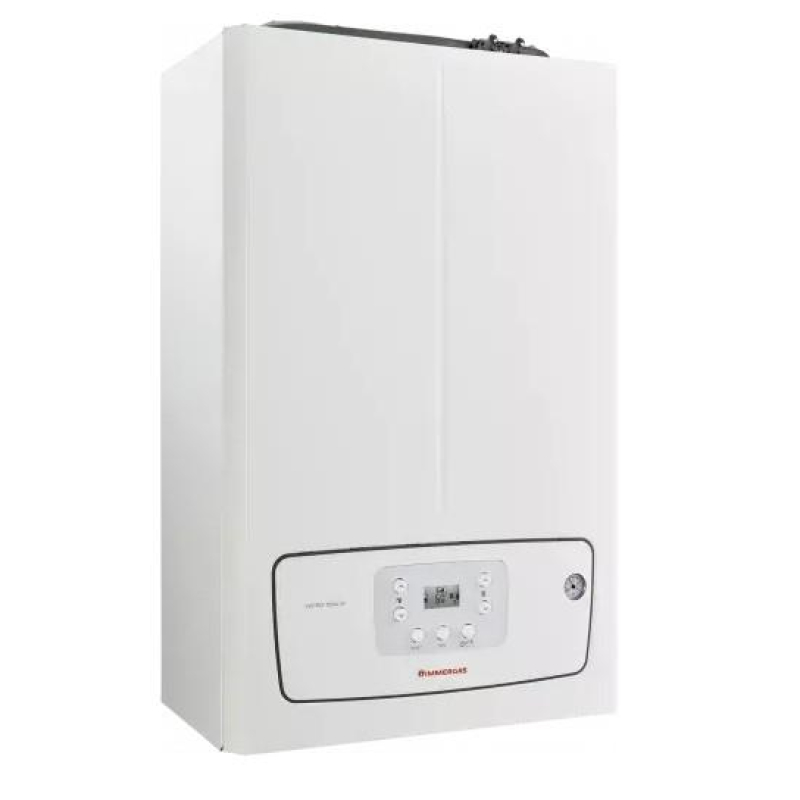

Immergas Victrix Tera V2 32 EU - a wall-mounted, double-circuit gas condensing boiler. This combi appliance is capable of providing both heating and hot water. Its high power allows for efficient room heating and rapid domestic hot water (DHW) heating. Energy efficiency class "A" guarantees economical and efficient energy use, which helps reduce heating and DHW costs. The boiler also supports power modulation from 18 to 100%, allowing its operation to be adjusted according to current needs, which also contributes to energy savings. In addition, the boiler is adapted for hydrogen use, making it more environmentally friendly.

Functions of the Immergas Victrix Tera V2 32 EU condensing boiler

Impressive compactness The gas boiler has compact dimensions of 748x440x253 mm, allowing it to be installed even in confined spaces.

Operation with methane, liquefied petroleum gas (LPG), or a 20% hydrogen mixture: The boiler is adapted for use with various types of fuel, making it flexible and environmentally sustainable.

Seasonal efficiency 94%: High seasonal efficiency allows for achieving a higher energy class (A+) when combined with modulating control panels (e.g., CARV2 or SMARTECH PLUS).

Automatic bypass; Ensures coolant circulation and protects the heat exchanger from overheating in case of heating system blockage or lack of circulation.

Electronic ignition with flame modulation; The flame in the boiler is ignited automatically using piezo elements. The flame is automatically regulated depending on the selected boiler operating mode.

Control system – microprocessor; The boiler is controlled by an automatic microprocessor, which allows for maximum efficiency with minimal gas consumption.

Frost protection down to -5°C.

Connection to common positive-pressure flue systems: Thanks to safety equipment and the use of a special kit, the boiler can be connected to collective positive-pressure flues.

Characteristics of the Immergas Victrix Tera V2 28 EU boiler

NOMINAL USEFUL HEATING SYSTEM POWER, kW - 28.6

NOMINAL USEFUL DHW SYSTEM POWER, kW - 32.7

DHW PRODUCTION (T 30?), L/MIN - 16.15

DIMENSIONS (WXDXH), MM - (748 X 440 X 253)

POWER MODULATION 5-32kW

WARRANTY 24 MONTHS

FROST PROTECTION
