Horizontal flue kit 3318073 is additionally required

Product description

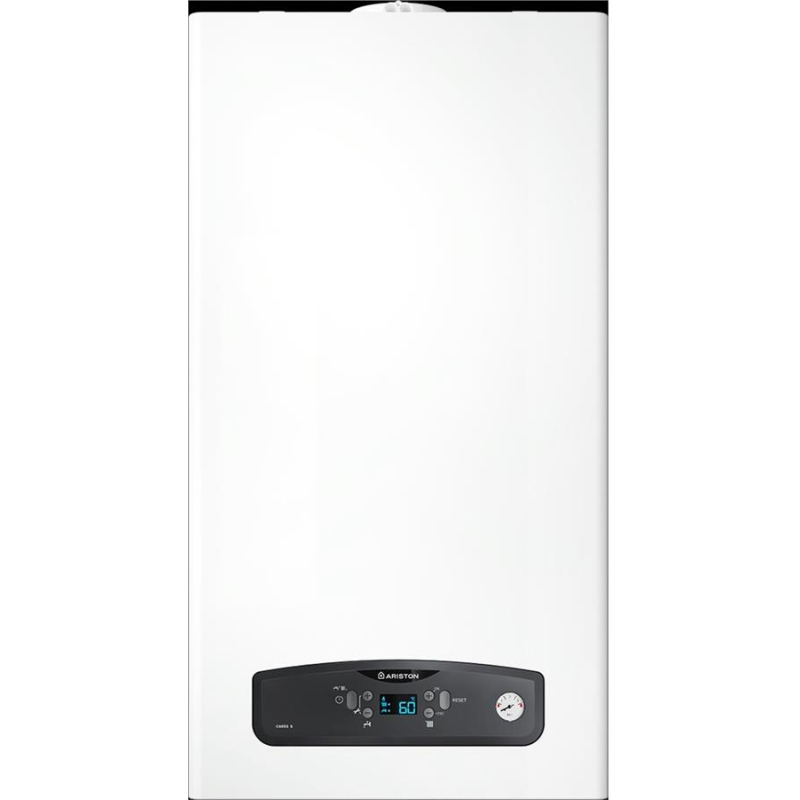

Ariston Cares S 24 (3301637) double-circuit condensing boiler
Ariston Cares S 24 wall-mounted gas boiler with closed combustion chamber
The Ariston brand boiler is designed for space heating and hot water heating.
A clear LCD display shows the set temperature, activated functions, and overall boiler operation.

Model features:
• 5-year warranty on the new heat exchanger. Subject to technical maintenance by an authorized service center.
• High efficiency up to 98%.
• Ability to program heating for a week thanks to compatibility with two-position (on/off) thermoregulation devices.
• Primary heat exchanger made of high-quality stainless steel, ensuring high corrosion resistance and efficiency.
• Secondary heat exchanger also made of stainless steel for producing up to 13.6 l/min of domestic hot water.
• Built-in filters in the heating, DHW, and make-up circuits to protect the boiler from impurities in the water.
• The boiler is adapted for Ukraine – it operates at reduced inlet gas pressure (down to 5 mBar), water pressure, is resistant to voltage fluctuations and low outdoor temperatures (down to -52°C).
• Pressure relay provides additional control of the heat transfer fluid pressure.
Maximum heating power, kW 22.2
Maximum DHW production power, kW 25

Modulation ratio 1:5
Efficiency 98%

Hot water output, l/min 10.2

DHW circuit flow rate (after 10 min at ΔT=30 °С) l/min - 11.0
DHW circuit flow rate at ΔT=25 °С l/min - 13,

Maximum heating circuit pressure 3 bar
Maximum/minimum heating temperature, °C 82/35
Maximum/minimum hot water temperature, °С 60/36
Natural gas consumption, m3/hour 1.75
LPG consumption, kg/hour 1.28
Overall dimensions (mm) 770x 400 x 315

Expansion tank volume l - 8

Weight, kg 26
Color white
Combustion chamber Closed
