Power Take-Off (PTO) ЯМЗ 236 / МАЗ 236P (26 teeth) UNI MURAT MAKINA

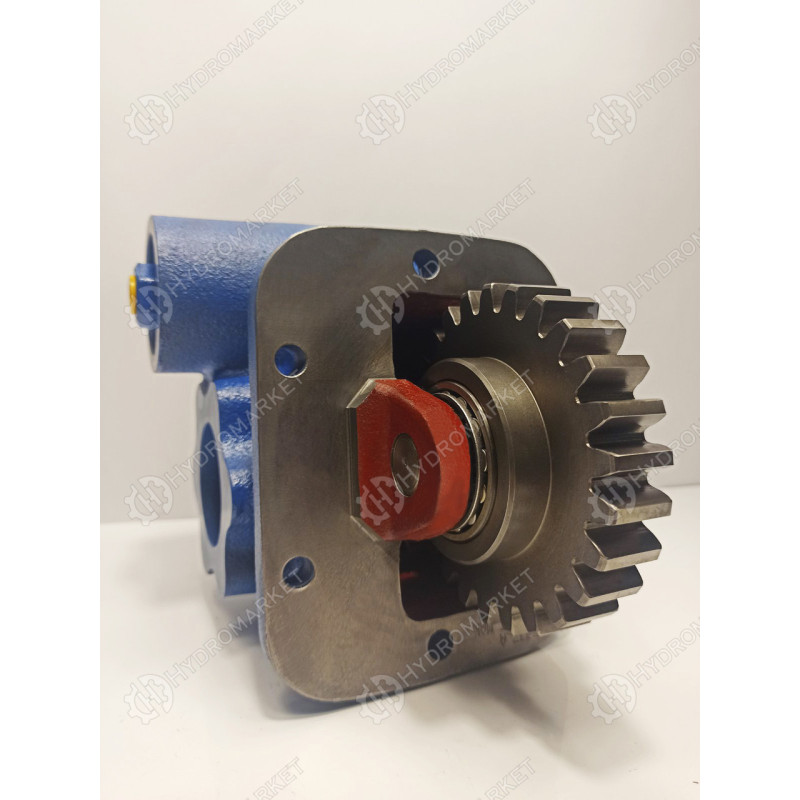

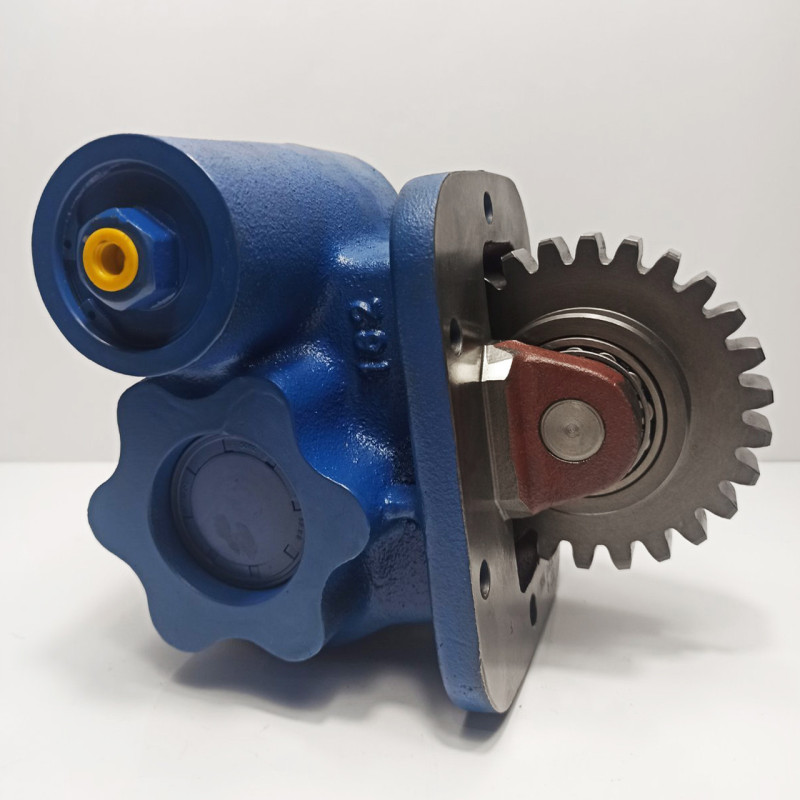

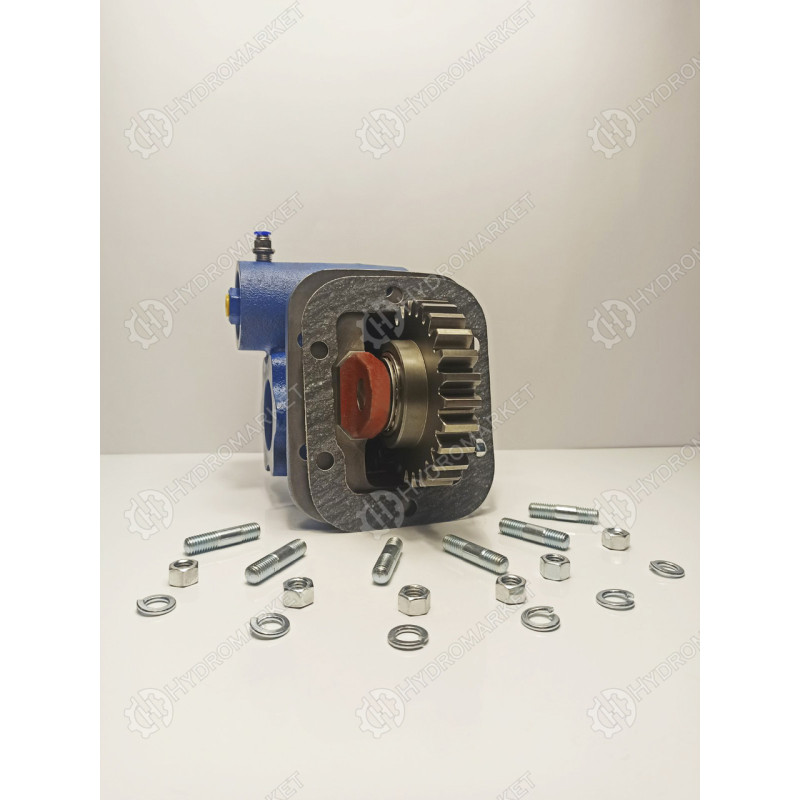

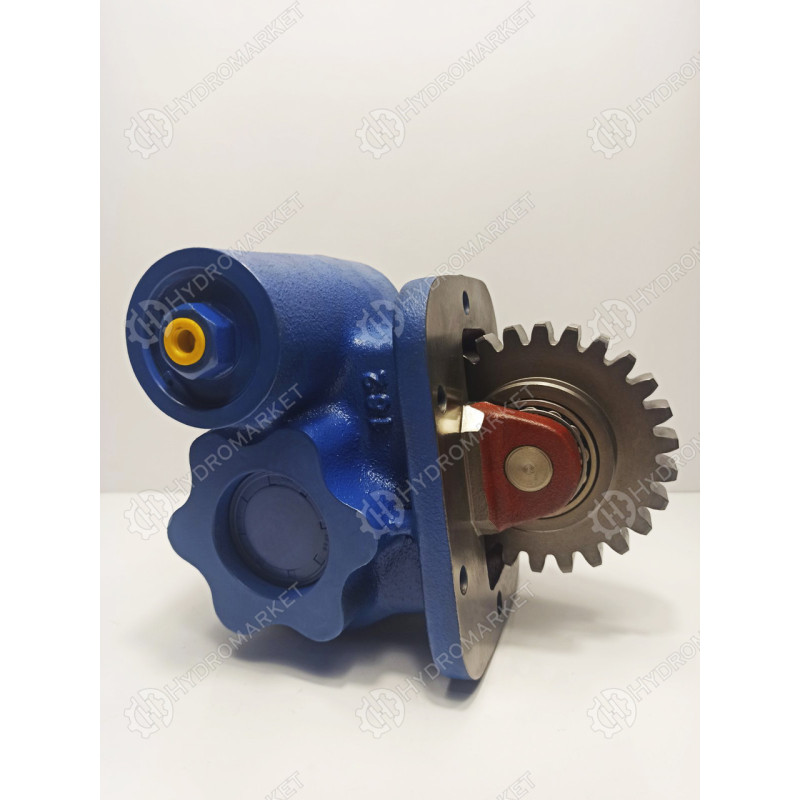

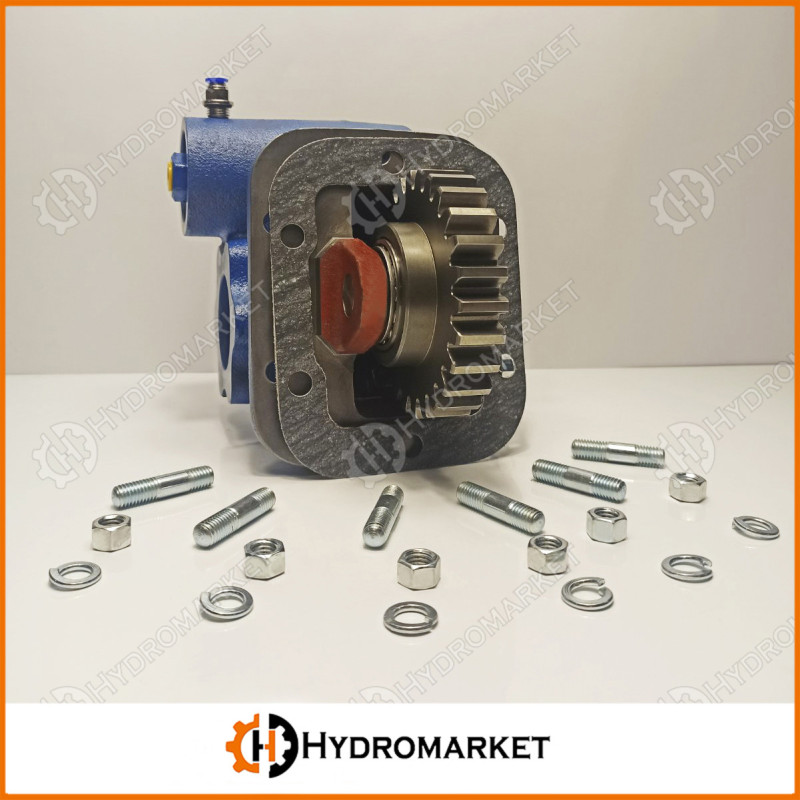

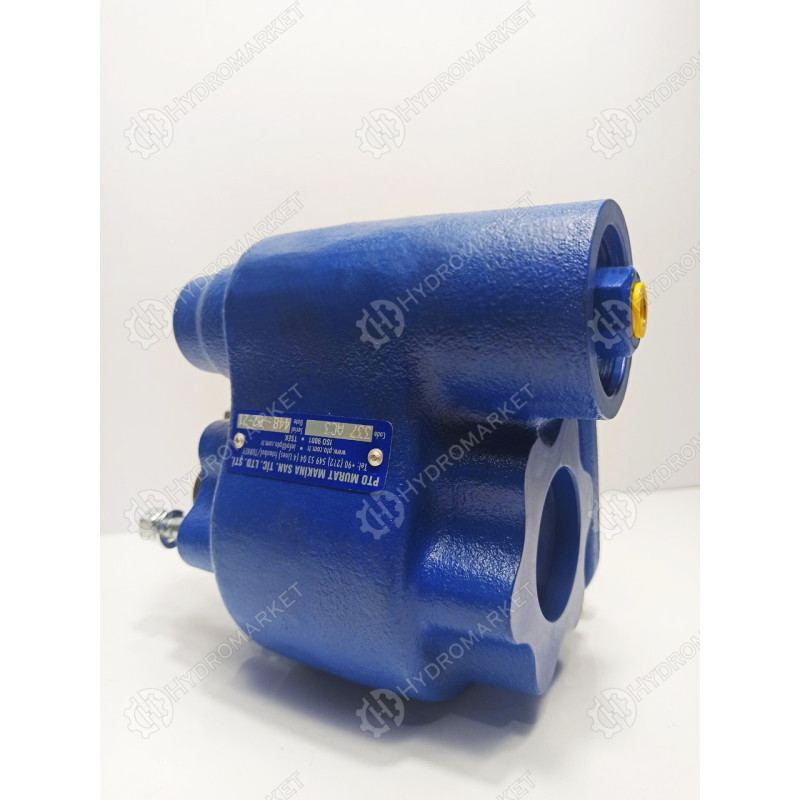

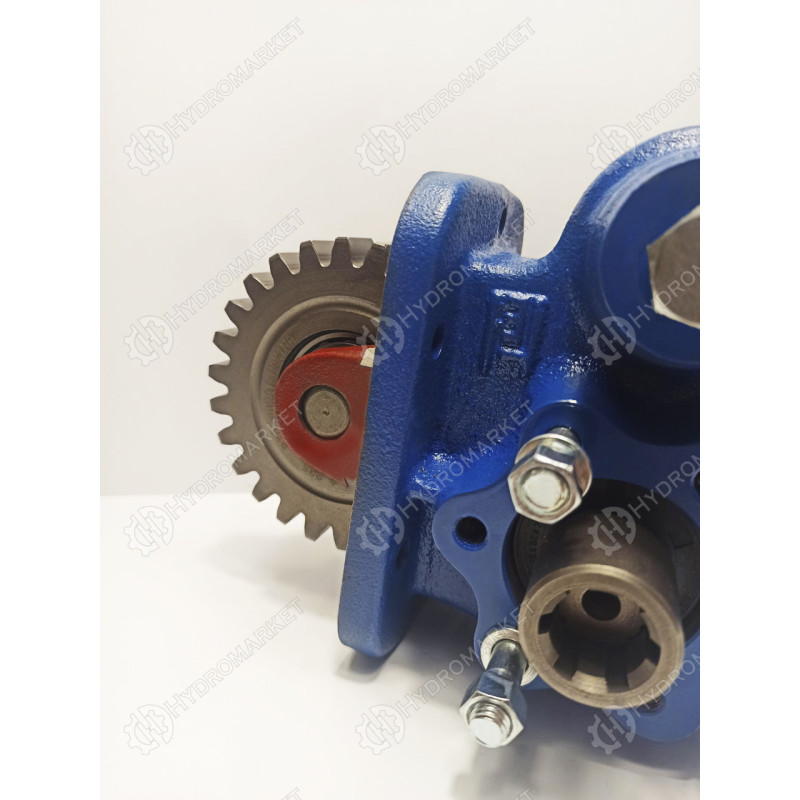

The professional power take-off (PTO) Murat Makina model 337AC3 is designed for installation on ЯМЗ 236 and ЯМЗ 238 manual transmissions and is widely used on MAZ, GAZ trucks and other mobile machines. The product from the PTO Murat Makina brand combines robust two-gear mechanics with a reliable pneumatic control system, ensuring safe and convenient power transmission to the hydraulic pump.

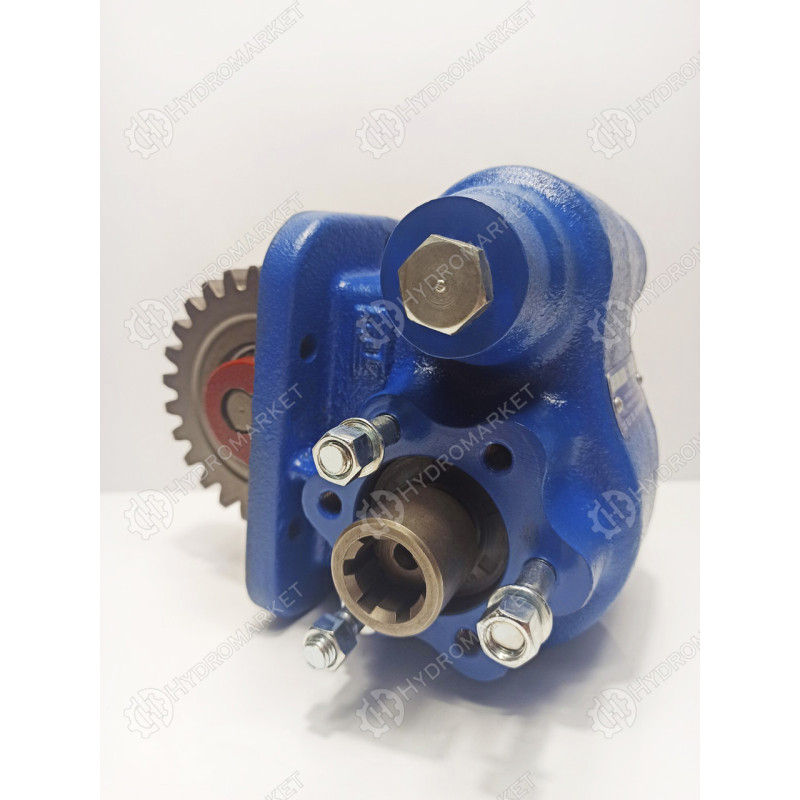

The PTO has an output for a European UNI type hydraulic pump; an adapter allows for ISO mounting of the pump, providing flexibility in selecting pumping equipment. Connection standard: B6x21x25 shaft (6 splines, Ø25 mm), UNI mounting flange with 3 holes. The connection standard is also specified as UNI 8953 / 21 UNI 222 / 6x21x25.
Compatibility and Purpose
This PTO is designed for use with hydraulic systems of dump trucks and special equipment, where fuel economy and efficient power transmission to hydraulic pumps are important. Murat Makina 337AC3 is compatible with transmissions: ЯМЗ 236 (YAMZ 236) and ЯМЗ 238 (YAMZ 238).
Key Parameters
- SKU: 337AC3
- PTO type: two-gear

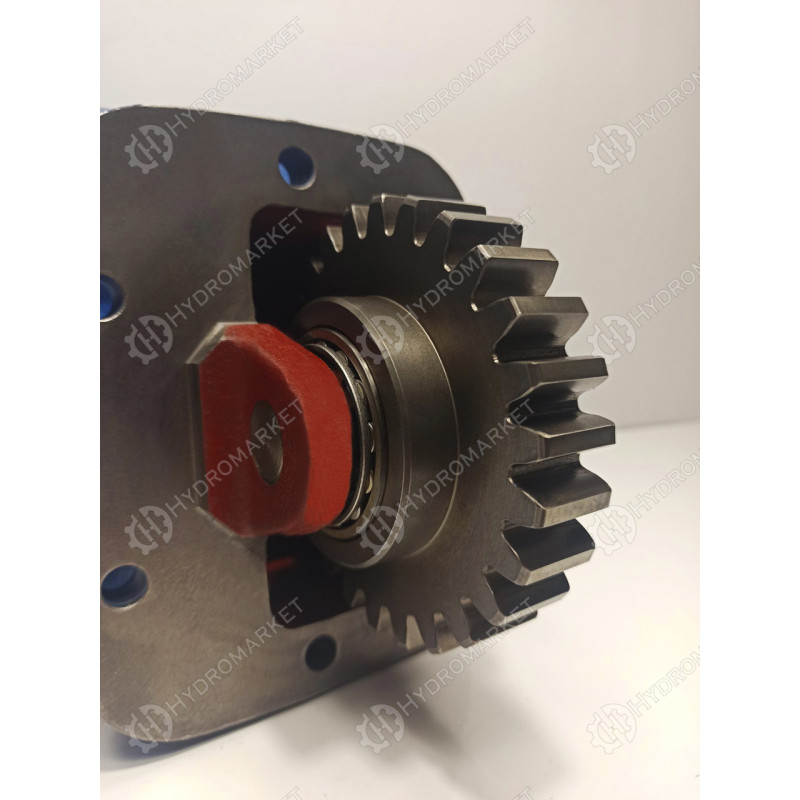

- Number of teeth: 26
- Tooth width: 42 mm
- Power: 29 kW
- Torque: 280 Nm
- Gear ratio: 1:1.30
- PTO installation location: right side
- Control system: pneumatic
- PTO shaft rotation direction: ↻ right
- Pump shaft rotation: ↺ left
- Connection standard: UNI 8953 / 21 UNI 222 / 6x21x25
- Weight: 13 kg
The Murat Makina 337AC3 power take-off is distinguished by durability, simple installation, and versatility of use. High gear precision and carefully selected materials ensure stable operation under load, while pneumatic control allows remote engagement and disengagement of the PTO without additional mechanical intervention. This is an optimal solution for integration with existing European UNI type hydraulic pumps and the possibility of switching to ISO standards via an adapter.
By ordering this power take-off, you get compatibility with ЯМЗ 236/238 transmissions, a reliable UNI mounting flange, a 6-spline Ø25 mm shaft, and parameters that allow the PTO to be operated in harsh conditions. Recommended for dump trucks, special equipment, and other mobile platforms where stable power supply to hydraulic mechanisms is required.
Other technical questions and selection of adapters for switching from UNI to ISO can be clarified with specialists or when ordering.
