Power Take-Off (PTO) MAZ (YaMZ 236/238) ISO ABER — Aber TF19002P

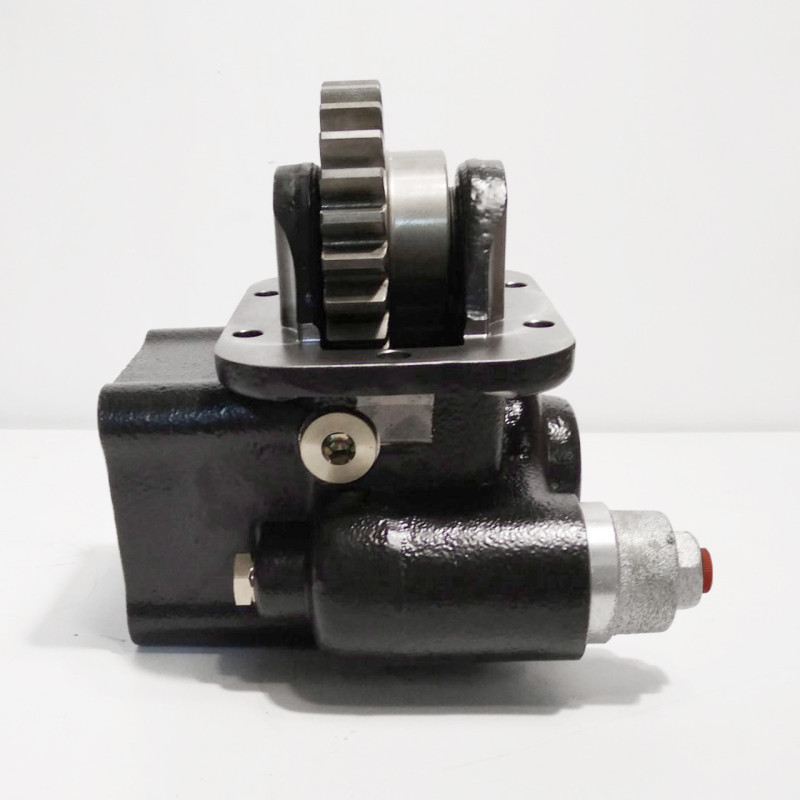

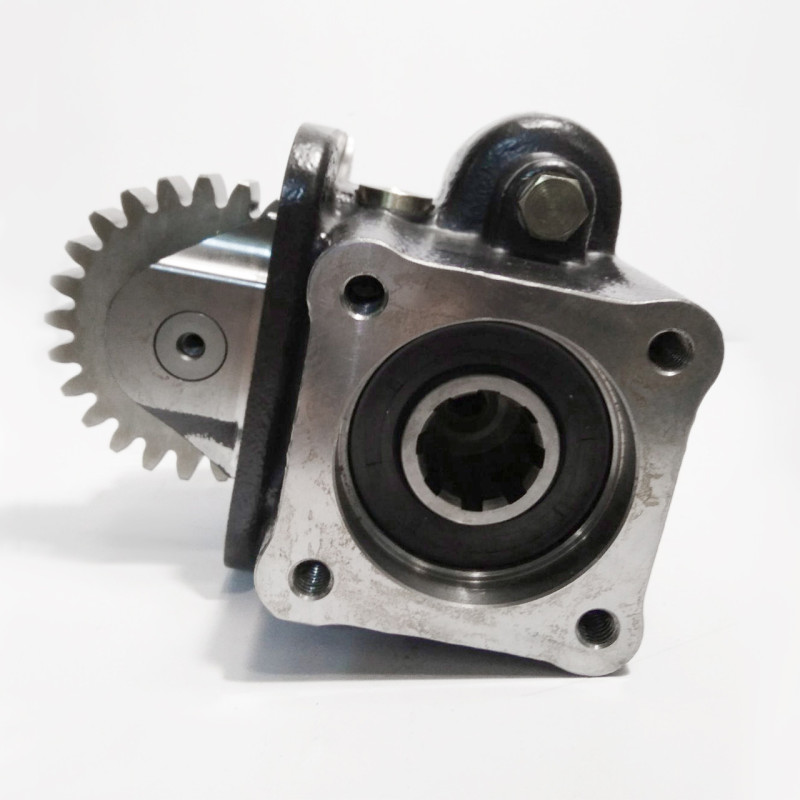

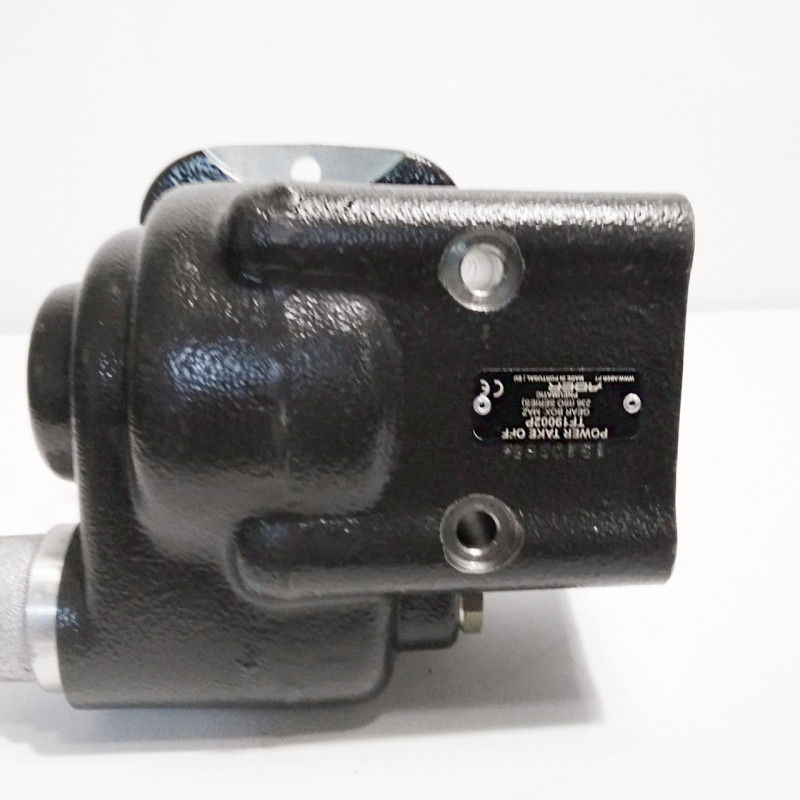

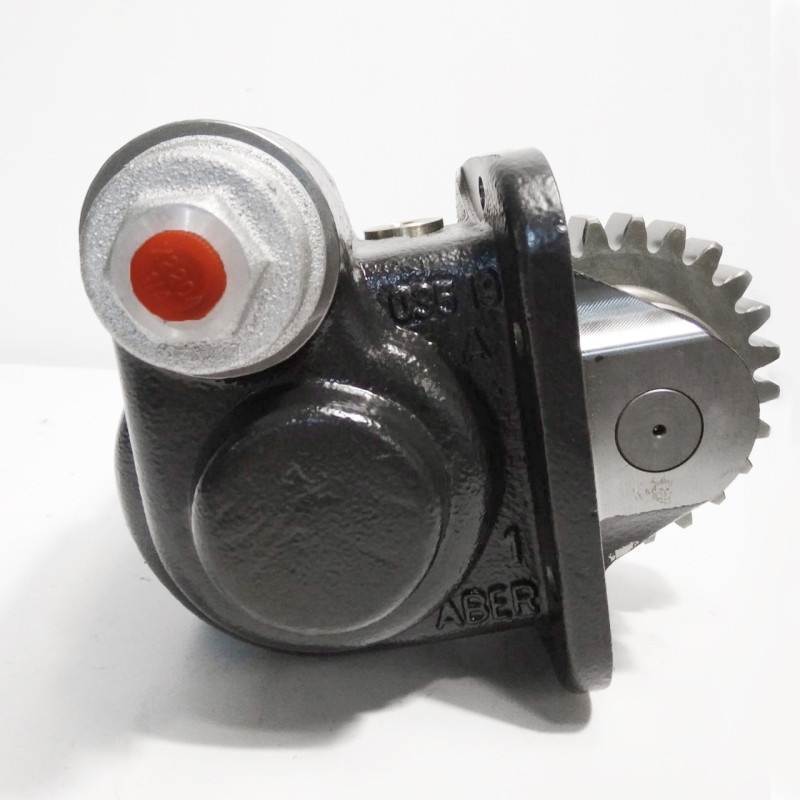

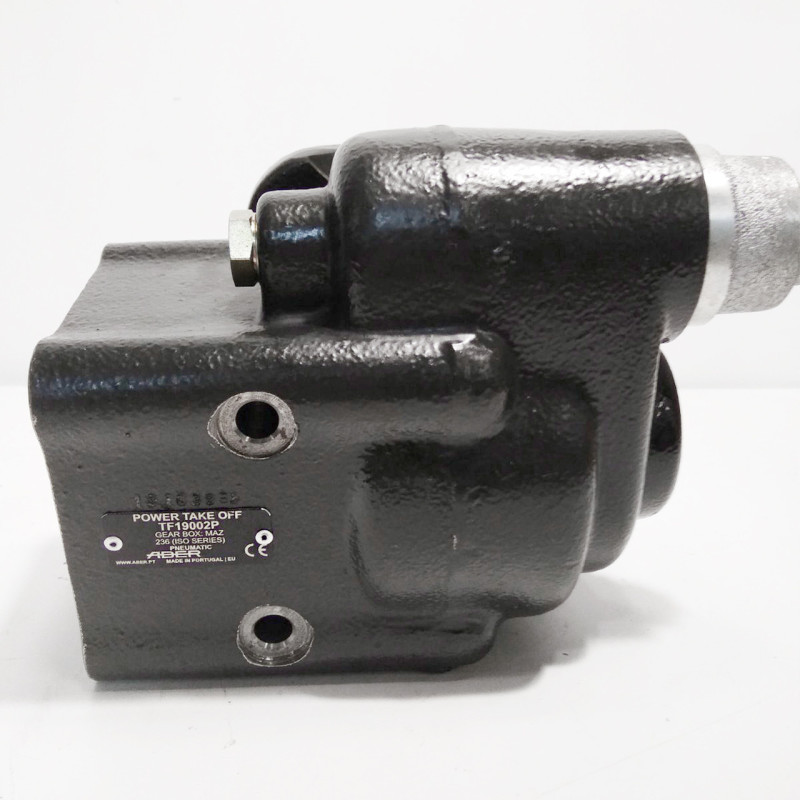

The Aber TF19002P Power Take-Off (PTO) is an ISO standard pneumatic device designed for installation on MAZ trucks with YaMZ (JMZ) 236/238 transmissions. This model from the renowned European manufacturer ABER Hydraulics S.A. (Portugal) is built for intensive operation in construction machinery, tank trucks, truck cranes, municipal vehicles, refuse trucks, dump trucks, tractors, and other heavy equipment. It draws power through the gearbox and transmits torque to the working components of the hydraulic system or hydraulic pump.
Product Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Auto Products > Power Take-Offs.
Purpose and Operating Characteristics
The Aber TF19002P is designed for reliable and long-lasting torque transmission under high loads. Installation is performed on the right side of the gearbox in accordance with the ISO 7653 mounting standard (4 bolts). Pneumatic control ensures quick connection and disconnection of the pump drive, making this PTO convenient for frequent cyclic operations.
About the Manufacturer
ABER Hydraulics S.A. (Portugal) is a leading global manufacturer of hydraulic components: piston and gear pumps, hydraulic motors, power take-offs, hydraulic power units, and oil tanks. The company is ISO 9001 certified and holds numerous patents and awards for innovation and product quality. The manufacturer guarantees compliance with European standards and high reliability of products in demanding operating conditions.
Technical Specifications
| Characteristic | Value |
|---|---|
| Product Code | TF19002P |
| Continuous Torque | 320 Nm |
| Intermittent Torque (Nm) | 400 Nm |
| Power (at 1000 rpm) | 48 HP / 35 kW |
| Control Type | Pneumatic |
| Mounting Position | Right Side |
| Pump Rotation | Left |
| Tooth Width | 42 mm |
| Gear Ratio | 1:1.32 Maz 236 — 1: 0.900 |
| Mounting Type | ISO 7653 |
| Weight | 9 kg |
A – Pneumatic connection; B – Pump rotation; C – Option: Electrically actuated sensor
Advantages of Aber TF19002P
- Reliable torque transmission for heavy equipment hydraulic systems, ensuring stable operation of units;
- Compliance with ISO standards and convenient mounting according to ISO 7653 (4 bolts);
- Pneumatic control, guaranteeing quick and safe pump connection/disconnection;
- High specific power at 1000 rpm — 48 HP / 35 kW and an intermittent torque reserve of up to 400 Nm;
- Compact design and low weight — 9 kg — simplify installation and maintenance on vehicles.
The Aber TF19002P PTO is an optimal solution for modernizing or repairing hydraulic systems based on MAZ with YaMZ 236/238 transmissions. It is suitable for commercial and industrial use where certified, proven, and reliable components from a European manufacturer are required. If you need a PTO with pneumatic control, left pump rotation, and right-side mounting — this model fully meets technical requirements and operational loads.
Other technical and operational questions, selection of compatible pumps or options (electric sensor C) can be clarified with supplier specialists or a service center. We recommend considering the nominal torques (continuous 320 Nm, intermittent 400 Nm) when selecting working components and the hydraulic system.
