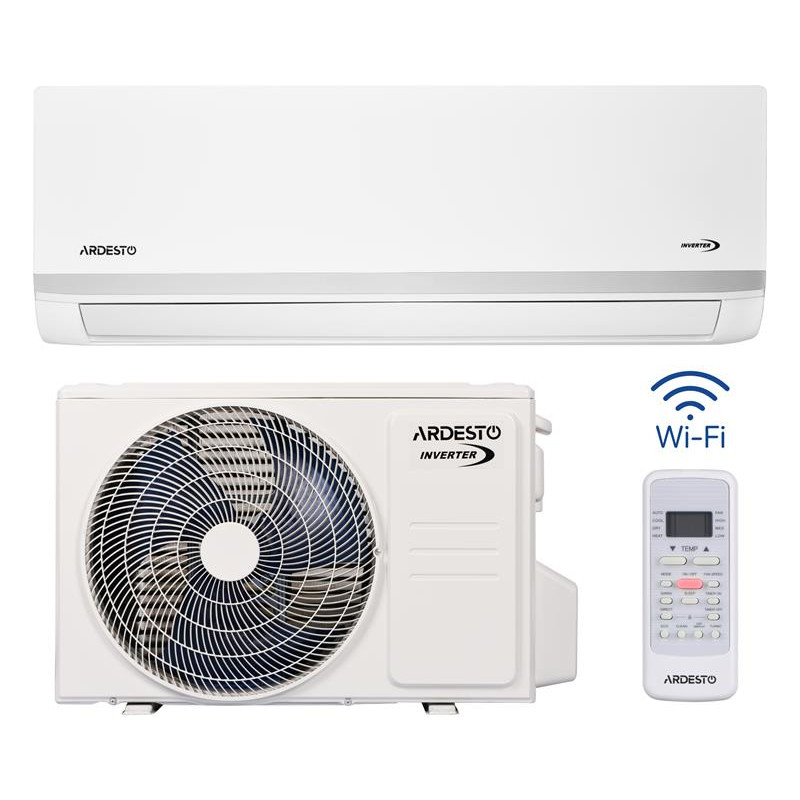

The energy-efficient ARDESTO inverter air conditioner will help create comfortable conditions at home or in the office both in summer and during cooler seasons (down to -15 °C). The package includes a remote control and a wireless communication module, allowing remote control of the air conditioner via Wi-Fi.
Inverter compressor
While a conventional air conditioner periodically turns its compressor on and off to reach or maintain a set temperature, an inverter air conditioner adjusts its performance according to needs. This achieves a lower noise level (21 dB) and ensures energy efficiency, as the air conditioner operates at the required power, not maximum.
Energy-efficient heating/cooling
The energy efficiency of an air conditioner is determined by how many times its cooling capacity exceeds its power consumption. Electricity consumption depends on the outdoor temperature: the lower it is, the more kilowatts the device will need. For example, at -7 °C, it consumes 4.335 kW, and at +7 °C – 1.820 kW. In standby mode, the device consumes only 3 W. Cooling capacity is 24,000 BTU/h, and heating capacity is 25,000 BTU/h.
Operation at -15 °C
Among the important advantages of the ARDESTO inverter air conditioner is its ability to heat at low temperatures, so you can safely use the device in winter at -15 °C (limit). The indoor unit's noise level is also lower than that of conventional air conditioners (21 dB), as maintaining a comfortable temperature does not require constant compressor on/off cycles, which also extends its lifespan.
R32 refrigerant for greater energy efficiency
The air conditioner operates on R32 refrigerant – a modern, energy-efficient, and environmentally safe freon. In addition, it features high cooling performance with minimal consumption.
Modes and functions
Configurable modes and special functions help optimize the air conditioner's operation for user needs. There are four main operating modes: Dehumidification, Fan, Cooling, Heating. In addition, there are advanced functions, including: air flow direction adjustment, louver rotation capability (horizontal, vertical), Eco energy-saving mode, Sleep, Turbo, Clean functions, and, of course, a timer.
Control via remote or remotely
In addition to the standard remote control, the air conditioner can be controlled remotely. To do this, connect the Wi-Fi module to the indoor unit, download the Nethome Plus app (compatible with iOS and Android), and perform the necessary settings. This will not cause difficulties, as the package includes detailed instructions. After installing the application, interesting functions will become available, including "Share Access," which allows multiple users to control the air conditioner simultaneously, and "Check" for a simple check of the air conditioner's operating parameters.
TECHNICAL SPECIFICATIONS
Recommended area: 70 m²
Control: remote control + Wi-Fi
Cooling
Maximum power: 7.0 kW
Energy efficiency class: A++
Cooling capacity: 24000 BTU/h
Seasonal energy efficiency: 6.4
Heating
Maximum power: 4.9 kW
Energy efficiency class: A+
Heating capacity: 25000 BTU/h
Seasonal energy efficiency: 4.0
Operating temperature range limit: -15 °C.. +50 °C
Power consumption
Electricity consumption depending on outdoor temperature:
at T= -7 °C, 4.335 kW
at T= 2 °C, 2.732 kW
at T= 7 °C, 1.820 kW
at T= 12 °C, 2.184 kW
Off: 3 W
Standby mode: 3 W
Rated power: 3.7 kW
Indoor unit noise level: 21 … 46 dB
Outdoor unit noise level: 60 dB
Outdoor unit dimensions: 955x342x673 mm
Outdoor unit weight: 43.9 kg
Indoor unit dimensions: 1083x336x244 mm
Indoor unit weight: 13.6 kg
Refrigerant: R32
Refrigerant weight: 1.45 kg
| Indoor unit | ACM-24INV-R32-WF/IN | ||
| Outdoor unit | ACM-24INV-R32-WF/OUT | ||
| Power supply | V/Ph/Hz | 220-240~/1/50 | |
| Cooling | Power consumption | W | 2402 (420-3200) |
| Rated capacity | BTU/h | 24000 | |
| Rated current consumption | A | 10.5 (1.8~13.9) | |
| Energy efficiency SEER (class) | W/W | 2.91 | |
| Heating | Power consumption | W | 2130 (300-3100) |
| Rated capacity | BTU/h | 25000 | |
| Rated current consumption | A | 9.3 (1.3~13.5) | |
| Energy efficiency SCOP (class) | W/W | 3.44 | |
| Maximum power consumption | W | 3700 | |
| Maximum current consumption | A | 19 | |
| Indoor unit noise level (Hi/Mi/Lo/Si) | dB(A) | 46/37/34.5/21 | |
| Indoor unit | Dimensions (L*H*D) | mm | 1083x336x244 |
| Packaged dimensions (L*H*D) | mm | 1155x415x315 | |
| Net / Gross weight | kg | 13.6/17.3 | |
| Outdoor unit noise level | dB(A) | 60 | |
| Outdoor unit | Dimensions (L*H*D) | mm | 955x342x673 |
| Packaged dimensions (L*H*D) | mm | 995x398x740 | |
| Net / Gross weight | kg | 43.9/46.9 | |
| Refrigerant type / weight | grams | R32/1450 | |
| Refrigerant connecting pipes | Liquid / Gas | mm (inch) | 9.52/15.9(3/8"/5/8") |
| Maximum line length | m | 50 | |
| Maximum height difference | m | 25 | |
| Operating temperature range (cooling / heating) | °C | from -15 to 50/from -15 to 24 | |
