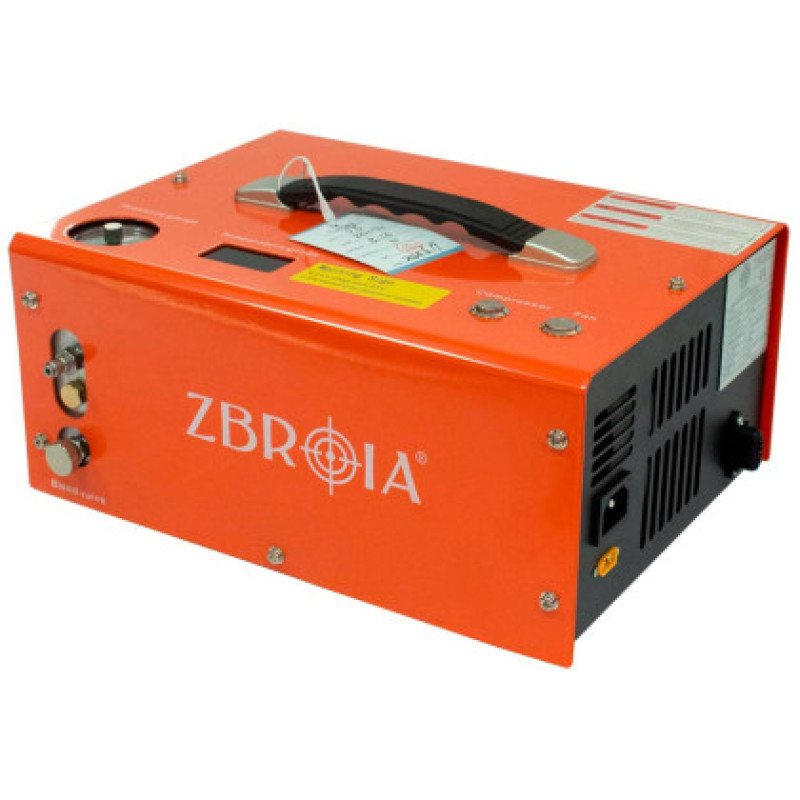

ZBROIA Portair S PCP 300 Bar High-Pressure Compressor (12v/110v/220v) with Auto-Shutoff
High-pressure compressors from ZBROIA are specifically designed for efficient and safe filling of PCP airgun cylinders and other high-pressure reservoirs. The ZBROIA Portair S Compressor PCP model allows compressed air to be pumped into reservoirs up to 0.5 liters in volume, reaching an operating pressure of up to 300 Bar (4500 psi / 30 MPa). Thanks to its compact dimensions and light weight, the compressor is convenient for transportation and use in the field.
Features and Power Supply
The device operates from both 220V (50Hz) / 110V (60Hz) mains and a 12V car battery via terminal connections, making it versatile for use both in and out of the workshop. The auto-shutoff mode protects the equipment from overheating and overloads.
Specifications:
- Voltage: 220V (50Hz) / 110V (60Hz) / 12V.
- Power: 350 W.
- Operating Current: 25 A.
- Maximum Pressure: 300 Bar (4500 psi / 30 MPa).
- Filling Speed: approximately 21 minutes from 0 to 300 Bar for a 500 cm³ (0.5 L) reservoir.
- Cooling: forced air cooling with built-in fan.
- Overheat Protection: automatic shutdown after 30 minutes of continuous operation to prevent overloads.
Technical Parameters and Materials:
- Brand: ZBROIA®.
- Weight: 7 kg.
- Dimensions: 270x205x160 mm.
- Material: metal; polymer.
- Type: Compressor.
- Category: Filling Stations.
- Model: Portair S PCP Compressor.
- SKU: ZYD12AHS.
- Country of Manufacture: China.
Package Contents:
- High-pressure hose;
- Air filter;

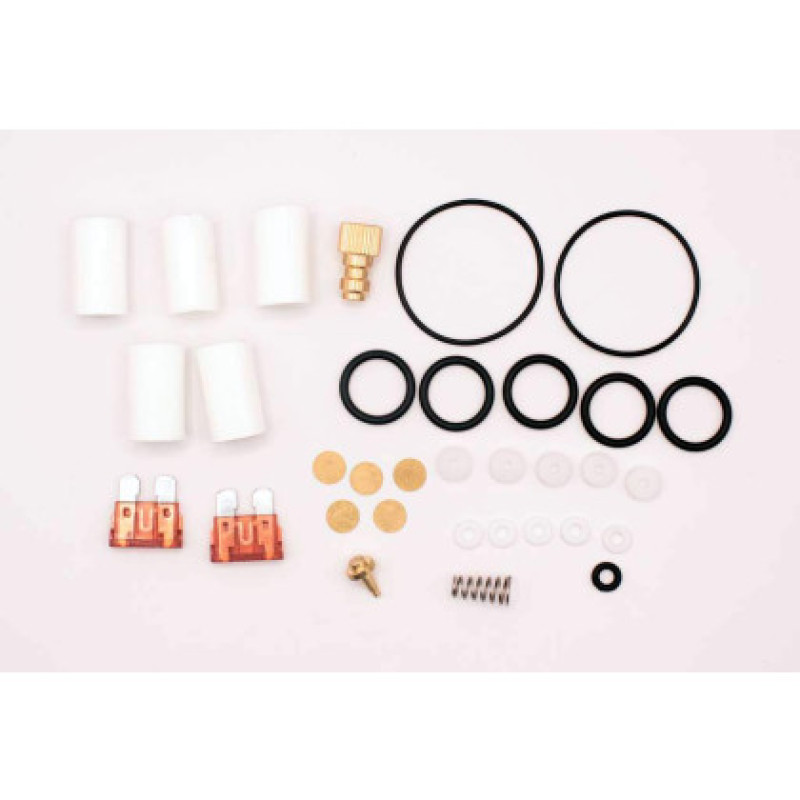

- Spare parts kit (set of O-rings, replacement filters, etc.);
- Power cable for mains connection;
- Cables with terminals for car battery connection;
- User manual.
Filling Process:

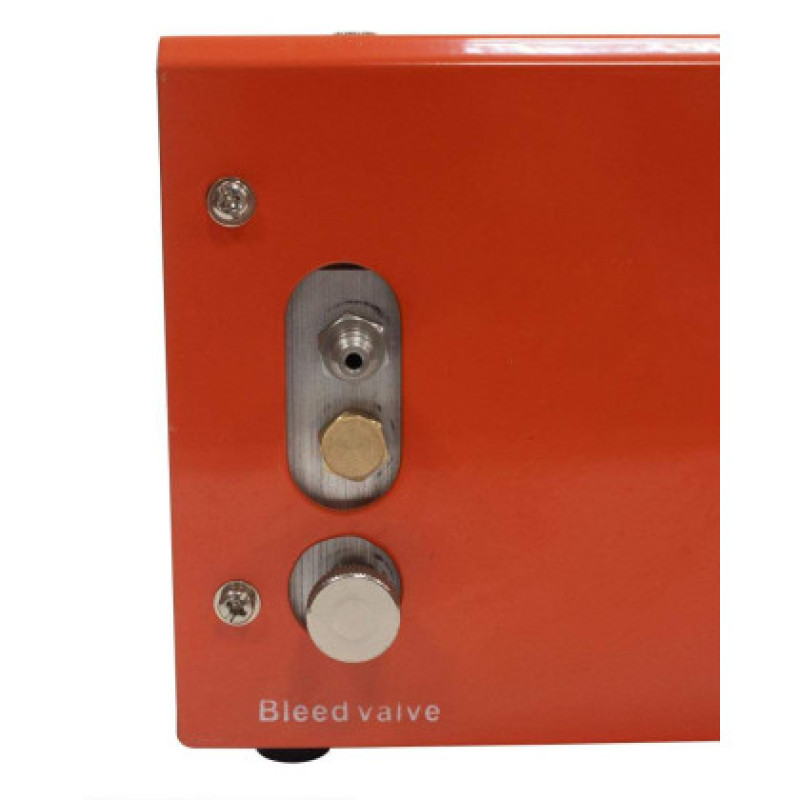

- 1. Connect the reservoir to the compressor using the high-pressure hose with filter, open the air valve on the filter.
- 2. Turn on the compressor and close the air valve.
- 3. The compressor will begin to pump air into the reservoir.
- 4. In case of overheating, turn off the compressor, release pressure from the system via the air valve, allow the compressor to cool down, and then resume filling.
- 5. After completion, release air from the system before disconnecting the reservoir.
During compressor operation, always monitor its temperature: if the temperature exceeds 80°C, immediately turn off the compressor and allow it to cool to approximately 40°C before restarting. Adhering to this rule extends the device's service life and ensures operator safety.
This compressor combines convenience, mobility, and reliability, making it an ideal choice for filling high-pressure reservoirs in various conditions — from a home workshop to field operations. Durable construction materials and an efficient cooling system guarantee stable operation under load, while the ability to power from 110V/220V and 12V ensures versatility of application.
