4-camera video surveillance kit for a private house

Ready-made 4-camera video surveillance kits in one box

GreenVision video surveillance kits are an effective solution for security control of a private house, office, or dacha.

Buy a 4-camera video surveillance kit: why is it profitable?

1. The cost of the kit is 15-20% (depending on the model) lower than the total expenses if you decide to buy equipment for a video surveillance system separately.

2. 100% compatibility of all video surveillance elements included in the kit, which significantly saves you time searching for the necessary equipment.

3. Possibility of installing a video surveillance system with your own hands. The kit includes all materials and devices necessary for connection and installation.

4. Simple and intuitive video surveillance system settings, built into the recorder menu. The interface is available in several languages.

5. Free software events and applications for remote access. Software and updates can be downloaded from the official GreenVision website.

How to use 4-camera video surveillance systems?

Are four video surveillance cameras for a private house too few or too many? It all depends on the objects you plan to monitor.

One video surveillance camera from the kit should be installed to view the entrance to the yard: gates, wickets, garage entrance, etc.

One camera, if necessary, should be installed to monitor the backyard, outbuildings, etc.

If the house has a spare (second) exit, it is also recommended to install a video surveillance camera to control this area.

Another video surveillance camera can be installed:

• in a room where valuables are stored
• in the nursery, if there is a need to monitor the nanny's work
• in the corridor, if you need to control movement around the apartment
• or in any other place you want to keep under control

For self-installation, abbreviated and detailed equipment installation instructions are available. However, we strongly recommend contacting specialists for the installation of our equipment.

Functionality of video surveillance systems: DVR + 4 cameras

High image quality. GHD cameras included in the video surveillance kit have an image resolution of 5.0 MP. You can view videos and save images with a high degree of detail. The WDR (Wide Dynamic Range) function ensures stable shooting quality under various environmental conditions (bright light, shadow, fog, etc.).

Day and night shooting modes. The cameras are equipped with built-in infrared illumination with a range of 30m for operation in low light conditions. Day/night modes switch automatically. Powerful illumination provides additional object lighting and can be used as a light alarm.

Automatic motion detection. The cameras are equipped with a motion sensor that reacts to any changes in the camera's field of view. In the settings, you can set the automatic recording mode "by motion", which will simplify the search for the desired frame, as there will be no hours of video recordings in the archives where nothing happens. Accordingly, you can significantly save space on the hard drive. To prevent false alarms, for example, tree crowns swaying in the wind, you can adjust the sensitivity of motion detection in the settings, as well as exclude certain areas from its action zone.

The function of sending "motion-triggered" alarm messages allows you to promptly react to emergency situations, even if you are at a remote distance from the monitored object. For example, if a thief tries to break into an apartment, the system will send you a message when it detects motion near the front door. You can immediately call the police, security service, or take other security measures.

Reliable image archiving and the possibility of rational use of the hard drive. For image archiving in the video surveillance kit for an office (apartment, house, etc.), a hard drive is used (not included in the kit). Modern H.264, H.265 video compression codecs allow you to get a high-quality picture with rational use of free space on the hard drive.

A wide range of additional features of ready-made kits for video surveillance via the Internet includes:

• "red line" crossing control
• face recognition
• private zone settings
• remote access from mobile devices

How to install (upgrade) a video surveillance kit yourself

The equipment of the hybrid video surveillance kit for a dacha receives power and transmits signals via cable networks.

The kit includes detailed instructions for connecting and setting up turnkey video surveillance.

You can easily install the video surveillance kit yourself if you carefully read the technical documentation and follow the recommendations described in the instructions step by step.

Buying a 4-camera video surveillance kit provides for the prospect of further modernization of the video surveillance system without buying a DVR.

You can buy and connect more powerful GHD cameras with a resolution of up to 5MP and with wide intelligent capabilities to the DVR. This way you get a 4-camera video surveillance kit without additional costs.

GreenVision equipment is compatible with cameras and DVRs from other well-known brands by supporting all modern international communication protocols.

What is included in the budget video surveillance kit for a private house or office:

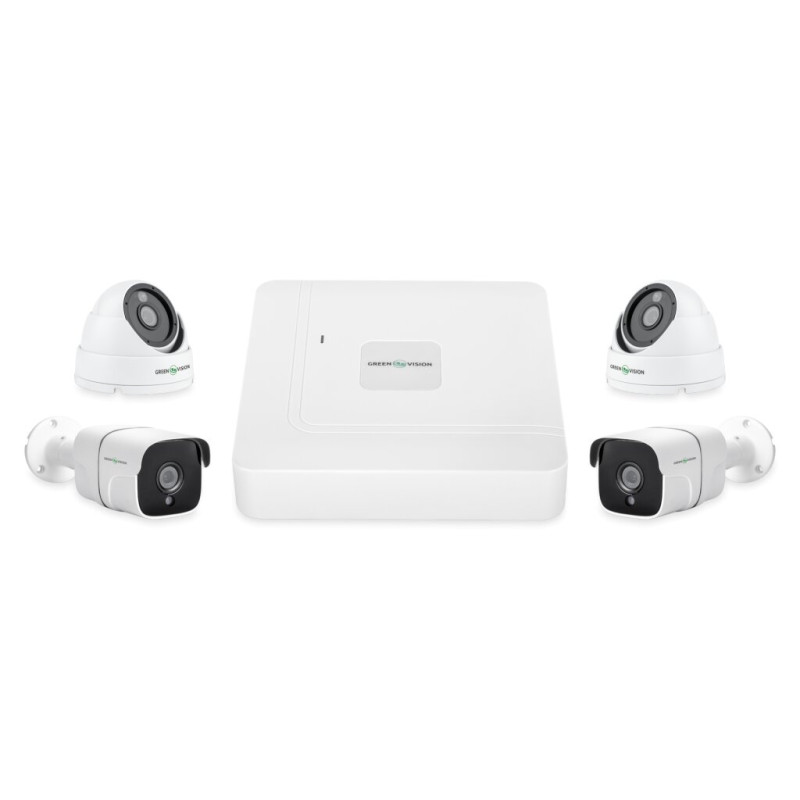

The GV-K-W66/4 5MP 4-camera indoor video surveillance kit includes:

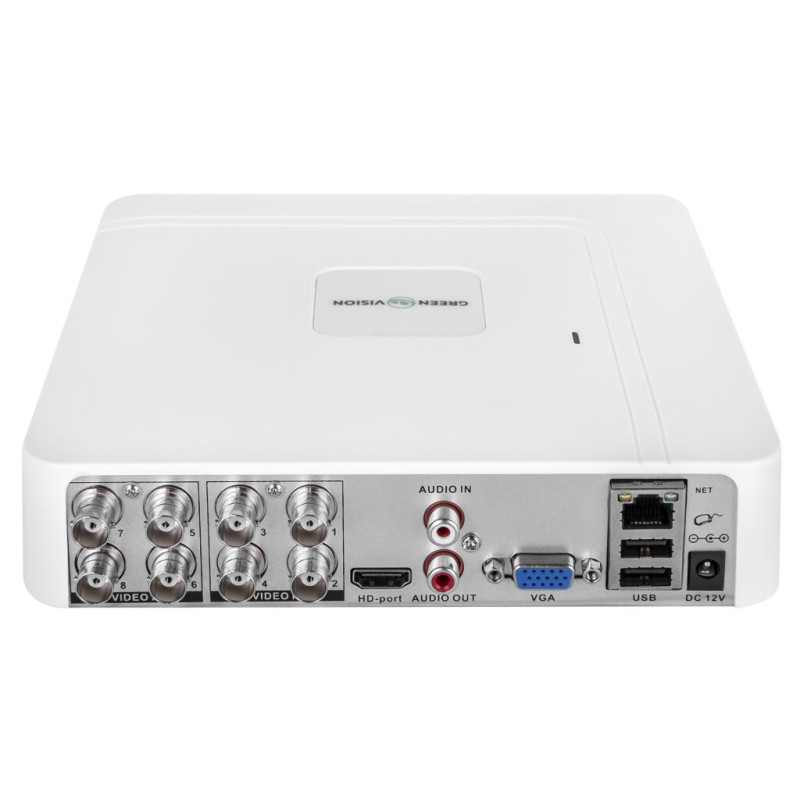

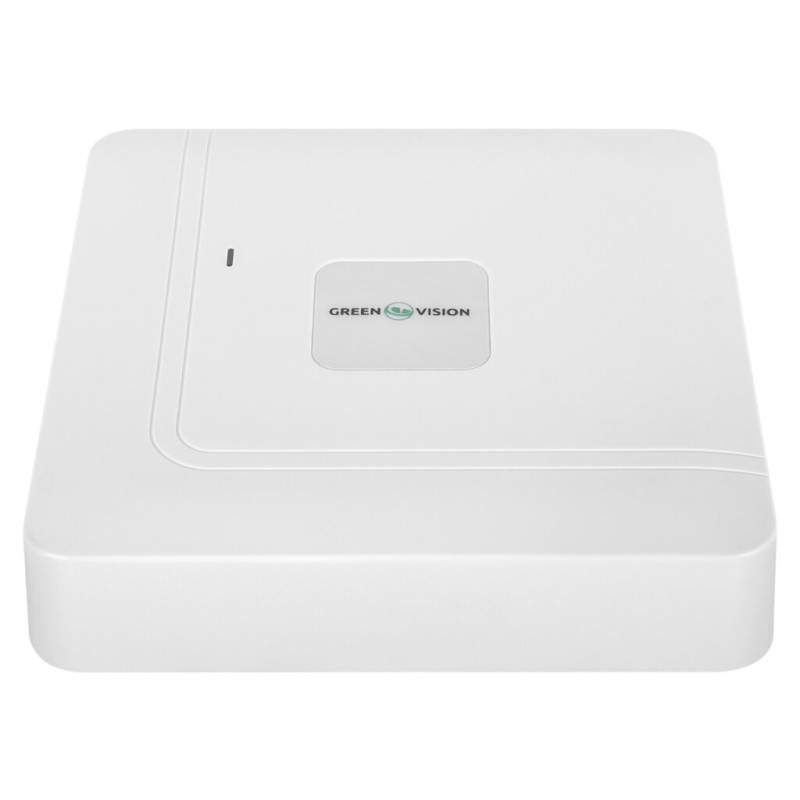

4-channel GHD DVR.

• Video outputs: VGA, HDMI (MAX 2K).
• Supports one HDD for storing information with a maximum volume of 8 TB.
• Compression codec – H.264, H.265.
• The kit also includes: power supply, mouse.

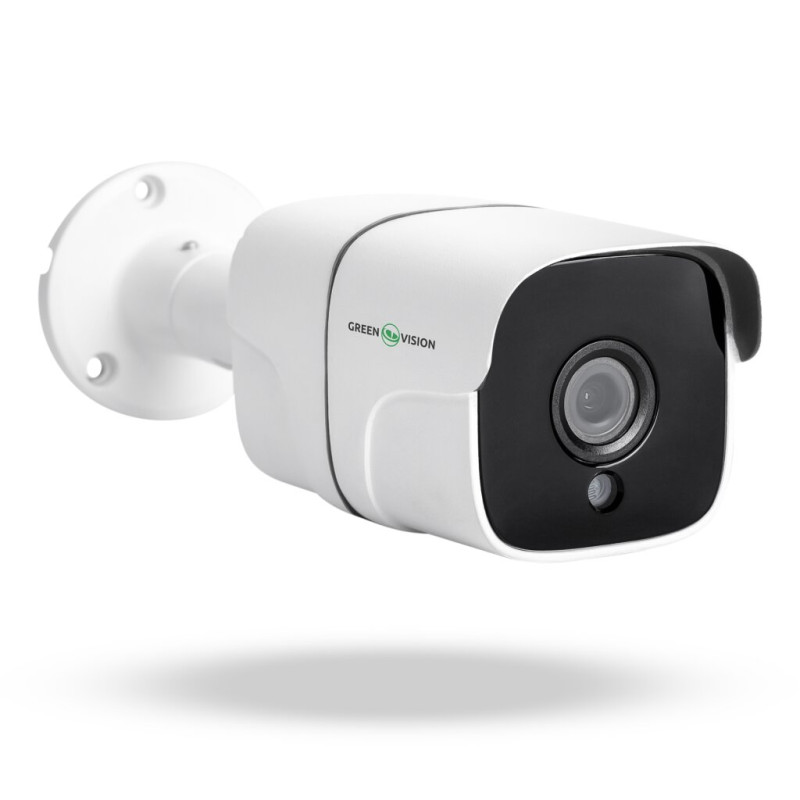

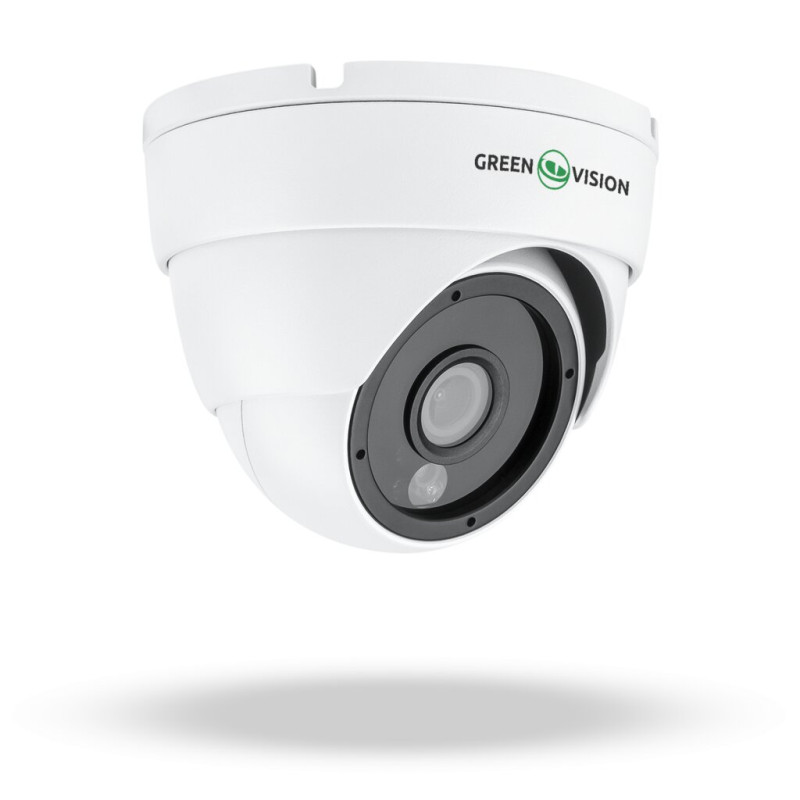

Four GHD video cameras for indoor surveillance (5.0 MP).

• Fixed-focus lens (3.6 mm).
• Infrared illumination with a range of 30 meters.

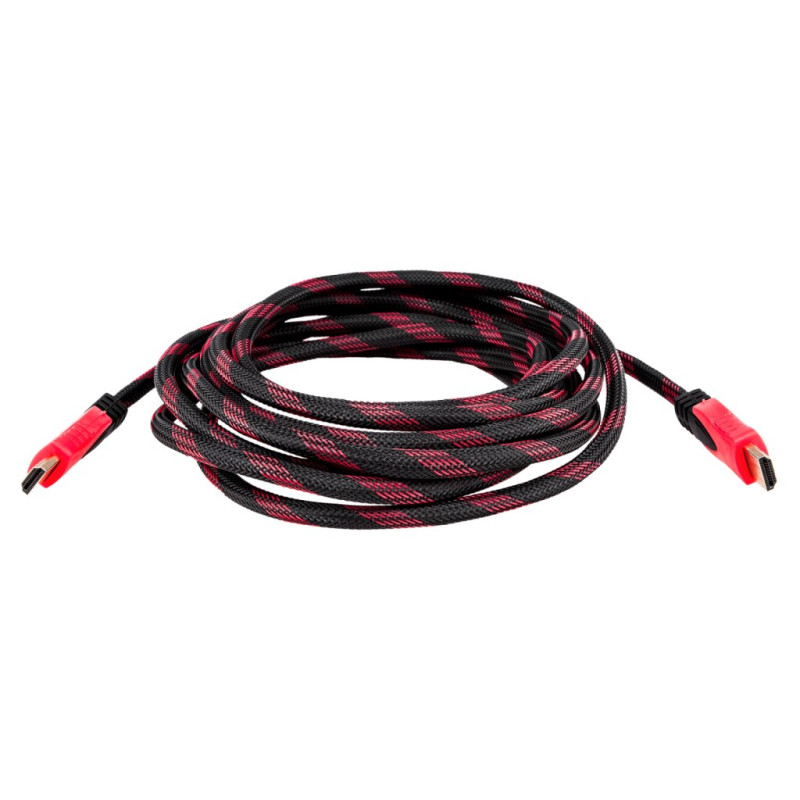

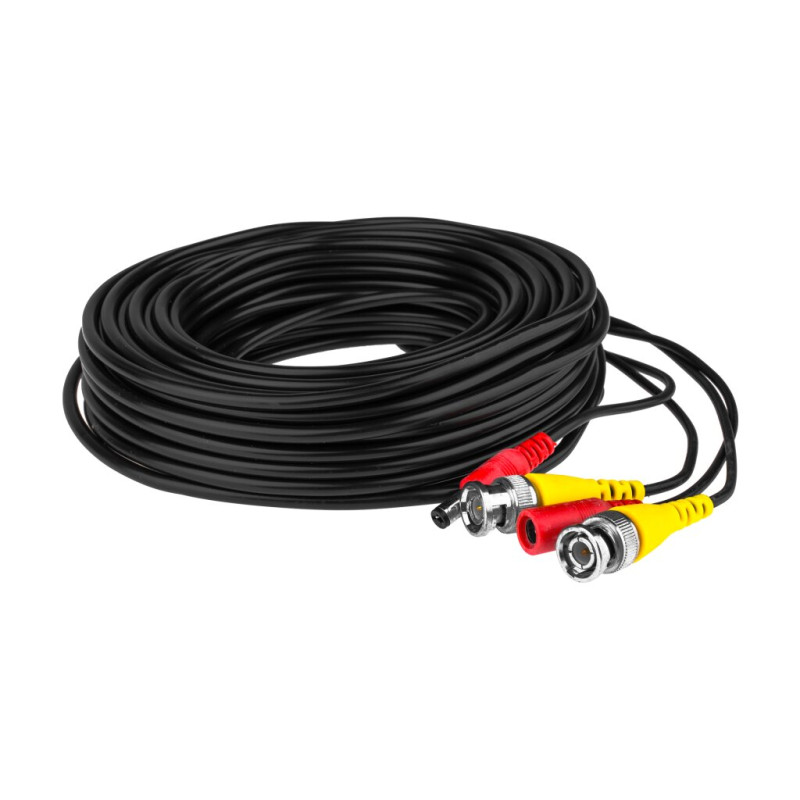

Connection materials: Cable 20 m – 2 pcs; Cable 30 m – 2 pcs; Power splitter – 1 pc; Power supply – 1 pc, HDMI cable

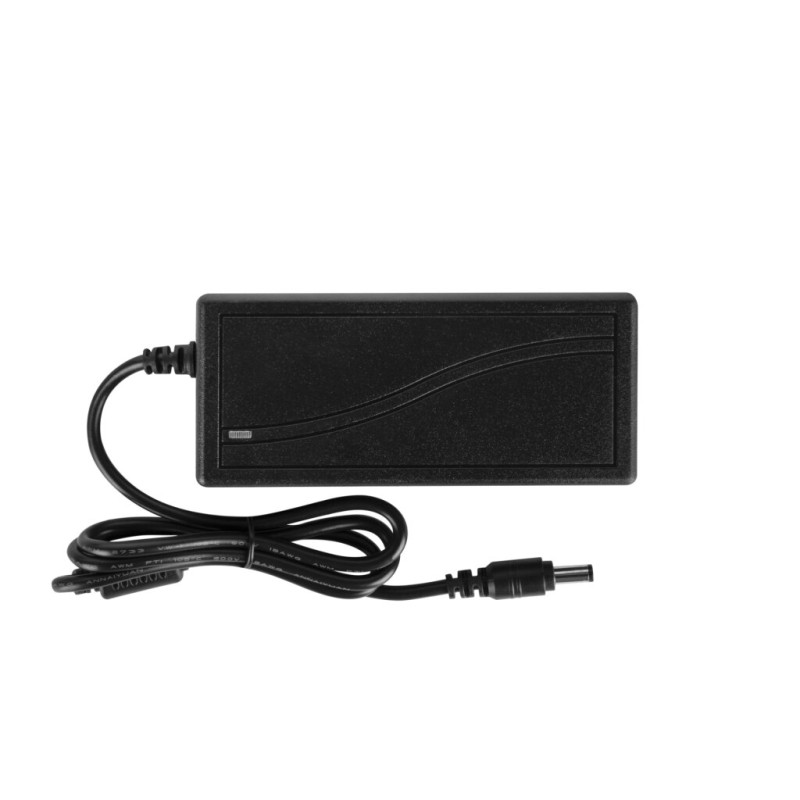

Power source: 12, 2000 V/mA.
